Light Archon Bulwark 125A Main Lug Load Center

Light Archon Bulwark main lug load centers handle subpanel and small-feed distribution at 125 A, from a compact 4-space outdoor box to a 20-space indoor panel with factory ground bar. All units are quote-first; the trade desk confirms the configuration and the feeder plan before release.

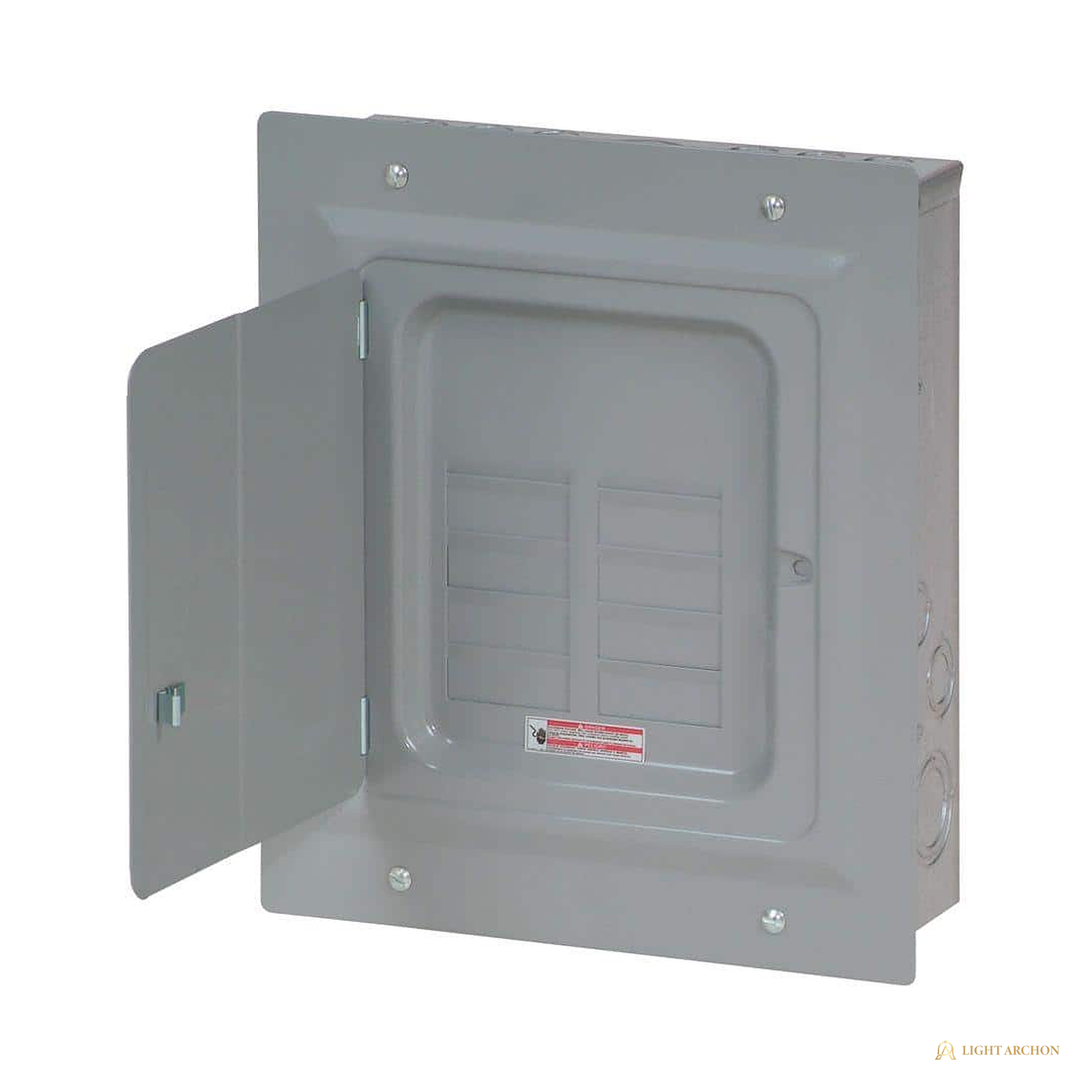

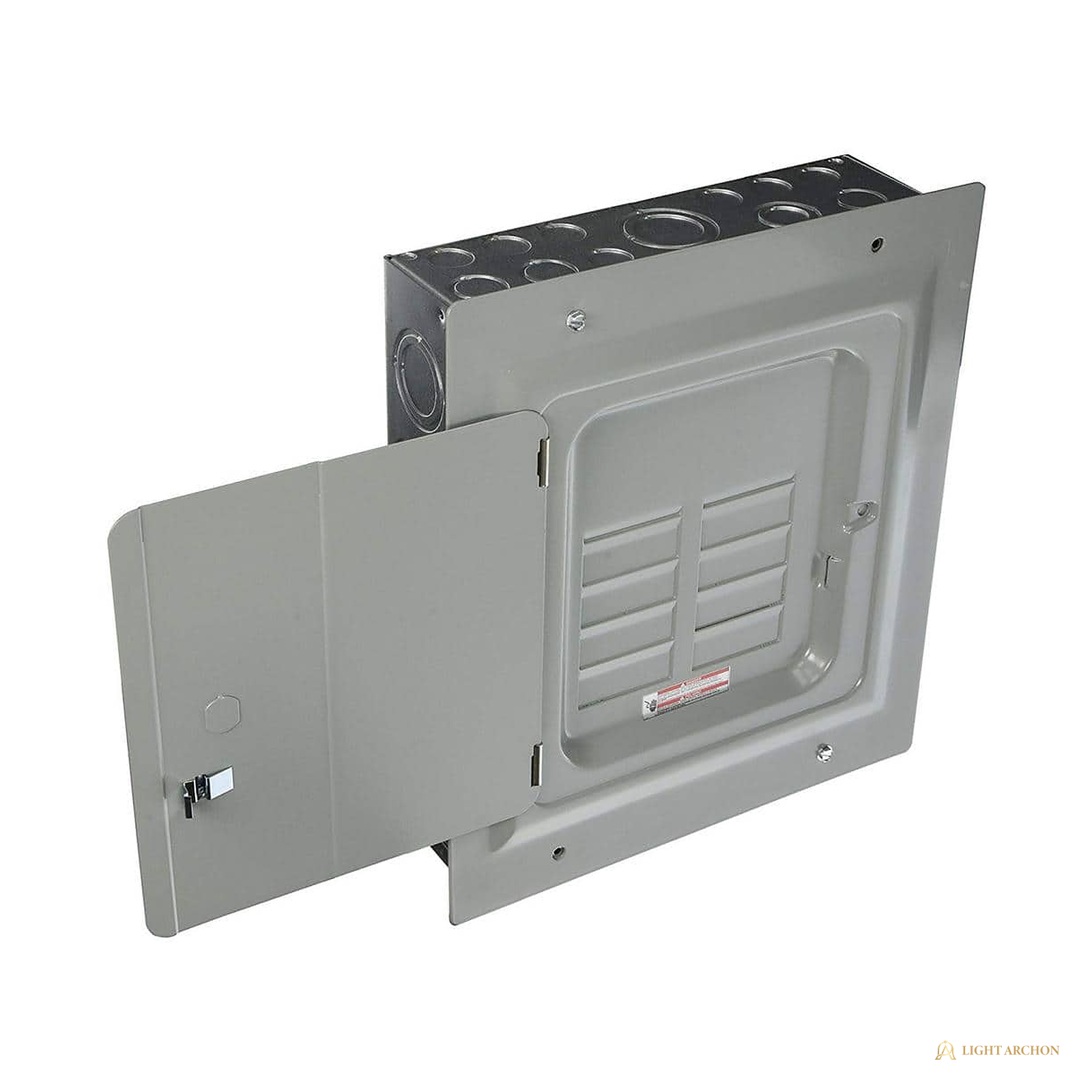

The aluminum bus is rated 125 A with a 10 kA interrupt rating on the verified indoor unit. Indoor units are NEMA 1; outdoor units carry a NEMA 3R cover. The 8-space indoor unit has a flush door with a drywall depth mark on the enclosure and a single keyhole mount at the top for fast leveling, plus a center knockout for conduit entry. A rigid one-piece plastic backpan seats the branch breakers solidly, and the 12-space contractor kit ships with two 20 A single-pole breakers to start the schedule.

Highlights

• 125 A main lug platform, 4 to 20 spaces
• Aluminum bus; plug-on neutral on the 20-space and 12-space units
• 10 kA interrupt rating on the verified indoor unit

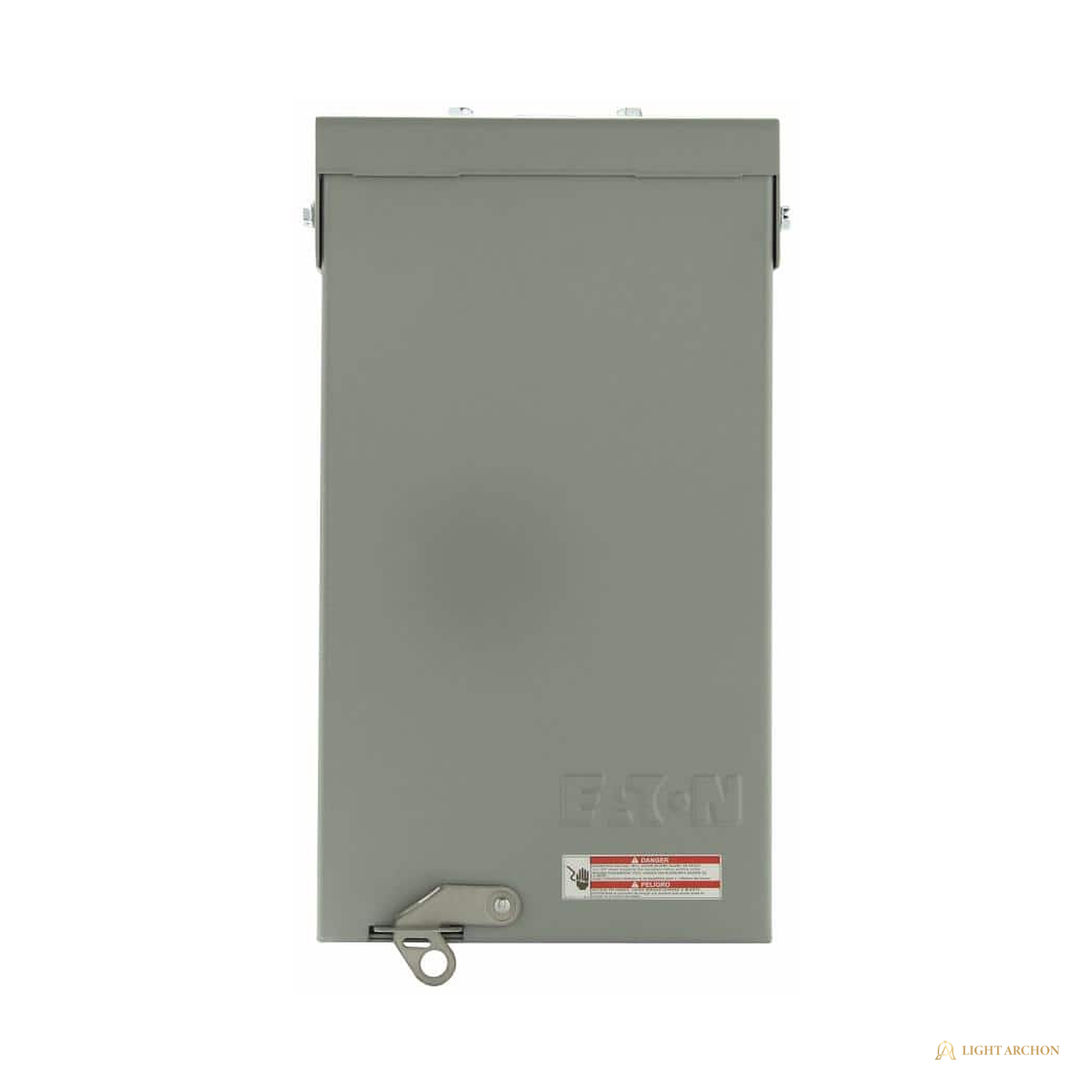

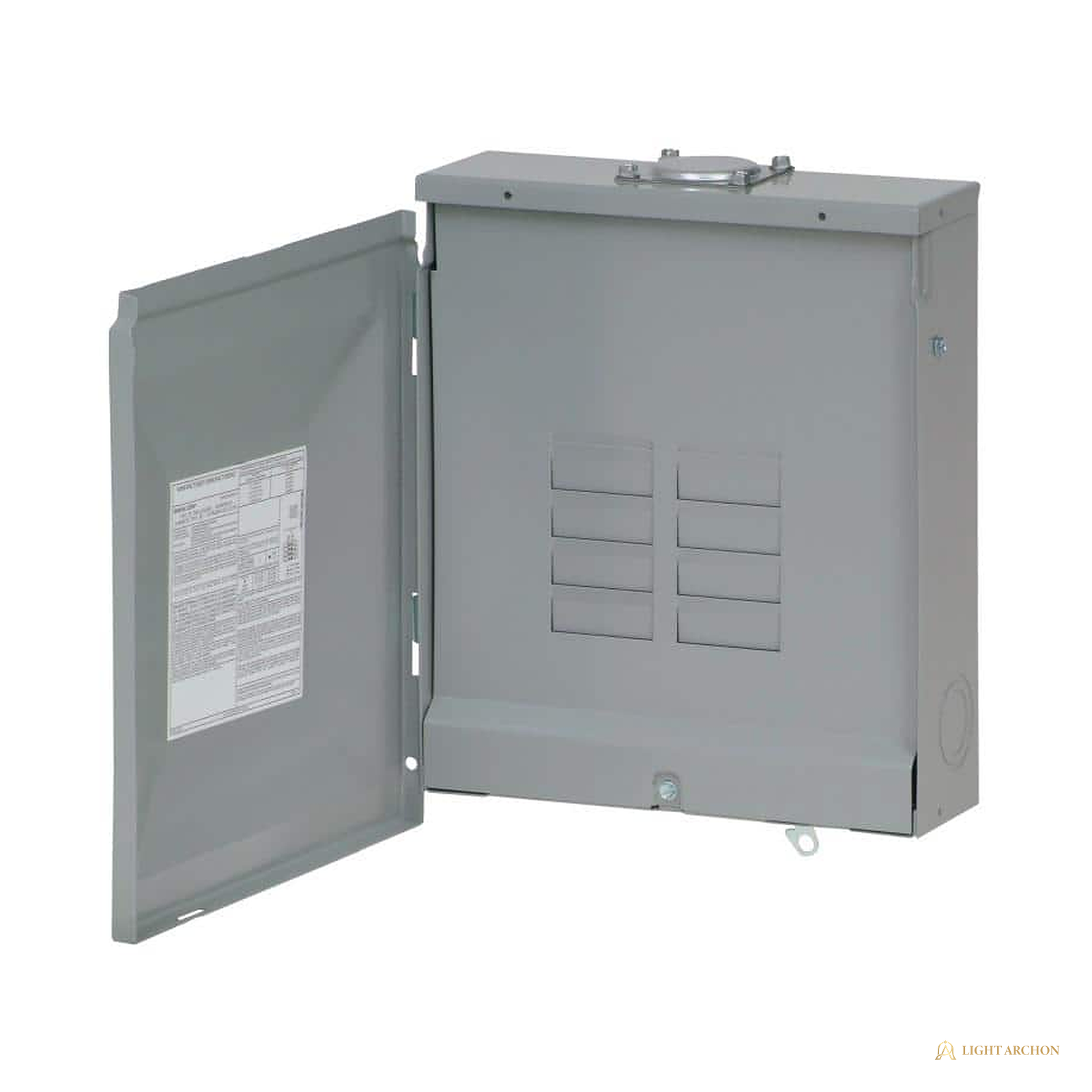

• NEMA 1 indoor and NEMA 3R outdoor configurations
• Flush door option with drywall depth mark for clean finish work
• Single keyhole top mount for fast leveling
• Center knockout for conduit entry

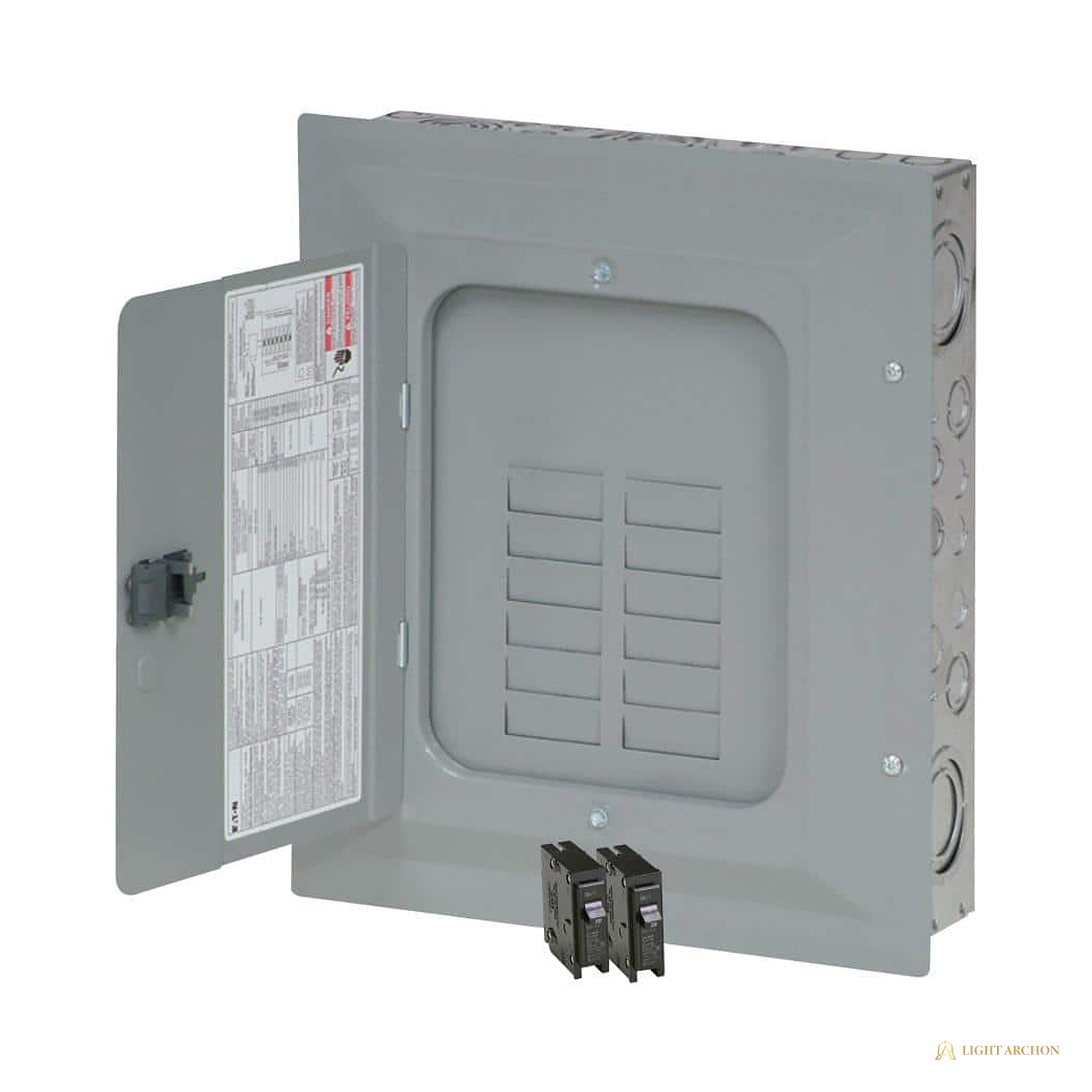

• Contractor kit configuration includes two 20 A single-pole breakers
• UL Listed

Specification Table

Included Components

• Enclosure with cover or flush door per configuration
• Factory ground bar on the 20-space configuration
• Two 20 A single-pole breakers with the 12-space contractor kit

Installation Notes

• Installed by a licensed electrician; typically fed from an upstream breaker as a subpanel
• Flush units use the drywall depth mark on the enclosure for finish depth
• Bond and ground per NEC; separate grounded and bond conductors in subpanel use
• Feeder conductors sized by the installer to the connected load
• Branch breaker schedule finalized at quote review

Warranty and Support

• Covered by the Light Archon limited trade warranty; term confirmed at quote review
• Submittal sheets and dimensional PDFs available for every configuration
• Support through the Light Archon trade desk

Frequently Asked Questions

What breakers does it accept?
Light Archon Aegis series 1 in. plug-on breakers. The schedule for your job is confirmed at quote review.

Is this a main panel or a subpanel?
It is a main lug platform, so there is no main device in the box. It is typically fed from an upstream breaker and used as a subpanel; your electrician sizes the feeder.

Flush or surface mount?
Per configuration. The 8-space indoor flush door unit is made for in-wall finish work and carries a drywall depth mark; outdoor units surface mount with a NEMA 3R cover.

Does it come with breakers?
The 12-space contractor kit includes two 20 A single-pole breakers. Other configurations ship as enclosure and cover only, with breakers quoted separately.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
