Light Archon CeilGuard Paintable Ceiling Box Cover
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

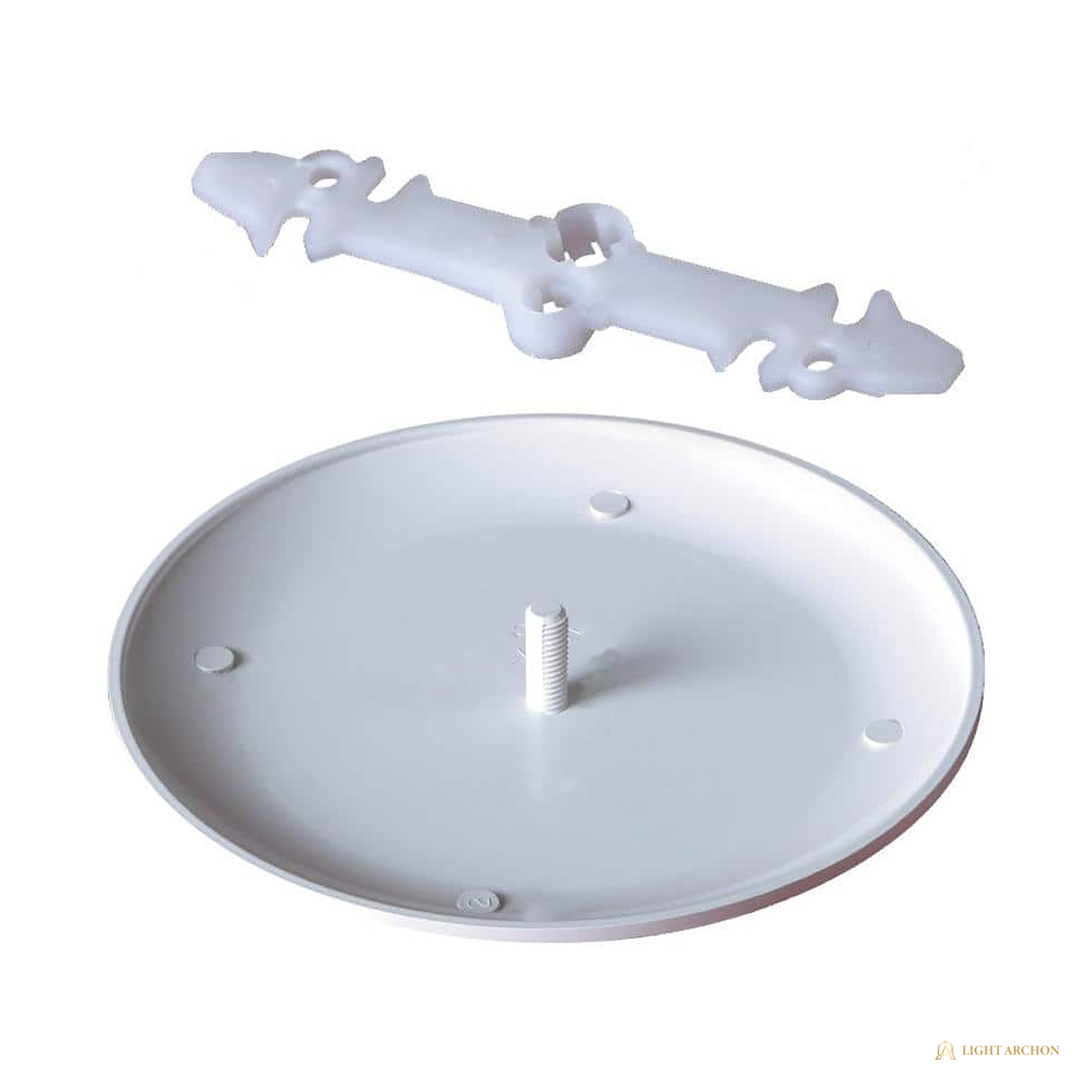

Light Archon CeilGuard is a paintable ceiling box cover that caps round ceiling boxes cleanly after fixture removal or on capped-off runs. The 5.39 in. face hides rough drywall cuts around the box.
The PVC face mounts two ways: a threaded post pushes on for flat ceilings, or the screw-on mode handles textured and uneven ceilings with the included #8 screws. Plastic will not rust or scratch like painted metal covers, and the face takes standard ceiling paint.
Highlights
- 5.39 in. face covers the box and rough cuts around it
- Push-on threaded post mode for flat ceilings
- Screw-on mode with included #8 screws for textured ceilings
- Paintable non-rust PVC face
- UL and CSA listed per the published listing
- Caps fixture-fed and capped-off ceiling boxes
Specification Table
| Material | PVC, paintable |
| Face size | 5.39 in. across |
| Profile | About 0.8 in. overall depth |
| Fits | Standard round and octagon ceiling boxes; confirm size at quote review |
| Mount modes | Push-on threaded post; screw-on with #8 screws |
| Hardware | #8 screws included |
| Listings | UL and CSA listed |
| Environment | Dry interior locations |
| Finish | Paintable face, ships ready to paint |
| Supply model | Quote-first; bulk counts welcome |
Included Components
- Cover face and mount bracket
- #8 screws
Installation Notes

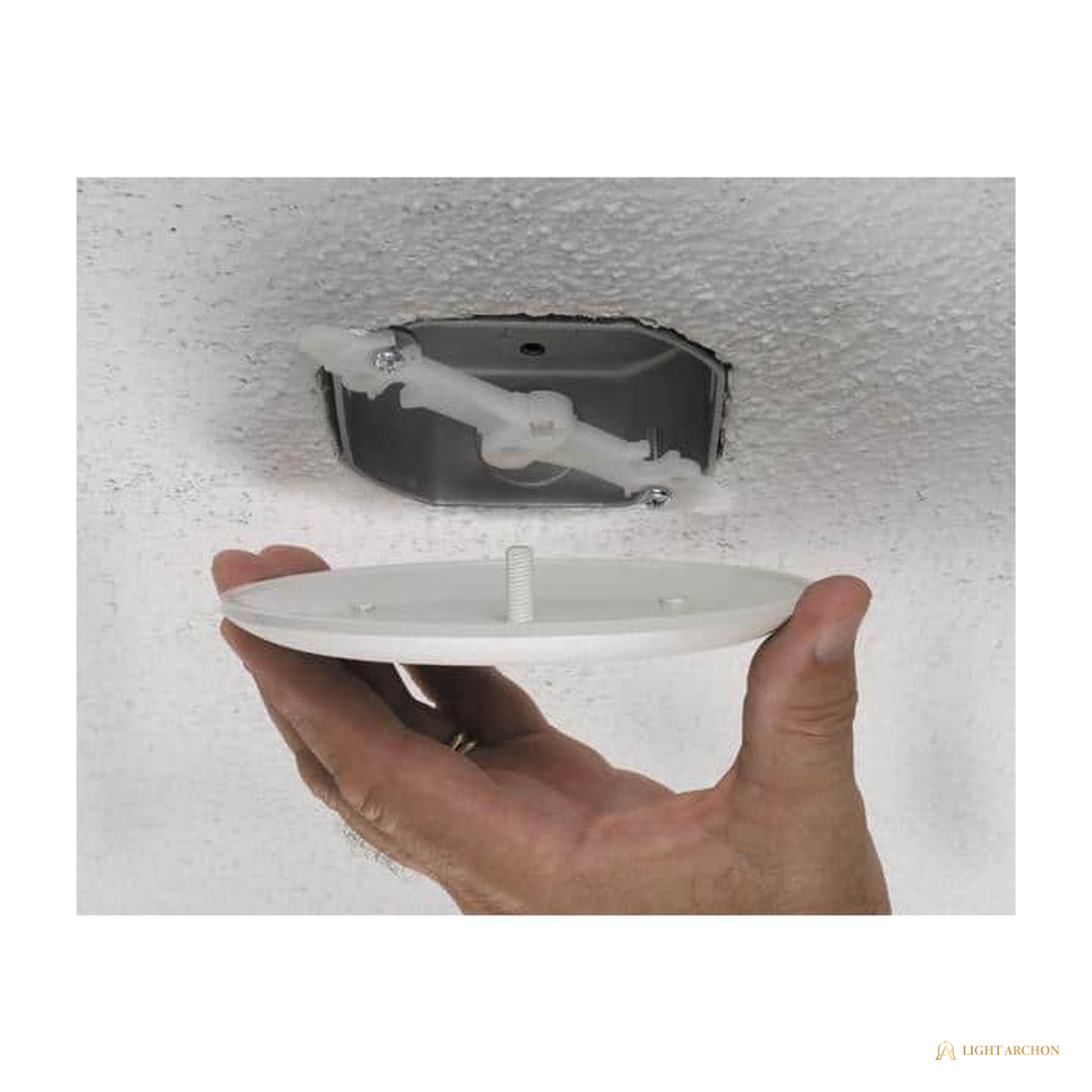

- Back out the existing box screws or use the included #8 screws to seat the notched bracket.
- Use the push-on post for flat ceilings; switch to screw-on mode over texture.
- The cover closes an accessible box; keep splices inside the box per NEC.
- Paint the face to match the ceiling after mounting.
Warranty and Support
- Backed by the Light Archon trade supply program; warranty terms are confirmed at quote review.
- Submittal sheets and takeoff review support are available from our electrical supply desk.
Frequently Asked Questions
What boxes does it fit?
Standard round and octagon ceiling boxes in common trade sizes. Confirm the box size on retrofit work at quote review.
Will it cover a bad drywall cut?
Yes. The 5.39 in. face is sized to hide rough cuts around the box.
Is it paintable?
Yes. The PVC face takes standard ceiling paint and will not rust.
Documents
- Type Box Cover
- SKU LA-LGT-BX-C5RD-CLGD
- Catalog Reference Installation & Warranty Reference (PDF)
- Spec PDF Open product spec summary
- Submittal PDF Open submittal reference
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
