Light Archon Cylindra 4.38 in. LED Cylinder Wall Sconce

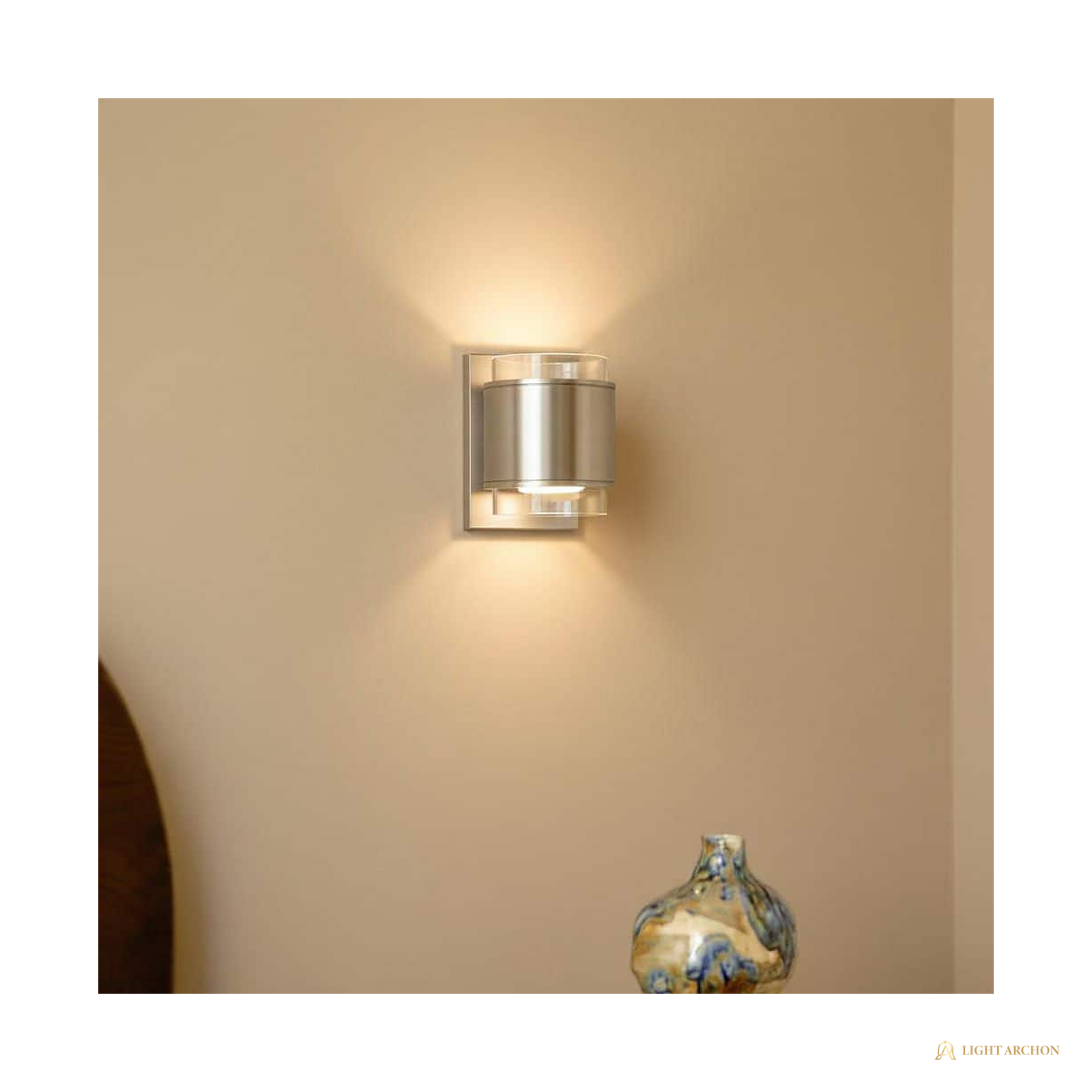

The Light Archon Cylindra is a compact LED cylinder sconce that lights both ways at once: 502 lumens of 3000K warm white split between an upward and a downward window of clear acrylic. The brushed nickel drum is just 4.38 in. wide with a 5.5 in. projection, sized for hallway rhythm runs, bedside walls, and tight stair landings where a full sconce would crowd.

The integrated LED platform draws 8.5 watts, holds 90 CRI for true wall and skin tones, and dims on common LED wall dimmers for evening scenes. Output stays useful rather than showy: the twin acrylic bands throw soft cones up and down that read as architectural accents on flat paint. It hangs on a 4.37 in. by 6.02 in. backplate over a standard wall J-box, mounted vertical so the cones track true. The platform is ETL listed and dry rated for interior walls. Hardware and instructions come in the carton. Submit the count on a quote list; a Light Archon specifier confirms dimmer pairs, freight, and lead time in one reply.

Highlights

• Bi-directional output: soft cones up and down the wall
• 502 lumens at 3000K warm white from 8.5 watts
• 90 CRI for honest wall and skin tones
• Compact 4.38 in. wide drum, 5.5 in. projection
• Dims on common LED wall dimmers
• ETL listed, dry rated interior platform
• Integrated LED, no lamps to stock
• Backplate 4.37 x 6.02 in. fits a standard wall J-box

Specification Table

Included Components

• LED cylinder sconce
• Backplate and mounting hardware
• Installation instructions

Installation Notes

• Hardwired to a 120V circuit; de-power at the panel before work
• Mounts vertical over a standard wall J-box on the 4.37 x 6.02 in. backplate
• Typical mount height 60 to 66 in. to center above finished floor
• Dry rated: keep to interior walls away from moisture zones
• For runs, hold one level line; the up-down cones make offsets obvious

Warranty and Support

• Limited platform warranty confirmed on the quote sheet
• Quote-first program: no public prices; submit the list for terms

Frequently Asked Questions

What does the Cylindra mount to?
A standard wall J-box. The 4.37 x 6.02 in. backplate covers the box with the drum mounted vertical so the up and down cones track the wall line.

How bright is it?
502 lumens total at 3000K warm white, split between the upper and lower acrylic bands. That is accent-and-path level, not task level.

Does it dim?
Yes, on common LED wall dimmers. Name the dimmer on your quote list and the desk validates the pair.

Is it listed?
Yes, the platform is ETL listed and dry rated for interior use.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
