Light Archon DraftPoint 29 in. LED Swing-Arm Desk Lamp, Black
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

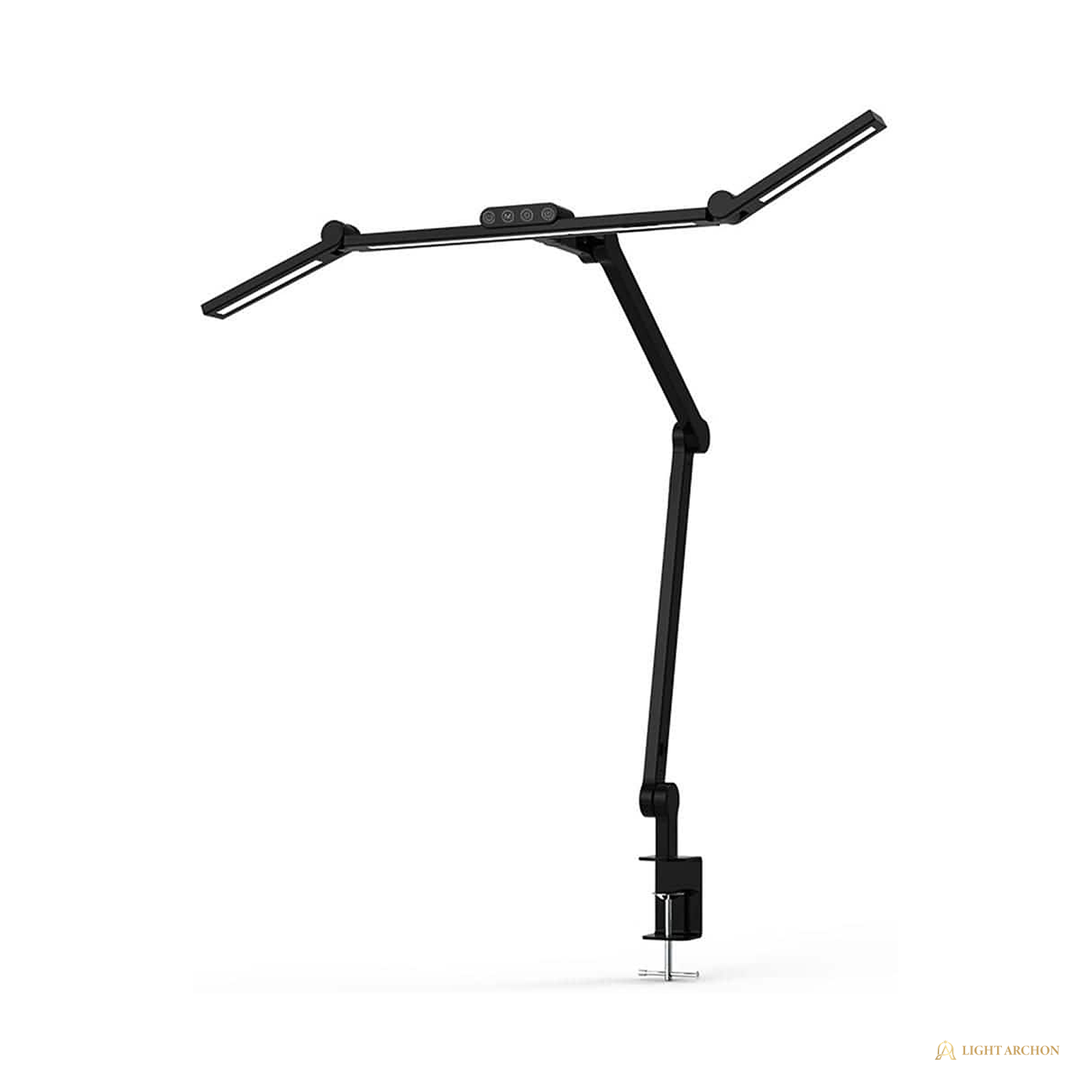

The Light Archon DraftPoint puts drafting-table light over a whole workstation: three LED heads on adjustable swing arms, 1700 lumens at full output, and an illumination span up to 80 in. wide per the published listing. It clamps to the desk edge, so the footprint on the work surface is zero.
Five color temperature presets run 3000K warm to 6500K daylight and five brightness levels dim the flicker-free array through its full range, all from touch controls that remember the last setting. CRI is 80, and the arms swing, tilt, and elevate to chase shadows out of detail work. Power is a plug-in supply feeding the lamp at 24V per the published listing. Quote-first: workstation counts and delivery are confirmed at quote review.
Highlights
- Three adjustable LED heads span up to 80 in. of work surface
- 1700 lumens at full output, CRI 80
- 3000K to 6500K in five presets; five brightness levels
- Flicker-free array for long sessions per the published listing
- Touch controls with last-setting memory
- Desk-edge clamp frees the work surface

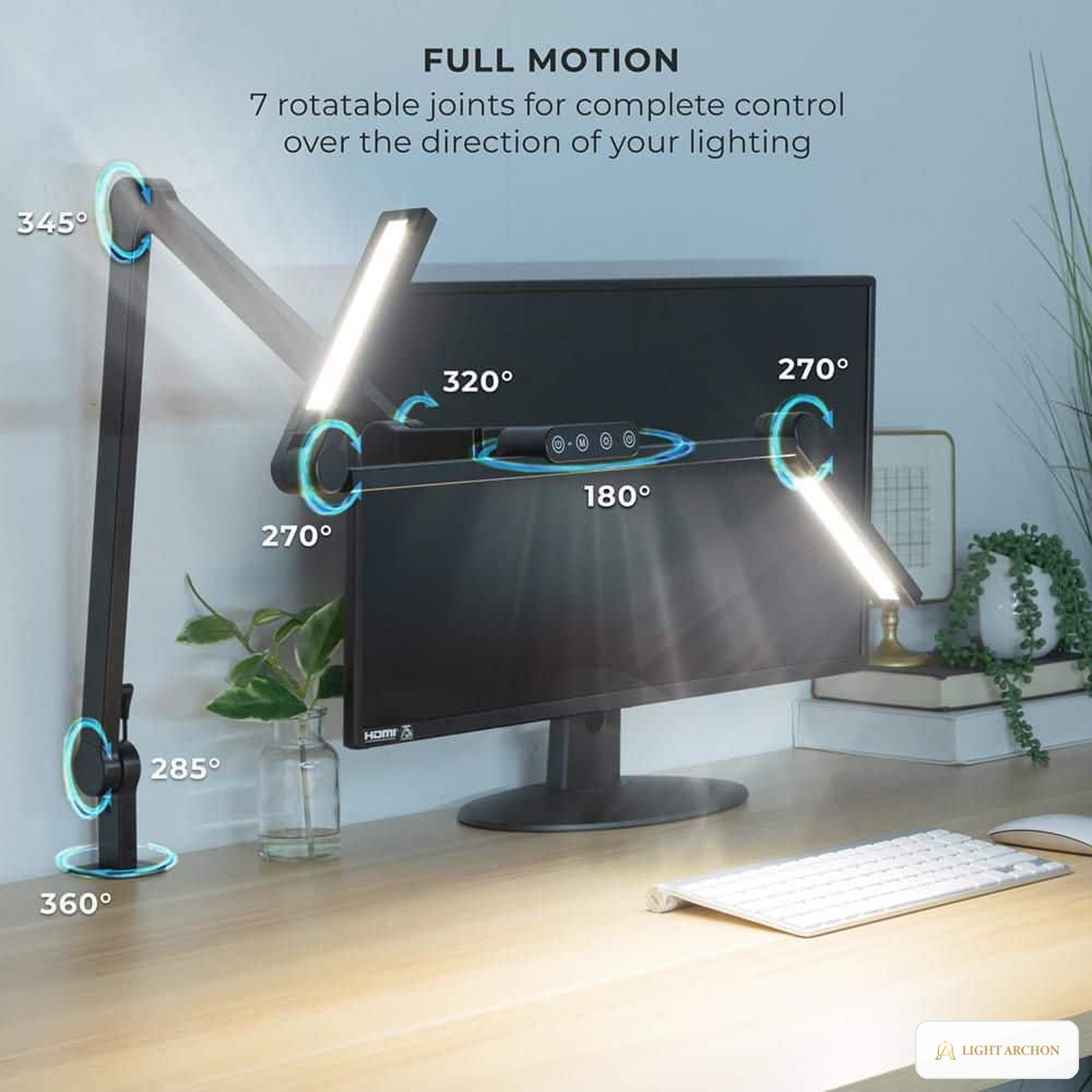

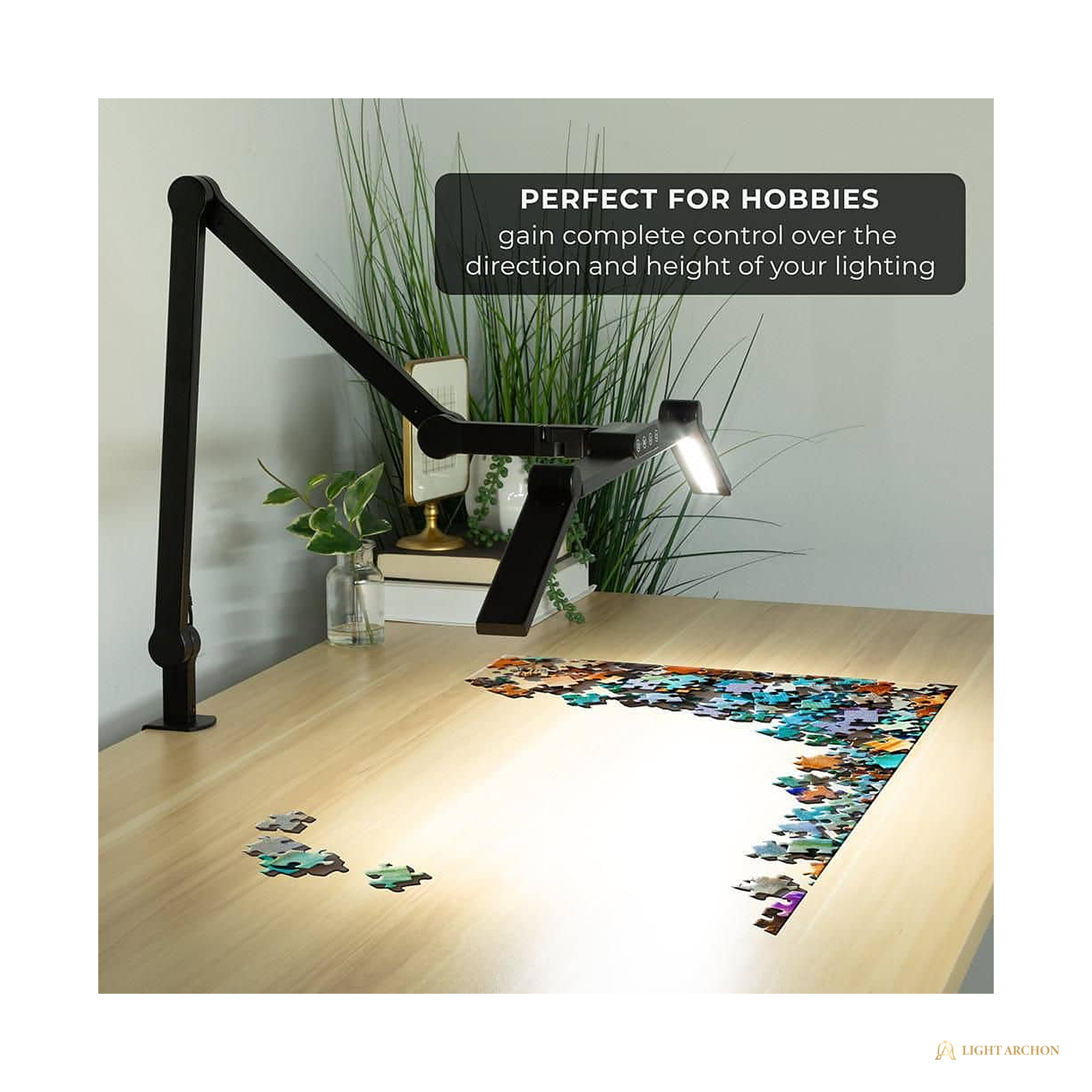

- Swing arms adjust reach, height, and head tilt
- Plug-in power with in-line supply; quote-first trade pricing
Specification Table
| Type | Swing-arm task and reading lamp |
| Light output | 1700 lumens at full output |
| Color temperature | 3000K-6500K, 5 presets |
| CRI | 80 |
| Dimming | 5 levels, full range, flicker-free |
| Controls | Touch with memory function |
| Heads | Three, on adjustable swing arms |
| Coverage | Up to 80 in. illumination span |
| Mount | Desk-edge clamp |

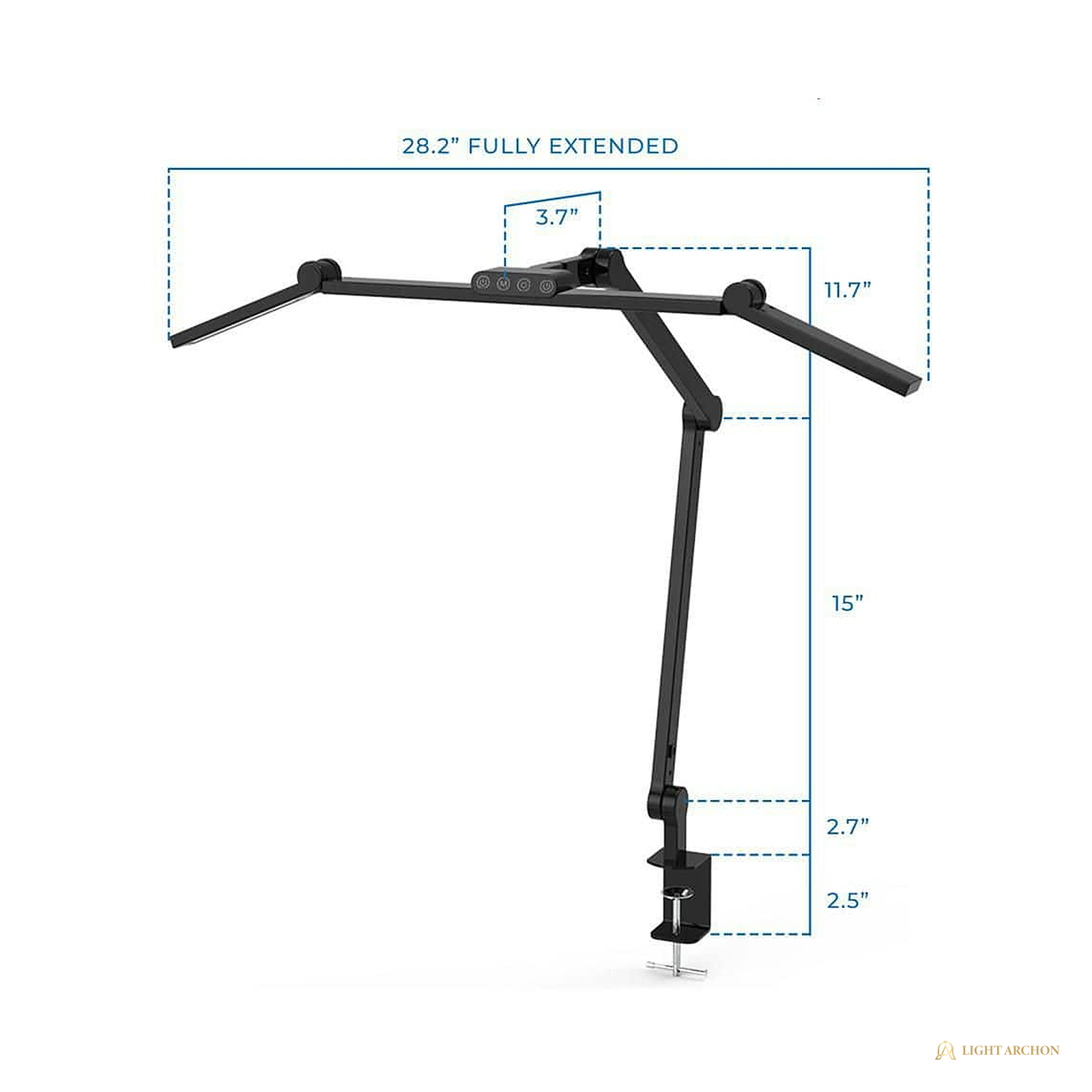

| Size | 28.2 W x 29.4 H x 3.7 D in. as configured |
| Finish | Black |
| Power | Plug-in, 24V lamp side |
| Location | Dry rated, indoor |
Included Components
- Three-head swing-arm lamp
- Desk-edge clamp and mounting hardware per the published listing
- In-line power supply
Installation Notes
- Clamp to a desk or table edge within the clamp's jaw range; no drilling or mounting bracket required.
- Route the supply cord clear of the arm swing before tightening.
- Wipe the heads with a dry cloth; no lamp replacement, the LED array is integrated.
- Interior dry locations only.
- Workstation counts and delivery staging are confirmed at quote review.
Warranty and Support
- Light Archon trade warranty terms confirmed at quote review
- Multi-desk and facility counts quoted through the trade desk
Frequently Asked Questions
How does it attach to the desk?
A desk-edge clamp grips the surface, so there is no base eating workspace and no drilling or mounting bracket. It fits standard desktops and worktables within the clamp jaw range.
Can I tune the light for detail work?
Yes. Five presets run 3000K warm to 6500K daylight and five brightness levels dim the full range. The touch panel recalls your last setting.
Does it flicker on camera or under long use?
The array is flicker-free per the published listing, which keeps video calls clean and eyes fresher over long sessions.
Is the LED replaceable?
No. The array is integrated and rated for the life of the lamp; the desk confirms warranty terms at quote review.
Documents
- Type Table Lamp
- SKU LA-LGT-LP-T29-DRFT
- Catalog Reference Installation & Warranty Reference (PDF)
- Spec PDF Open product spec summary
- Submittal PDF Open submittal reference
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
