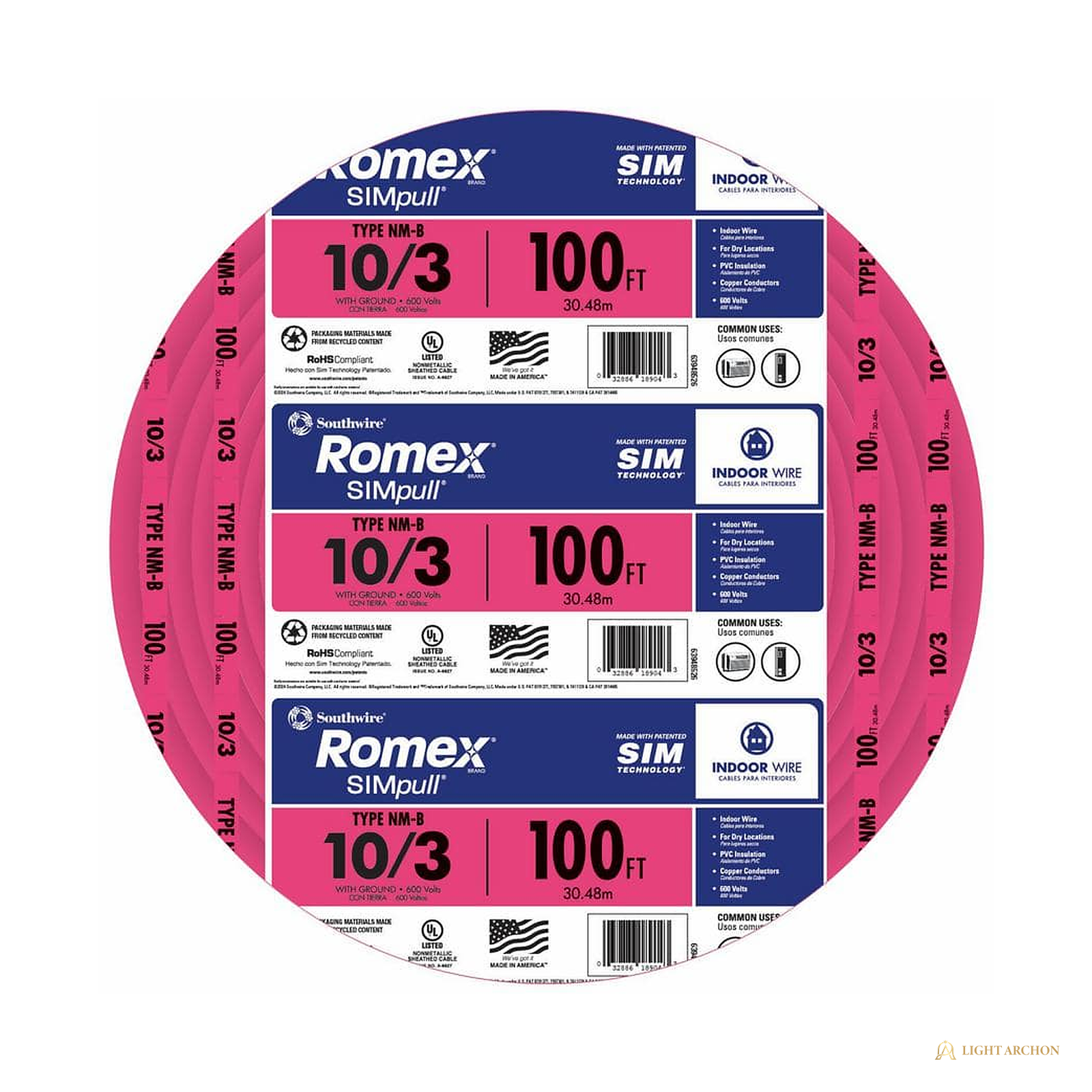

Light Archon DryerLoop 10/3 Copper NM-B Cable with Ground
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Light Archon DryerLoop 10/3 copper NM-B cable runs the 30A appliance circuits: electric dryers, wall ovens, and other four-wire 120/240V loads inside dry framing. Three solid 10 AWG copper conductors and a bare ground ride under a pink 600V jacket that flags the construction on sight.
The pink coil color is the trade cue for this 10/3 construction, so mixed-gauge staging areas stay sorted. A slick jacket construction cuts pulling force through drilled studs, and production print carries standard size and type text only. NM-B ampacity rides the NEC 60C column, which puts 10 AWG at 30A for the dryer and oven circuits this cable is built for. The desk confirms run counts and breaker matching at quote review.
Highlights
- 10/3 with ground: three solid copper conductors plus bare copper equipment ground
- Built for 30A four-wire appliance circuits: dryers, wall ovens, 120/240V loads
- Rated 600V; ampacity per the NEC 60C column that governs NM-B
- Pink jacket flags the 10/3 construction at a glance
- Easy-pull jacket construction for fast rough-in per the published listing
- UL listed per the published listing
- Factory runs from 15 ft to 1000 ft to match takeoff counts
- Quote-first trade supply: no public prices, one submittal covers the whole job
Specification Table
| Construction | 10/3 with ground, NM-B |
| Conductor | 10 AWG solid annealed copper, three circuit conductors |
| Equipment ground | Bare copper |
| Jacket | PVC, pink, standard size and type print |
| Insulation rating | 600V, 194F rated with 140F ampacity limit |
| Ampacity | 30A per the NEC 60C column for 10 AWG NM-B |
| Location | Dry interior locations |
| Lengths | 15, 25, 50, 100, 250, and 1000 ft |
| Listings | UL listed |
| Typical circuits | Dryers, wall ovens, 30A four-wire appliance runs |
| Supply model | Quote-first factory-sealed runs |
Included Components
- Continuous factory run in the selected length
- Factory-sealed coil wrap or spool per length
Installation Notes
- Pair 10 AWG copper NM-B with 30A overcurrent protection per NEC and the appliance nameplate.
- Four-wire appliance circuits land separate neutral and ground at the receptacle or junction per NEC.
- May run in air voids of masonry block or tile walls where not subject to excessive moisture per the published listing.
- Support and secure at NEC spacing intervals; protect from nail strikes with steel plates where required.
- Final circuit counts, run lengths, and breaker matchups are confirmed at quote review.
Warranty and Support
- Backed by the Light Archon trade supply program; warranty terms are confirmed at quote review.
- Submittal sheets and takeoff review support are available from our electrical supply desk.
Frequently Asked Questions
What circuits is this gauge rated for?
10 AWG copper NM-B rides the NEC 60C column at 30A, which matches electric dryer and wall oven circuits and other 30A four-wire 120/240V loads.
Why is the coil pink?

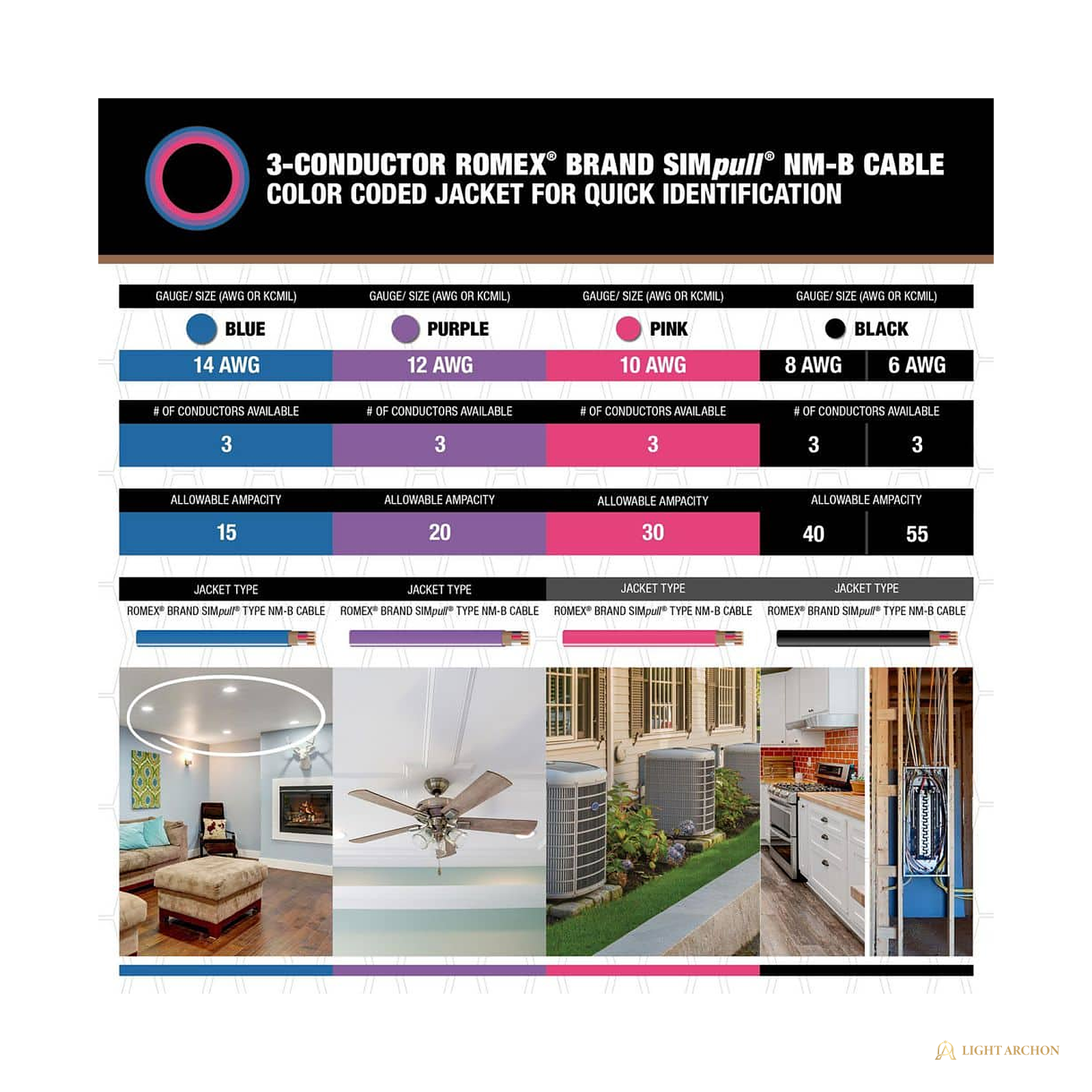

Pink is the production color cue for this 10/3 construction, keeping it distinct from 10/2 and other gauges on a staged job. The jacket print carries the definitive size and type text.
What lengths can I quote?
Factory runs of 15, 25, 50, 100, 250, and 1000 ft. Mixed lengths on one quote list are fine.
Can this cable run outdoors or underground?
No. NM-B is listed for dry interior locations. For wet locations or burial, quote THHN conductors in conduit or a UF class cable at review.
Documents
- Type NM-B Cable
- SKU LA-LGT-WR-G103-DRYL-15FT
- Catalog Reference Installation & Warranty Reference (PDF)
- Spec PDF Open product spec summary
- Submittal PDF Open submittal reference
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
