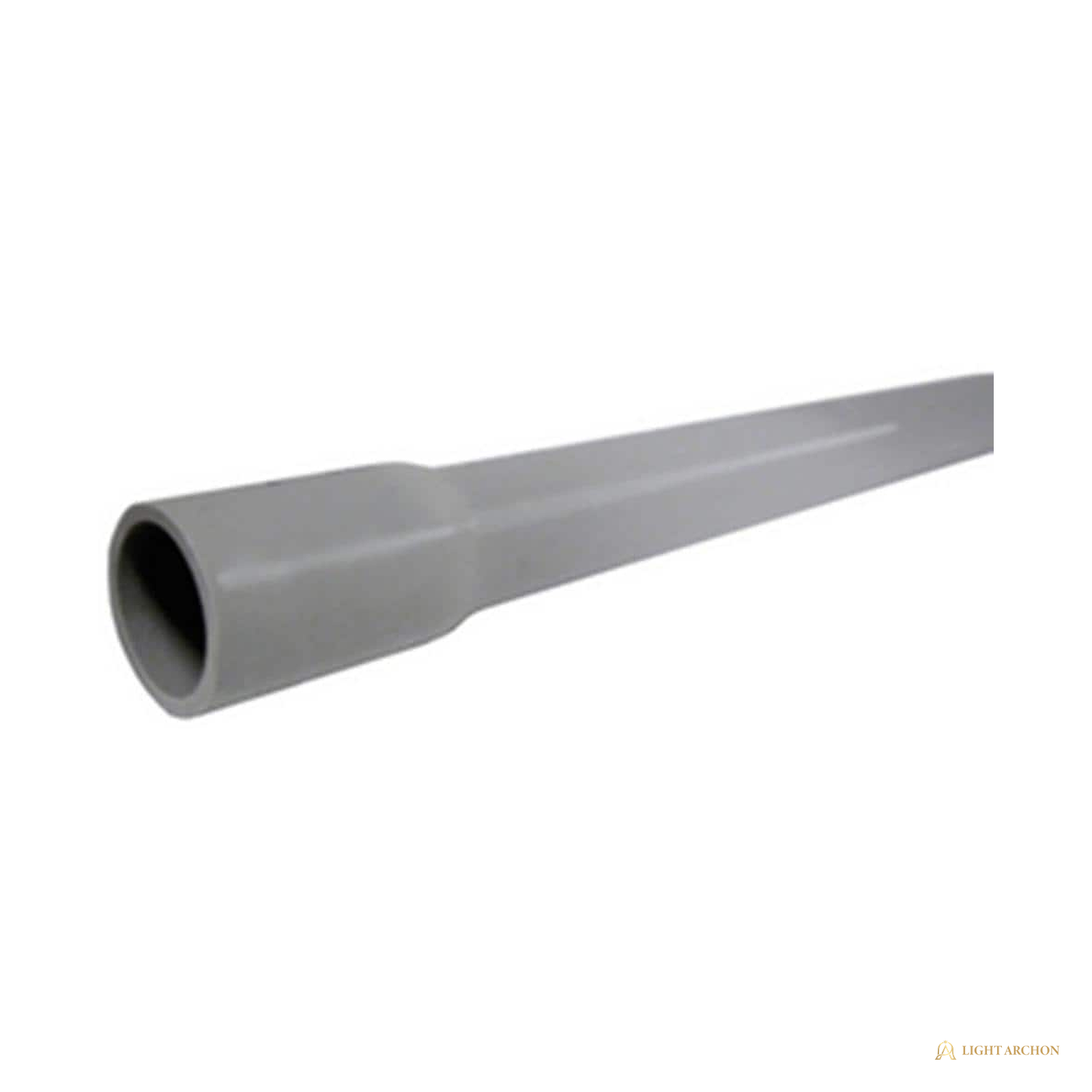

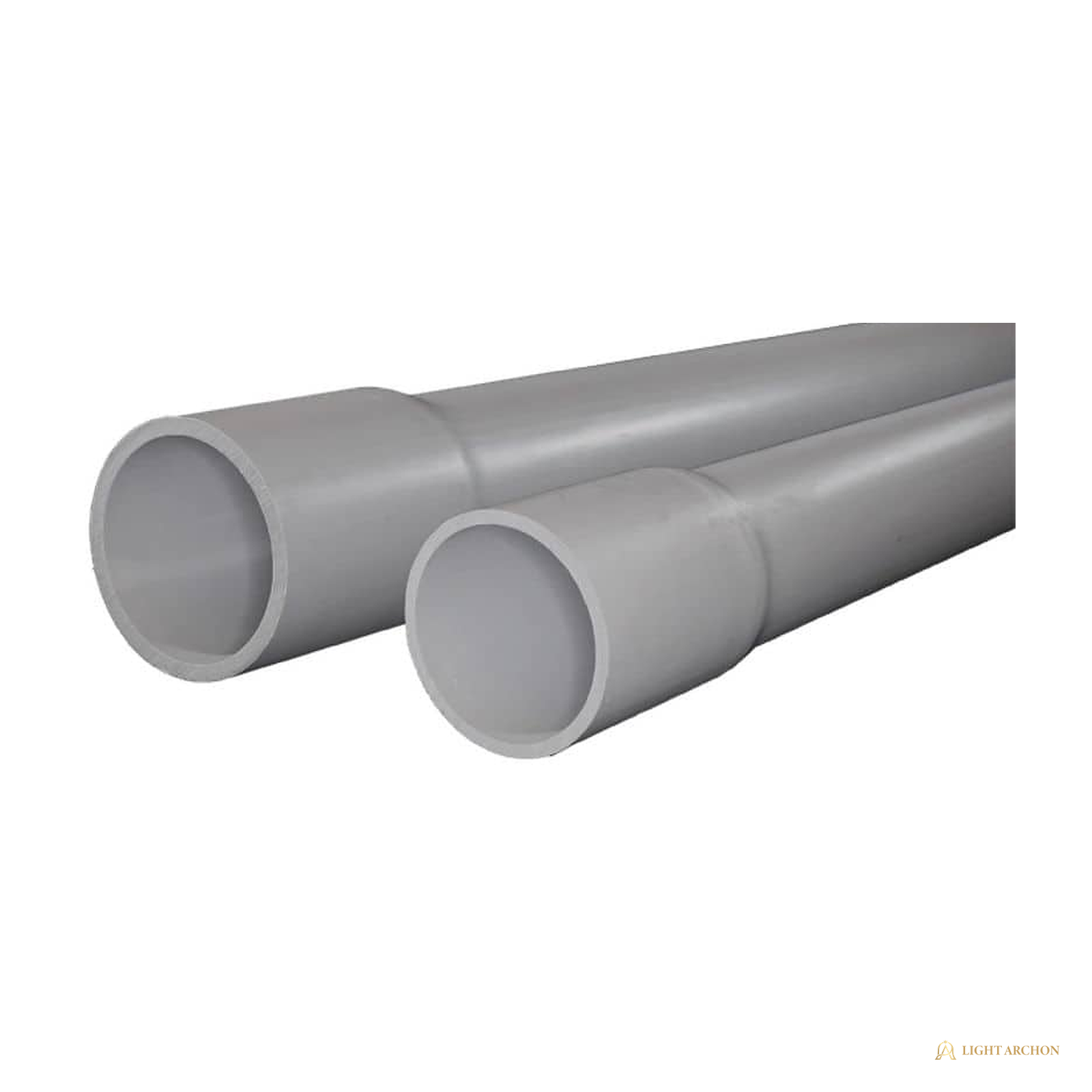

Light Archon DuraDuct PVC Schedule 40 Conduit
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Light Archon DuraDuct schedule 40 PVC conduit runs interior, exterior, and underground raceway where corrosion and moisture rule out steel. Seven trade sizes quote in 10 ft sticks.
Sunlight resistant rigid nonmetallic conduit conforms to UL 651 and NEMA TC-2 per the published listing and is rated for conductors to 90 C. Solvent-weld joints assemble fast with schedule 40 fittings, and the FlowLine fitting set covers elbows, access bodies, and liquidtight transitions.
Highlights
- Schedule 40 rigid nonmetallic conduit, UL 651 and NEMA TC-2 class
- Trade sizes 1/2 through 2-1/2 in. in 10 ft sticks
- Sunlight resistant for exposed exterior runs
- Rated for conductors to 90 C per the published listing
- Solvent-weld assembly with schedule 40 fittings
- Nonconductive and corrosion-proof for wet and buried routes
- Pairs with the FlowLine PVC fitting set for elbows and access bodies
Specification Table
| Type | Rigid nonmetallic conduit, schedule 40 |
| Material | PVC, sunlight resistant |
| Trade sizes | 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in. |
| Stick length | 10 ft |
| Conductor rating | Conductors to 90 C |
| Standards | UL 651, NEMA TC-2 |
| Assembly | Solvent-weld sockets and fittings |
| Use | Interior, exterior, and underground where code permits |
| Reference weight | 3/4 in. stick listed at 2.25 lb |
| Supply model | Quote-first; bundle counts welcome |
Included Components
- Conduit sticks only; fittings, cement, and primer quoted separately
Installation Notes
- Cut square, de-burr, and dry-fit before cement goes on.
- Use listed PVC primer and cement rated for electrical conduit.
- Underground depth and cover follow NEC and local code; confirm the route at quote review.
- Allow for thermal expansion on continuous exposed runs with expansion fittings where the run length demands it.
- Schedule 80 heavy-wall sticks quote on request for exposure-prone locations.
Warranty and Support
- Backed by the Light Archon trade supply program; warranty terms are confirmed at quote review.
- Submittal sheets and takeoff review support are available from our electrical supply desk.
Frequently Asked Questions
What fittings does it take?
Solvent-weld schedule 40 PVC fittings: couplings, belled-end elbows, and access bodies. The FlowLine set covers the common formats and quotes with the conduit.
Can it be buried?
Schedule 40 PVC conduit is used underground where code permits. Depth and cover per NEC and local rules are confirmed at quote review.
Is it sunlight resistant?
Yes. The compound is sunlight resistant for exposed exterior runs per the published listing.
Do you carry schedule 80?
Heavy-wall schedule 80 sticks quote on request where added impact protection is called for.
Documents
- Type PVC Conduit
- SKU LA-LGT-CN-C34-DDCT-12
- Catalog Reference Installation & Warranty Reference (PDF)
- Spec PDF Open product spec summary
- Submittal PDF Open submittal reference
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
