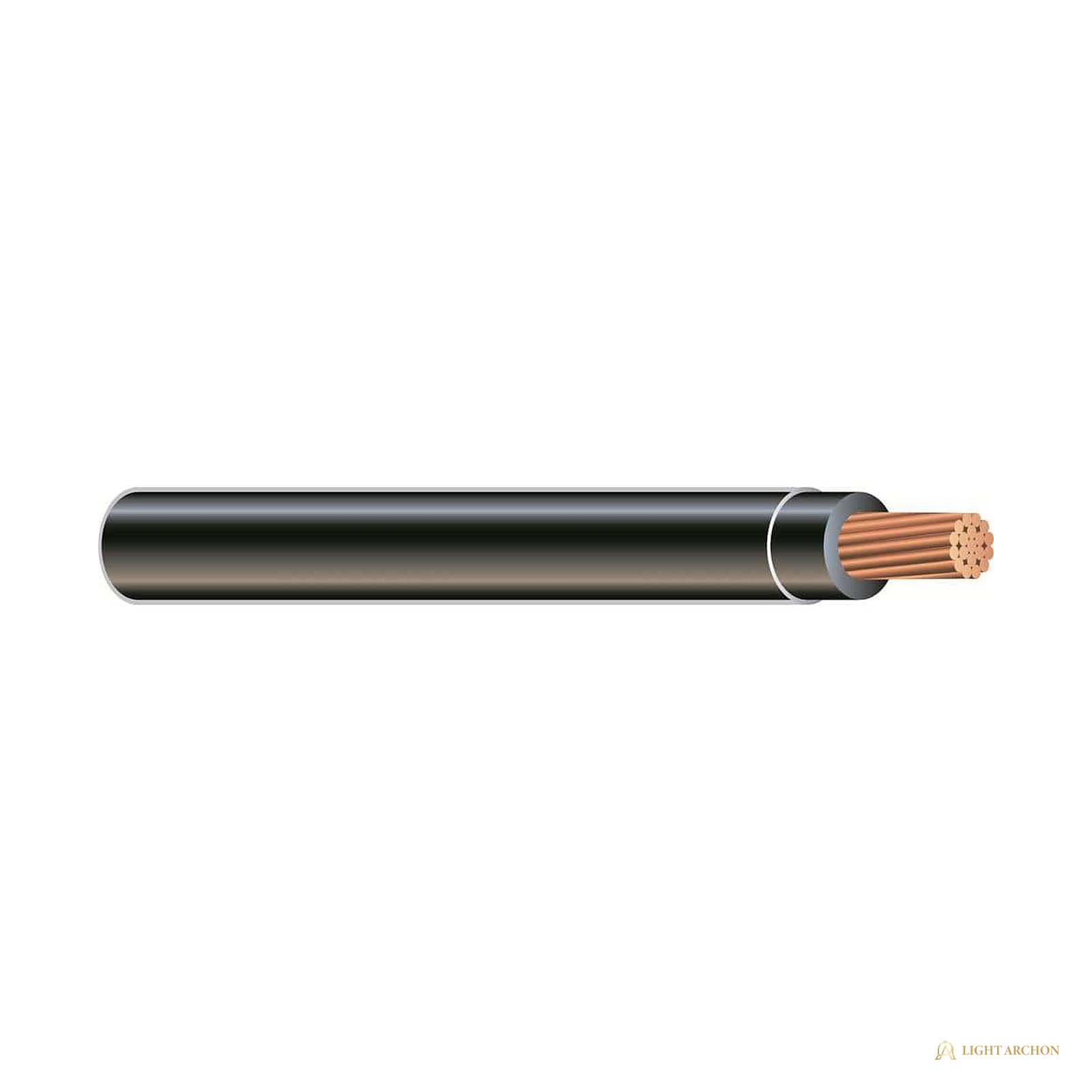

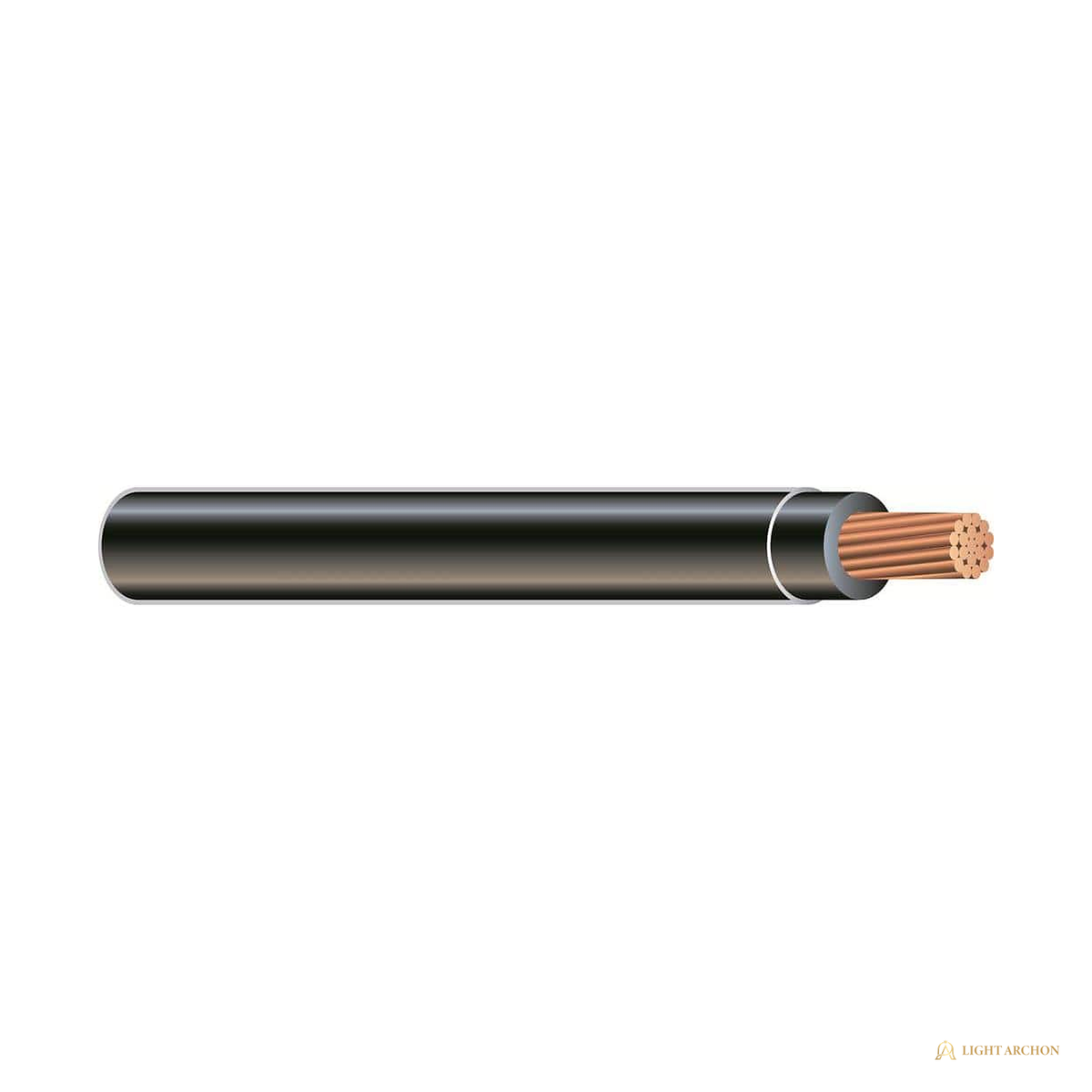

Light Archon Feederline Stranded Copper THHN Building Wire

Light Archon Feederline stranded copper THHN building wire covers panel work, feeders, and conduit runs where single conductors are pulled to fit the job. Four jacket colors and three put-up lengths per size keep circuit identification clean from rough-in to final trim.

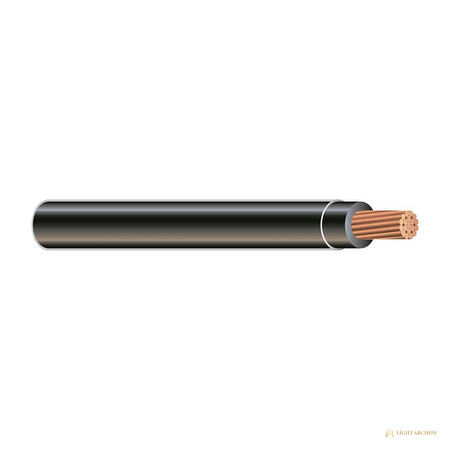

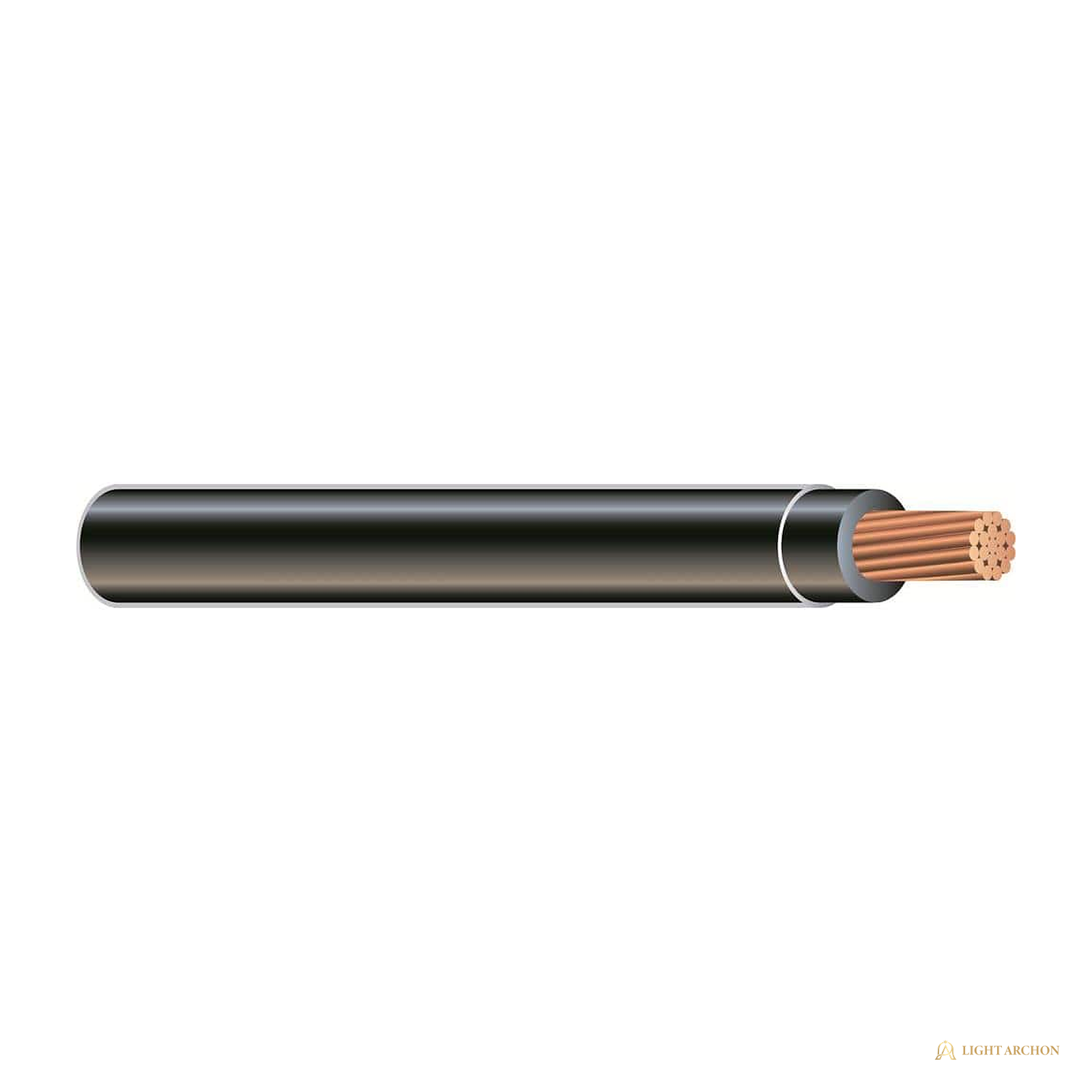

Conductors are annealed compressed copper with heat and moisture resistant PVC insulation under an abrasion resistant nylon outer cover, listed for wet or dry locations at 600V. Sizes span 12 AWG through 6 AWG in Black, White, Red, and Green jackets. Ampacity depends on conductor size, termination temperature, and conditions of use, so our desk confirms sizing per NEC tables at quote review.

Highlights

• Stranded annealed copper conductors, compressed for easy pulls in conduit
• 600V PVC insulation with tough nylon outer cover
• Listed for wet or dry locations; UL listed and CSA certified per the published listing

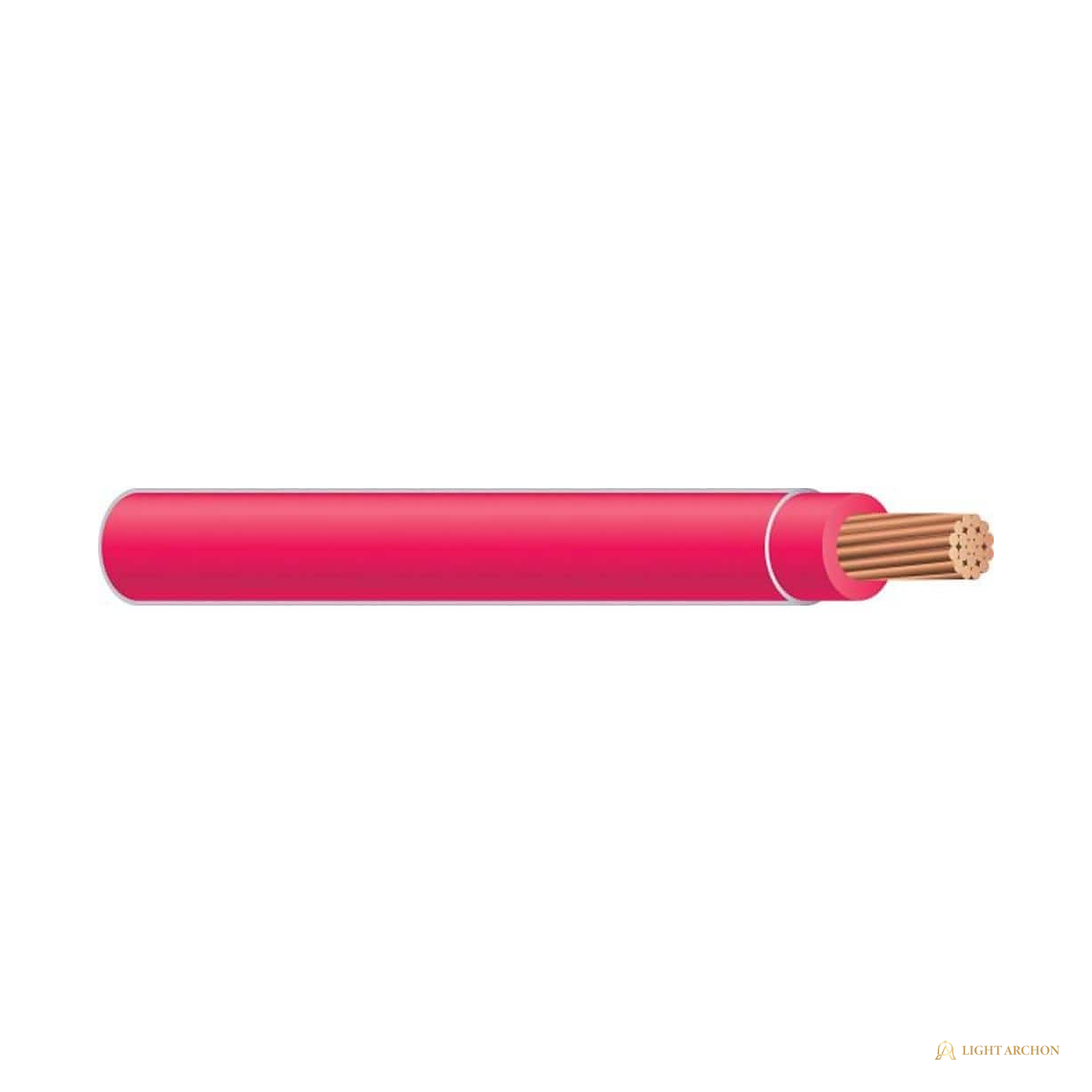

• 12, 10, 8, and 6 AWG sizes in Black, White, Red, and Green jackets
• 25, 500, and 1000 ft put-ups; extended put-ups and cut-by-the-foot runs quoted on request
• Color-matched circuit identification across feeders and branch runs
• Quote-first trade supply with submittal support for inspectors and specifiers

Specification Table

Included Components

• Factory spool or coil in the selected size, color, and length

Installation Notes

• Size conductors per NEC ampacity tables for the termination temperature and conditions of use on the run.
• Use listed lugs and terminals matched to copper conductors.
• THHN in conduit suits wet or dry locations; confirm conductor count and conduit fill at quote review.
• Ground and neutral color conventions follow NEC and local practice; Green jackets serve equipment ground runs.
• Pull with listed lubricants where fill and bend counts demand it.

Warranty and Support

• Backed by the Light Archon trade supply program; warranty terms are confirmed at quote review.
• Submittal sheets and takeoff review support are available from our electrical supply desk.

Frequently Asked Questions

What circuits is this gauge rated for?
Ampacity depends on the size you select and the termination temperature. The desk confirms conductor sizing per NEC tables at quote review, so submit the circuit schedule with your list.

Which jacket colors are stocked?
Black, White, Red, and Green across all four sizes. Other colors and cut-by-the-foot runs are quoted on request.

Is this rated for wet locations?
Yes. The construction is listed for wet or dry locations at 600V per the published listing, which suits conduit runs indoors and out.

Do you sell by the foot?
Cut-by-the-foot runs and extended put-ups beyond 1000 ft are quoted on request through the supply desk.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
