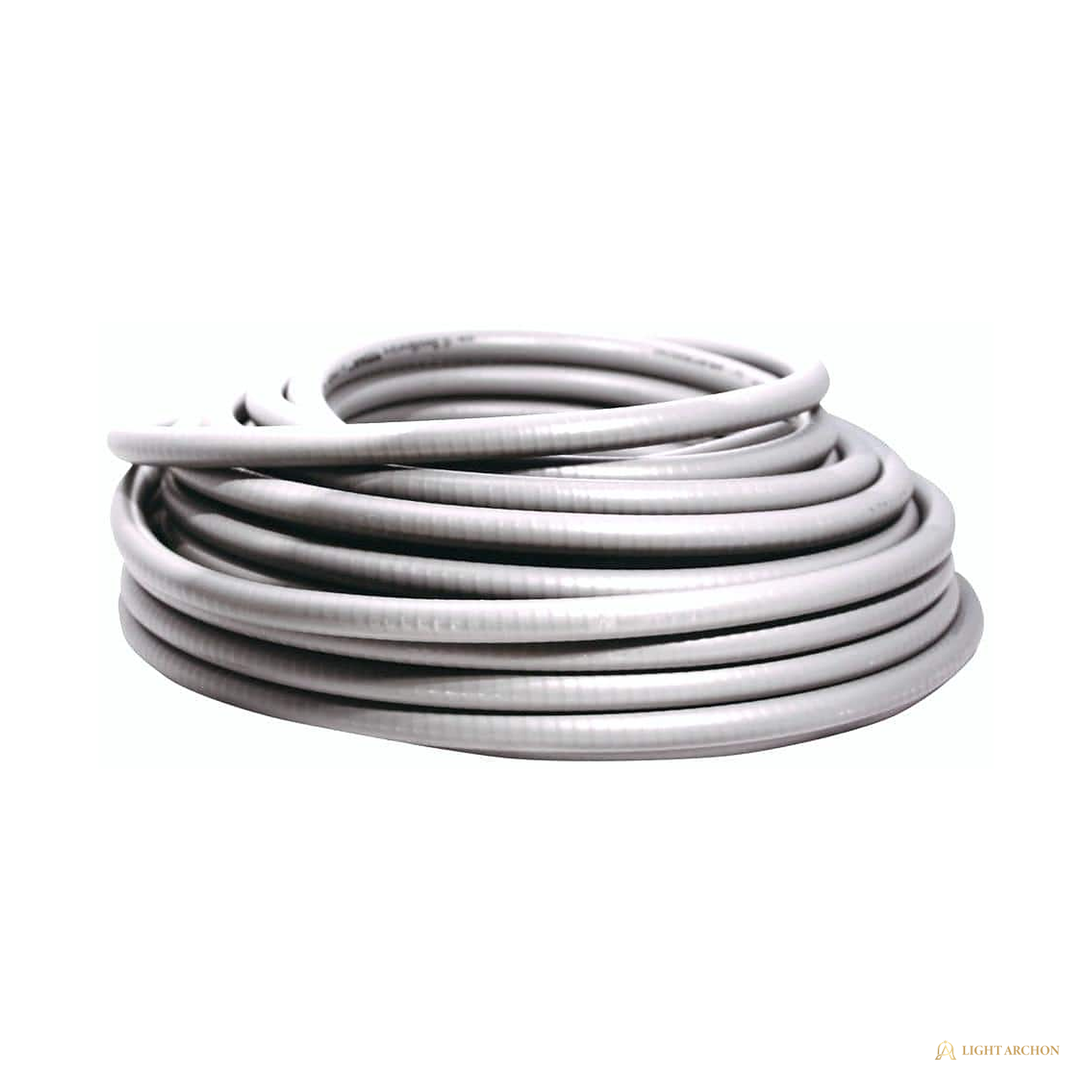

Light Archon FlexShield Liquidtight Flexible Nonmetallic Conduit
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Light Archon FlexShield is the liquidtight flexible nonmetallic conduit for condenser whips, pump and motor feeds, rooftop equipment, and any route with vibration, crossover connections, or bends too tight for rigid raceway. Coils quote in three trade sizes.

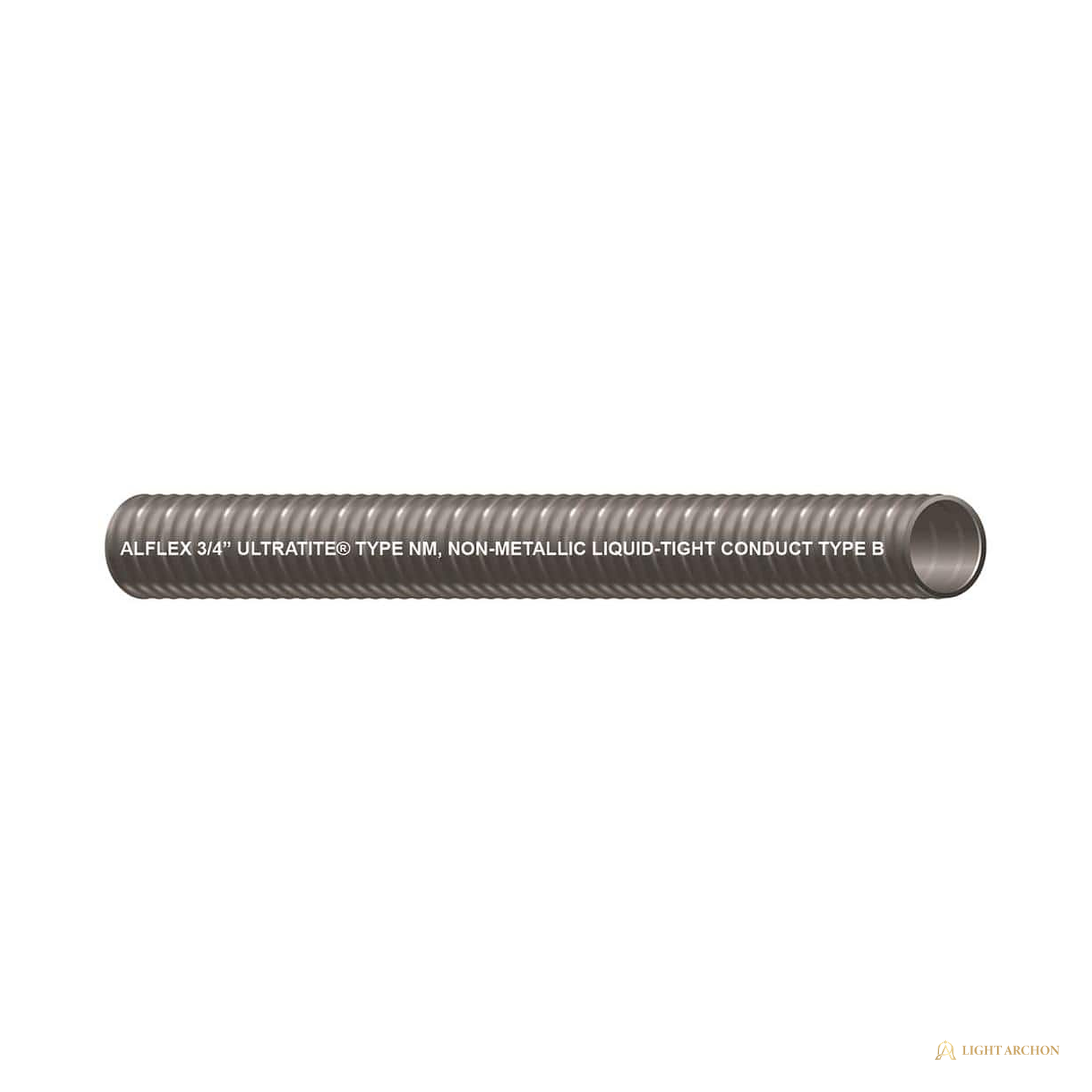

Flexible PVC with rigid convolutions gives crush resistance without giving up bend radius, and the liquid-tight wall keeps vapors, solids, and weather off the conductors per the published listing. It suits circuits of 600V nominal or less, including motor feeder, branch, and control work. Terminate with listed liquidtight nonmetallic fittings, quoted alongside, to carry the seal into every enclosure.
Highlights
- Liquidtight flexible nonmetallic construction for wet and weather-exposed routes
- Crush-resistant rigid PVC convolutions with full flexibility per the published listing
- Trade sizes 1/2, 3/4, and 1 in. in job-length coils
- Suitable for 600V nominal or less circuits per the published listing
- Built for movement, vibration, crossover connections, and tight bends
- Motor feeder, branch, and control circuit duty
- CSA listed per the published listing
- Quote-first trade supply; fittings quoted with the coil
Specification Table
| Type | Liquidtight flexible nonmetallic conduit |
| Material | PVC, flexible with rigid convolutions |
| Trade sizes | 1/2, 3/4, 1 in. |
| Coil lengths | 25 to 500 ft by size |
| Circuits | 600V nominal or less |
| Protection | Vapors, solids, and weather per the published listing |
| Fittings | Listed liquidtight nonmetallic connectors, quoted separately |
| Listings | CSA listed |
| Use | Motor feeders, branch and control circuits, equipment whips |
| Reference weight | 3/4 in. x 100 ft coil listed at 18.8 lb |
| Supply model | Quote-first; coil counts confirmed at quote review |
Included Components
- Factory coil in the selected trade size and length; fittings quoted separately
Installation Notes
- Terminate with listed liquidtight nonmetallic fittings sized to the conduit; count both ends of every run.
- Support and secure per NEC spacing for the conduit type and size.
- Respect minimum bend radius; the convolutions flex without kinking when the radius stays honest.
- Confirm conductor fill per NEC for multi-conductor pulls.
- Coil counts, cut plans, and fitting pairings are confirmed at quote review.
Warranty and Support
- Backed by the Light Archon trade supply program; warranty terms are confirmed at quote review.
- Submittal sheets and takeoff review support are available from our electrical supply desk.
Frequently Asked Questions
What fittings does it take?
Listed liquidtight nonmetallic connectors in the matching trade size: the SealPath 3/4 in. and TightSeal 1/2 in. series quote alongside the coils.
Is it rated for outdoor condenser whips?
Yes. The liquid-tight wall protects against weather per the published listing, and flexible routing absorbs equipment vibration. Assemble with listed fittings to keep the seal.
What circuits can run inside?
Circuits of 600V nominal or less per the published listing, including motor feeders, branch circuits, and control wiring.
Do you carry metallic liquidtight or preassembled whips?
Yes, as quote-on-request items: metallic liquidtight conduit, aluminum flexible conduit, and preassembled 6 ft whips all price through the desk.
Documents
- Type PVC Conduit
- SKU LA-LGT-CN-L34-FLXS-12X25
- Catalog Reference Installation & Warranty Reference (PDF)
- Spec PDF Open product spec summary
- Submittal PDF Open submittal reference
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
