Light Archon FlowLine PVC Conduit Fittings, Schedule 40

SKU: LA-LGT-CN-F34-FLOW-E34
Configuration

Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

Light Archon FlowLine PVC fittings finish schedule 40 raceway runs with standard radius elbows, conduit bodies, and a liquidtight transition. Six formats quote alongside DuraDuct conduit.

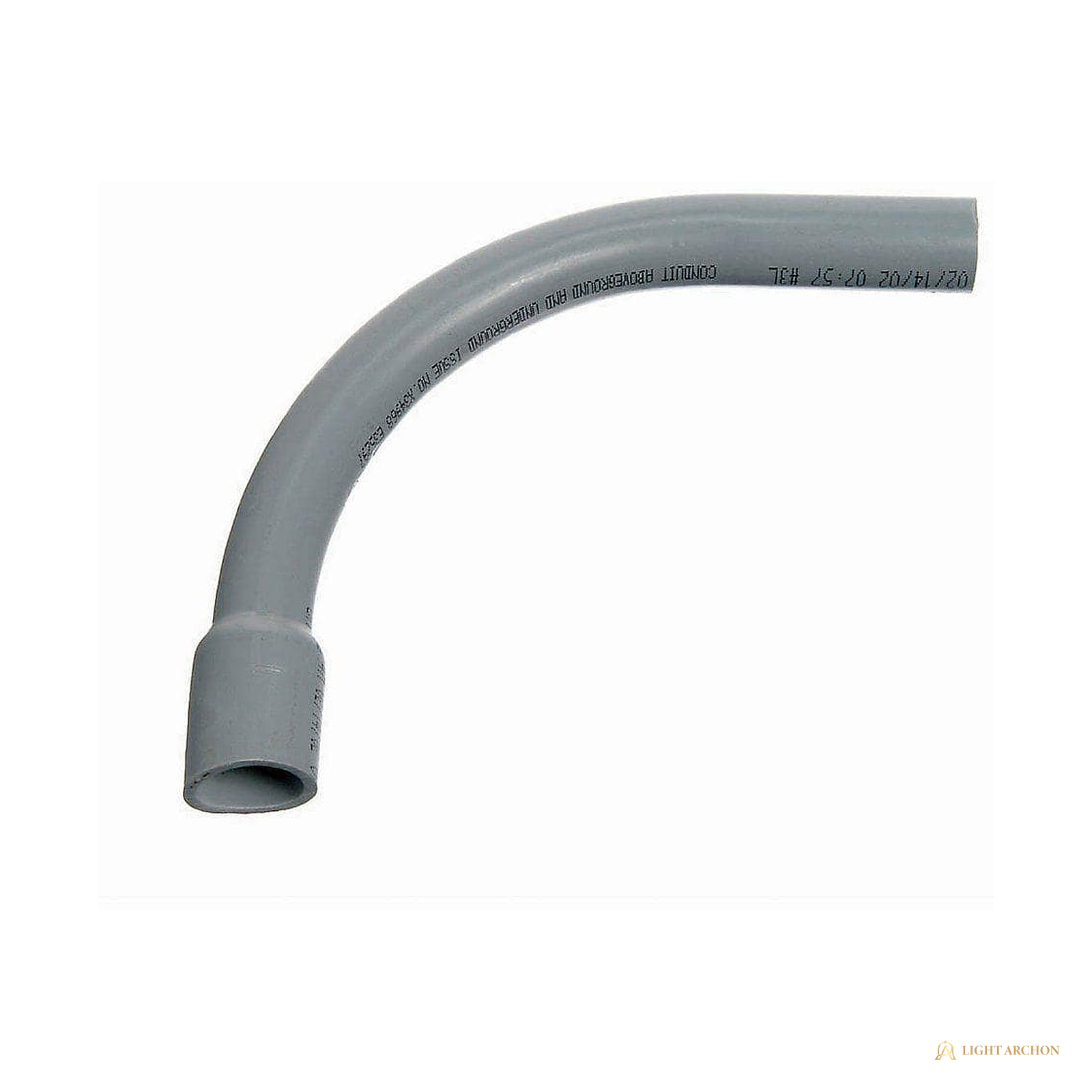

Belled-end 90-deg elbows cement directly to schedule 40 and 80 pipe without separate couplings and keep conductor pulls smooth through the sweep. Type LB and LR conduit bodies turn runs into walls and around corners while adding a covered pull point. The 1/2 in. liquidtight connector transitions rigid runs to flexible nonmetallic conduit. Third-party listed and NEC rated per the published listing.

Highlights

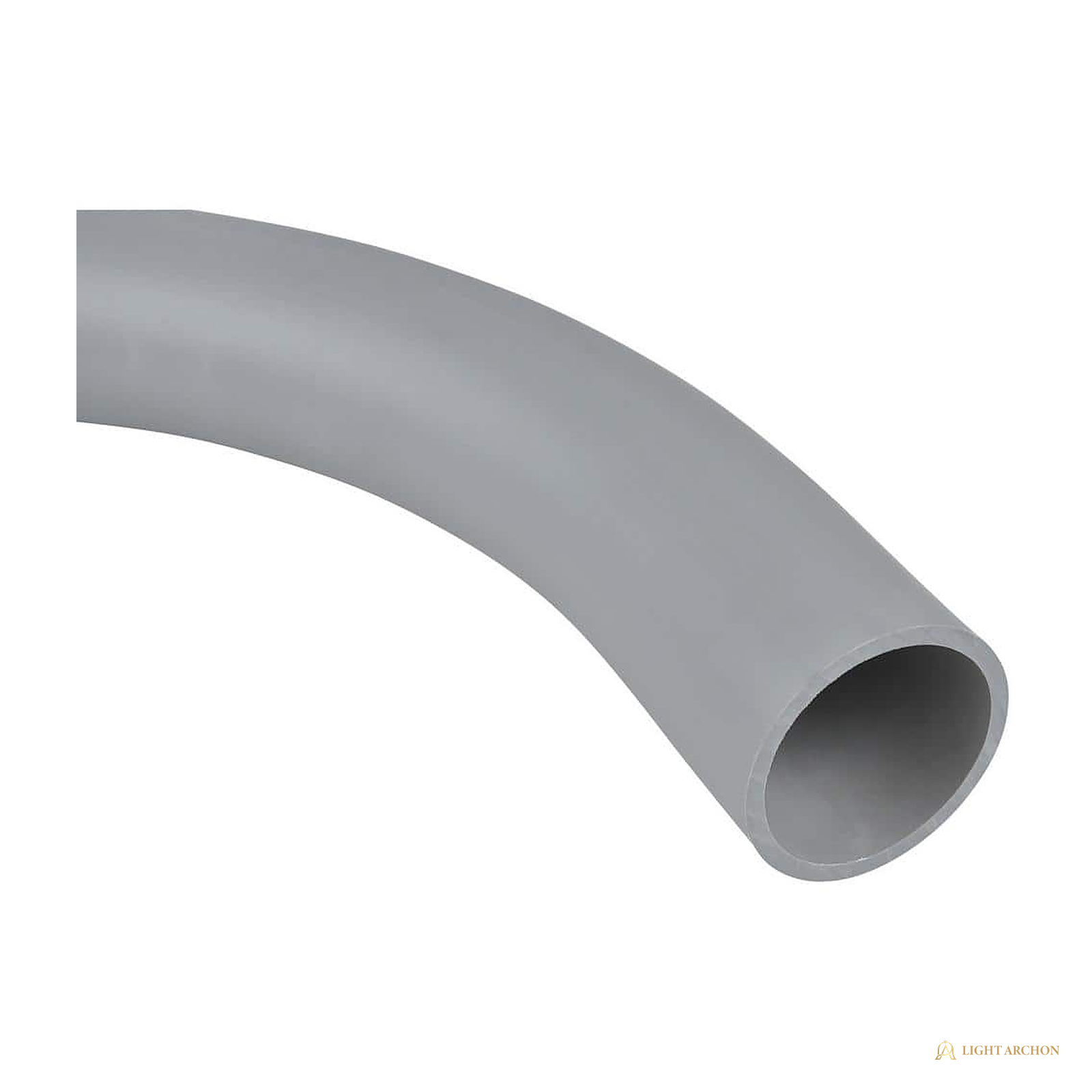

  • Standard radius 90-deg belled-end elbows in 3/4 and 1 in.
  • Belled ends cement to schedule 40 and 80 pipe without couplings

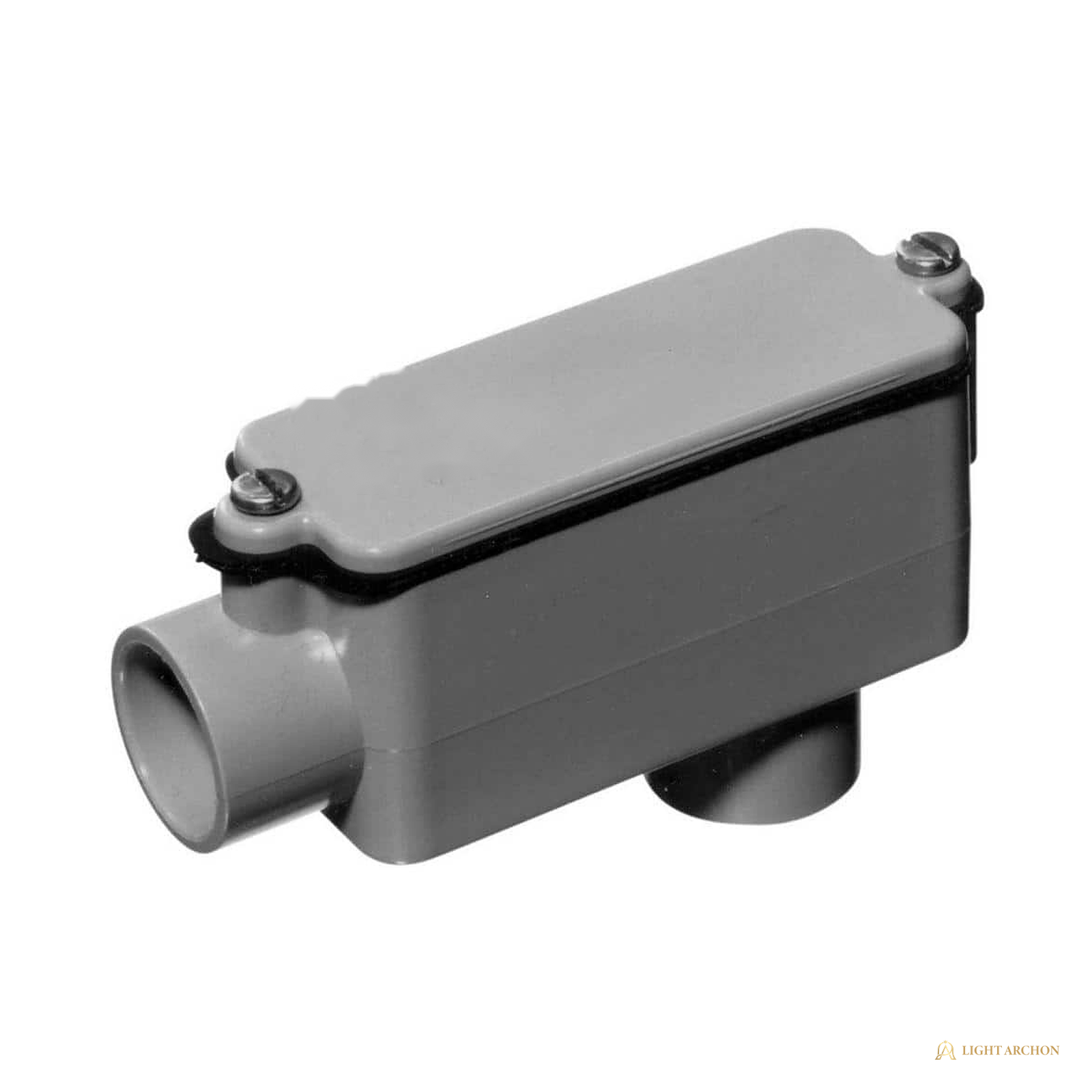

  • Type LB and LR conduit bodies add covered pull points at turns
  • 1/2 in. two-piece liquidtight connector for flexible transitions
  • Corrosion resistant PVC throughout
  • Third-party listed and NEC rated per the published listing
  • Quotes bundle with DuraDuct conduit for one submittal

Specification Table

Formats 90-deg elbows; LB and LR conduit bodies; liquidtight connector
Elbow sizes 3/4 in. and 1 in., standard radius, belled end
Conduit bodies 1/2 and 3/4 in. LB; 3/4 in. LR
Connector 1/2 in. two-piece straight liquidtight
Material PVC, schedule 40 class
Joint method Solvent weld; belled ends seat pipe directly
Compatibility Schedule 40 and 80 PVC raceway
Listings Third-party listed, NEC rated
Environment Interior, exterior, and buried runs per code
Supply model Quote-first with conduit bundles

Included Components

  • Fitting bodies as quoted; covers and gaskets on conduit bodies per format

Installation Notes

  • Prime and cement joints with listed electrical PVC cement.
  • Conduit body covers stay reachable per NEC; do not bury access points.
  • Keep conductor fill within the raceway rating through elbows and bodies.
  • Match fitting size to conduit trade size; transitions are confirmed at quote review.

Warranty and Support

  • Backed by the Light Archon trade supply program; warranty terms are confirmed at quote review.
  • Submittal sheets and takeoff review support are available from our electrical supply desk.

Frequently Asked Questions

What conduit do these join?
Schedule 40 and 80 PVC raceway. Belled ends and sockets solvent-weld directly to the pipe, and sizes match trade size for trade size.

What are LB and LR bodies for?
They turn a run into a wall or around a corner and add a covered pull point where straight pulls would strain conductors.

Does the liquidtight connector fit metal conduit?
No. It joins flexible nonmetallic liquidtight conduit to boxes or enclosures in the same trade size.
