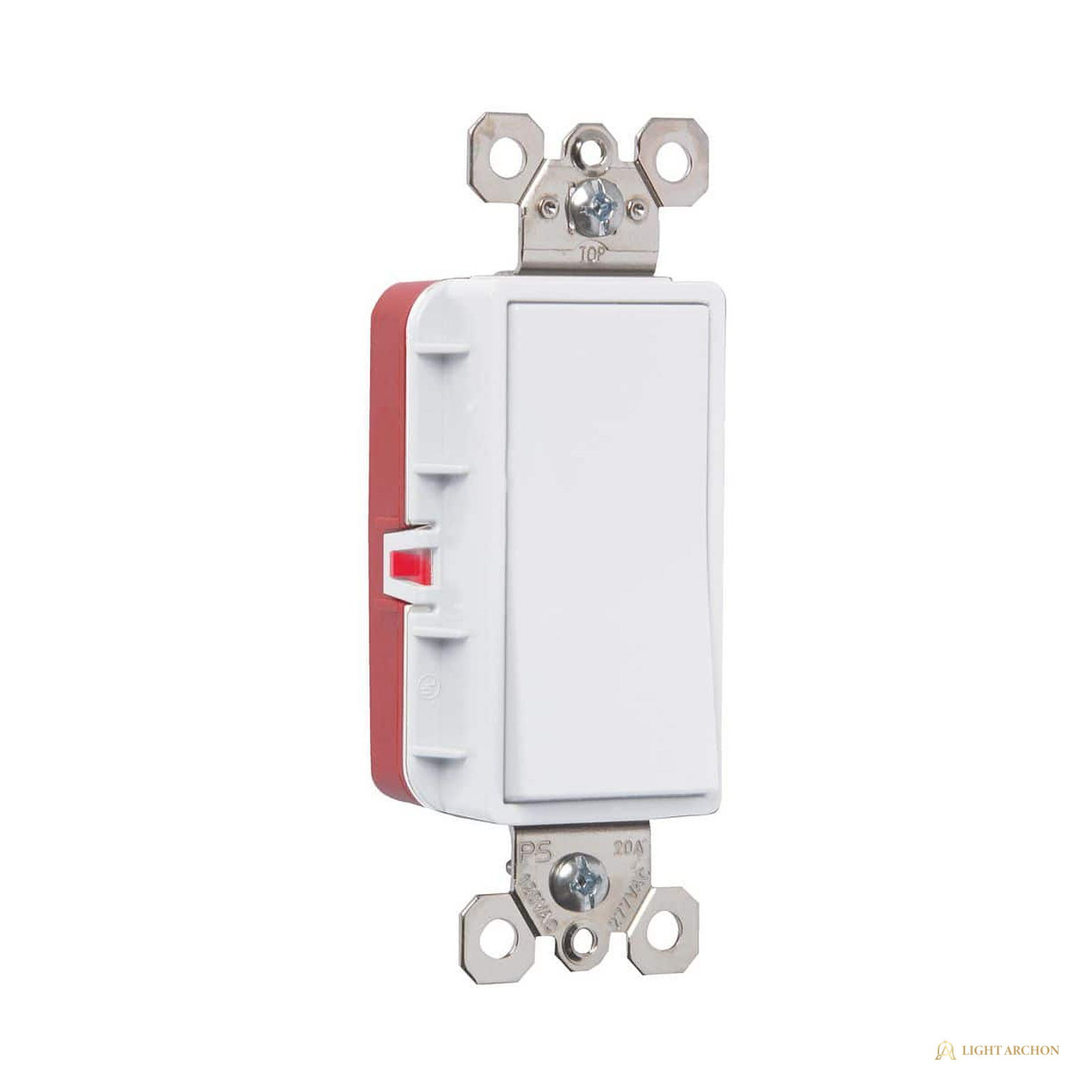

Light Archon Foreman 15A Spec Grade Modular Wall Switch

Light Archon Foreman switches are built for production wiring: the switch body carries a modular rear connector socket, and a pre-wired snap-on connector lands the circuit in seconds at trim-out. The platform covers toggle and rocker styles in single-pole and 3-way functions, all 15 A at 120/277V AC in spec grade construction. Quote-first: add devices and connectors to your quote list and the trade desk confirms the system before release.

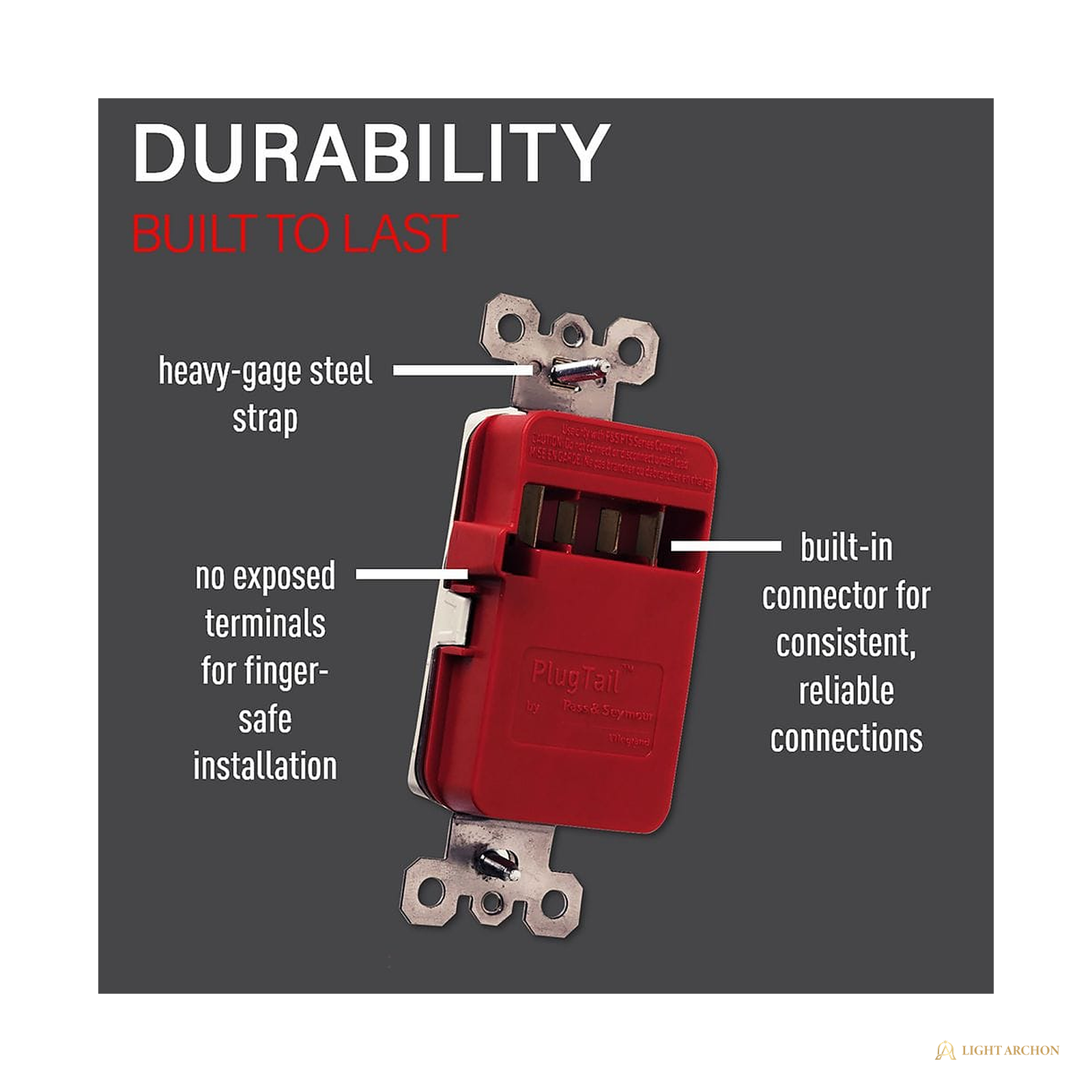

The rear connector system moves termination work off the device: conductors land once in the connector, and the switch snaps on with large brass terminal blades inside a UL Listed finger-safe housing, leaving no exposed terminals to tape and making device swaps a no-rewire job. A heavy-gauge steel strap with an auto-ground clip carries the mechanical load, and the shallow body clears crowded boxes. Rated loads span LED, CFL, fluorescent, incandescent, and magnetic low voltage lighting at up to 1800W. The matching snap-on connector is required and quoted separately, in solid or stranded lead versions to suit the wiring method.

Highlights

• Spec grade 15 A switch platform at 120/277V AC
• Modular rear snap-on connector system for production trim-out

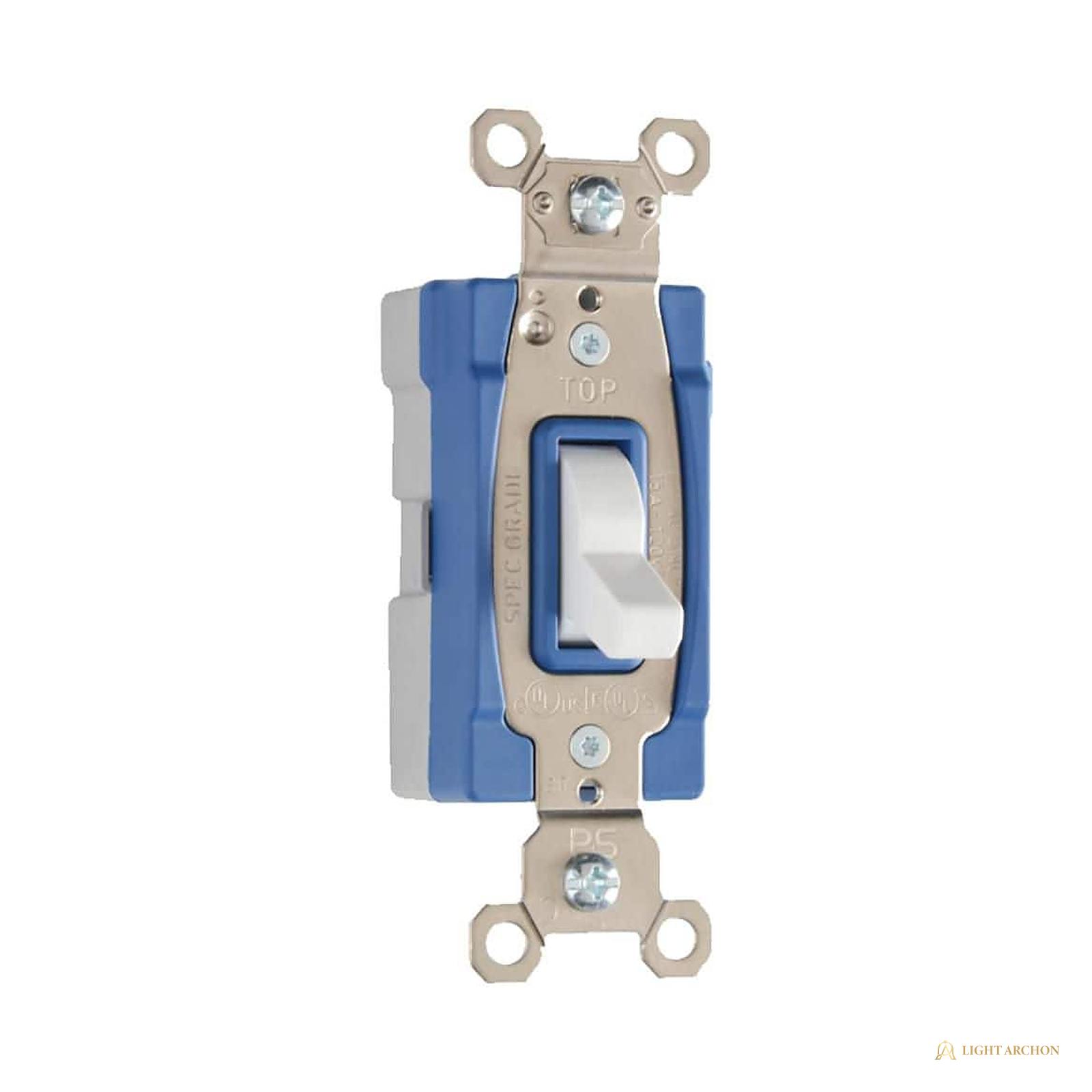

• Toggle and rocker styles, single-pole and 3-way functions
• Finger-safe UL Listed connector housing, no exposed terminals
• Brass terminal blades for consistent, reliable connections
• Heavy-gauge steel strap with auto-ground clip
• Shallow body for crowded boxes
• 1800W maximum load across LED, CFL, fluorescent, incandescent, and magnetic low voltage

Specification Table

Included Components

• One Foreman switch in the selected style and function
• Mounting screws
• Rear snap-on connector required and quoted separately
• Wall plate not included; plates quoted separately

Installation Notes

• Installed by a licensed electrician in a standard single-gang box; verify box fill
• Land conductors in the snap-on rear connector, then snap the switch on at trim-out
• Choose the solid or stranded connector version to match the wiring method
• 3-way circuits use two 3-way switches
• Toggle faces take toggle plates; rocker faces take designer opening plates

Warranty and Support

• Covered by the Light Archon limited trade warranty; term confirmed at quote review
• Submittal sheets and dimensional PDFs available for every configuration
• Support through the Light Archon trade desk

Frequently Asked Questions

What box does it need?
A standard single-gang wall box. Your installer verifies box fill for the conductors present per NEC 314.16.

Do I need anything besides the switch?
Yes. The rear snap-on connector is required and quoted separately, in solid or stranded lead versions. The trade desk pairs the right connector count with your device list at quote review.

Why a modular connector system?
Terminations happen once, in the connector, during rough trim. Devices then snap on in seconds, and a damaged switch swaps out later without touching the wiring.

Which wall plate fits?
Toggle units take standard toggle plates; rocker units take designer opening plates. Plates are quoted separately.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
