Light Archon Fortis Steel Outdoor Enclosure, NEMA 4X
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Light Archon Fortis is a lockable steel junction enclosure rated NEMA 4X for the places electrical gear gets rained on, hosed down, or tampered with: exterior walls, pump stations, gate controls, and site power distribution points.
The 12 x 10 x 6 in. steel body seals against rain, washdown, and dust to the NEMA 4X rating per the published listing, and the hinged cover locks to keep site hardware and splices secure. Surface mount it to a wall or structure, land conduit through field-punched entries sized to the job, and it becomes the weather-tight hub for outdoor circuits. Entry counts and accessory hardware are confirmed at quote review.
Highlights
- NEMA 4X rated enclosure per the published listing: waterproof and dustproof
- Lockable cover secures splices, controls, and site hardware
- Steel body for impact and weather resistance outdoors
- 12 x 10 x 6 in. working volume for junction and control duty
- Surface mounts to walls, posts, and equipment pads
- Field-punched conduit entries sized to the job at install
- Quote-first trade supply; counts and accessories confirmed at quote review
Specification Table
| Format | Junction and control enclosure |
| Body | 12 W x 10 H x 6 D in., steel |
| Rating | NEMA 4X per the published listing |
| Protection | Waterproof and dustproof; lockable cover |
| Mount | Surface, wall or structure |
| Entries | Field-punched, sized to the job |
| Use | Outdoor junctions, controls, site power points |
| Location | Wet locations, outdoor |
| Finish | Weather-resistant coated steel |
| Supply model | Quote-first; accessory hardware quoted at review |

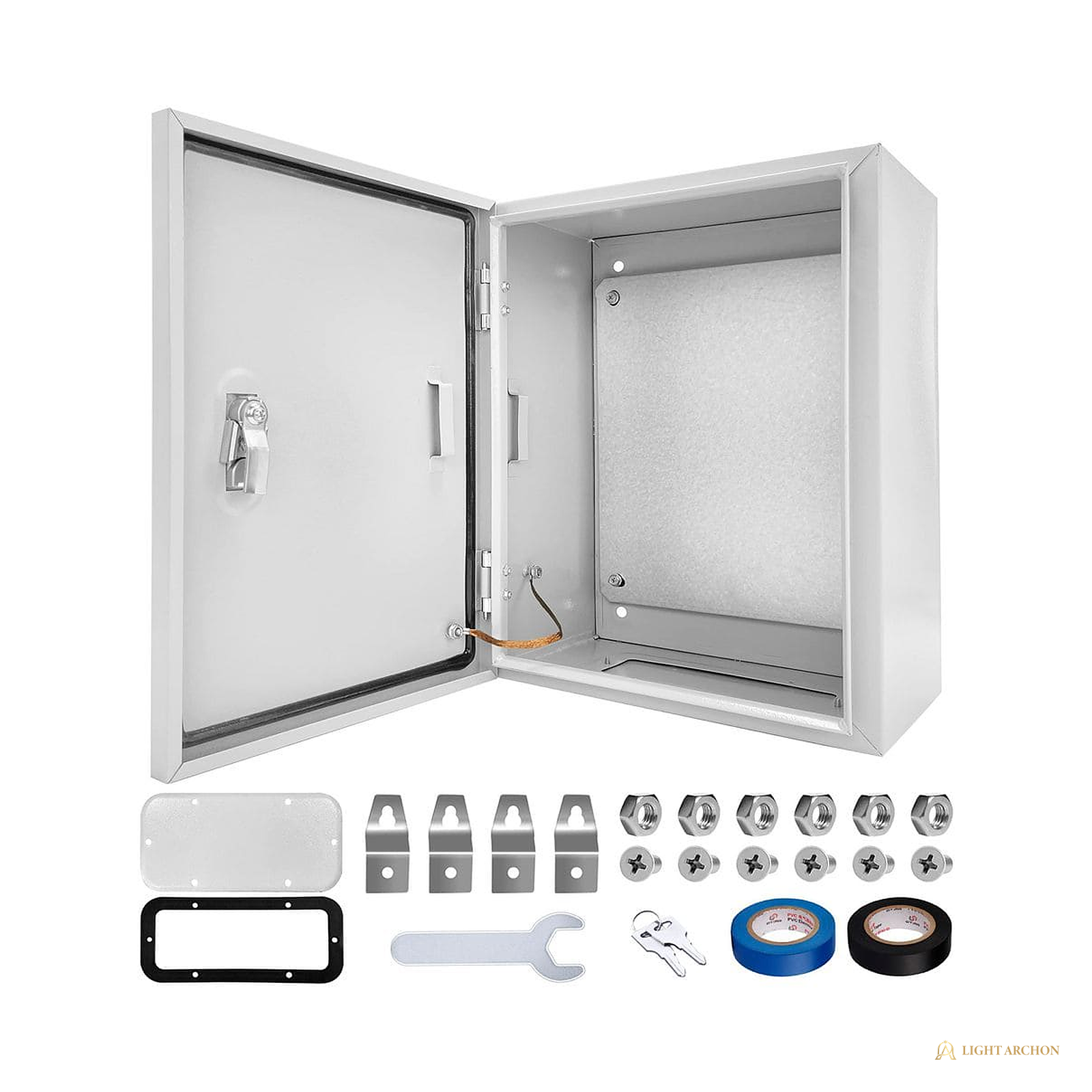

Included Components
- Steel enclosure with lockable cover
Installation Notes
- Surface mount to structure with corrosion-resistant fasteners rated for the load.
- Punch conduit entries with listed hole tools and fit raintight hubs or fittings to preserve the enclosure rating.
- Keep splices and terminations accessible; the enclosure remains a junction point per NEC.
- Bond the steel body into the equipment grounding path per NEC.
- Entry counts, hubs, and lock hardware are confirmed at quote review.
Warranty and Support
- Backed by the Light Archon trade supply program; warranty terms are confirmed at quote review.
- Submittal sheets and takeoff review support are available from our electrical supply desk.
Frequently Asked Questions
What does NEMA 4X cover?
Watertight and dust-tight protection with corrosion resistance per the published listing: rain, washdown, snow, and windblown dust stay out of the wiring space.
How do conduits enter the box?
Entries are field-punched where the runs land, then fitted with raintight hubs or fittings so the rating carries through. The desk quotes hubs with the enclosure.
Can it hold controls or just splices?
Both. The 12 x 10 x 6 in. body takes junction splices, contactors, timers, and small control assemblies mounted to the back panel plane.
Is the lock included?
The cover is lockable per the published listing; padlock hardware is quoted with the job at review.
Documents
- Type Electrical Box
- SKU LA-LGT-BX-J1210-FRTS
- Catalog Reference Installation & Warranty Reference (PDF)
- Spec PDF Open product spec summary
- Submittal PDF Open submittal reference
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
