Light Archon HomeRun 14/2 Copper NM-B Cable with Ground
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Light Archon HomeRun 14/2 copper NM-B cable supplies interior branch circuits for lights, switches, and receptacles in dry locations. Every run ships as a continuous factory length with a white 600V jacket, two 14 AWG solid annealed copper conductors, and a bare copper equipment ground.
The slick outer jacket pulls easily through drilled studs and plates, and the jacket print carries standard size and type text only. The listed maximum is 15A for this 14 AWG construction, which pairs with 15A overcurrent protection on lighting and receptacle circuits. Submit a quote list with mixed coil lengths and our supply desk confirms run counts, box fill effects, and breaker matching at quote review.
Highlights
- 14/2 with ground construction: two solid copper conductors plus bare copper equipment ground
- Rated 600V with a durable PVC jacket and easy-pull outer surface
- 15A listed maximum ampacity for 14 AWG copper branch circuits
- UL listed; meets ASTM and RoHS standards per the published listing
- Factory runs from 15 ft to 1000 ft to match takeoff counts

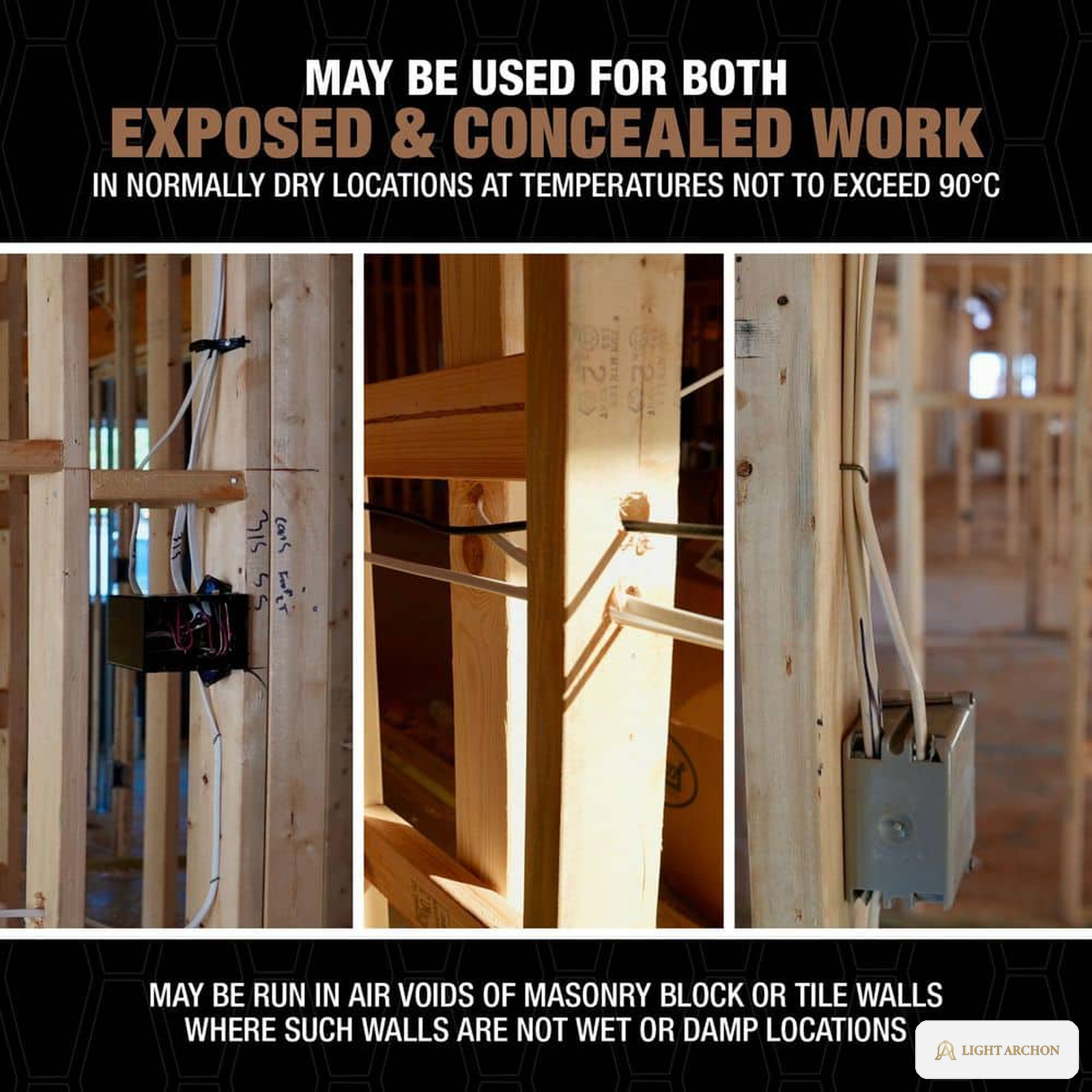

- Dry interior use across residential and light commercial work
- Solid conductors seat cleanly under device terminals and in push-in connectors
- Quote-first trade supply: no public prices, one submittal covers the whole job
Specification Table
| Construction | 14/2 with ground, NM-B |
| Conductor | 14 AWG solid annealed copper |
| Equipment ground | Bare copper |
| Jacket | PVC, white, standard size and type print |
| Insulation rating | 600V |
| Ampacity | 15A listed maximum |
| Location | Dry interior locations |
| Lengths | 15, 25, 50, 100, 250, and 1000 ft |
| Listings | UL listed; ASTM and RoHS compliant |
| Typical circuits | Lights, switches, receptacle runs |
| Supply model | Quote-first factory-sealed runs |
Included Components
- Continuous factory run in the selected length
- Factory-sealed coil wrap or spool per length
Installation Notes
- Pair 14 AWG copper with 15A overcurrent protection on branch circuits per NEC.
- Count conductors, clamps, and devices toward box fill per NEC when loading device boxes.
- Support and secure cable runs at NEC spacing intervals and protect runs from nail strikes with steel plates where required.
- NM-B is limited to dry interior locations; quote conductors listed for wet locations where the route demands it.
- Final circuit counts, run lengths, and breaker matchups are confirmed at quote review.
Warranty and Support
- Backed by the Light Archon trade supply program; warranty terms are confirmed at quote review.
- Submittal sheets and takeoff review support are available from our electrical supply desk.
Frequently Asked Questions
What circuits is this gauge rated for?
14 AWG copper NM-B pairs with 15A overcurrent protection, which suits lighting and receptacle branch circuits. The listed maximum for this construction is 15A.
What lengths can I quote?
Factory runs of 15, 25, 50, 100, 250, and 1000 ft. Mixed lengths on one quote list are fine, and the desk can consolidate runs to cut waste.
Can this cable run outdoors or underground?
No. NM-B is listed for dry interior locations. For wet locations or burial, quote THHN conductors in conduit or a UF class cable at review.
Is the jacket print neutral?
Yes. Production jacket print carries standard size and type text such as 14/2 W/G NM-B 600V, with no retail brand marks.
Documents
- Type NM-B Cable
- SKU LA-LGT-WR-G142-HMRN-15FT
- Catalog Reference Installation & Warranty Reference (PDF)
- Spec PDF Open product spec summary
- Submittal PDF Open submittal reference
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
