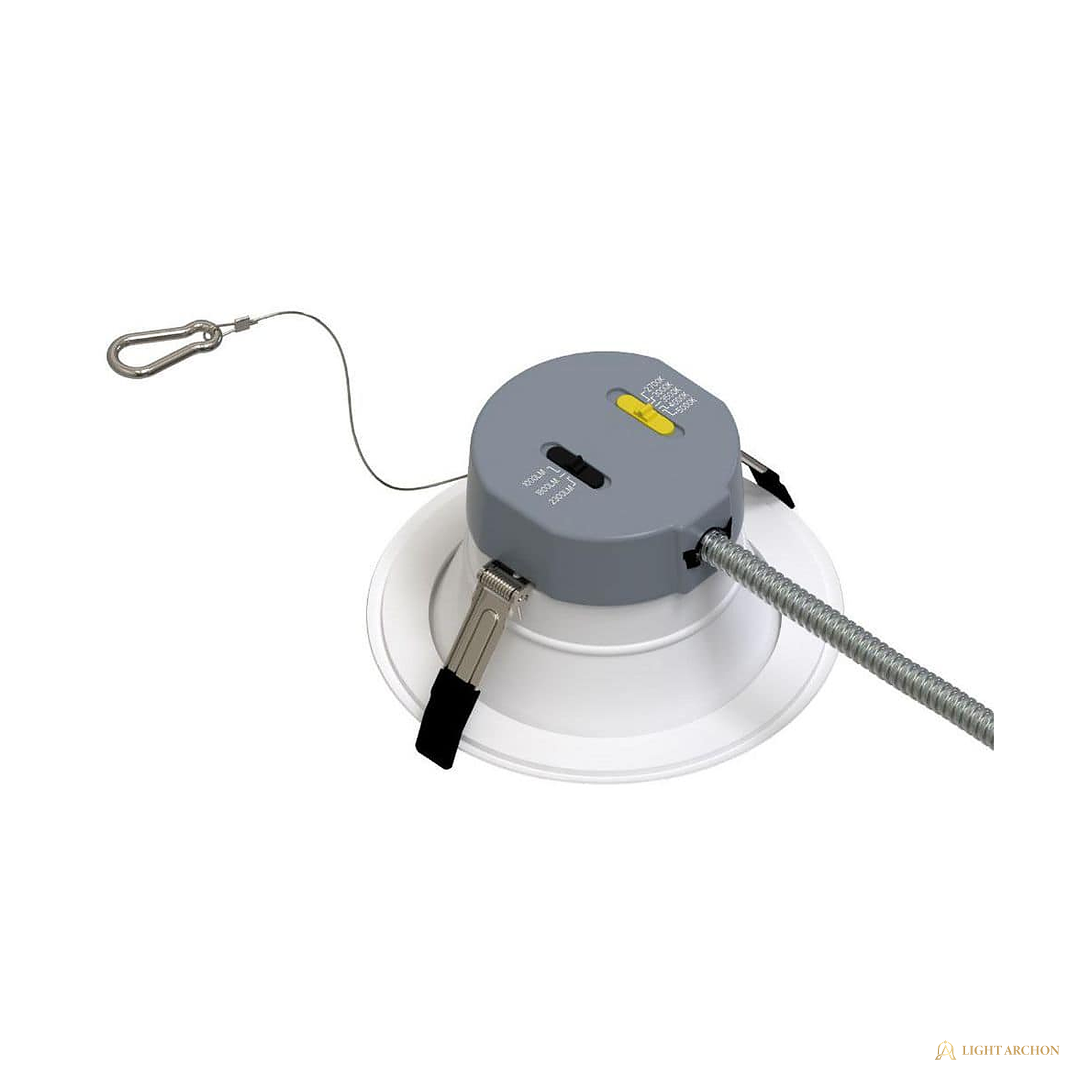

Light Archon Kestrel 6 in. Commercial LED Downlight, Selectable Lumens and CCT, 120-277V

Light Archon Kestrel is a 6 in. commercial LED downlight built for spec-grade ceilings: output selects at 1000, 1800, or 2500 lumens, color temperature locks at one of five settings from 2700K to 5000K, and the driver runs 120-277V with dual dimming. An IP65 wet location listing per source documentation clears canopies, soffits, and wash-down adjacent zones. Quote-first record: counts, service voltage, and dimming protocol are confirmed at quote review.

Kestrel serves commercial and residential ceilings from one carton: universal steel spring clips seat the trim in standard 6 in. housings and rough-in frames, and the white reflector with matching flange holds a clean aperture at a 7.7 in. overall diameter. On 120-277V service the driver dims on 0-10V control; on 120V it dims on TRIAC and ELV, so tenant fit-outs and hospitality retrofits both land without a driver swap. The platform is IC rated, ETL certified with FCC and RoHS, and carries Energy Star and Title 24 recognition per source documentation. Color accuracy runs 80 CRI typical and is confirmed at quote review.

Highlights

• Selectable output: 1000, 1800, or 2500 lumens on the fixture
• Five selectable color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K
• Universal 120-277V driver with dual dimming: 0-10V, or TRIAC and ELV on 120V
• IP65 wet location listing per source documentation
• IC rated; universal steel spring clips for standard 6 in. housings
• White reflector and white flange, 7.7 in. overall trim
• ETL, FCC, RoHS; Energy Star and Title 24 per source documentation
• 150 W equivalent class at LED draw

Specification Table

Included Components

• 6 in. commercial LED downlight trim
• Universal steel spring clips
• Installation bracket
• Installation instructions

Installation Notes

• Shut power at the breaker and verify with a tester before any work at the housing or splice point.

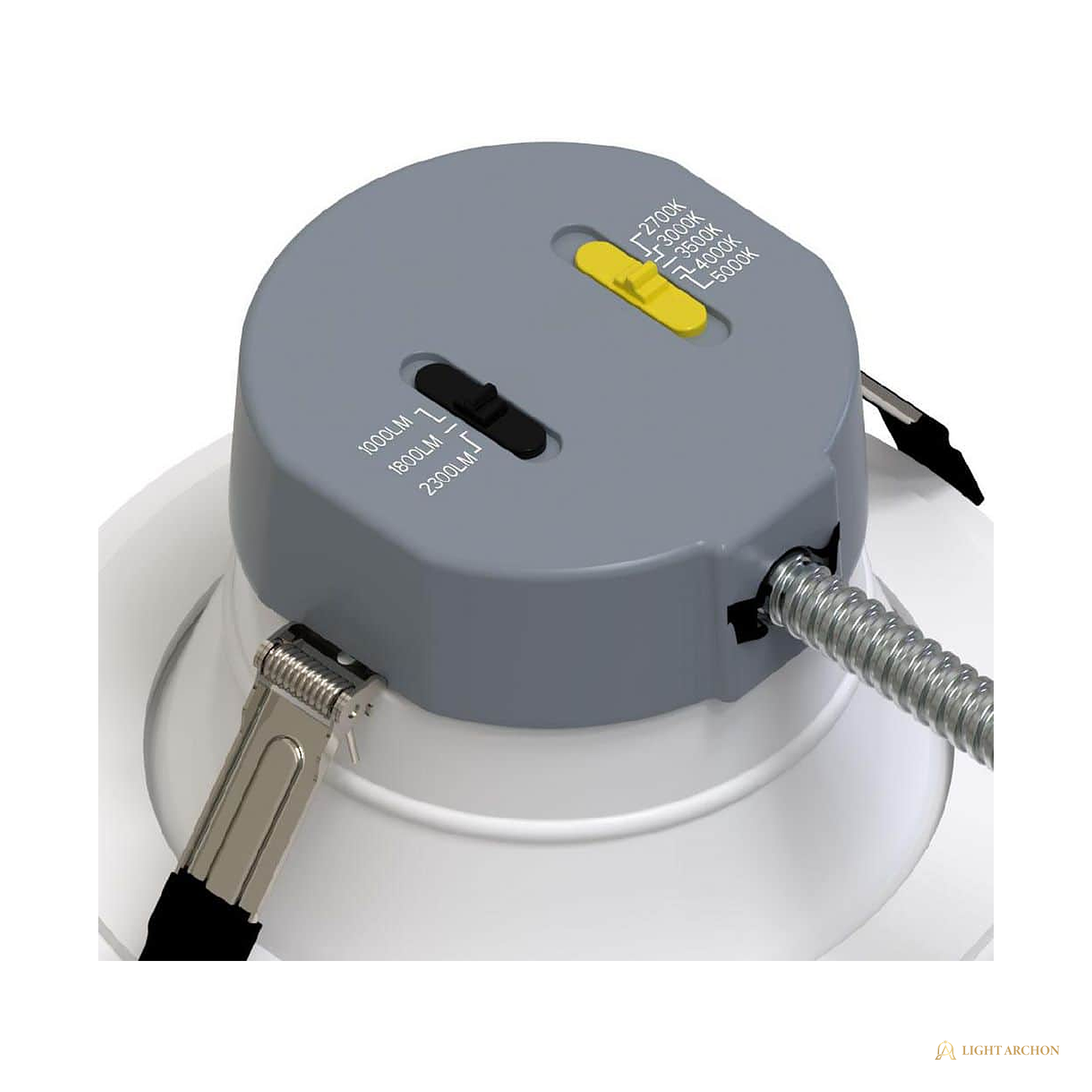

• Set the lumen and color temperature selectors before seating the trim.
• Seat the universal spring clips into the housing or rough-in frame and dress the flange to the ceiling.
• On 120-277V service, land the 0-10V control pair per the wiring diagram; on 120V, TRIAC and ELV dimmers apply.
• Wet location listing applies when installed to the listing terms; confirm the housing pairing at quote review.

Warranty and Support

• Limited warranty serviced at quote review
• Support and replacement paths are confirmed at quote review

Frequently Asked Questions

What ceiling opening is required?
A standard 6 in. nominal recessed opening; the flange covers to a 7.7 in. overall diameter. Exact cutout and housing pairing are confirmed at quote review.

Which housings does it fit?
The universal steel spring clips seat in standard 6 in. commercial housings and rough-in frames, and the Light Archon Bastion 6 in. housing series is the matched rough-in on our side; add both lines to one quote and our team aligns counts.

How does dimming work across voltages?
On 120-277V service the driver follows 0-10V control; on 120V it dims on TRIAC and ELV dimmers. State your control system on the quote and we verify the match.

Can it go outdoors under a canopy?
Yes. The platform carries a wet location listing with IP65 ingress per source documentation, which covers canopies and soffits when installed per the listing.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
