Light Archon Lamina 4 in. Ultra-Thin Canless LED Recessed Light, Wet Rated, 90 CRI

Light Archon Lamina is a 4 in. ultra-thin canless LED recessed light that installs straight into the ceiling with no housing at all. Two switches on the fixture set output at 450, 550, or 750 lumens and lock one of five color temperatures from 2700K to 5000K, the 90 CRI array renders finishes true, and the wet location listing covers showers, soffits, and indoor-outdoor work. Quote-first record: counts and controls are confirmed at quote review.

Lamina's wafer format fits where can housings cannot: shallow joist bays, insulated ceilings, and remodel cuts. The fixture is IC rated for direct insulation contact, serves new construction and remodel alike, and holds a regressed low glare trim face only 1.1 in. tall with a 4.7 in. overall diameter. Draw tops out at 9 watts on the highest output setting, dimming reaches 10 percent with 0-10V dimming per source documentation, and a high-efficiency driver carries the long-life LED array under a 5 year limited warranty.

Highlights

• Canless wafer installs straight into the ceiling, no housing required
• Selectable output on the fixture: 450, 550, or 750 lumens
• Five selectable color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K
• High color accuracy 90 CRI array
• Wet location certified; suitable for showers and covered soffits
• IC rated for direct contact with insulation
• 9 watt maximum draw with dimming to 10 percent
• New construction and remodel; 5 year limited warranty

Specification Table

Included Components

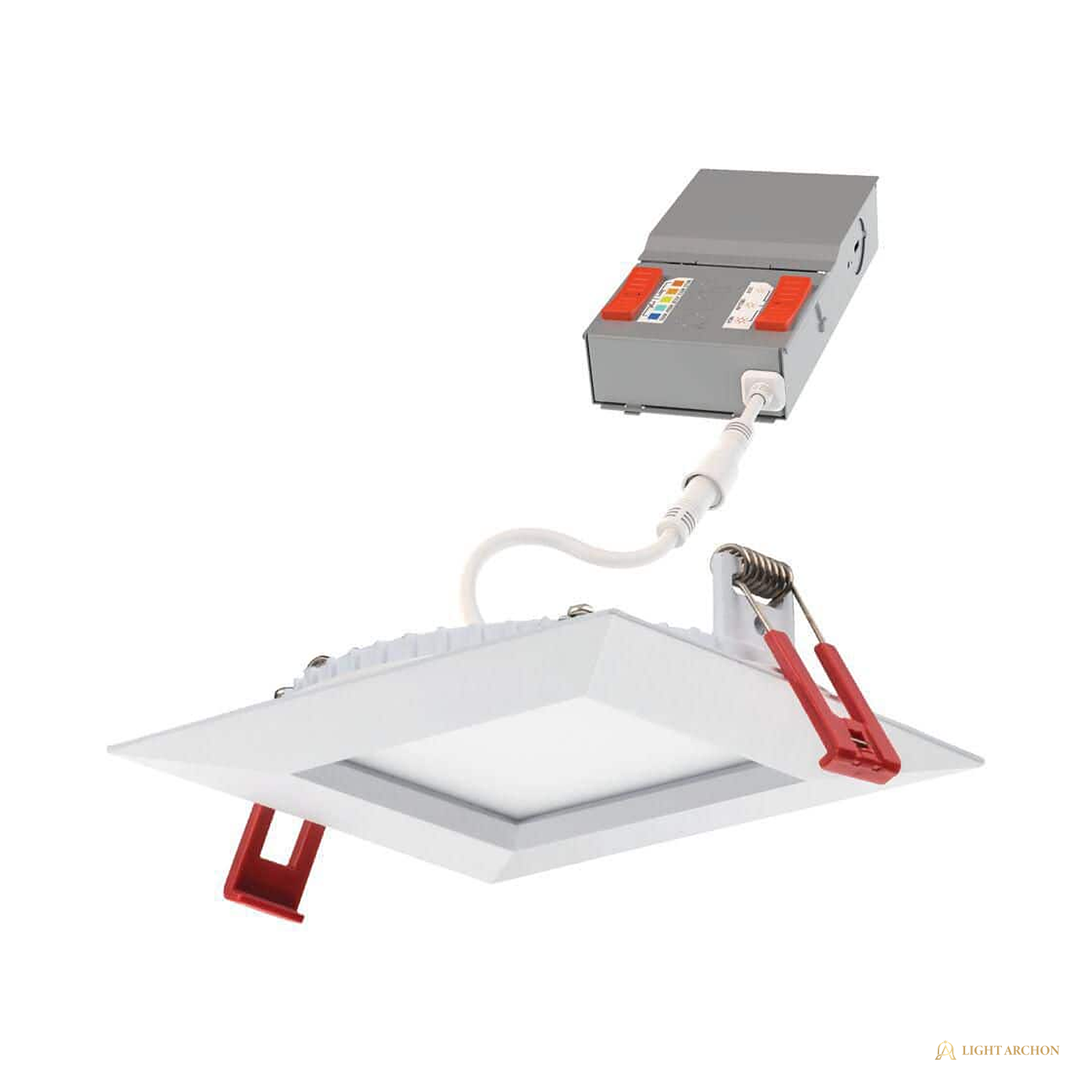

• Ultra-thin LED wafer fixture with remote driver
• Spring clip mounting hardware
• Installation instructions

Installation Notes

• Shut power at the breaker and verify with a tester before any ceiling work.
• Cut the ceiling opening per the size template, land the supply at the driver, and seat the wafer with its spring clips.
• Set the lumen and color temperature switches on the fixture before final seating.
• IC rated: direct contact with insulation is permitted.
• Wet location listing applies when installed to the listing terms; confirm dimmer pairing at quote review.

Warranty and Support

• 5 year limited warranty
• Support and replacement paths are confirmed at quote review

Frequently Asked Questions

What ceiling opening is required?
A 4 in. nominal cutout per the included template; the trim face covers to a 4.7 in. overall diameter. No can housing is needed, so shallow and insulated ceilings both work.

Does it work in insulated ceilings?
Yes. The platform is IC rated for direct contact with insulation and installs canless in new construction and remodel ceilings.

Can I use it above a shower or outside?
Yes. It is certified for wet locations, which covers showers, covered soffits, and indoor-outdoor applications when installed per the listing.

How do I set brightness and color?
Two switches on the fixture select 450, 550, or 750 lumens and one of five color temperatures from 2700K to 5000K before you seat the trim.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)
