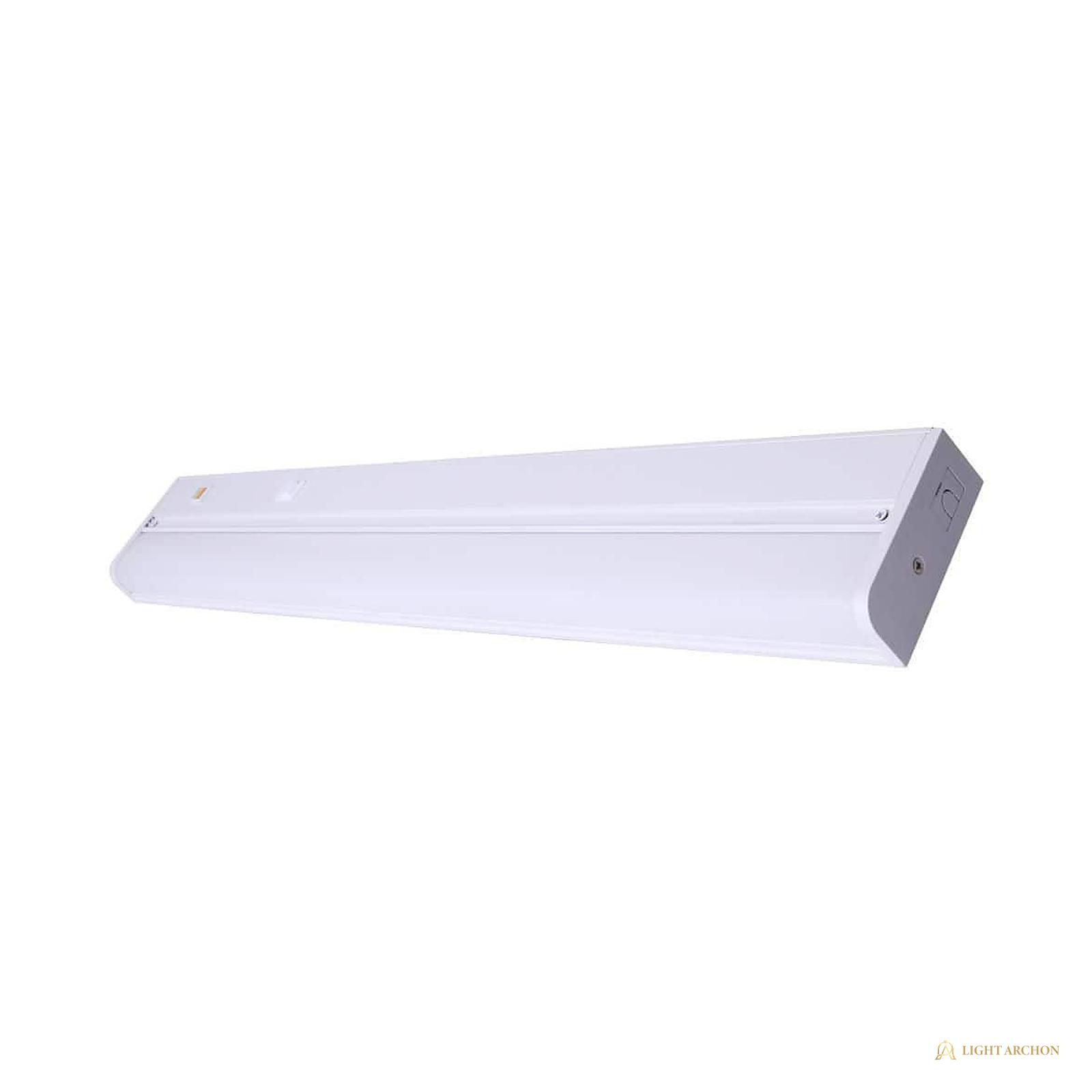

Light Archon Linea Direct Wire LED Under Cabinet Light, Selectable CCT, Linkable - front view

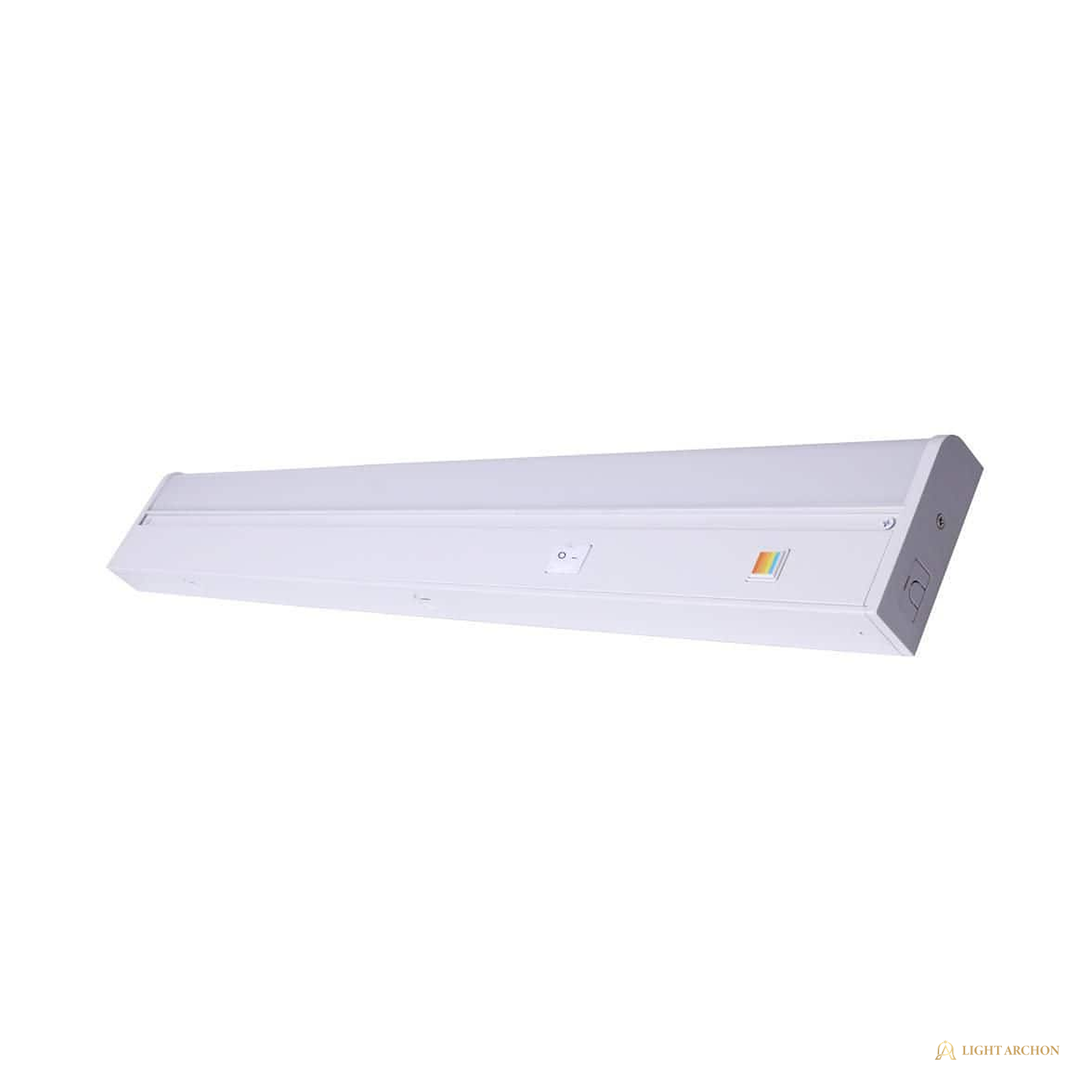

Light Archon Linea Direct Wire LED Under Cabinet Light, Selectable CCT, Linkable - angle view

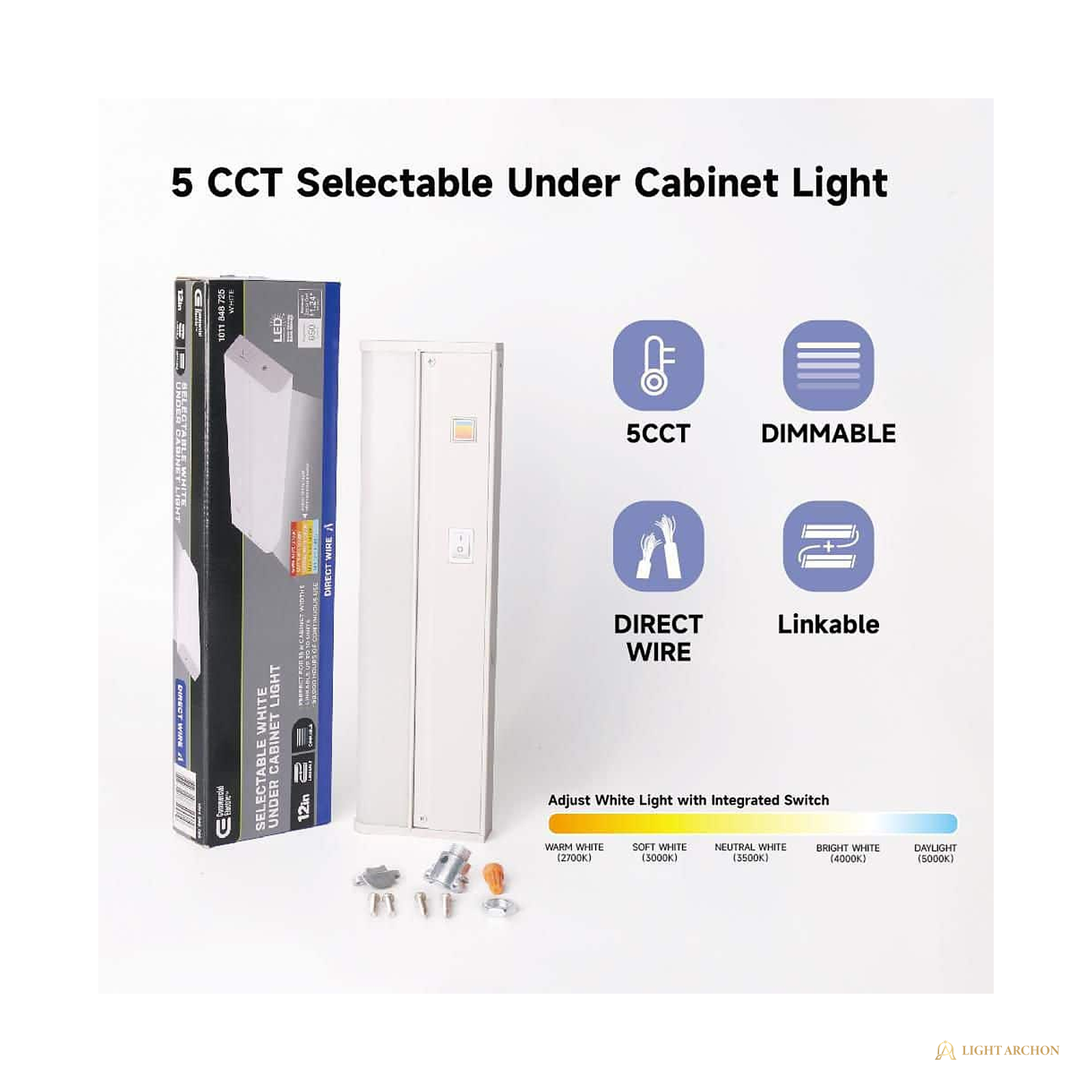

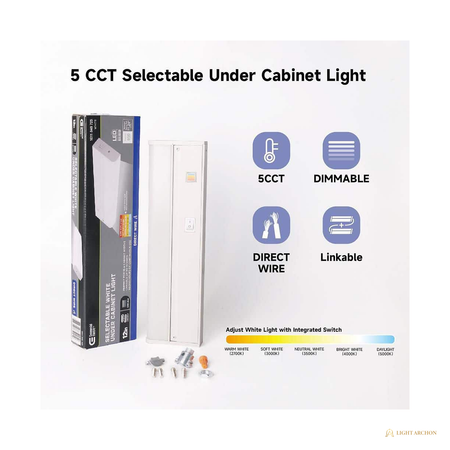

Light Archon Linea Direct Wire LED Under Cabinet Light, Selectable CCT, Linkable - construction detail

Product image note: Photos show the exact White direct wire platform sold; the size option sets fixture length.

Light Archon

Light Archon Linea Direct Wire LED Under Cabinet Light, Selectable CCT, Linkable

Name: Light Archon Linea Direct Wire LED Under Cabinet Light, Selectable CCT, Linkable
Brand: Light Archon
SKU: LA-LGT-UC-U24-LINEA-12

SKU: LA-LGT-UC-U24-LINEA-12

Size

12 in. 18 in. 24 in.

Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

Light Archon Linea is a direct wire LED under cabinet light that puts task-grade output over kitchen runs, wet bars, and workbenches. The 24 in. size delivers 1270 lumens at 19.6 watts from a 90 CRI array with five selectable color temperatures from 2700K to 5000K, and up to 10 units link end to end off one feed. Quote-first record: run lengths and dimmer matches are confirmed at quote review.

Linea hardwires to a 120V branch circuit and links unit to unit, so a full cabinet run switches and dims as one line from an in-wall dimmer. The slim aluminum body holds captive mounting screws that seat into the cabinet underside, and an internal channel stows the linking cord between fixtures for a clean reveal. A selector locks one of five color temperatures at install. The 90 CRI array renders counters and finishes true, and the platform holds a 50,000 hour rated life with a 5 year limited warranty. Sizes of 12, 18, and 24 in. cover standard cabinet bays; output figures for the shorter sizes are confirmed at quote review.

Highlights

Direct wire to 120V with linkable runs up to 10 units on one feed
1270 lumens at 19.6 watts in the 24 in. size
High color accuracy 90 CRI array for true counter and finish tones
Five selectable color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K
In-wall dimmer compatible for full-run control
Slim aluminum body with captive mounting screws
Internal channel stows the linking cord between units
Suited to Title 24 work per source documentation; 50,000 hour rated life

Specification Table

Sizes	12 in., 18 in., 24 in.
Body	Aluminum, White finish, 3.3 in. deep x 1.2 in. tall
Lumens	1270 (24 in. size); shorter sizes confirmed at quote review
Color temperature	2700K to 5000K in five steps
Color accuracy	90 CRI
Watts	19.6 (24 in. size)
Input	120V direct wire
Linking	Up to 10 units on one feed
Dimming	In-wall dimmer compatible
Location	Dry rated, interior cabinet runs
Mounting	Captive screws to the cabinet underside
Compatible accessories	Linking cords between units, confirmed at quote review
Rated life	50,000 hours
Warranty	5 year limited

Included Components

LED under cabinet fixture
Captive mounting screws and hardware
Direct wire connection hardware
Install instructions

Installation Notes

Shut power at the breaker before work at the feed point.
Hardwire the first unit to the 120V branch circuit, then link additional units end to end, up to 10 per feed.
Seat the captive mounting screws into the cabinet underside; the internal channel stows the linking cord between fixtures.
Set the color temperature selector on each unit before final mounting.
Pair the run with a compatible in-wall dimmer; verify the model at quote review.

Warranty and Support

5 year limited warranty
50,000 hour rated life
Support and replacement paths are confirmed at quote review

Frequently Asked Questions

How is it powered?
By direct wire to a 120V branch circuit. The first unit lands the feed and up to 10 units link end to end, so one switch leg controls the whole run.

How does it attach to the cabinet?
Captive mounting screws seat the slim body flat against the cabinet underside, and the internal channel keeps the linking cord out of sight.

Can I dim the run?
Yes. The platform is in-wall dimmer compatible; send your dimmer model with the quote for verification at quote review.

Which size do I need?
Match fixture length to each cabinet bay: 12, 18, and 24 in. sizes mix freely on one linked feed. Our team lays out the run from your cabinet plan at quote review.
