Light Archon MediaFrame Recessed TV Power and Low-Voltage Box
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

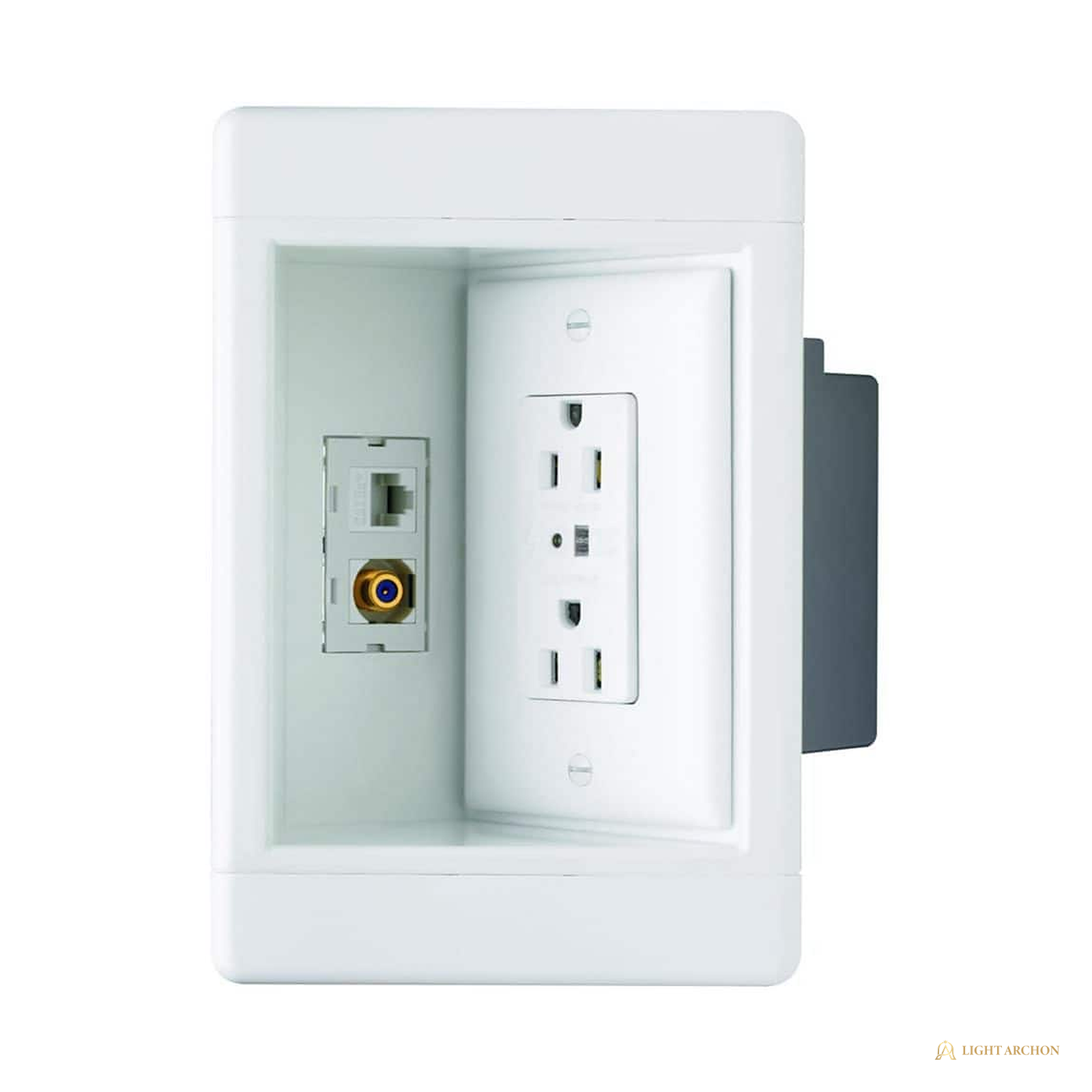

Light Archon MediaFrame recesses the power and signal connections for a wall-mounted TV fully into the wall, so the panel hangs flat with no plug bulge. One trimmed frame carries line voltage with integrated surge protection plus low-voltage pass-throughs for HDMI and data.
The one-piece ABS box and frame cuts into finished drywall using the molded-in template, and snap-on end caps hide the mounting screws for a clean finish. Three openings split duty between the surge-protected power side and low-voltage connectors that accept terminated cables or pull-through runs, so display cords, soundbar feeds, and data all land behind the panel. Recessed depth is 3.2 in. inside a 5.5 in. by 8.8 in. frame.
Highlights
- Recesses TV power and signal connections fully behind the panel
- Integrated surge protection on the line-voltage side per the published listing
- Low-voltage connectors accept terminated or pull-through cable runs
- Three openings split line voltage and low-voltage duty
- One-piece ABS box and frame with snap-on end caps for a clean finish
- Molded-in template guides the drywall cutout
- Old work install into finished walls
- Quote-first trade supply; counts confirmed at quote review
Specification Table
| Format | 1-gang recessed media box |
| Body | 5.5 W x 8.8 H x 3.2 D in., one-piece box and frame |
| Material | ABS, white |
| Openings | Three; line voltage plus low-voltage configurations |
| Surge protection | Integrated module on the power side |
| Low voltage | Terminated or pull-through connector paths |
| Install | Old work, molded-in cutout template |
| Finish | Snap-on end caps conceal mounting screws |
| Environment | Dry interior walls |
| Certifications | Confirmed at quote review |
Included Components
- Recessed box and frame with snap-on end caps
- Low-voltage connector kit per the published listing
Installation Notes
- Trace the molded-in template and cut the rectangular opening in finished drywall.
- Locate the box between studs clear of insulation and existing wiring; verify with a stud finder before cutting.
- Line-voltage connections are made by a qualified electrician; de-energize the feed circuit first.
- Route low-voltage cables through the connectors terminated or as pull-through runs.
- Certification requirements for the jurisdiction are confirmed at quote review.
Warranty and Support
- Backed by the Light Archon trade supply program; warranty terms are confirmed at quote review.
- Submittal sheets and takeoff review support are available from our electrical supply desk.
Frequently Asked Questions
What does the recessed design solve?

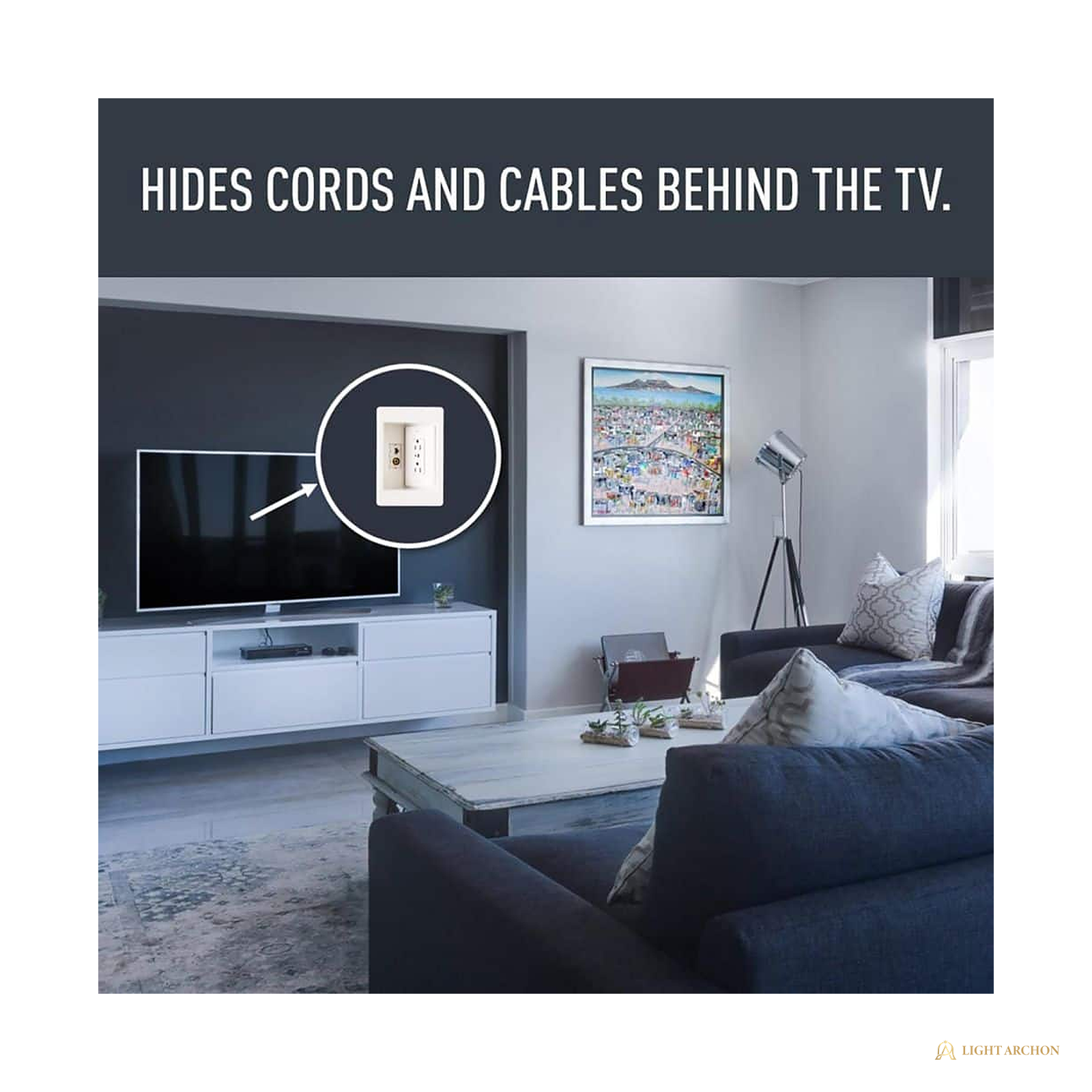

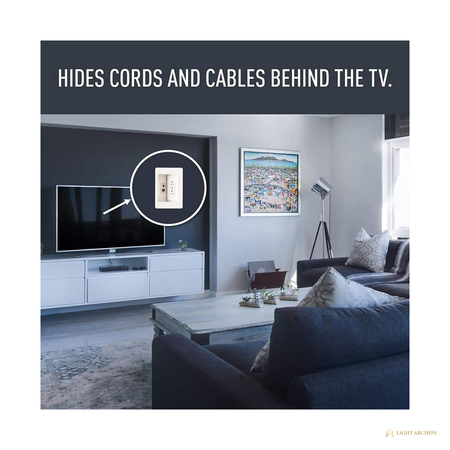

Plug depth. Cords and connectors sit inside the wall cavity instead of behind the TV, so flat and articulating mounts pull the panel tight to the drywall.
Does it handle both power and HDMI?
Yes. The power side carries a surge-protected line-voltage connection; the low-voltage openings pass HDMI, data, and speaker runs through connectors or open pass-throughs.
Is this an old work install?

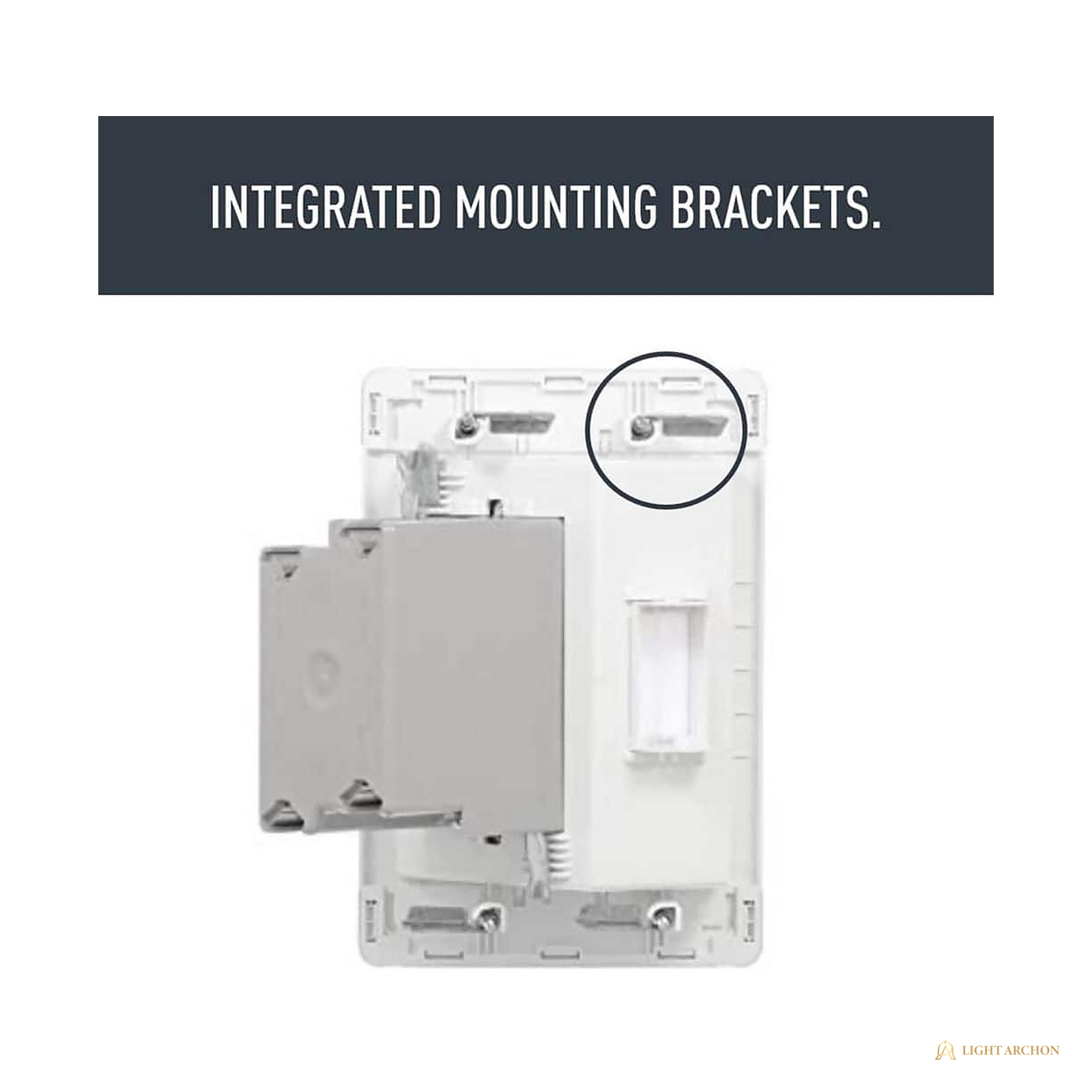

Yes. It cuts into finished drywall using the molded-in template, with the one-piece frame clamping to the wallboard opening.
Is the surge protection replaceable?
The surge module is integrated. Treat a sacrificial surge event as a unit replacement; counts are confirmed at quote review.
Documents
- Type Electrical Box
- SKU LA-LGT-BX-B1GTV-MDFR
- Catalog Reference Installation & Warranty Reference (PDF)
- Spec PDF Open product spec summary
- Submittal PDF Open submittal reference
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
