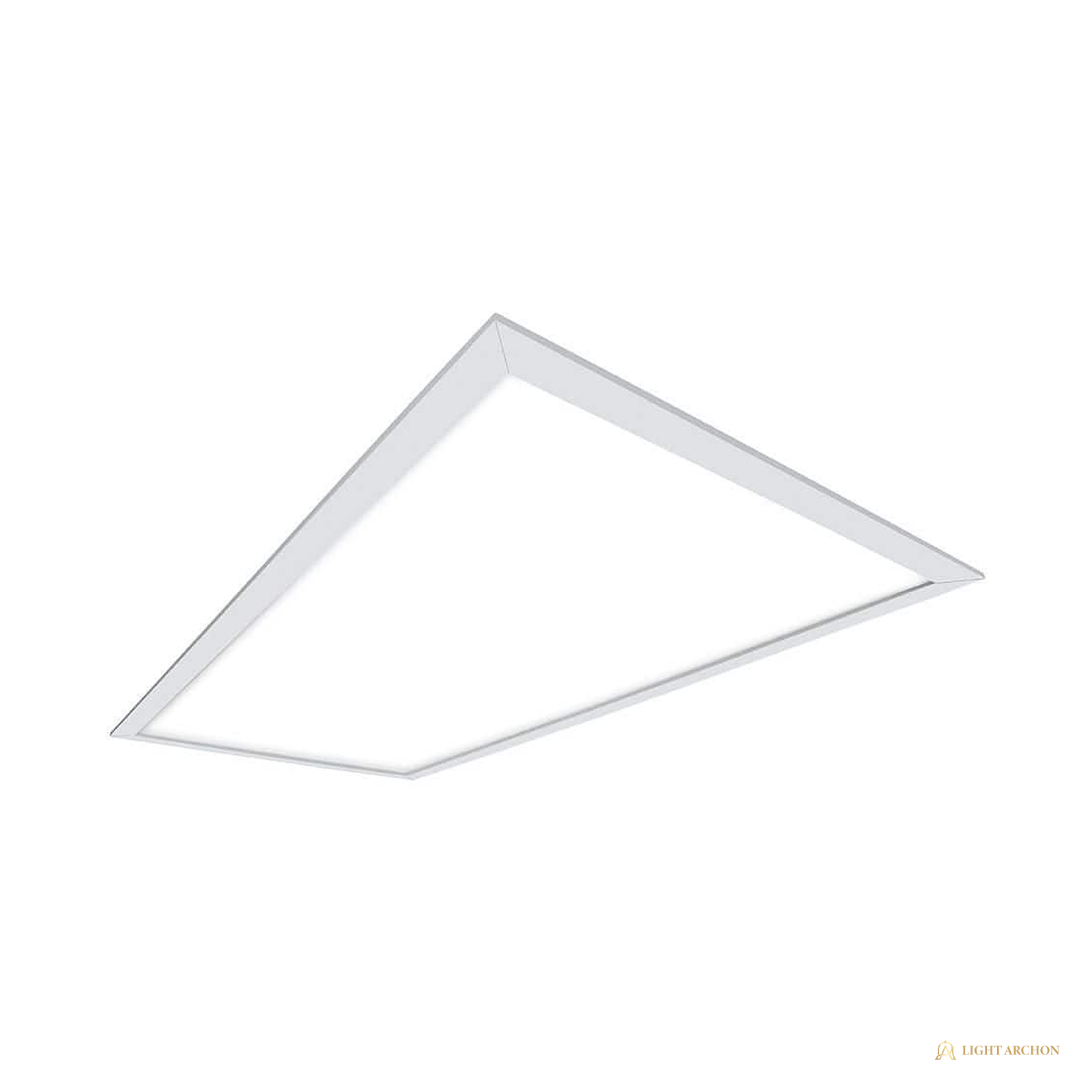

Light Archon Meridian 2 ft. x 4 ft. LED Flat Panel Light, 4800 Lumens 4000K

Light Archon Meridian is a 2 ft. x 4 ft. LED flat panel for offices, classrooms, healthcare suites, and retail floors. Each panel delivers 4800 lumens of 4000K neutral white at 41 watts, replacing fluorescent troffers drawing more than twice the load, and the shallow 2.125 in. plenum depth drops into any standard grid ceiling. Quote-first record: counts, mounting kits, and dimming pairs are confirmed at quote review.

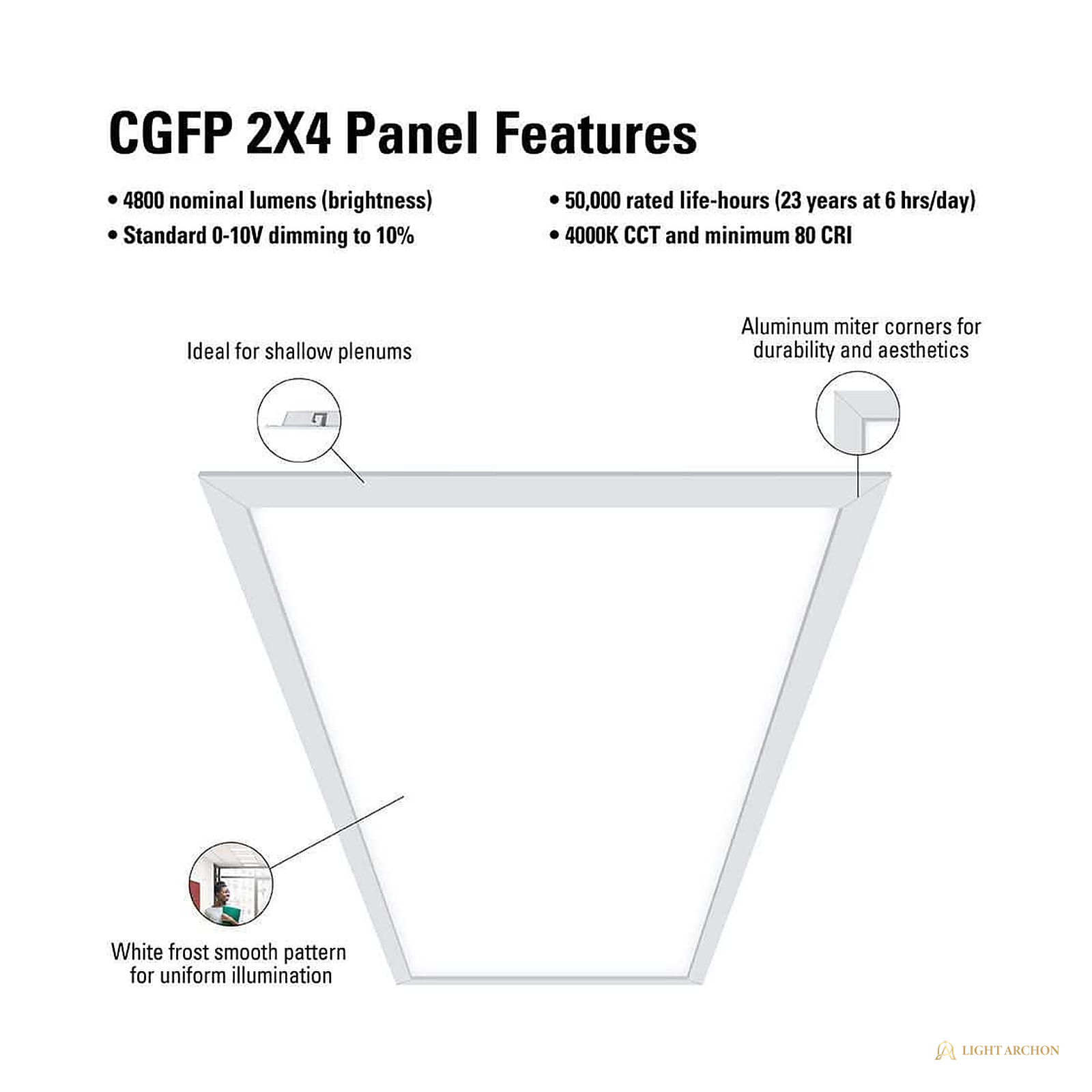

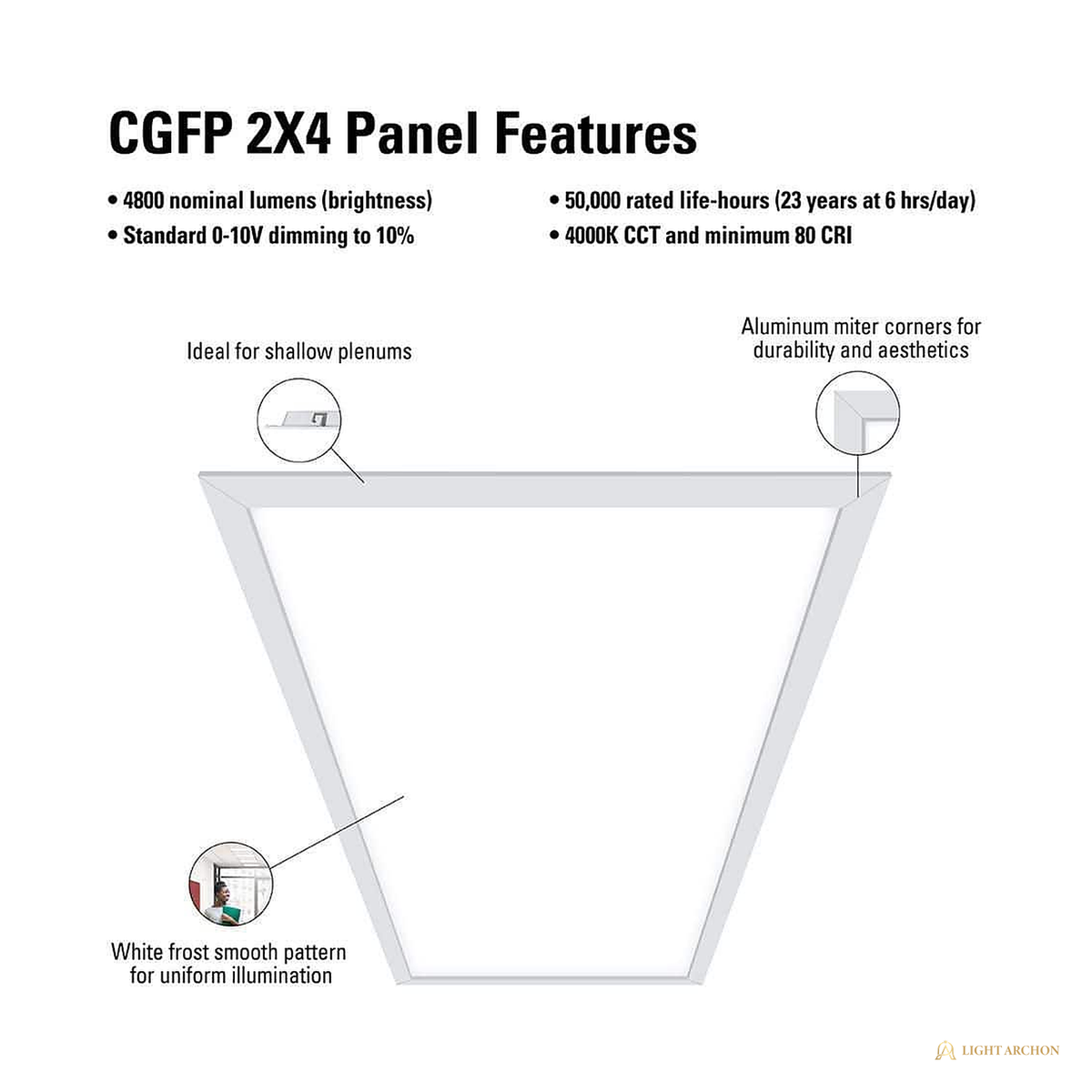

The die-formed steel housing with aluminum miter corners keeps the frame square through handling, and the UV and scratch resistant acrylic lens spreads glare-free, uniform light across the workplane. The driver accepts 120-277V service and dims on 0-10V control pairs down to low task levels. Integral grid clips secure the panel to T-bar ceilings, and surface or suspension mounting is available with accessory kits confirmed at quote review. Damp listed for covered zones, with L70 lumen maintenance at 50,000 hours.

Highlights

• 4800 lumens at 41 watts, a direct swap for twin-lamp fluorescent troffers
• 4000K neutral white with uniform, glare-free acrylic lens output
• 120-277V driver with 0-10V dimming

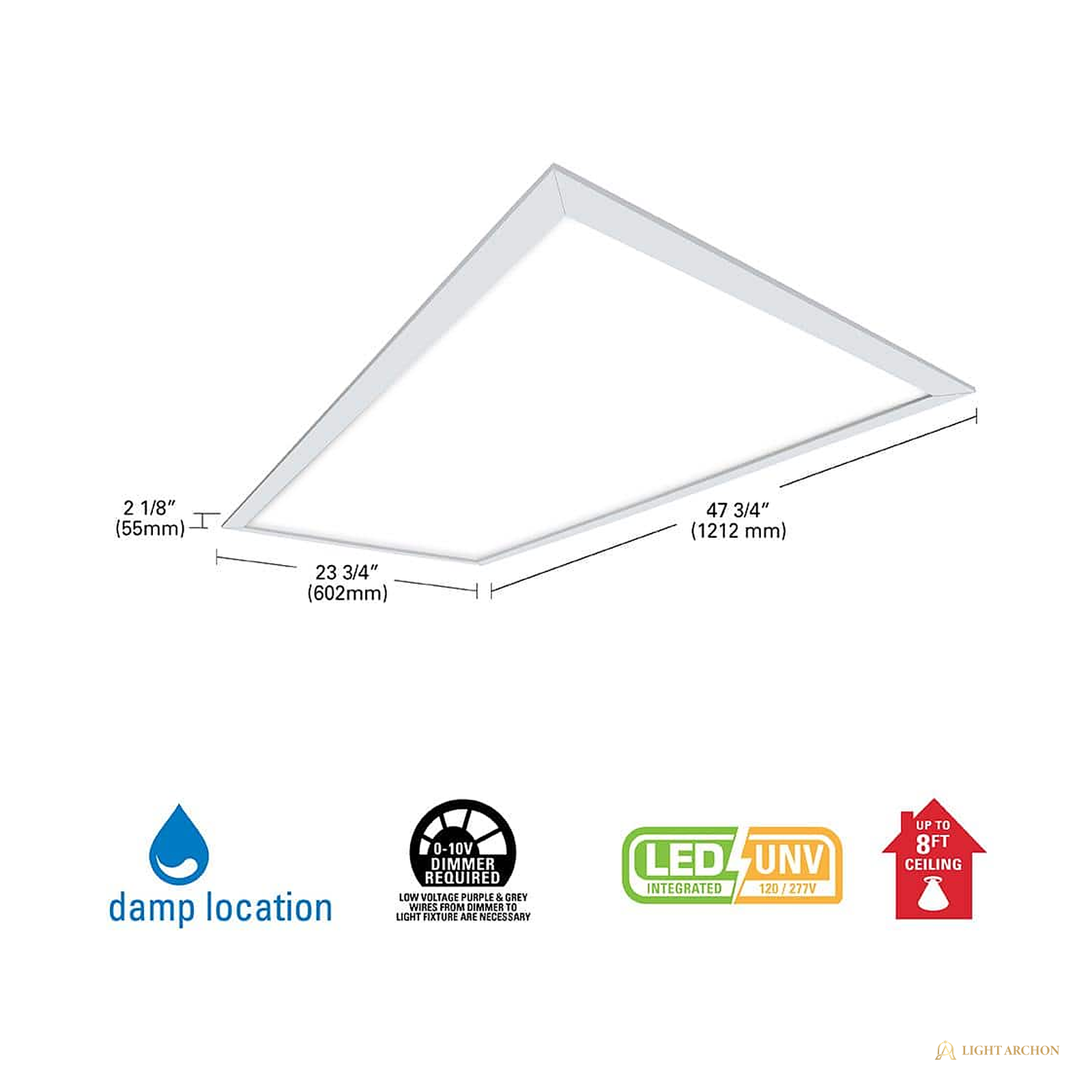

• Shallow 2.125 in. depth fits tight plenums and any standard T-grid ceiling
• Integral grid clips included for secure T-bar attachment
• Surface and suspension mounting with accessory kits, confirmed at quote review
• Damp listed; cULus and FCC listed, L70 at 50,000 hours
• 5 year limited warranty

Specification Table

Included Components

• LED flat panel
• Integral T-grid clips
• 0-10V dimming leads, gray and purple
• Install instructions

Installation Notes

• Lay the panel into a standard 2 ft. x 4 ft. T-grid opening and set the integral grid clips for a secure hold.
• Land 120-277V service per the panel diagram; the FCC Class B driver accepts either service class.
• For 0-10V dimming, run the control pair from the gray and purple leads to the dimmer.
• Surface and suspension installs need the matched accessory kits, confirmed at quote review.
• Damp listed for covered zones; recommended mounting height 10 ft.

Warranty and Support

• 5 year limited warranty
• L70 lumen maintenance at 50,000 hours
• Support and replacement paths are confirmed at quote review

Frequently Asked Questions

What ceiling does it mount in?
It lays into standard 2 ft. x 4 ft. T-grid drop ceilings with integral grid clips. Surface and suspension mounting are available with accessory kits confirmed at quote review.

Does it dim?
Yes. The driver dims on a 0-10V control pair run from the gray and purple leads to a compatible dimmer.

What service does it accept?
120-277V. The driver accepts any service in that span, so residential-class and commercial-class circuits both work.

What does it replace?
It delivers 4800 lumens at 41 watts, a one-for-one swap for twin-lamp fluorescent troffers drawing up to 96 watts.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
