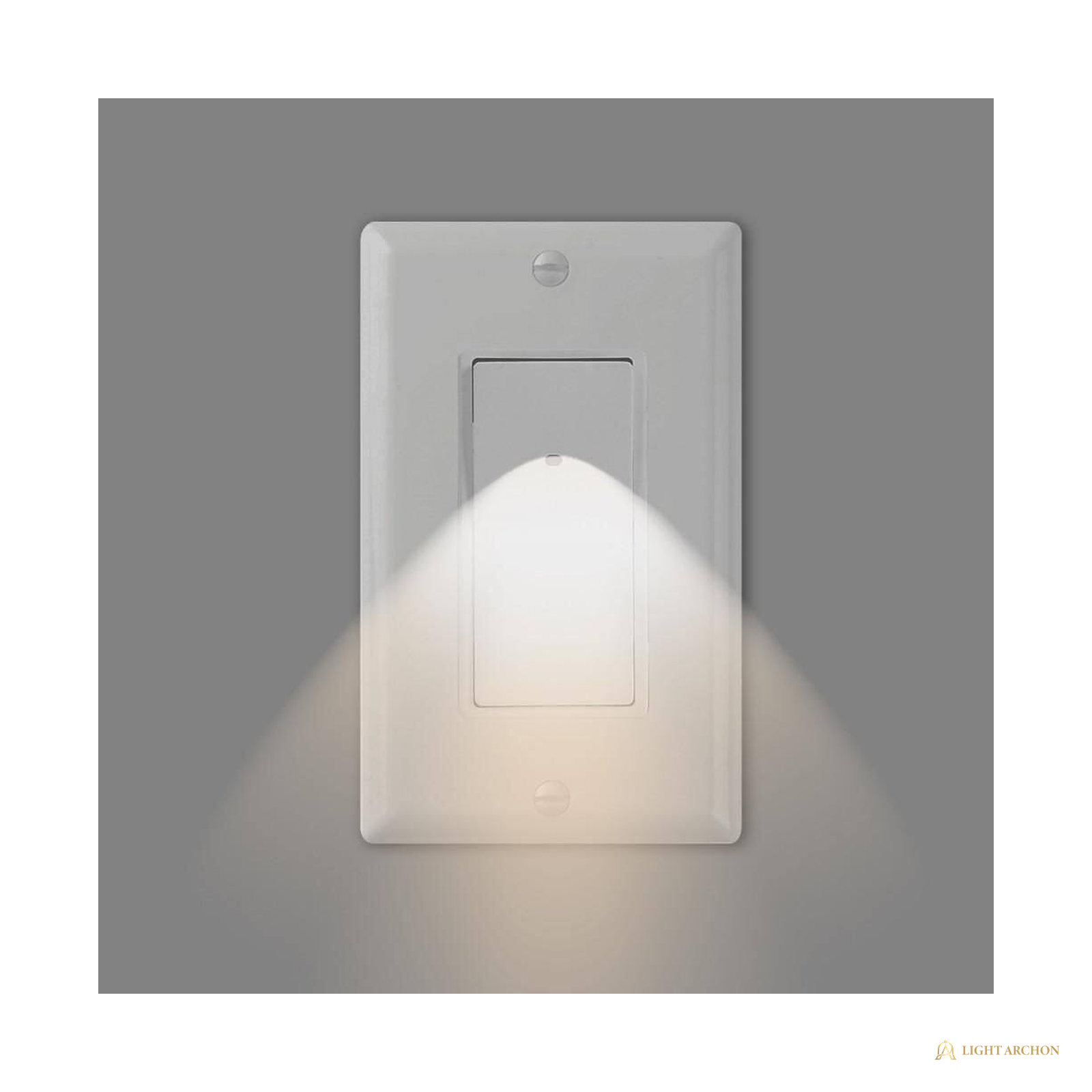

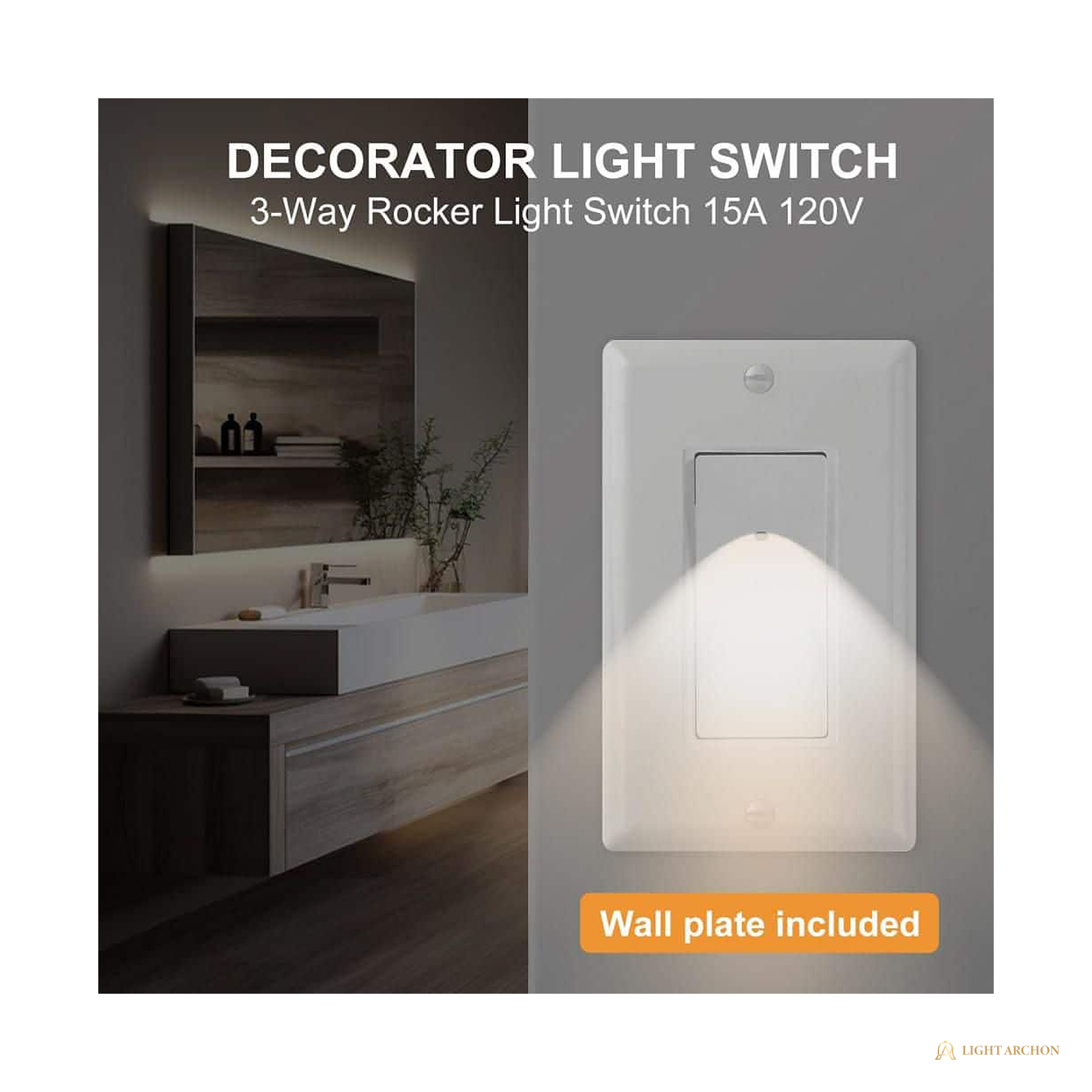

Light Archon Nightwatch 15A Illuminated 3-Way Rocker Switch with Night Light

The Light Archon Nightwatch puts a guide light where your hand already goes: a 15 A, 120V AC rocker switch with an integrated LED night light that switches itself on when the room goes dark. Wired 3-way it covers hallways and stair landings from two locations; it also wires single-pole for bedrooms and baths. Quote-first: add it to your quote list and the trade desk confirms counts before release.

A built-in light sensor watches ambient level and lights the LED strip when the room drops below roughly 12 lux, then shuts it off in daylight, drawing just 0.2W. The full-width designer rectangular paddle runs LED lighting loads at 15 A, and the flame-retardant polycarbonate body carries a UL94 V-2 material rating with cETLus listing. A matching White wall plate ships in the box, so the device trims out complete without a separate plate line.

Highlights

• 15 A, 120V AC rocker switch with integrated LED night light
• Light sensor switches the night light automatically below about 12 lux
• Night light draws 0.2W
• 3-way wiring for two-location control; also wires single-pole
• Designer rectangular paddle in White
• Flame-retardant polycarbonate body, UL94 V-2 material rating
• Matching wall plate included
• cETLus Listed

Specification Table

Included Components

• Nightwatch illuminated 3-way rocker switch, White
• Matching White wall plate
• Mounting screws

Installation Notes

• Installed by a licensed electrician in a standard single-gang box; verify box fill
• 3-way circuits use two 3-way switches; this unit also wires single-pole
• Requires a neutral-free standard switch loop or per the wiring diagram supplied with the unit; verified at rough-in
• Confirm load type and total load stay within the switch rating
• Keep the sensor window clear of paint and wall texture at trim-out

Warranty and Support

• Covered by the Light Archon limited trade warranty; term confirmed at quote review
• Submittal sheets and dimensional PDFs available for every configuration
• Support through the Light Archon trade desk

Frequently Asked Questions

What box does it need?
A standard single-gang wall box. Your installer verifies box fill for the conductors present per NEC 314.16.

Does the night light stay on all day?
No. The built-in sensor lights it only when ambient light falls below roughly 12 lux and shuts it off in daylight. It draws 0.2W while lit.

Can I use it in a single-pole circuit?
Yes. A 3-way switch wires single-pole by using the common and one traveler terminal; your electrician lands it per the diagram.

Is a wall plate included?
Yes. A matching White plate ships in the box, so no separate plate line is needed.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)
