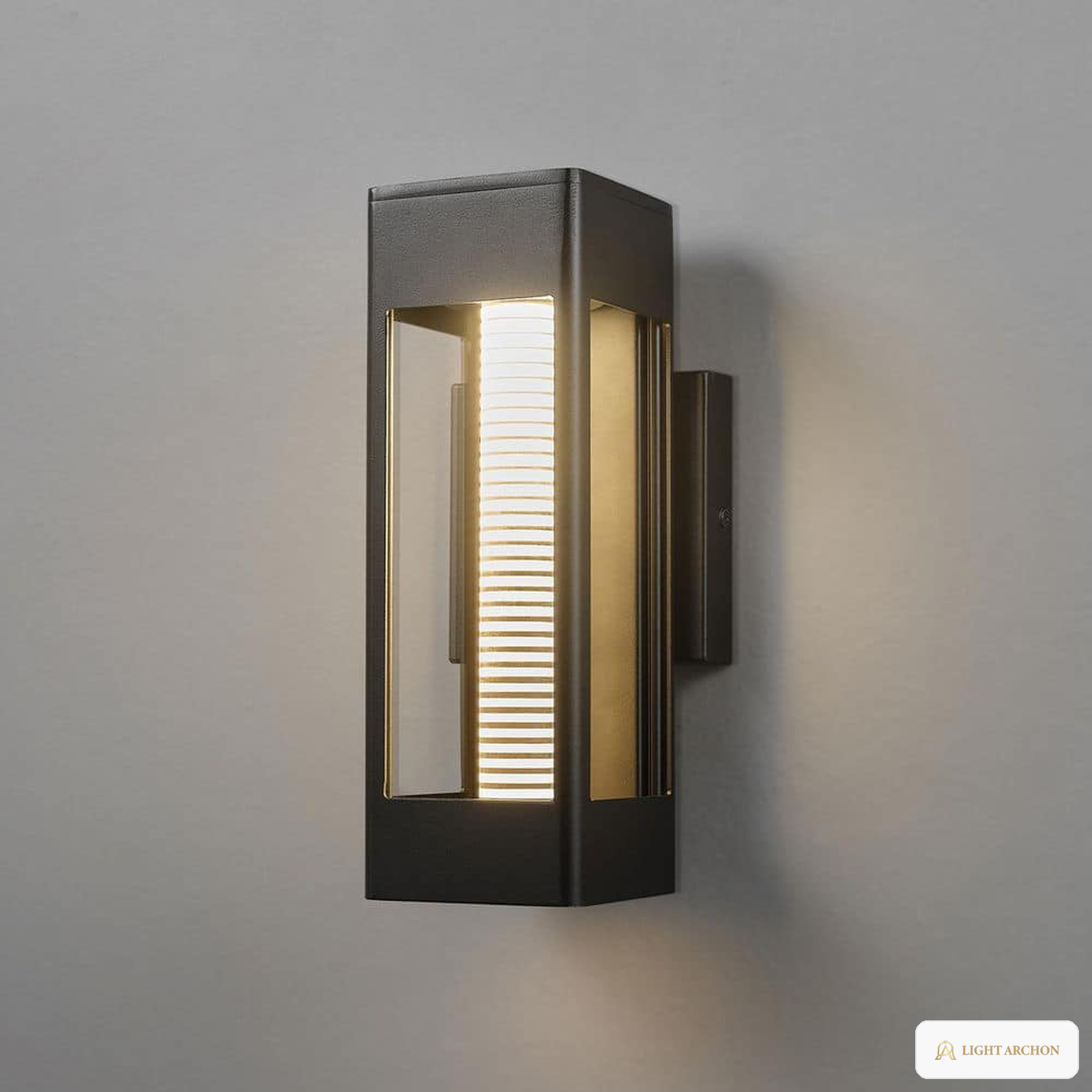

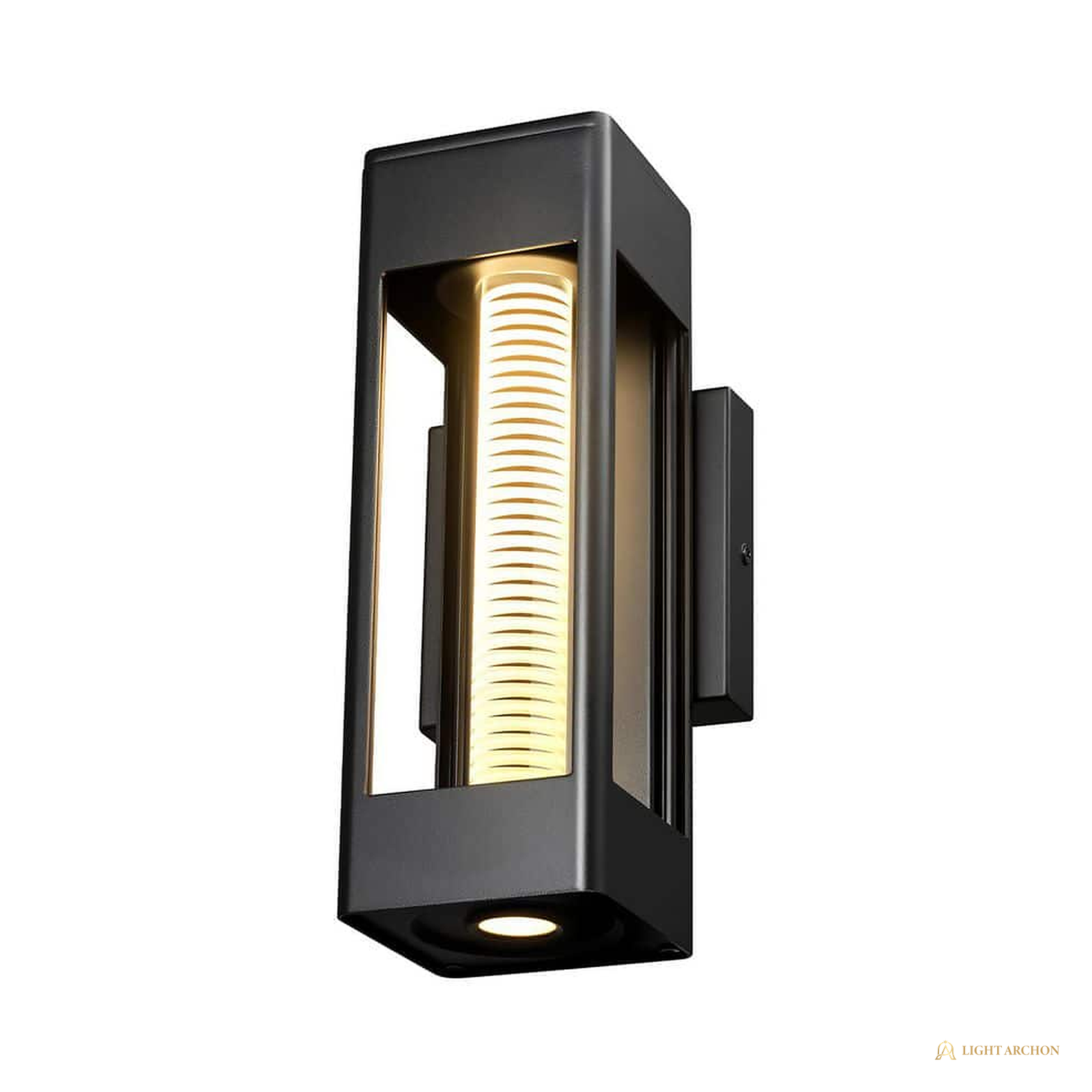

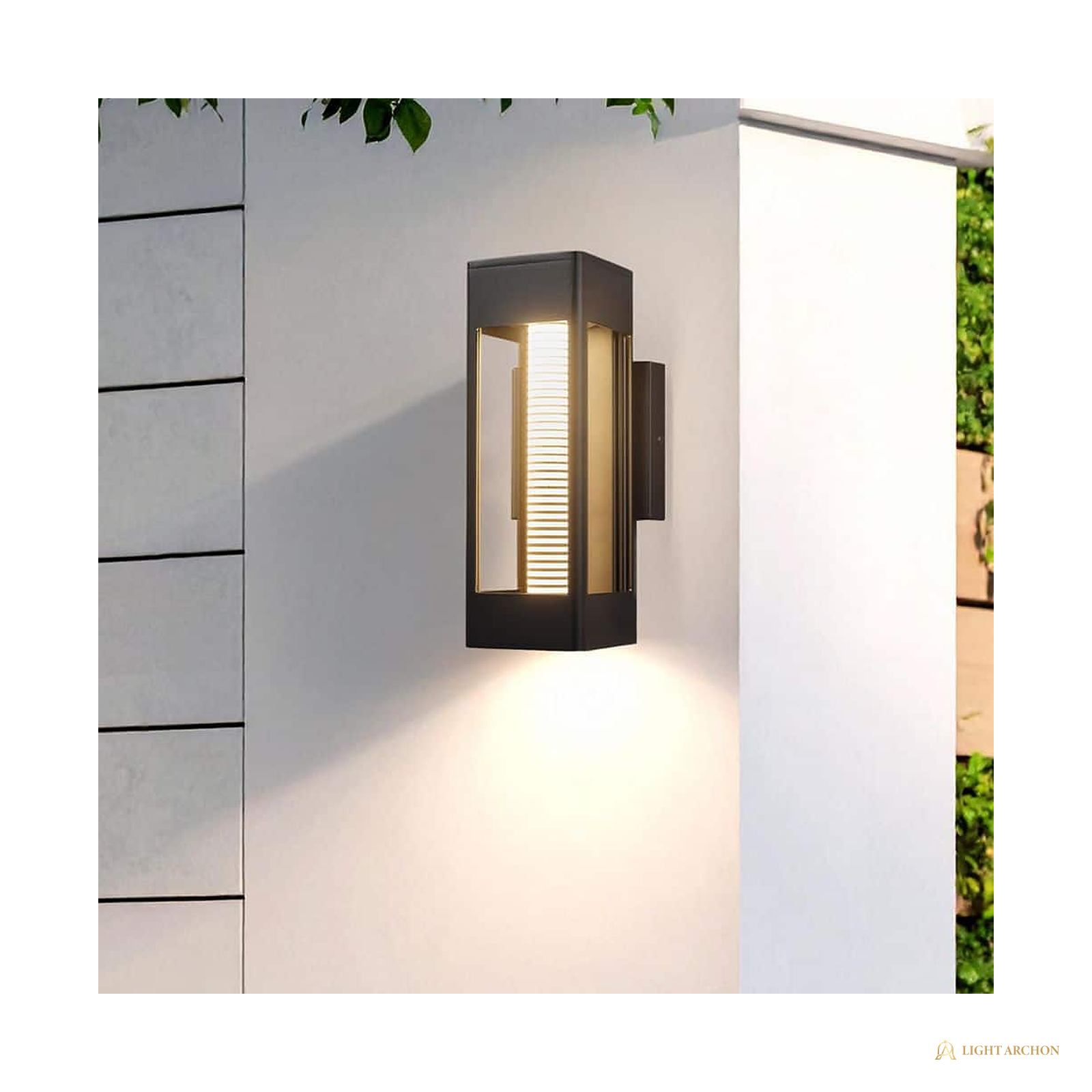

Light Archon Onyx 11 in. Integrated LED Outdoor Wall Sconce with Etched Glass, Matte Black

The Light Archon Onyx is a slim 11 in. outdoor wall sconce in matte black whose horizontally etched glass turns an 11 W integrated LED into calm, linear light. It throws a focused downlight at 600 lumens and a warm 2700K with 90 CRI per source documentation, which is entry lighting that flatters brick, siding, and the people at the door. Damp rated for covered outdoor walls and equally at home on interior walls. Quote-first program: add it to a quote list for project terms.

The etching does the design work: fine horizontal lines diffuse the LED into an even glow with a subtle texture, so the fixture reads finished at night and sculptural by day. The integrated array means no lamp to buy or replace, and it dims with a compatible wall dimmer for late-evening levels. The 4.72 in. square backplate lands on a standard wall or weatherproof junction box, with all mounting hardware in the box. Its rectangle profile stands 11.02 in. tall and projects 4.76 in., sized for door flanks, garage piers, balconies, and covered porches. Dual damp and dry listing lets the same SKU run outside at the entry and inside along a corridor for a matched building package.

Highlights

• Integrated 11 W LED: 600 lumens at 2700K warm white
• 90 CRI output per source documentation
• Horizontally etched glass for even, linear diffusion
• Focused downlight for entries and door flanks
• Damp rated for covered outdoor walls, dry listed indoors
• Dims with a compatible wall dimmer
• Slim 4.72 in. width, 11.02 in. height, matte black
• All mounting hardware included

Specification Table

Included Components

• Integrated LED wall sconce
• Backplate and all mounting hardware
• Installation instructions

Installation Notes

• Hardwired to a 120V circuit; de-power at the panel before work.
• Mounts to a standard junction box behind the 4.72 in. square backplate; outdoors, use a weatherproof box with a gasketed connection.
• Damp rated: covered outdoor walls such as porches and entries; not for direct rain exposure.
• Flank doors at about 66 in. to the fixture center for balanced entry light.
• Pair with a compatible LED wall dimmer where evening dimming is planned.

Warranty and Support

• Limited platform warranty confirmed on the quote sheet
• Quote-first program: no public prices; submit the list for project terms

Frequently Asked Questions

What does the Onyx mount to?
A standard junction box behind the 4.72 in. square backplate. On exterior walls use a weatherproof box with a gasketed connection so the damp rating carries through.

Can it take direct rain?
No. It is damp rated, which covers protected outdoor walls such as porches, covered entries, and soffit-sheltered piers. For uncovered walls, specify a wet-rated platform instead.

Do I ever change a bulb in it?
No. The 11 W LED array is integrated and sealed behind the etched glass; light output and color are engineered as one unit.

Can it be used indoors too?
Yes. It carries dry and damp listings, so the same fixture runs at the entry and along interior corridors for a matched package.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
