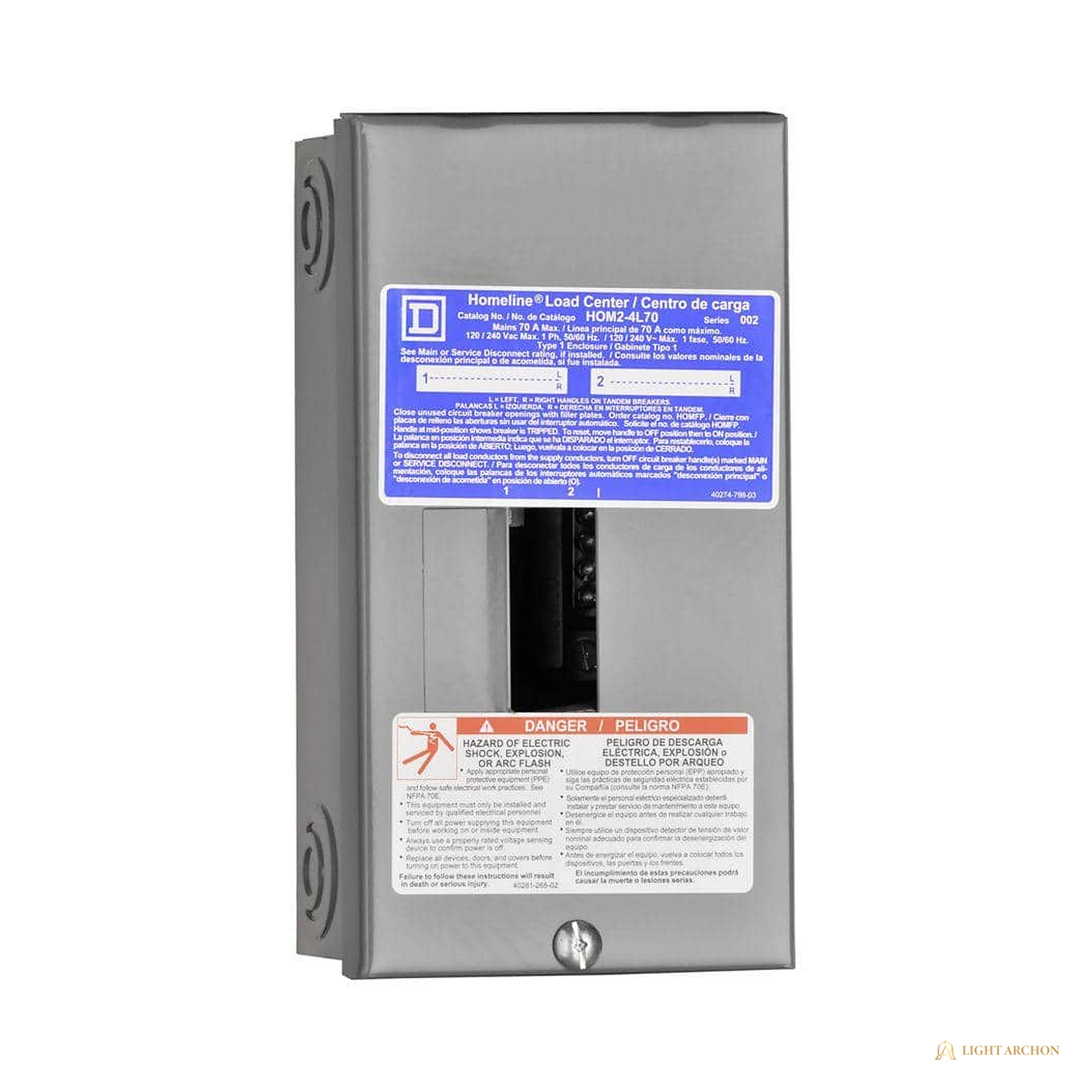

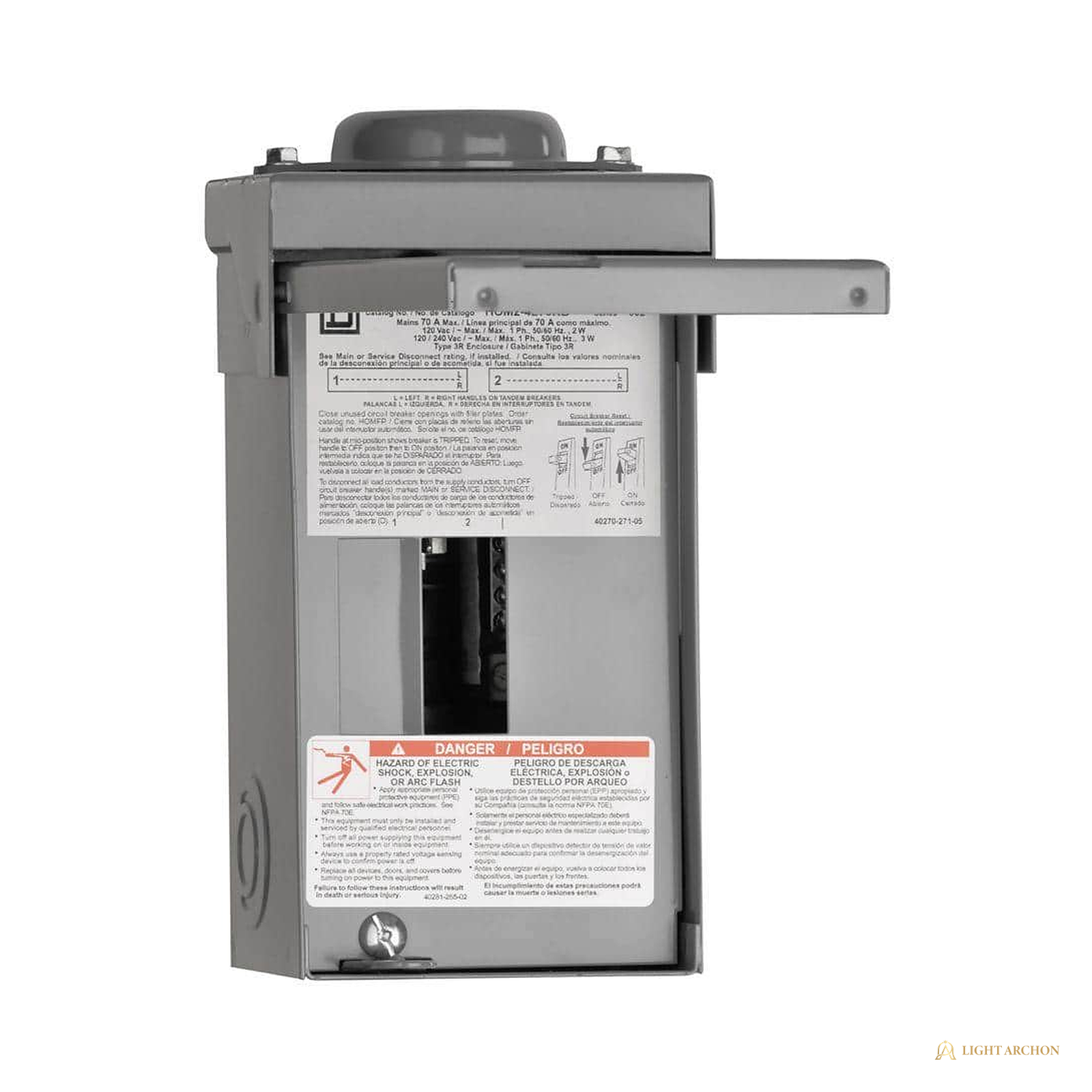

Light Archon Outpost 70A 2-Space Main Lug Load Center
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Light Archon Outpost is the small panel for small feeds: a 70A 2-space 4-circuit main lug load center for pool and spa equipment, minisplit condensers, well pumps, gate gear, and detached utility loads. Quote the rainproof outdoor unit or the indoor surface-mount version.
Main feeders terminate from the top and branch feeders enter from any direction through knockouts on all sides, so the little tub lands cleanly next to the equipment it serves. The outdoor cover is rainproof with a stainless steel hasp that takes a padlock, and the thermoplastic interior is among the most rugged in the class per the published listing. Rated 120/240V with a 10 kA interrupt rating; fed and protected from an upstream breaker sized per NEC.
Highlights
- 70A main lug platform, 2 spaces, 4 circuits with tandem-style formats
- Outdoor NEMA 3R and indoor NEMA 1 configurations
- Rainproof outdoor cover with padlockable stainless steel hasp
- Knockouts on all sides ease feeder routing
- Top-terminating main feeders; branch entry from any direction
- Accommodates a plug-on secondary surge arrestor, quoted separately
- 10 kA interrupt rating; 120/240V single phase
- UL Listed; quote-first trade supply
Specification Table
| Current Rating | 70A |
| Type | Main lug, fixed interior |
| Input Rating | 120/240V, single phase |
| Configuration | 2 spaces, 4 circuits |
| Interrupt Rating | 10 kA |
| Enclosure | Steel; NEMA 3R outdoor or NEMA 1 indoor |
| Mounting | Surface mount |
| Feed | Mains terminate from the top; entries on all sides |
| Security | Padlockable stainless hasp on the outdoor cover |
| Breaker Compatibility | Accepts Light Archon Aegis and Talos series 1 in. plug-on breakers and industry-standard 1 in. formats - verified at quote review |
| Certifications | UL Listed |
| Warranty | Light Archon limited trade warranty, confirmed at quote review |
Included Components
- Enclosure with cover, NEMA rated per configuration
- Main lug interior; branch breakers quoted separately
Installation Notes
- Fed from an upstream breaker sized per NEC; the main lug interior has no main device.
- Surface mount beside the served equipment with NEC working clearance at the face.
- Mains terminate from the top; the device cannot be rotated, so plan the feeder drop accordingly.
- Bond and ground per NEC; separate grounded and bonding conductors in subpanel use.
- Branch breaker schedule and any surge arrestor are confirmed at quote review.
Warranty and Support
- Covered by the Light Archon limited trade warranty; term confirmed at quote review
- Submittal sheets and dimensional PDFs available for every configuration
- Support through the Light Archon trade desk
Frequently Asked Questions
What loads suit a 2-space panel?
Pool and spa packs, minisplit condensers, well pumps, and detached utility feeds: anywhere one or two circuits need local distribution and disconnect-adjacent protection sized per NEC.
Does it have a main breaker?
No. It is a main lug panel protected by the upstream feeder breaker. Quote a main-breaker platform when the location needs its own main device.
Can it mount outdoors?
Yes. The outdoor configuration is NEMA 3R rainproof with a padlockable stainless steel hasp. The indoor version is a NEMA 1 surface-mount tub.
What breakers does it accept?
Light Archon Aegis and Talos series 1 in. plug-on breakers and industry-standard 1 in. formats, verified at quote review.
Documents
- Type Load Center
- SKU LA-LGT-LC-S2-OTPS-2OR
- Catalog Reference Installation & Warranty Reference (PDF)
- Spec PDF Open product spec summary
- Submittal PDF Open submittal reference
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
