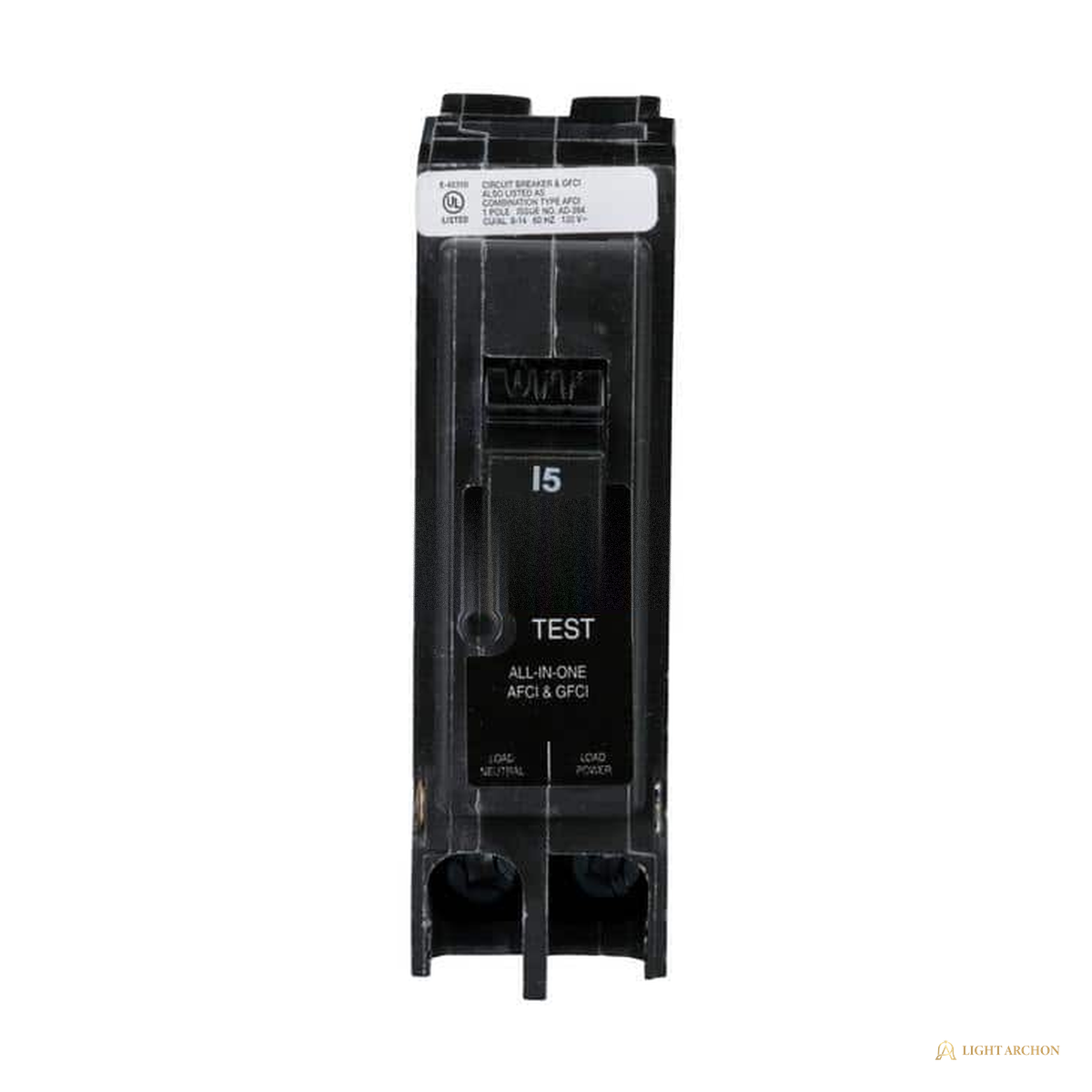

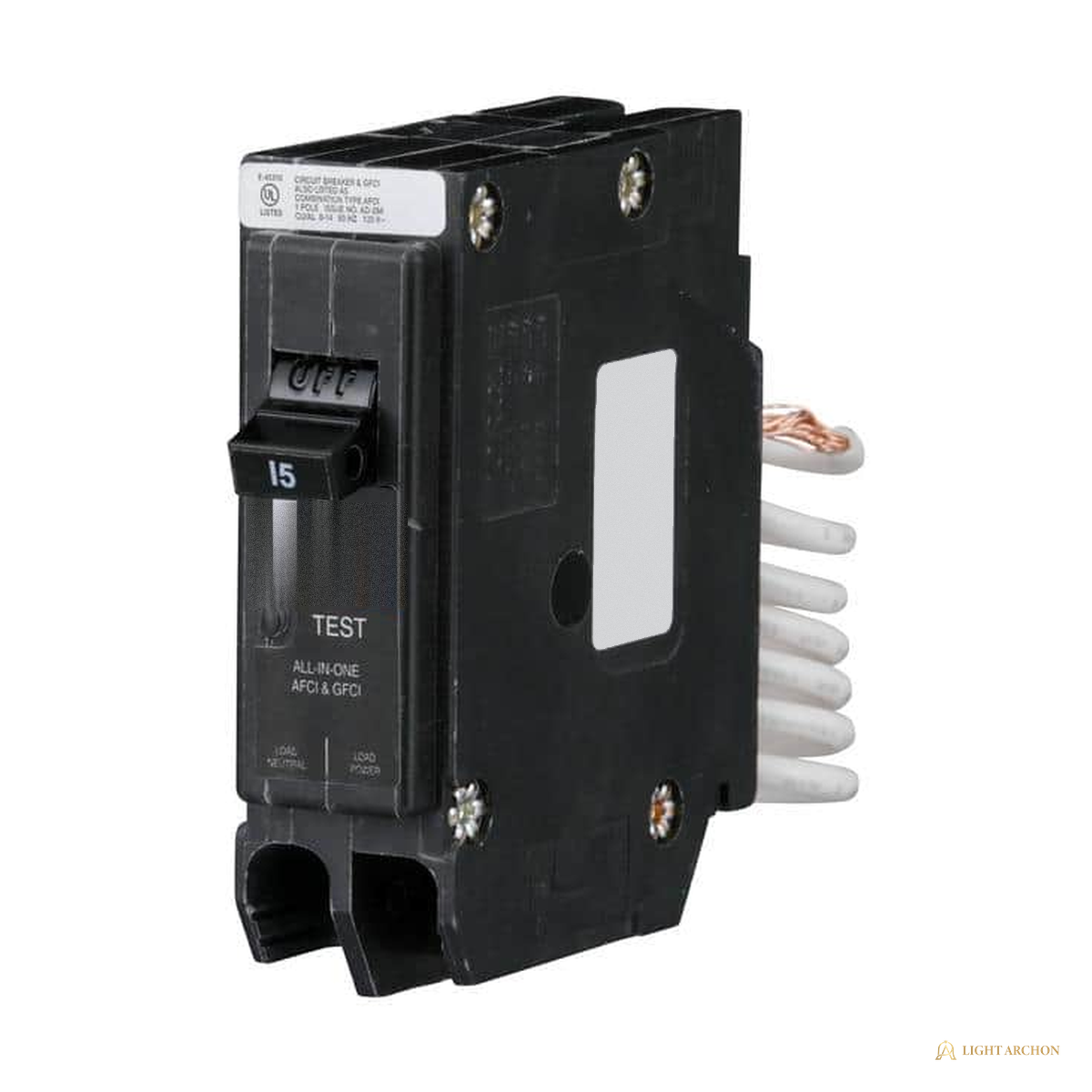

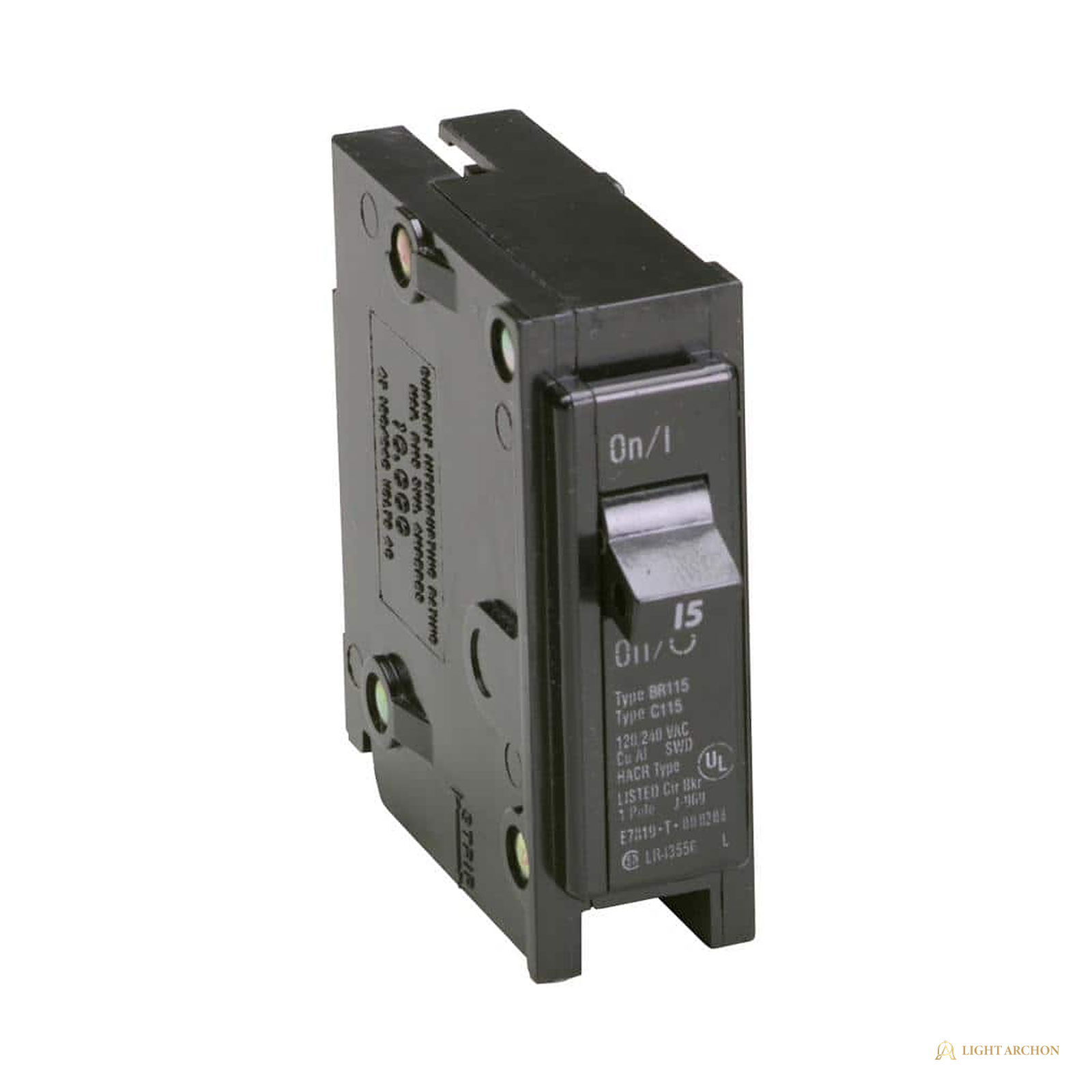

Light Archon Palisade 15A Single-Pole Circuit Breaker

Light Archon Palisade breakers cover the 15 A single-pole slot in the industry-standard 1 in. plug-on format. Two protection levels share the platform: a standard thermal magnetic unit for general branch circuits and a dual function AF/GF unit that puts arc fault and ground fault protection in one device with a single point of reset. Every unit is quote-first: add it to your quote list and the trade desk confirms panel fit before release.

The standard unit is a straightforward thermal magnetic breaker rated 120/240V. The dual function unit protects the entire circuit, including home runs, against both arc faults and ground faults, and its integral LED reads out trip codes that separate thermal overload from fault trips, cutting troubleshooting time. A short-body case and reduced pigtail clutter keep gutter space open for conductor work. Interrupt rating is 10 kA across the line, and both units land on the bus with a plug-on connection.

Highlights

• 15 A single-pole platform in the 1 in. plug-on format
• Standard and dual function AF GF protection levels
• 10 kA interrupt rating
• Dual function unit combines AFCI and GFCI protection with one reset point
• LED diagnostic trip codes on the dual function unit speed troubleshooting
• Short-body case maximizes gutter space for conductor installation
• Plug-on bus connection with no mounting hardware
• Quote-first trade supply with panel fit verified before release

Specification Table

Included Components

• One breaker per unit, protection level per selected variant
• Dual function unit includes its factory neutral pigtail

Installation Notes

• Installed by a licensed electrician; breaker ampacity must match conductor rating
• De-energize the panel and verify with a meter before any work
• Torque terminations to the values on the breaker label
• Dual function AF/GF protection locations follow the NEC edition adopted in your jurisdiction
• Land the dual function unit pigtail on the panel neutral bar
• Panel fit is verified at quote review against your load center schedule

Warranty and Support

• Covered by the Light Archon limited trade warranty; term confirmed at quote review
• Submittal sheets and dimensional PDFs available for every configuration
• Support through the Light Archon trade desk

Frequently Asked Questions

What panels does this fit?
It fits Light Archon LC series and industry-standard 1 in. bolt/plug-on load centers - verify panel compatibility at quote review.

What does the dual function unit protect against?
Both arc faults and ground faults on the same circuit, including the home run, with a single device and one reset point. The integral LED flashes trip codes so your electrician can tell a thermal overload from a fault trip.

When is dual function protection required?
The NEC calls for AFCI protection in most dwelling living areas and GFCI protection in wet and damp locations; a dual function unit covers circuits where the plan calls for both. Your electrician and the trade desk confirm the schedule at quote review.

How is this sold?
Quote-first. Every product shows a zero price on the site; your quote list is priced by the trade desk with panel fit checked line by line.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
