Light Archon Parapet 15A Self-Test GFCI Outlet 4-Pack

The Light Archon Parapet 4-pack puts self-test GFCI protection on the truck in contractor count: four 15 A, 125V tamper resistant duplex devices per line item, covering the kitchen, both baths, and the laundry room of a typical dwelling in one quote line. Quote-first: add it to your quote list and the trade desk confirms counts before release.

Each device tests itself within seconds of power-up and keeps checking automatically beyond the base UL requirement, while staying able to trip on a real ground fault even mid-test. The status indicator light reads out power and protection state and flags line/load reversal at install. Electronics carry improved immunity to high-frequency noise and electrical surges, cutting nuisance trips from appliances and electronics. The reduced-depth polycarbonate body works in shallow boxes, and back or side wiring with external clamps shows proper conductor seating at a glance.

Highlights

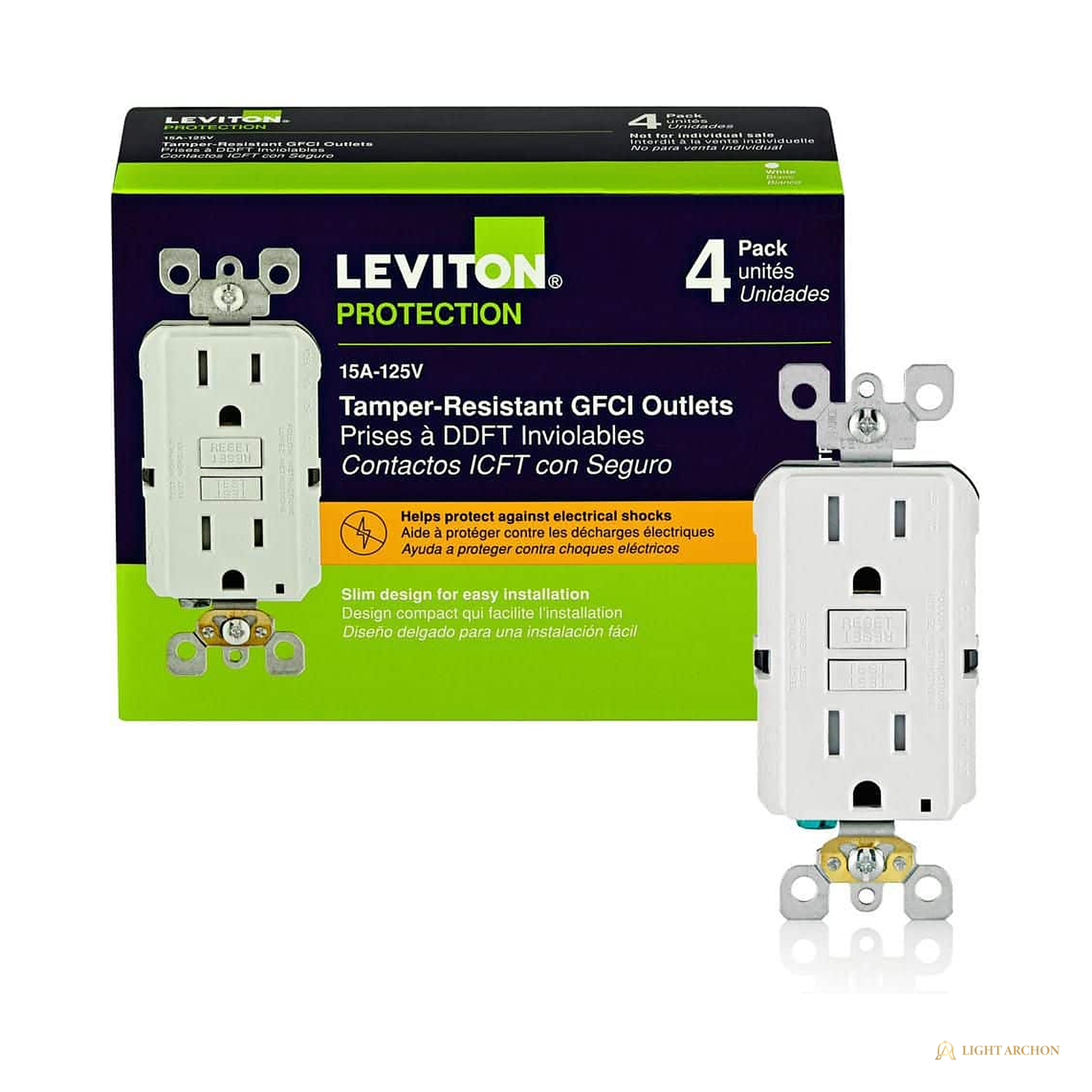

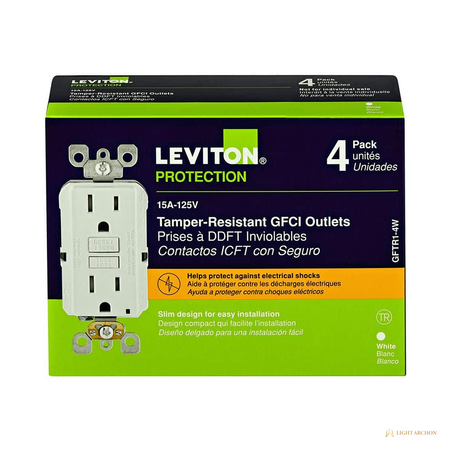

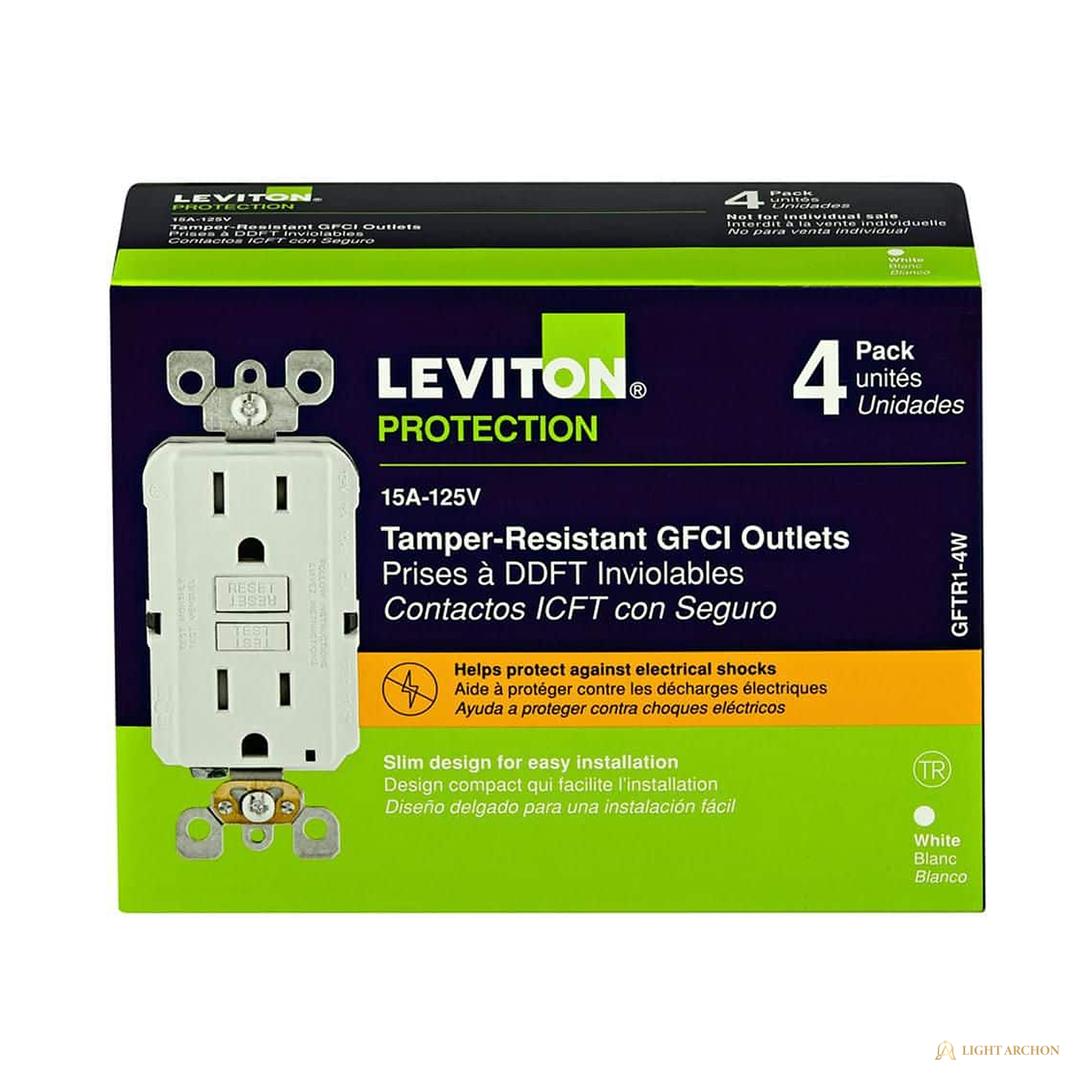

• 4-pack of 15 A, 125V self-test GFCI duplex devices, NEMA 5-15R
• Tamper resistant shuttered contacts
• Automatic self-test runs from power-up and repeats continuously
• Status indicator light with line/load reversal indication
• High-frequency noise and surge immunity reduces nuisance trips
• Reduced-depth body for shallow boxes
• Back and side wire capable with external clamp seating indication
• Feed-through protection for downstream outlets
• UL Listed and CSA Certified

Specification Table

Included Components

• 4 x Parapet self-test tamper resistant GFCI devices, White
• Mounting screws
• Wall plates not included; designer opening plates quoted separately

Installation Notes

• Installed by a licensed electrician in standard single-gang boxes; verify box fill
• GFCI protection locations per the NEC: kitchens, baths, laundry areas, and other locations per the adopted edition
• Land line and load correctly; the indicator flags reversal
• Feed-through protection covers downstream outlets when landed on the load terminals
• Press TEST monthly in addition to the automatic self-test

Warranty and Support

• Covered by the Light Archon limited trade warranty; term confirmed at quote review
• Submittal sheets and dimensional PDFs available for every configuration
• Support through the Light Archon trade desk

Frequently Asked Questions

What box does it need?
A standard single-gang wall box. Your installer verifies box fill for the conductors present per NEC 314.16.

Why buy the 4-pack?
Count. A typical dwelling GFCI schedule runs four to six devices; the 4-pack covers it in one line item, and the trade desk scales counts up at quote review for multi-unit work.

What does the status light show?
Power and protection state, plus indication of line/load reversal at install. A device that loses the ability to protect locks out and will not reset.

Which wall plate fits?
The designer rectangular opening. Plates are quoted separately.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
