Light Archon PowerDock Outdoor Power Outlet Panels
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
Light Archon PowerDock panels put finished outdoor power where the loads live: RV pads, generator hookups, patios, workshops, and EV-adjacent parking. Each format is a pre-wired, lockable steel box with the receptacle configuration built in, so the install is feed, land, and close.

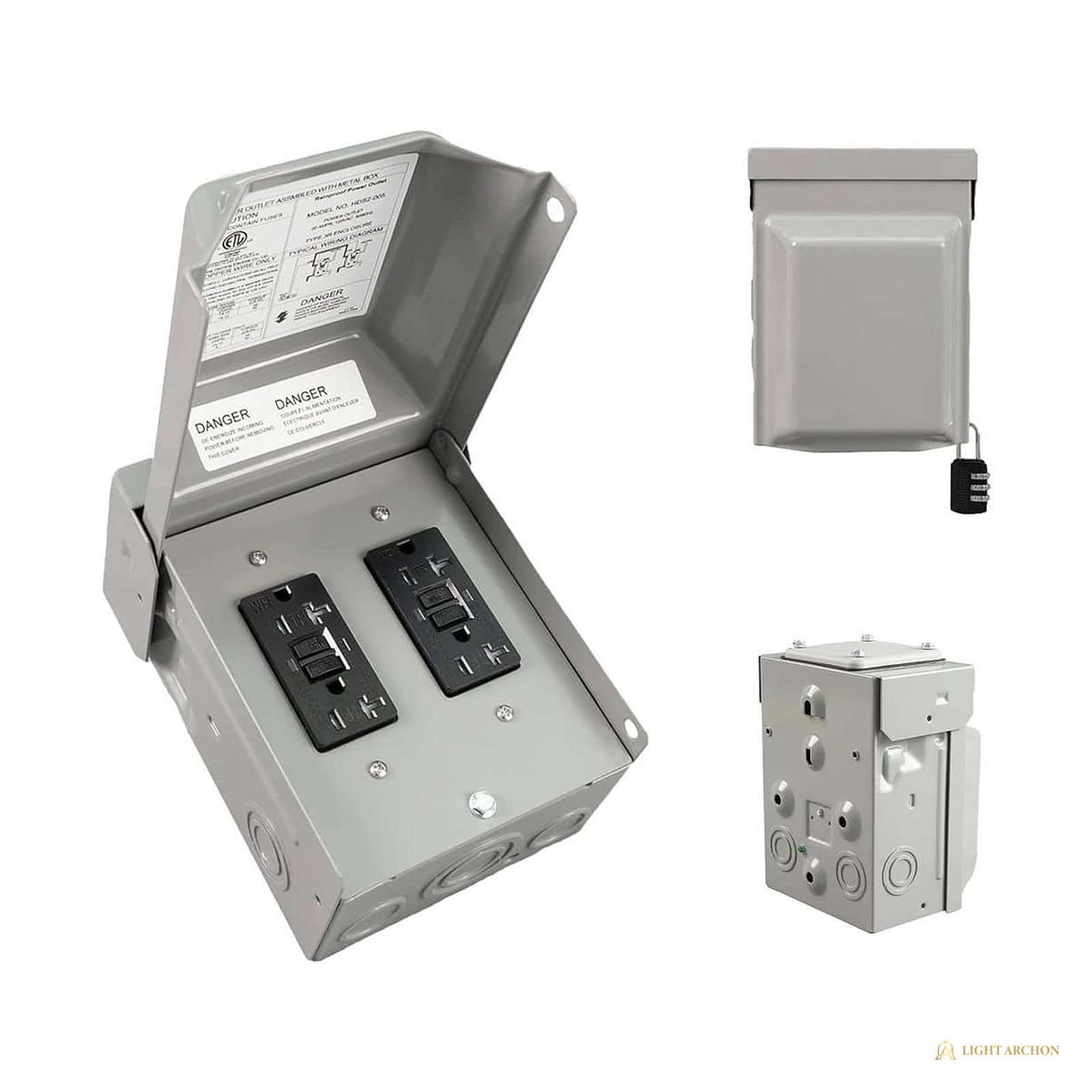

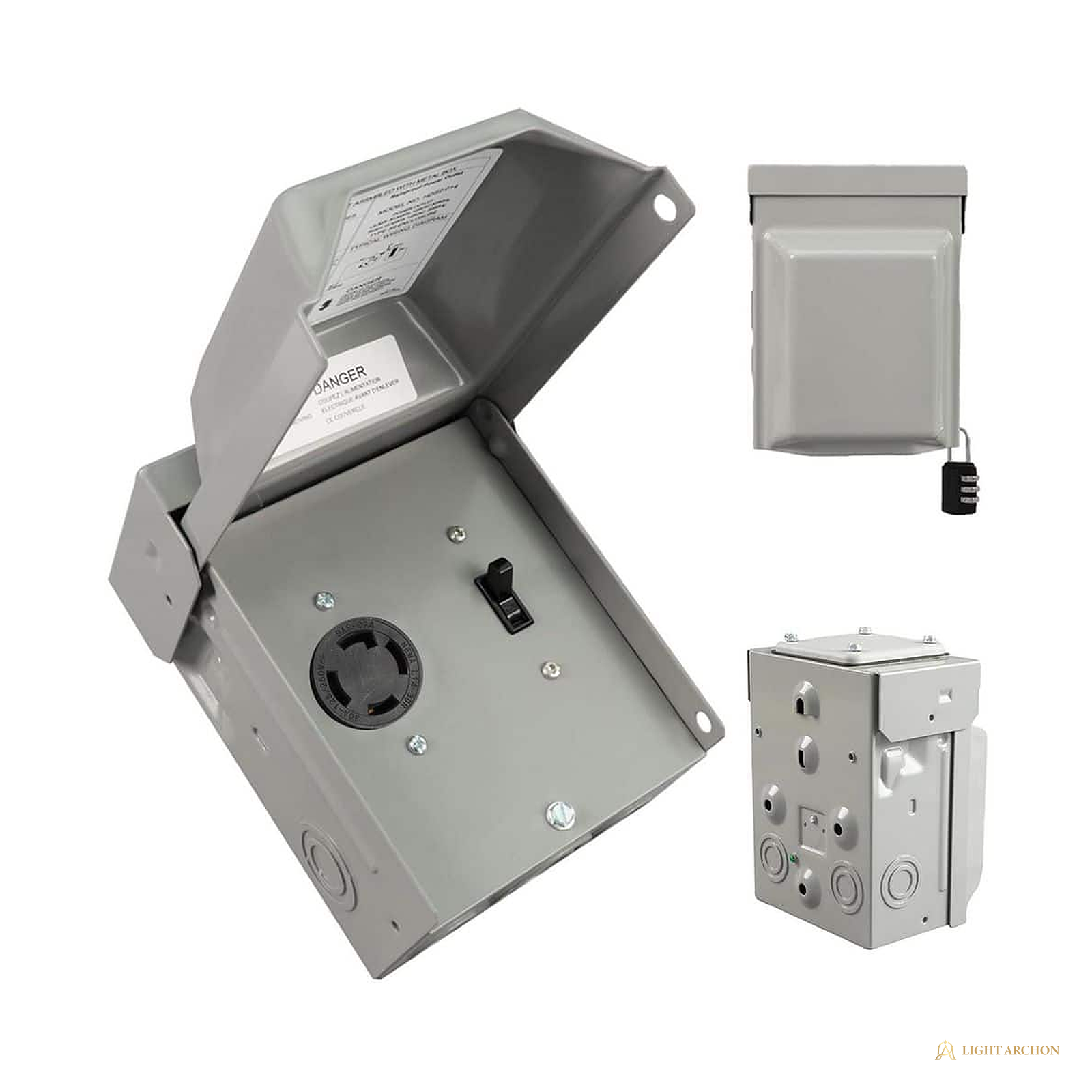

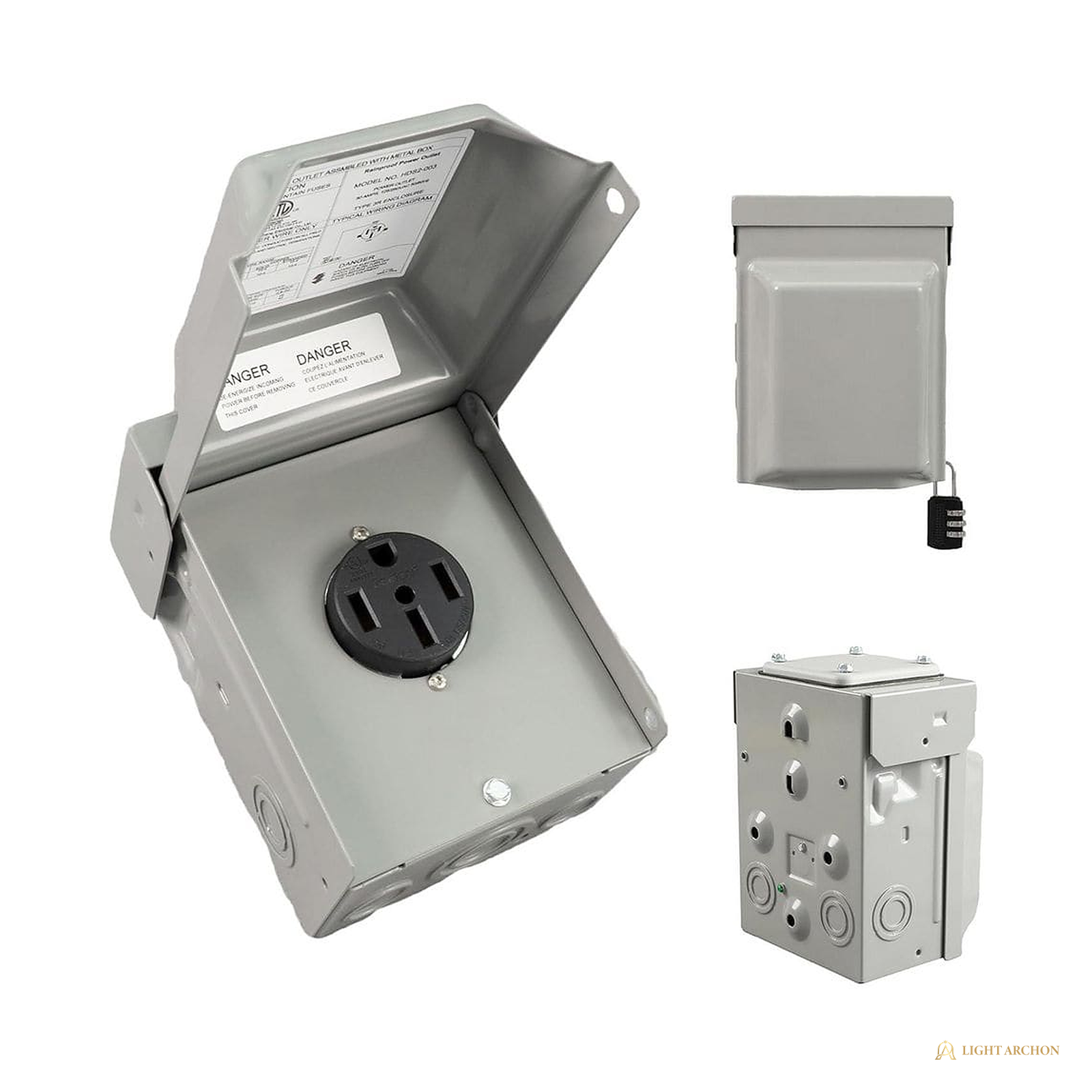

The dual-GFCI format carries two 20A weather-resistant, tamper-resistant duplexes with independent ground-fault protection on a 125V feed. The 30A format pairs an L14-30R twist-lock with a 15A switch on a 125/250V feed, and the 50A format carries the 14-50R range-pattern receptacle RV services use. All three ride in NEMA 3R steel housings with corrosion-resistant powder coat, lockable rainproof covers, and 1/2 to 1 in. conduit knockouts, ETL listed per the published listing.
Highlights
- Three pre-wired formats: dual 20A GFCI, 30A L14-30R with switch, 50A 14-50R
- NEMA 3R steel housings with lockable rainproof covers
- Weather-resistant, tamper-resistant GFCI duplexes on the 20A format
- 125/250V twist-lock and RV-pattern formats for generator and pad service
- Corrosion-resistant powder coat over steel
- Enlarged wiring chamber with grounding terminals per the published listing
- Multiple 1/2 to 1 in. conduit knockouts
- ETL listed per the published listing; quote-first trade supply
Specification Table
| Formats | Dual 20A GFCI; 30A L14-30R with 15A switch; 50A 14-50R |
| Housing | Steel, corrosion-resistant powder coat |
| Rating | NEMA 3R weatherproof |
| Input | 125V GFCI format; 125/250V on 30A and 50A formats |
| Security | Lockable rainproof covers |
| Knockouts | Multiple, 1/2 to 1 in. |
| Wiring | Enlarged chamber, grounding terminals, copper conductors |
| Listings | ETL listed per the published listing |
| Use | RV pads, generators, patios, site power |
| Location | Wet locations, outdoor |
| Supply model | Quote-first; breaker and feeder sizing confirmed at quote review |
Included Components
- Pre-wired outlet panel in the selected format
- Lockable rainproof cover assembly
Installation Notes
- Feed each format from an upstream breaker matched to its rating per NEC; the desk confirms breaker and conductor sizing at quote review.
- The 50A 14-50R format serves RV pads and range-pattern loads; verify the connected equipment pattern before rough-in.
- Surface mount to structure or post with corrosion-resistant fasteners; keep cover swing clear.
- Land conduit through the 1/2 to 1 in. knockouts with raintight fittings.
- Copper conductors land on the grounding and line terminals per the published listing; torque to spec.
Warranty and Support
- Backed by the Light Archon trade supply program; warranty terms are confirmed at quote review.
- Submittal sheets and takeoff review support are available from our electrical supply desk.
Frequently Asked Questions
Which format for an RV pad?
The 50A 14-50R format covers larger coaches; the 30A L14-30R twist-lock format suits generator interlocks and 30A equipment. Many pads quote both plus the GFCI format for convenience power.
Are the GFCI outlets protected individually?
Yes. The dual-GFCI format carries two 20A weather-resistant duplexes with independent ground-fault protection, so a trip on one leaves the other live.
Do these need a separate weatherproof cover?
No. The lockable rainproof cover is part of the panel; the NEMA 3R housing and cover arrive as one assembly.
What feeds do they take?
The GFCI format lands a 125V branch circuit; the 30A and 50A formats land 125/250V feeds. Breaker and conductor sizing is confirmed at quote review.
Documents
- Type Electrical Box
- SKU LA-LGT-BX-WP20-PWDK-20GFCI
- Catalog Reference Installation & Warranty Reference (PDF)
- Spec PDF Open product spec summary
- Submittal PDF Open submittal reference
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
