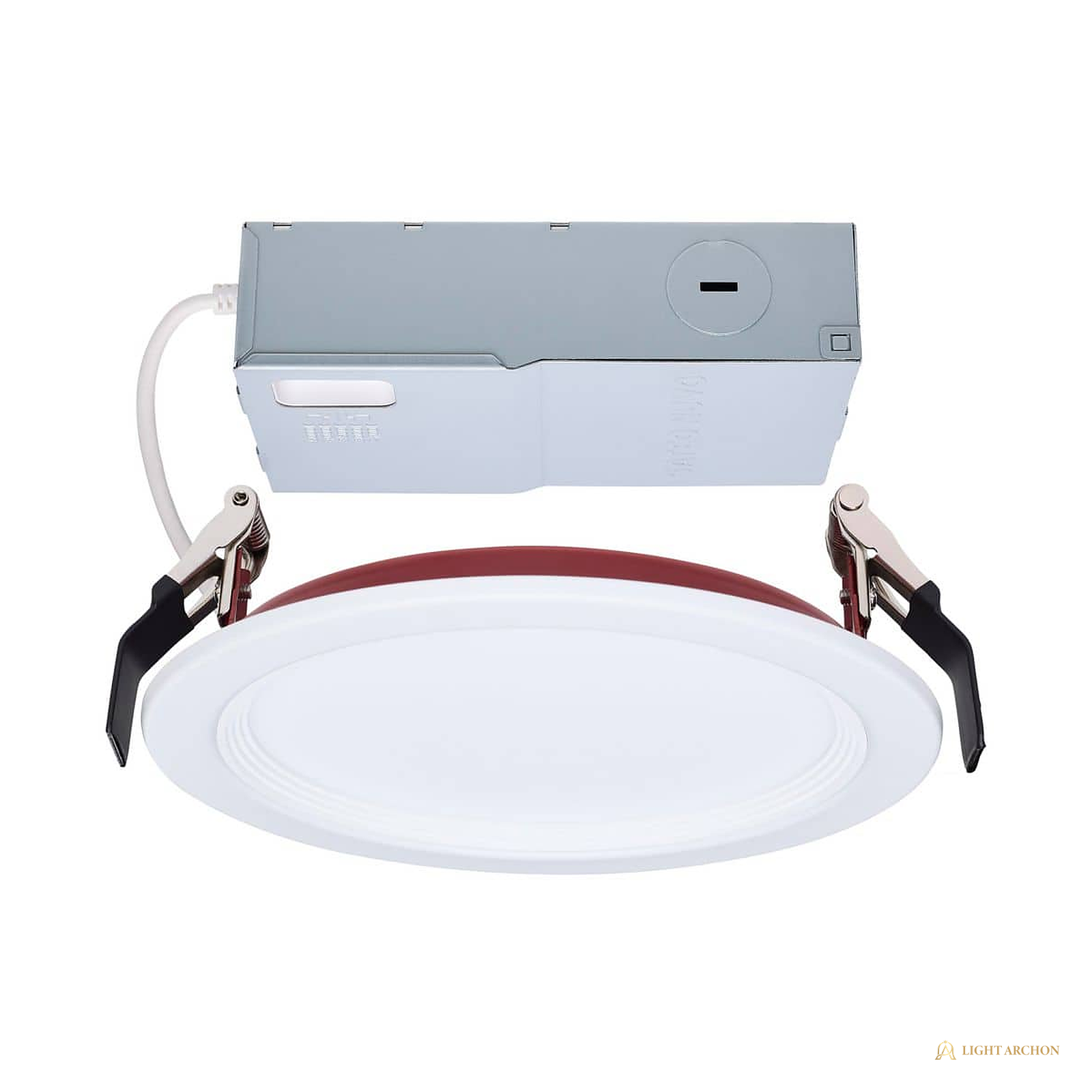

Light Archon Pyra Fire Rated Direct Wire LED Recessed Trim, Selectable CCT, 90 CRI

Light Archon Pyra is a fire rated direct wire LED recessed trim that holds a ceiling membrane rating of up to 2 hours per source documentation, so multifamily corridors, party-wall units, and rated assemblies keep their listing without a fire box built around every can. The 6 in. sizes deliver 1100 lumens at 13 watts from a 90 CRI array, with five color temperatures selectable from 2700K to 5000K. Quote-first record: sizes, trims, and counts are confirmed at quote review.

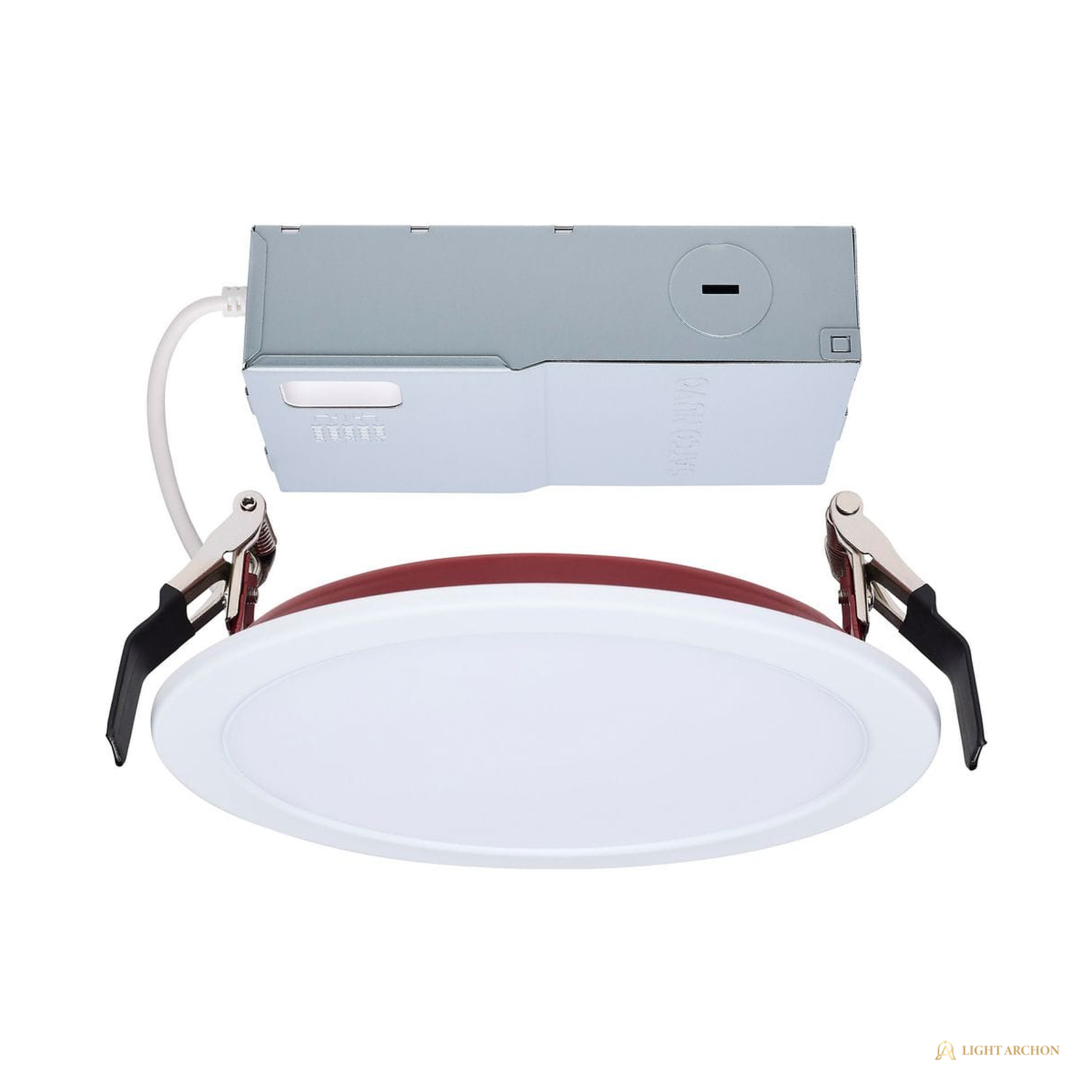

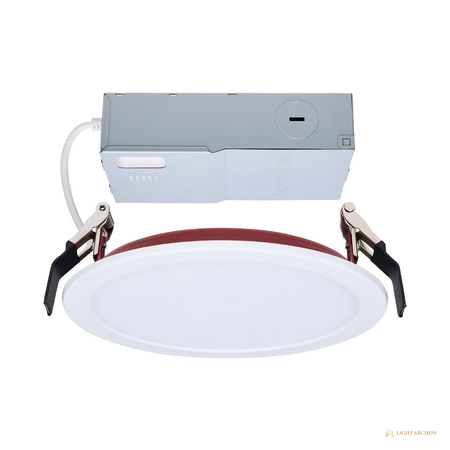

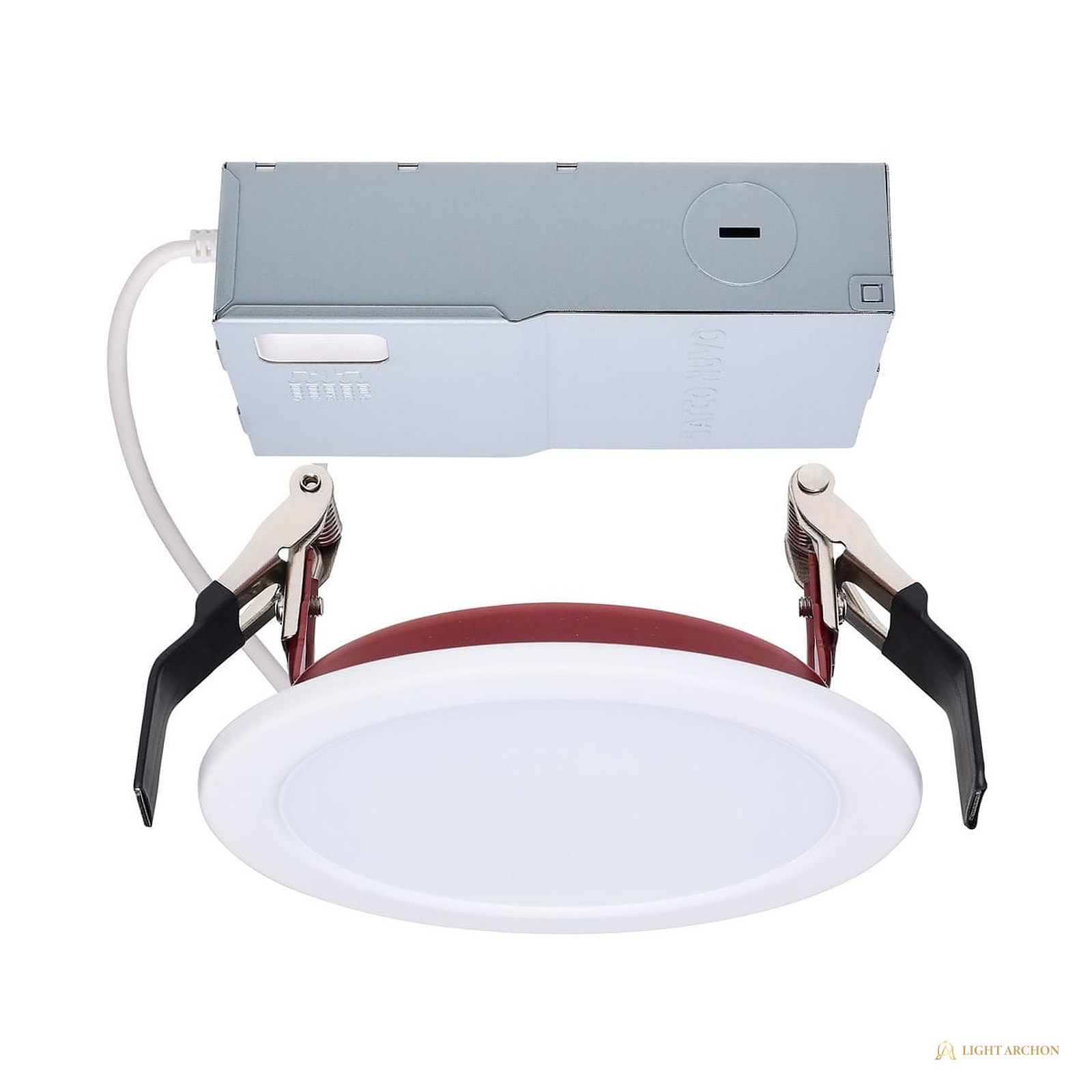

Pyra installs canless: the trim direct wires to the 120V branch circuit, seats into the ceiling cut, and its red-painted backplate identifies the fire rated assembly at inspection per source documentation. The platform is IC rated and airtight, wet location rated for showers and covered soffits, and dims on standard 120V phase-cut dimmers. Two trim faces cover design intent: a smooth full lens for clean modern ceilings and a stepped baffle that cuts aperture glare in corridors and media rooms. Sizes of 4 in. at 10 watts and 6 in. at 13 watts pair freely on one feed, and the array holds a 50,000 hour functional life under a 5 year warranty.

Highlights

• Fire rated up to 2 hours per source documentation, with a red backplate for inspection identification
• Direct wire canless install into the ceiling cut, no housing required
• 1100 lumens at 13 watts in the 6 in. sizes; 4 in. sizes run 10 watts
• High color accuracy 90 CRI array

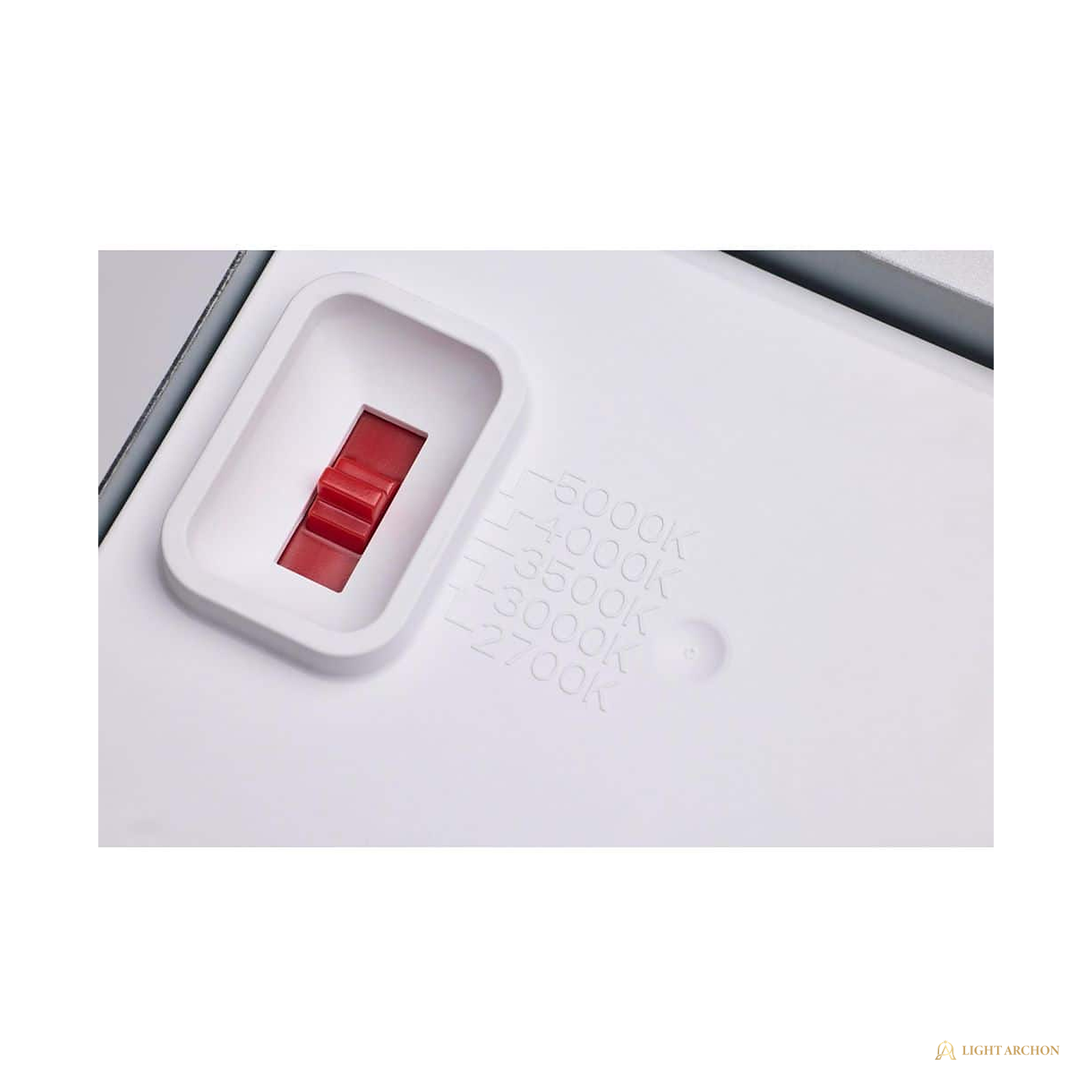

• Five selectable color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K
• Wet location rated; IC rated and airtight
• Smooth Lens and Step Baffle trim styles in 4 in. and 6 in. sizes
• 120V phase-cut dimmable; 50,000 hour functional life and 5 year warranty

Specification Table

Included Components

• Fire rated LED recessed trim
• Sealing gasket
• Direct wire connection hardware
• Installation instructions

Installation Notes

• Shut power at the breaker and verify with a tester before any ceiling work.
• Cut the ceiling opening per the size template and land the supply on the direct wire connector.
• Set the color temperature selector before seating; the gasket must seat fully to hold the airtight and wet listings.
• The red backplate identifies the fire rated assembly at inspection; do not substitute non-rated trims in rated ceilings.
• Confirm dimmer compatibility at quote review; the platform dims on 120V phase-cut controls.

Warranty and Support

• 5 year warranty
• 50,000 hour functional life
• Support and replacement paths are confirmed at quote review

Frequently Asked Questions

What ceiling opening is required?

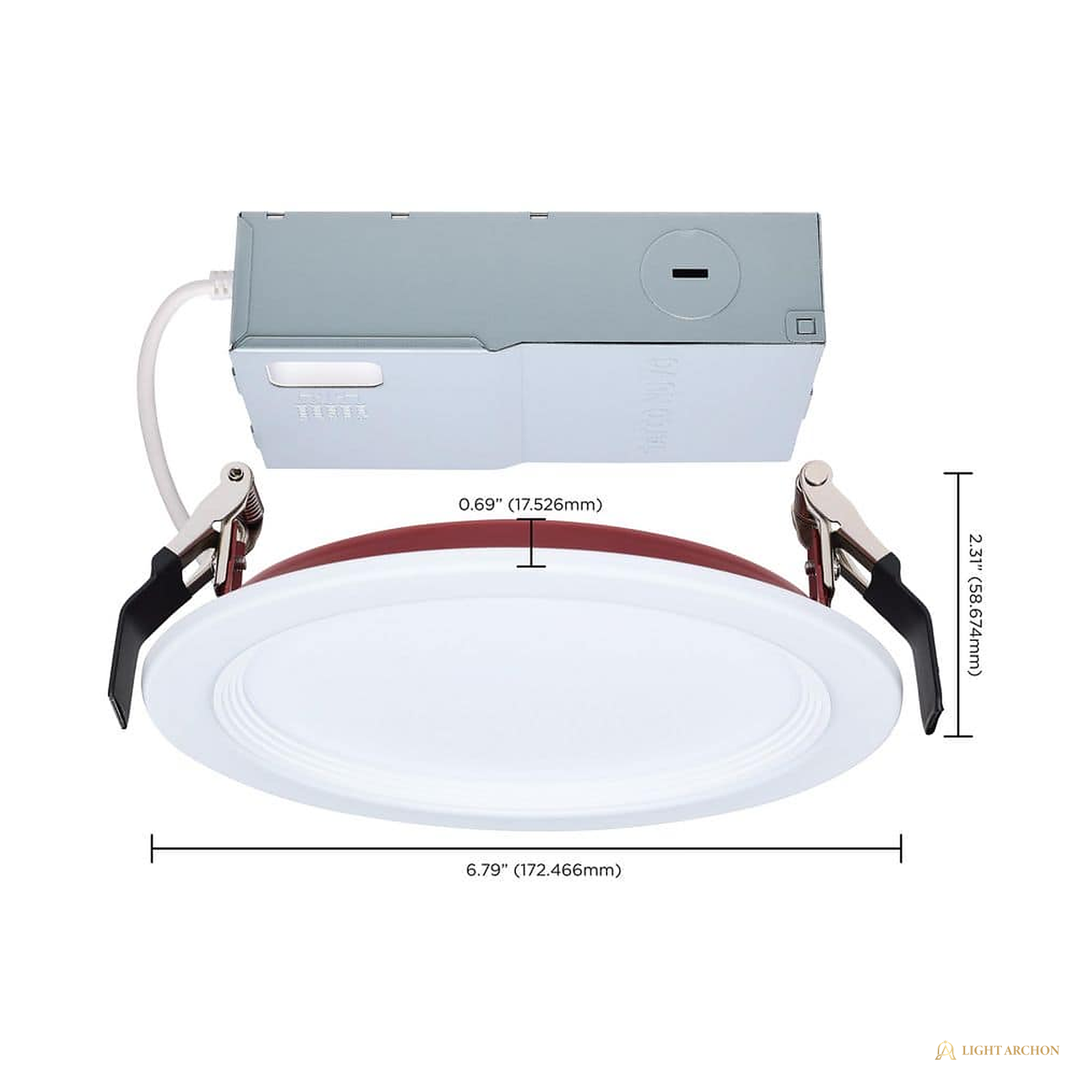

A 4 in. or 6 in. nominal cutout per the size template; the trim face covers to 6.79 in. overall on the 6 in. Step Baffle. Exact cutouts per size and trim are confirmed at quote review.

What does fire rated mean here?
The trim preserves the ceiling membrane rating for up to 2 hours per source documentation, so rated assemblies in multifamily and mixed-use work keep their listing without building a separate fire box over each opening. Verify against your assembly listing at quote review.

Does it need a recessed housing?
No. Pyra is a canless direct wire platform: the supply lands on the connector, the gasketed trim seats into the cut, and the IC rated airtight body sits in direct contact with insulation.

Which trim style should I pick?
Smooth Lens reads as a clean glow for kitchens and modern ceilings; Step Baffle cuts glare at the aperture for corridors, bedrooms, and media rooms. Both come in each size.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
