Light Archon Quadra 4-Panel Adjustable LED Garage Light, 5400 Lumens Daylight, Plug-In

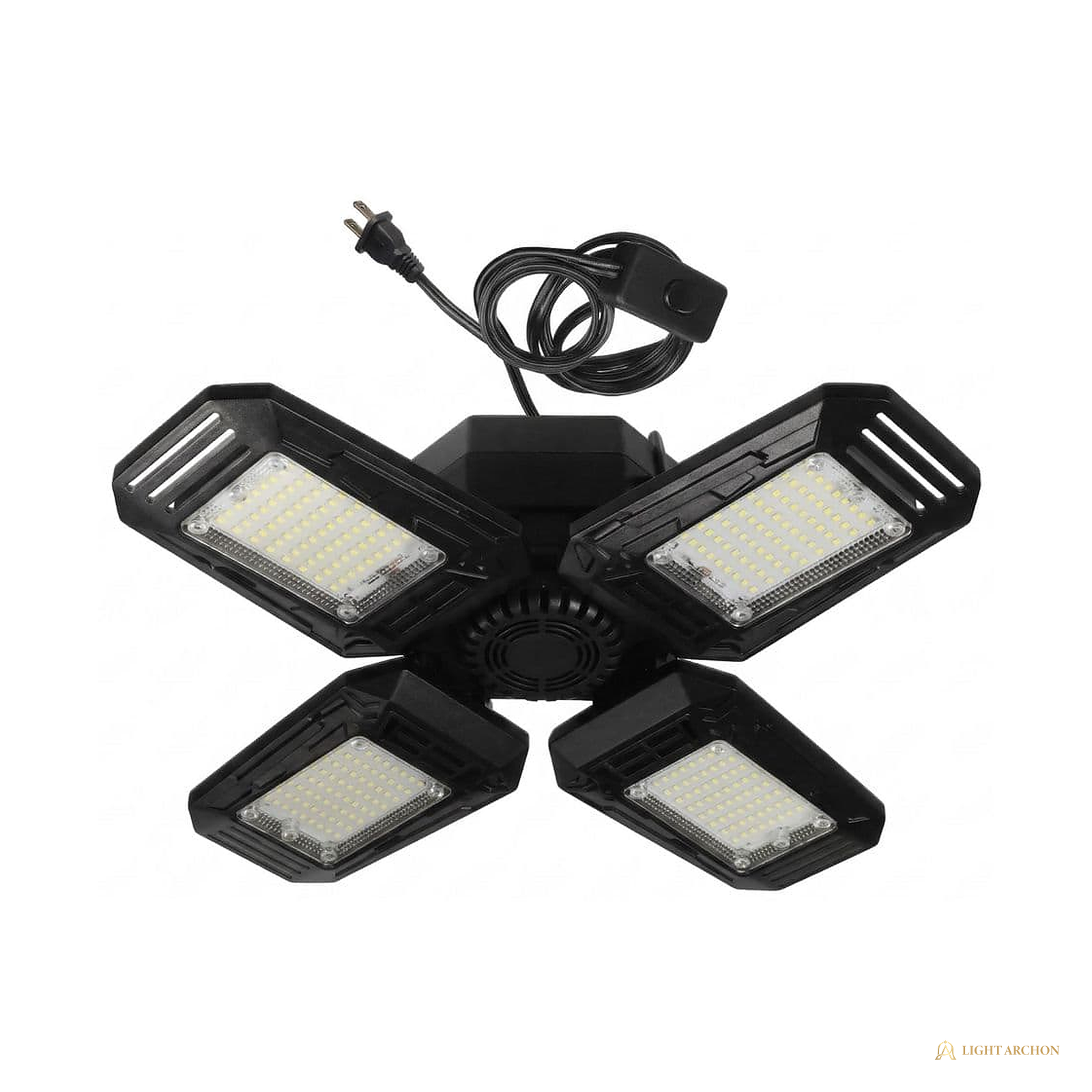

Light Archon Quadra is a four-panel LED garage light that floods work zones with 5400 lumens of 5000K daylight at 54 watts, running over 100 lumens per watt per source documentation. Each of the four panels rotates up to 90 degrees, so one fixture aims light down bays, along benches, and across storage walls at the same time. Quote-first record: add it to your quote list and our team confirms the final configuration at quote review.

Quadra installs without an electrician: it plugs into a standard 120V outlet with an inline on-off switch, and it hangs from the included chain and hook or mounts direct to the ceiling surface. Up to four fixtures daisy-chain from one feed per source documentation, covering longer shop runs off a single outlet. The aluminum body sinks heat from the 20,000 hour rated array, the platform carries a damp location listing for garages and covered utility spaces, and the fixed 5000K output keeps colors crisp over benches and vehicle work. Color accuracy runs 80 CRI typical and is confirmed at quote review.

Highlights

• 5400 lumens of 5000K daylight at 54 watts
• Four LED panels each rotate up to 90 degrees for aimed coverage
• Plugs into a standard 120V outlet with an inline on-off switch
• Hangs from the included chain and hook or surface mounts to the ceiling
• Daisy-chains up to 4 fixtures per source documentation

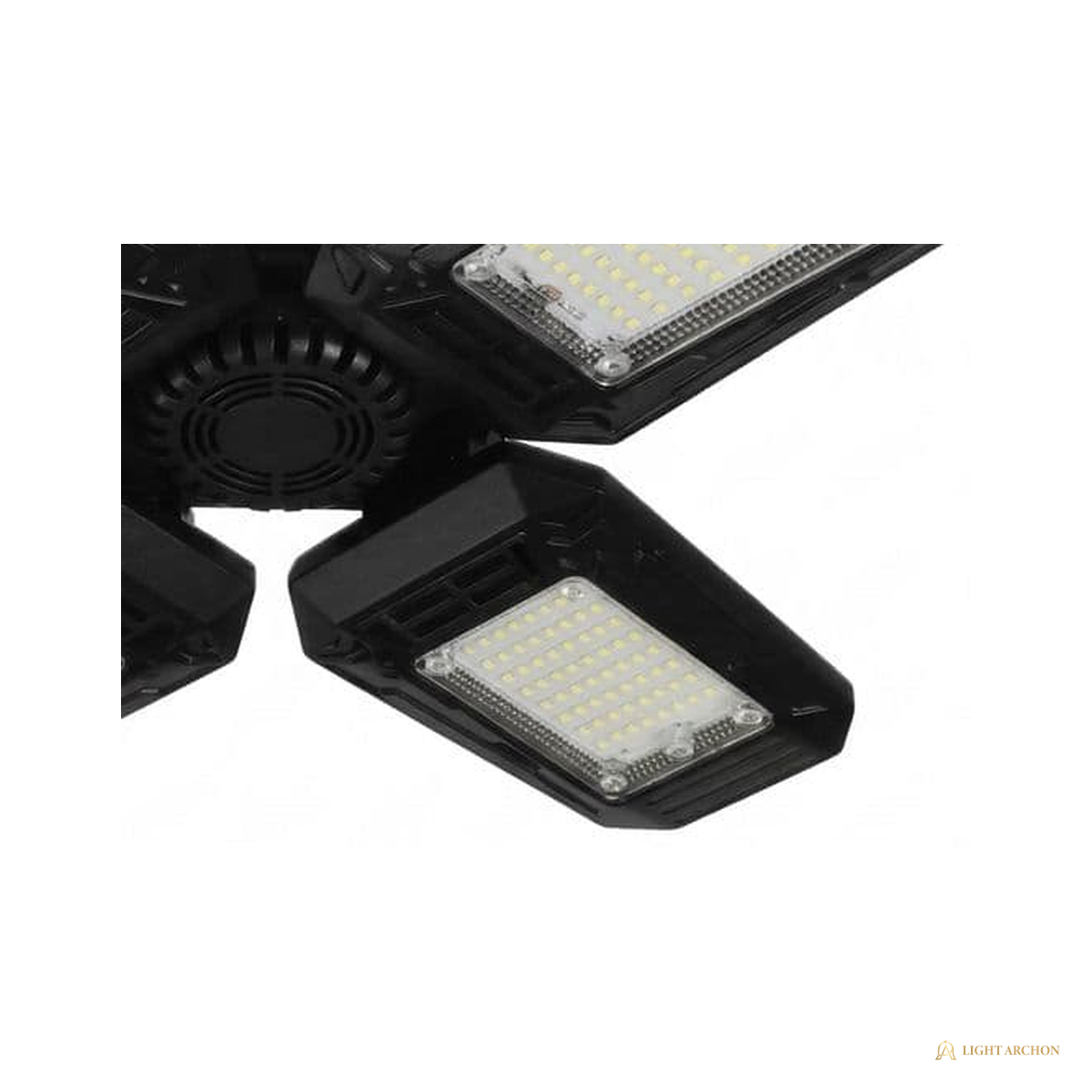

• Aluminum heat-dissipating body with a 20,000 hour rated life
• Damp rated for garages, workshops, and covered utility spaces
• ETL listed

Specification Table

Included Components

• Four-panel LED garage light
• Hanging chain and hook
• Mounting brackets
• Installation instructions

Installation Notes

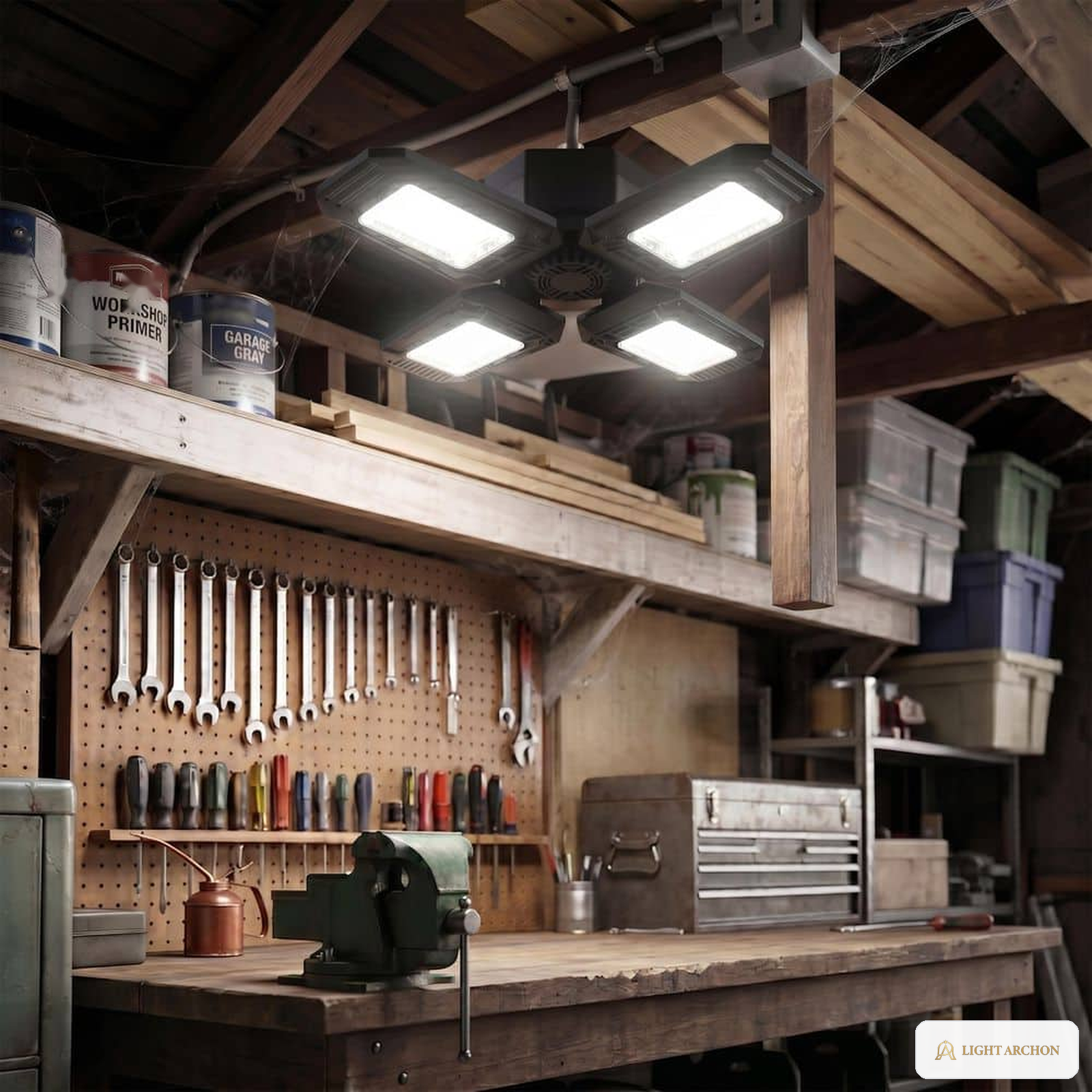

• Choose the mount: hang from the included chain and hook over open bays, or surface mount direct to the ceiling for a fixed position.
• Plug into a standard 120V outlet; the inline switch handles on-off without wall rewiring.
• Aim each of the four panels up to 90 degrees before final placement to cover benches, bays, and storage walls.
• For longer runs, daisy-chain up to 4 fixtures per source documentation and confirm the layout at quote review.
• Damp rated; suited to garages and covered utility spaces, not direct water spray zones.

Warranty and Support

• 20,000 hour rated life
• Limited warranty serviced at quote review
• Support and replacement paths are confirmed at quote review

Frequently Asked Questions

How does it mount and get power?
It hangs from the included chain and hook or surface mounts direct to the ceiling, then plugs into a standard 120V outlet with an inline on-off switch. No junction box work or electrician is required.

Can I run several from one outlet?
Yes. Up to 4 fixtures daisy-chain from one feed per source documentation; our team lays out longer shop runs from your floor plan at quote review.

Is it dimmable?
No. The platform runs full output at a fixed 5000K daylight; use it where you want maximum task light over benches and bays.

Can it go in an unheated garage?
It is damp rated for garages, workshops, basements, and covered utility zones; keep it out of direct water spray.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)
