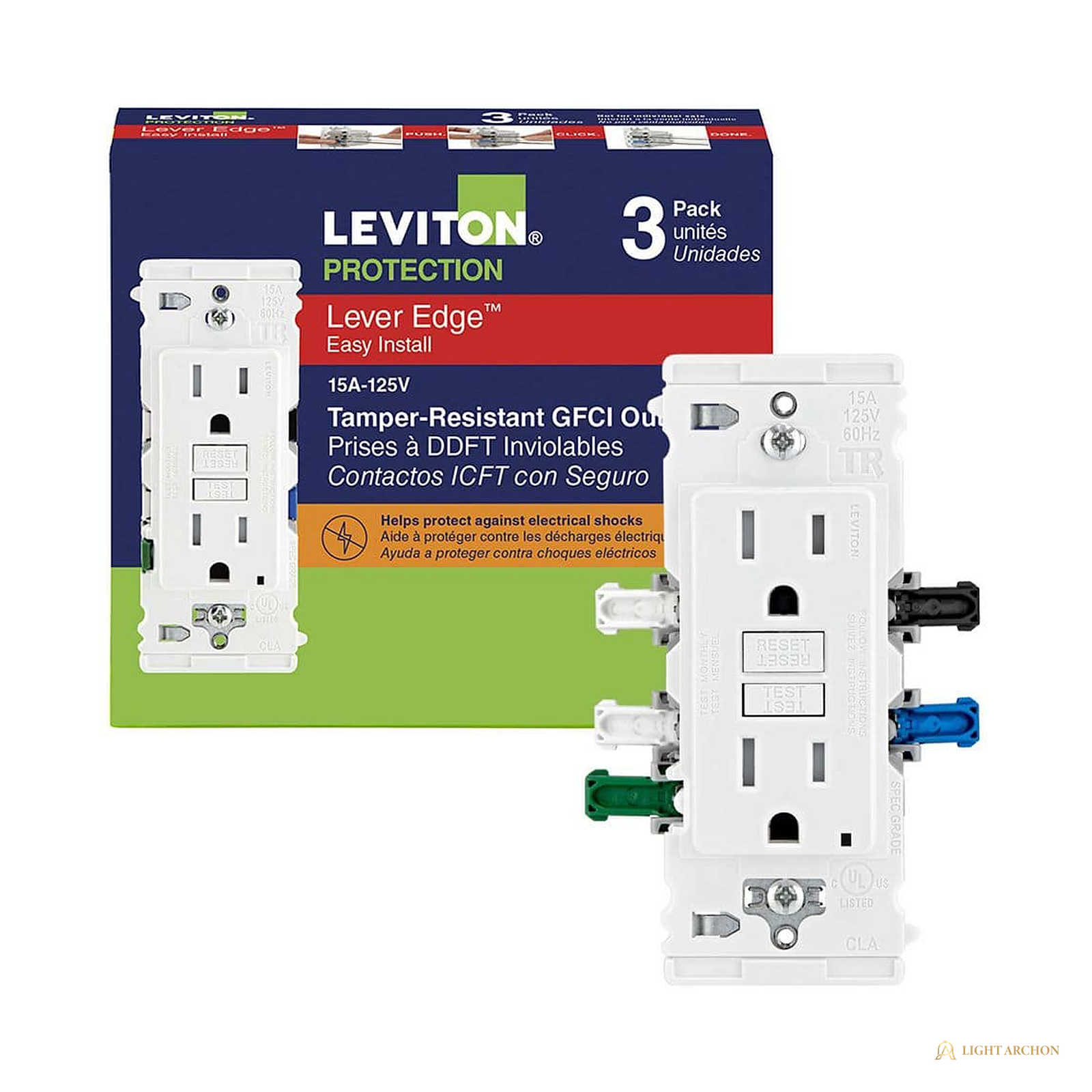

Light Archon Quicklatch 15A Self-Test GFCI Outlet with Lever Terminals 3-Pack

Light Archon Quicklatch GFCIs replace screw-terminal wiring with tool-free lever terminals: strip, insert, and snap the lever shut. Sold as a 3-pack of 15 A, 125V self-test tamper resistant duplex devices, it is built for production GFCI work in kitchens, baths, and laundry rooms. Quote-first: add it to your quote list and the trade desk confirms counts before release.

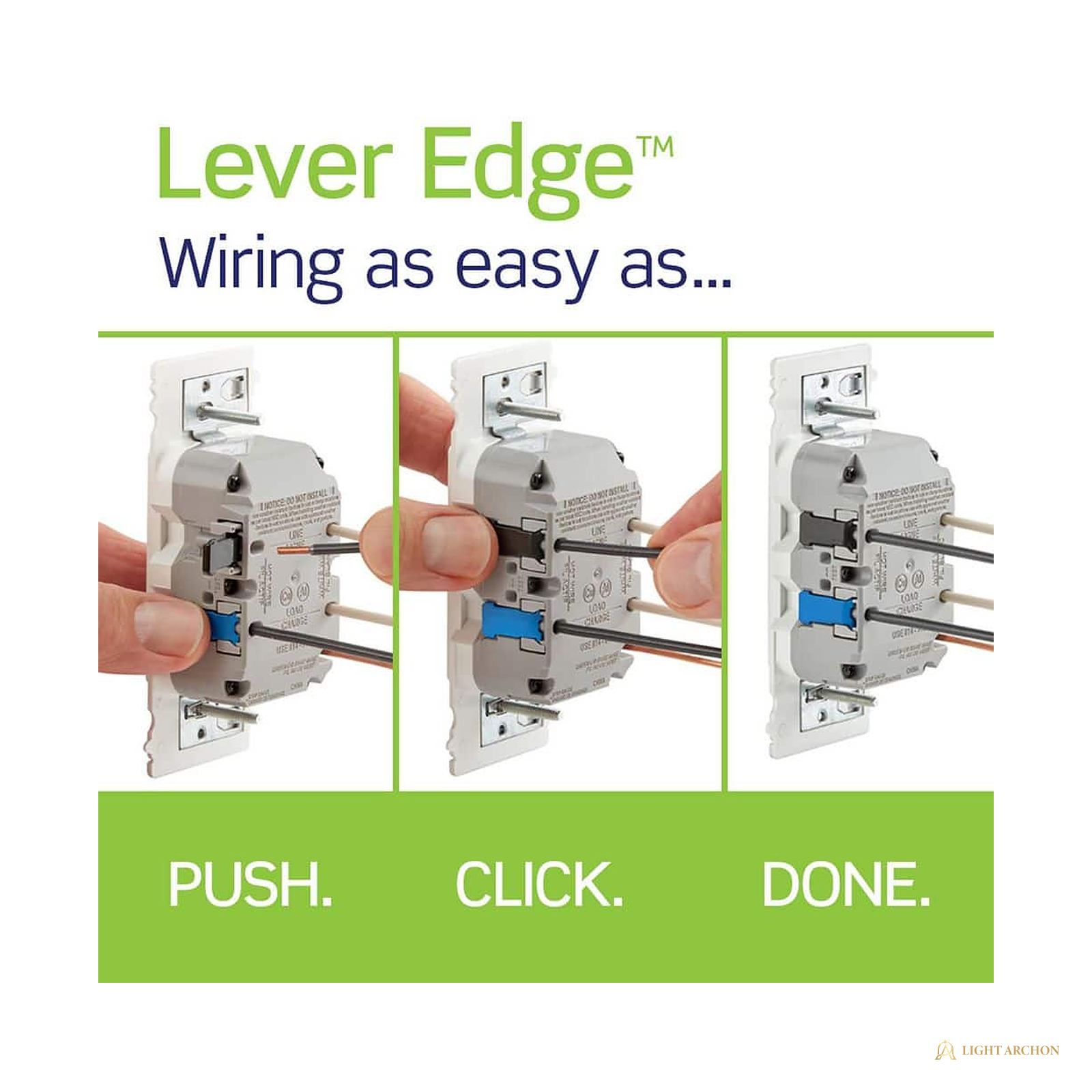

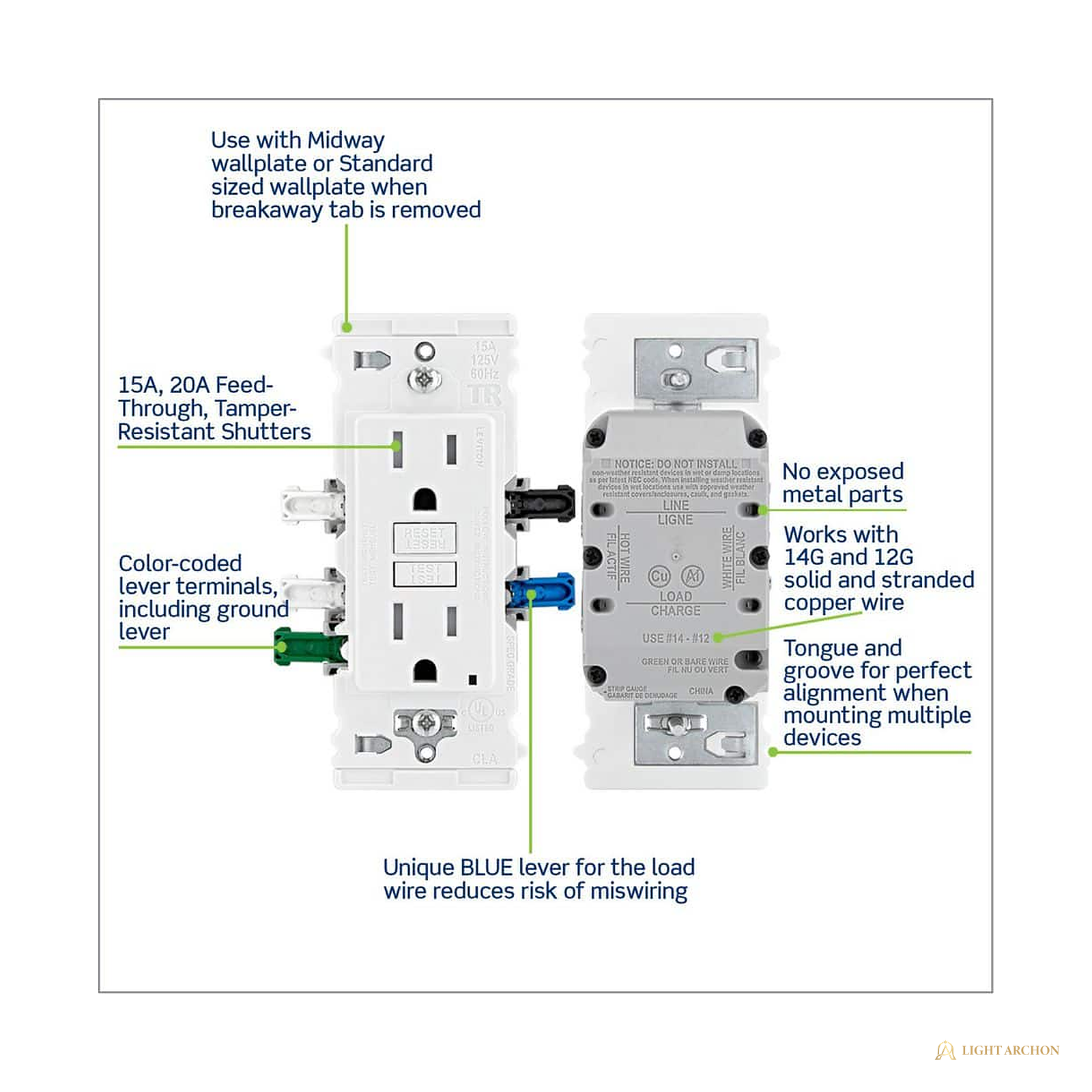

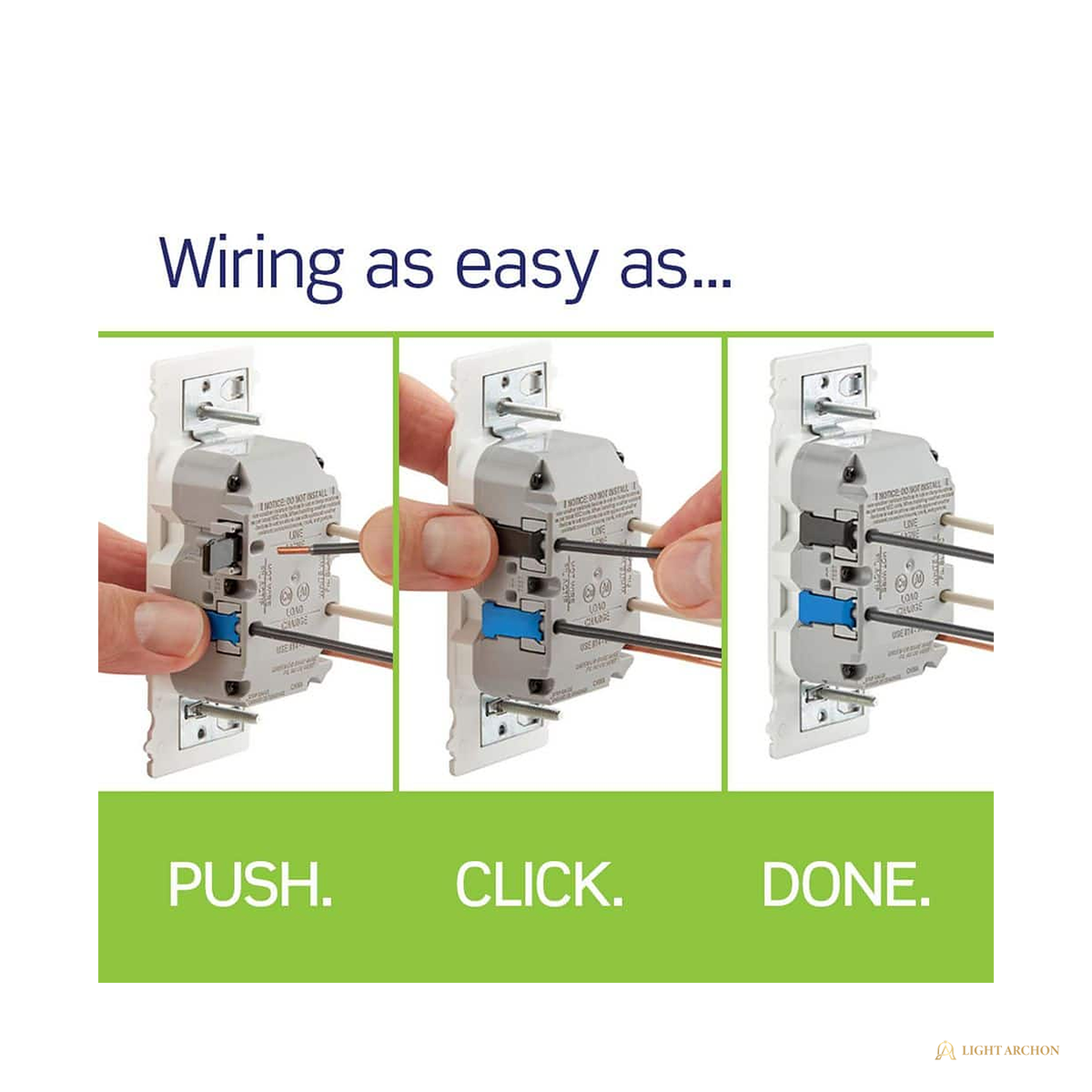

Each lever terminal closes with an audible click, holds 12 or 14 AWG solid or stranded copper, and leaves no exposed metal parts, so there is nothing to tape. The blue load lever separates line from load at a glance and cuts miswiring risk. Protection is the full self-test package: continuous auto-monitoring beyond the base UL requirement, a status indicator light with line/load reversal indication, and a lockout action that blocks reset if the device can no longer protect. The extended strap uses tongue and groove alignment for faster multi-gang trim-out, fits midway plates as shipped, and takes standard plates once the breakaway tab is removed.

Highlights

• 3-pack of 15 A, 125V self-test GFCI duplex devices, NEMA 5-15R
• Tool-free lever-action terminals with audible click confirmation
• Blue load lever separates line from load at a glance
• No exposed metal parts; no taping
• Tamper resistant shuttered contacts
• Automatic self-test with status indicator and lockout action
• Extended strap with tongue and groove alignment for multi-gang trim-out
• Takes 12-14 AWG solid and stranded copper
• UL Listed and CSA Certified

Specification Table

Included Components

• 3 x Quicklatch self-test tamper resistant GFCI devices, White
• Mounting screws
• Wall plates not included; designer opening plates quoted separately

Installation Notes

• Installed by a licensed electrician in a standard single-gang box; verify box fill
• Strip to the gauge mark, insert the conductor, and snap the lever closed; listen for the click
• Land line and load correctly; the blue lever marks the load side and the indicator flags reversal
• GFCI protection locations per the NEC: kitchens, baths, laundry areas, and other locations per the adopted edition
• Remove the strap breakaway tab when trimming with standard size plates
• Press TEST monthly in addition to the automatic self-test

Warranty and Support

• Covered by the Light Archon limited trade warranty; term confirmed at quote review
• Submittal sheets and dimensional PDFs available for every configuration
• Support through the Light Archon trade desk

Frequently Asked Questions

What box does it need?
A standard single-gang wall box. Your installer verifies box fill for the conductors present per NEC 314.16.

How do the lever terminals work?
Open the lever, insert stripped 12 or 14 AWG copper into the wire opening, and snap the lever shut. The click confirms the connection, and the closed housing leaves no exposed metal to tape.

Do they work with stranded wire?
Yes. The lever terminals take both solid and stranded copper in 12 and 14 AWG.

Which wall plate fits?
The designer rectangular opening. The extended strap fits midway plates as shipped and standard plates after the breakaway tab is removed. Plates are quoted separately.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
