Light Archon Rampart 200A Plug-On Neutral Load Center

Light Archon Rampart load centers anchor the service at 200 A with a plug-on neutral bus that cuts branch breaker install time. The platform spans 8-space to 30-space configurations, indoor and outdoor, with factory-installed main breakers on the main breaker units and a main lug option for subfeed work. Quote-first: the trade desk confirms the configuration and breaker schedule before release.

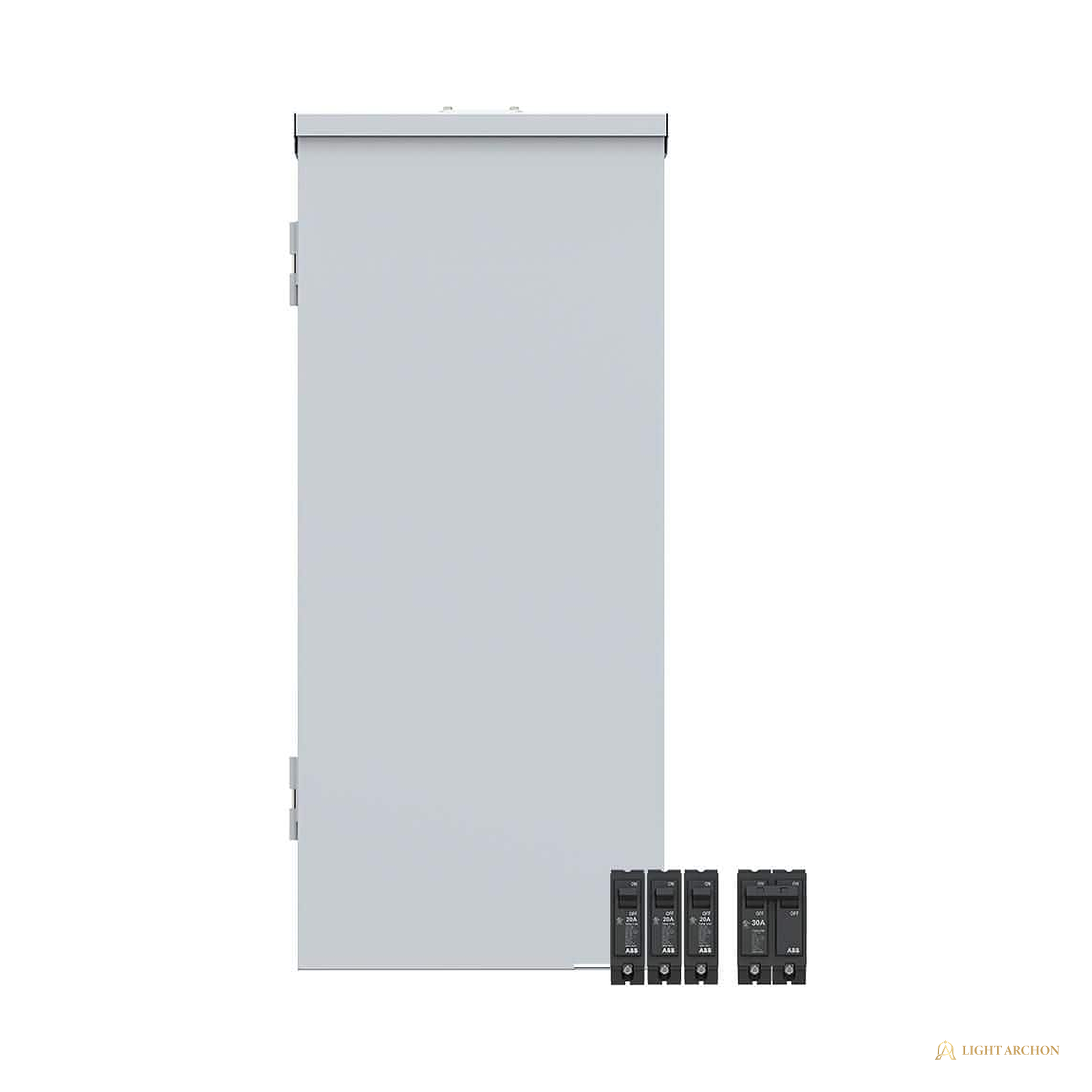

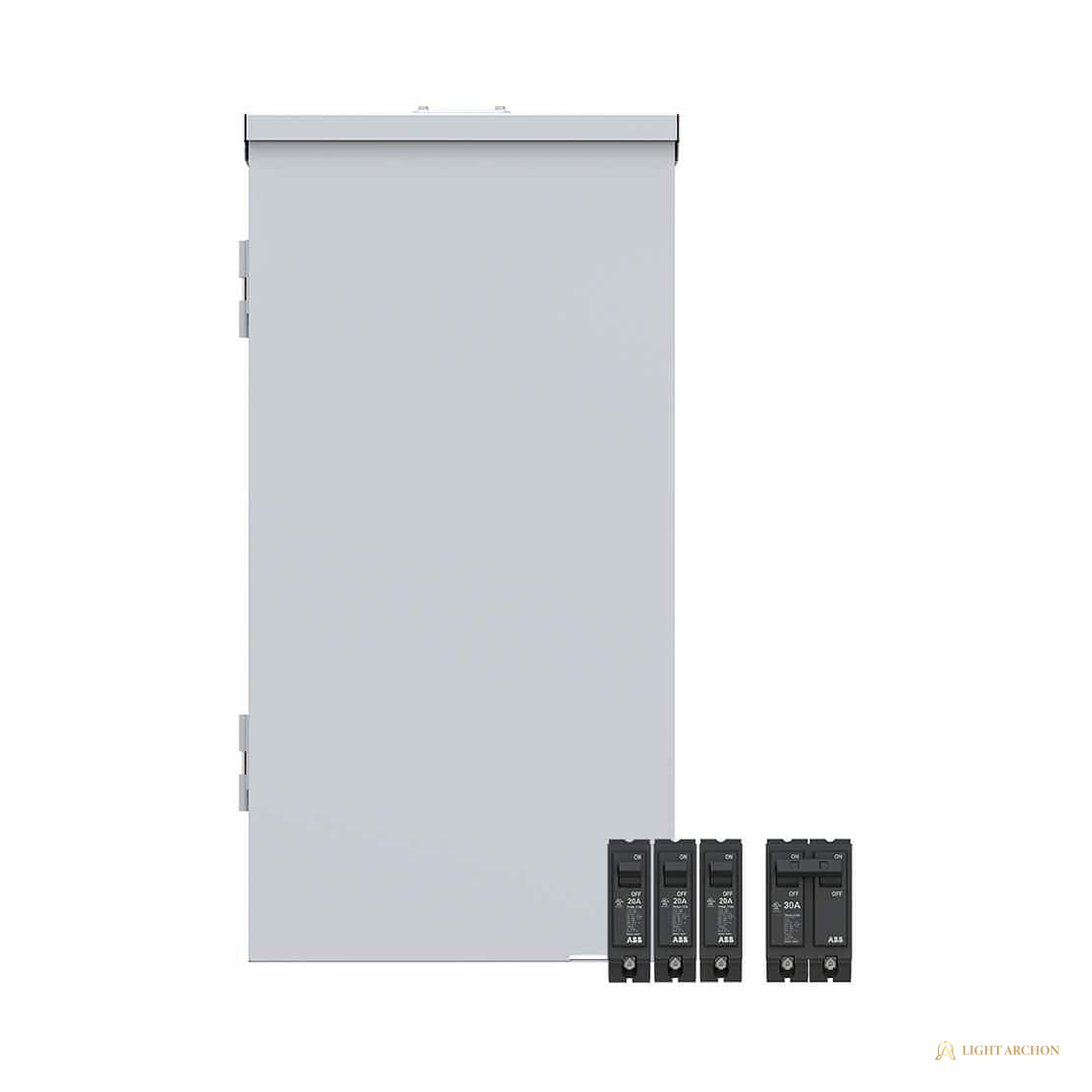

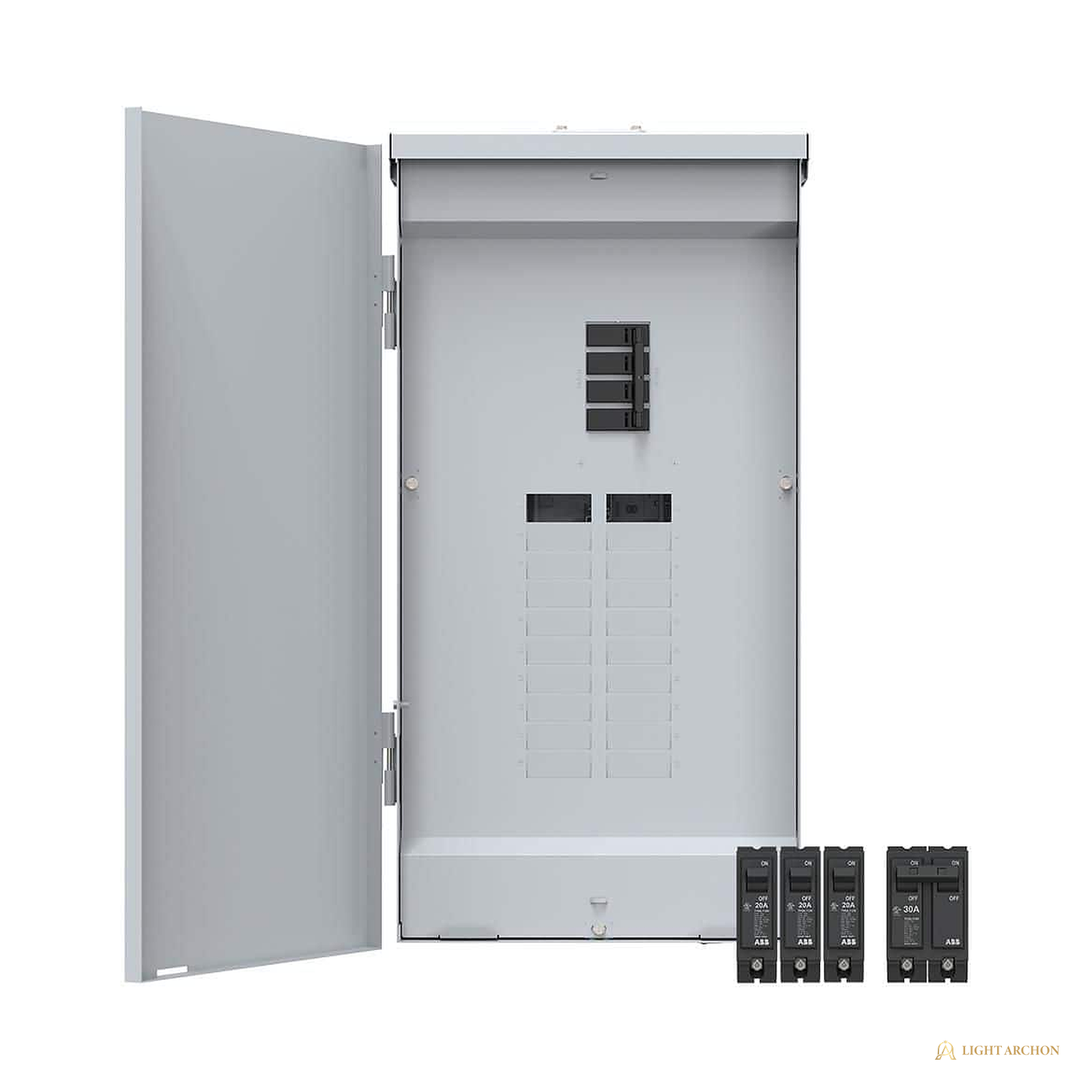

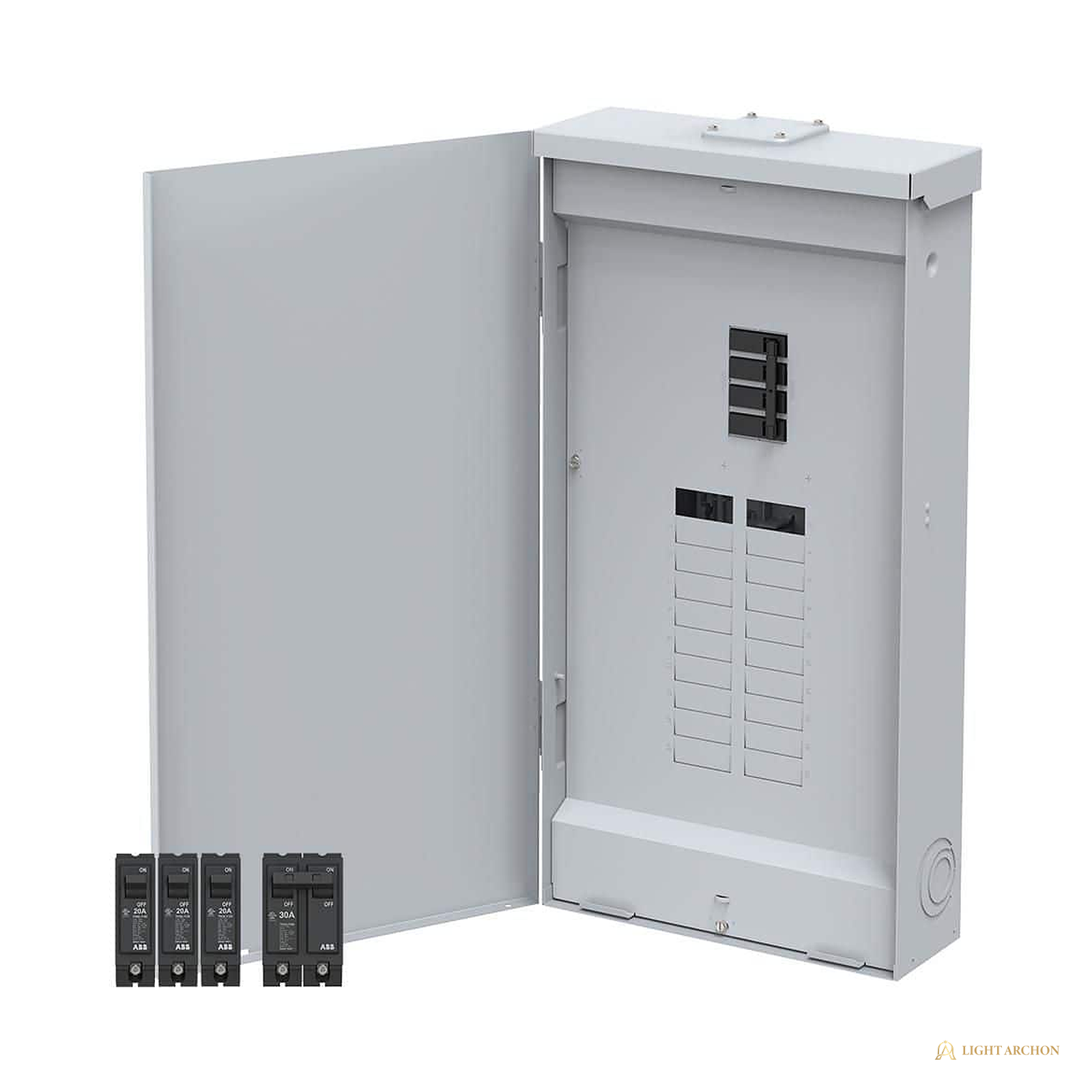

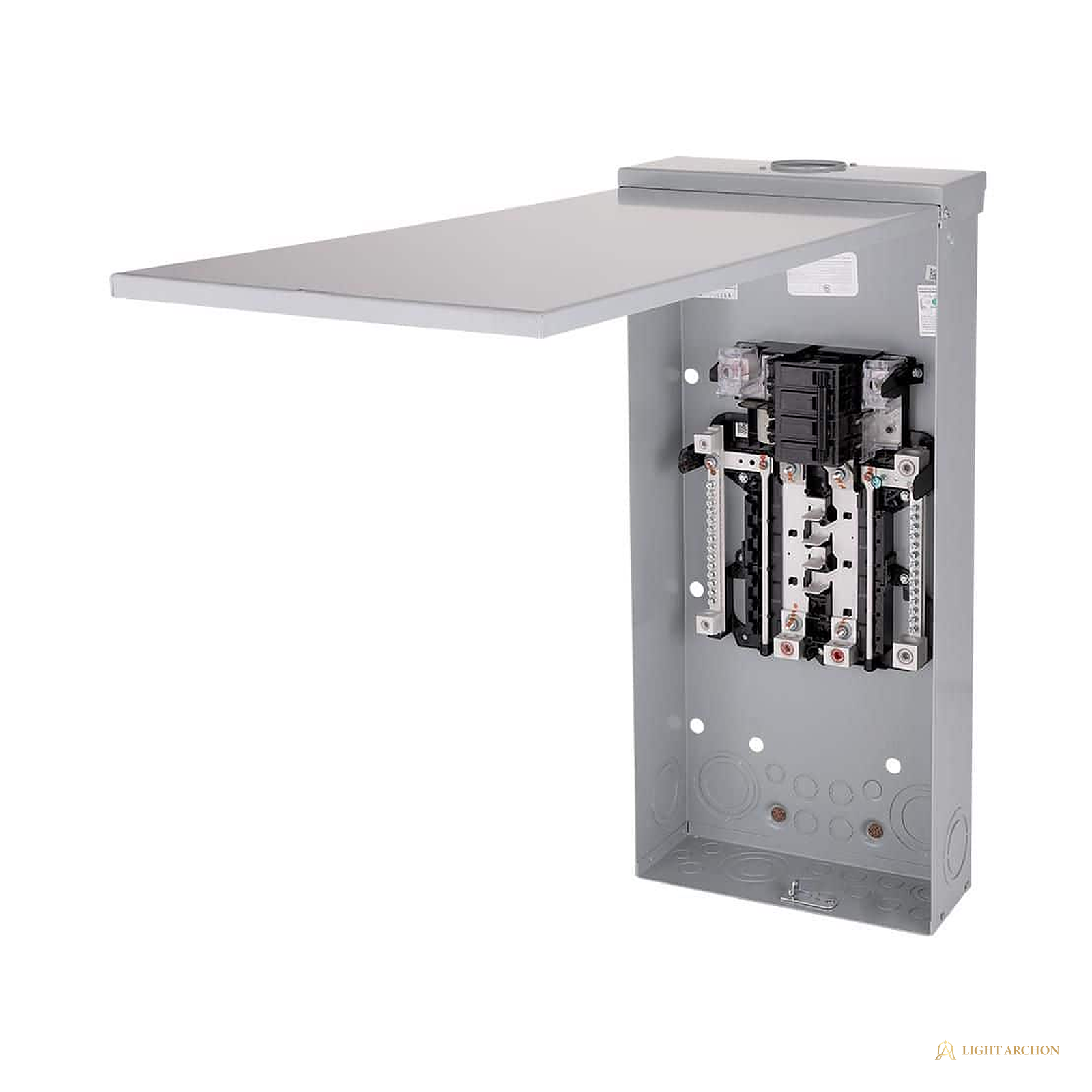

The rust-resistant galvanized steel tub carries a split neutral rated 100 percent on each side with full-length neutral bars, so wire lands fast on either flank. Top and bottom feed both work. Outdoor units carry a NEMA 3R enclosure; indoor units are NEMA 1. Value pack configurations ship with an assortment of single-pole and double-pole branch breakers, and the 8-space outdoor unit adds feed-through lugs for downstream panels. Series interrupt rating is 22 kA, confirmed per configuration at quote review.

Highlights

• 200 A plug-on neutral platform, 8 to 30 spaces
• Factory-installed main breaker on main breaker configurations
• Split neutral rated 100 percent on each side, full-length neutral bars
• Rust-resistant galvanized steel enclosure
• NEMA 3R outdoor and NEMA 1 indoor configurations
• Top or bottom feed with all neutral holes rated for 14-4 wire
• Feed-through lug option for downstream panels
• 22 kA series interrupt rating
• UL Listed, meets ANSI safety requirements

Specification Table

Included Components

• Enclosure with cover, NEMA rated per configuration
• Factory-installed main breaker on main breaker configurations
• Branch breaker assortment on value pack configurations, confirmed at quote review
• Closure caps; hubs quoted separately

Installation Notes

• Installed by a licensed electrician as service equipment or subpanel per plan
• Surface mount; keep working clearance per NEC at the enclosure face
• Bond and ground per NEC; separate grounded and bond conductors in subpanel use
• Hub and conduit entries sized and sealed by the installer for outdoor work
• Branch breaker schedule finalized at quote review

Warranty and Support

• Covered by the Light Archon limited trade warranty; term confirmed at quote review
• Submittal sheets and dimensional PDFs available for every configuration
• Support through the Light Archon trade desk

Frequently Asked Questions

What breakers does it accept?
Light Archon Talos series 1 in. plug-on branch breakers. The exact breaker schedule for your job is confirmed at quote review.

Can it mount outdoors?
Yes. Outdoor configurations carry a NEMA 3R rust-resistant enclosure; indoor configurations are NEMA 1. Pick the variant that matches the location.

Is the main breaker included?
Main breaker configurations ship with the main device factory installed. The 20-space indoor main lug unit has no main device and is fed from an upstream breaker.

What comes in a value pack?

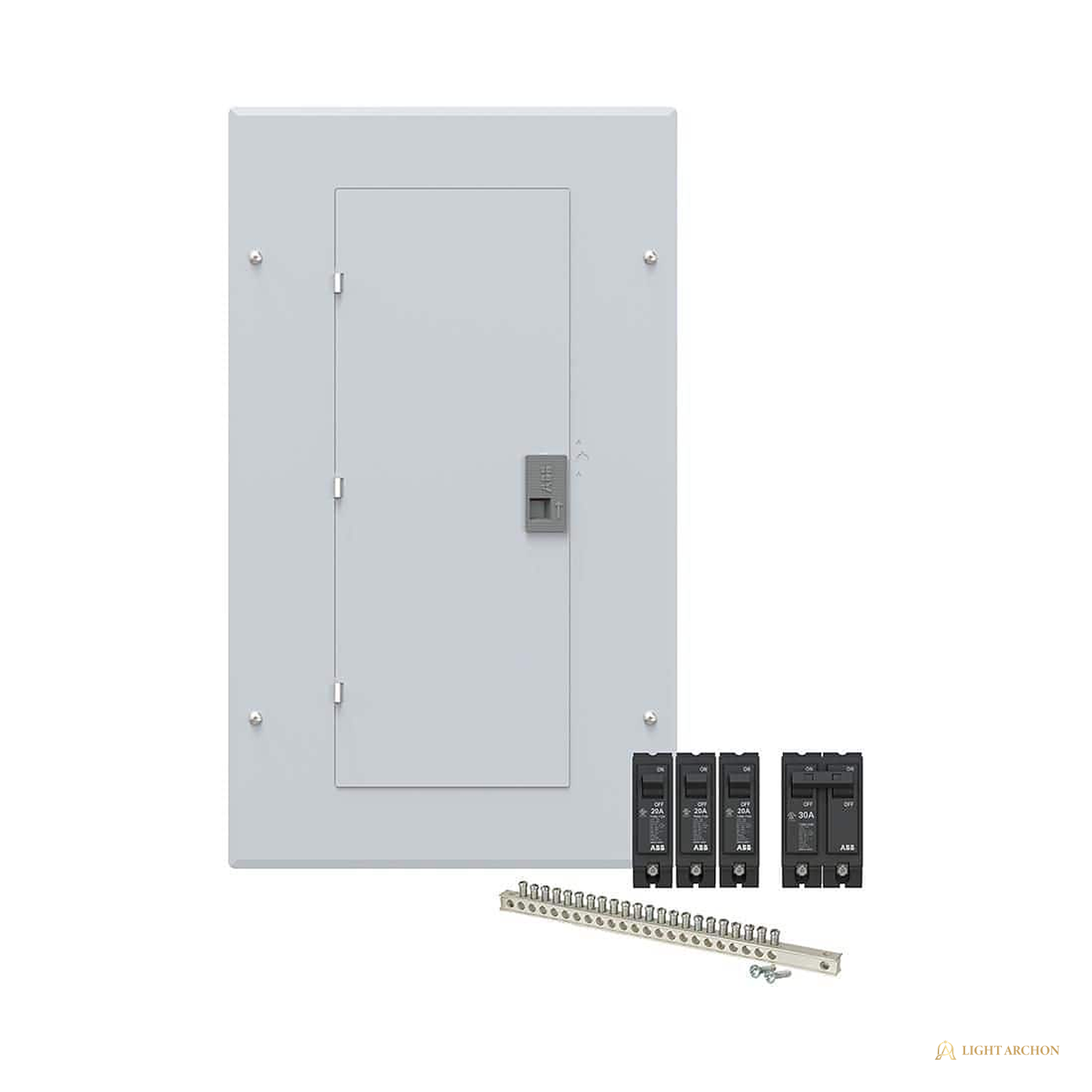

The enclosure, cover, factory-installed main breaker, and an assortment of single-pole and double-pole branch breakers. The assortment is itemized at quote review.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
