Light Archon RangeLine 6/3 Stranded Copper NM-B Cable with Ground
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

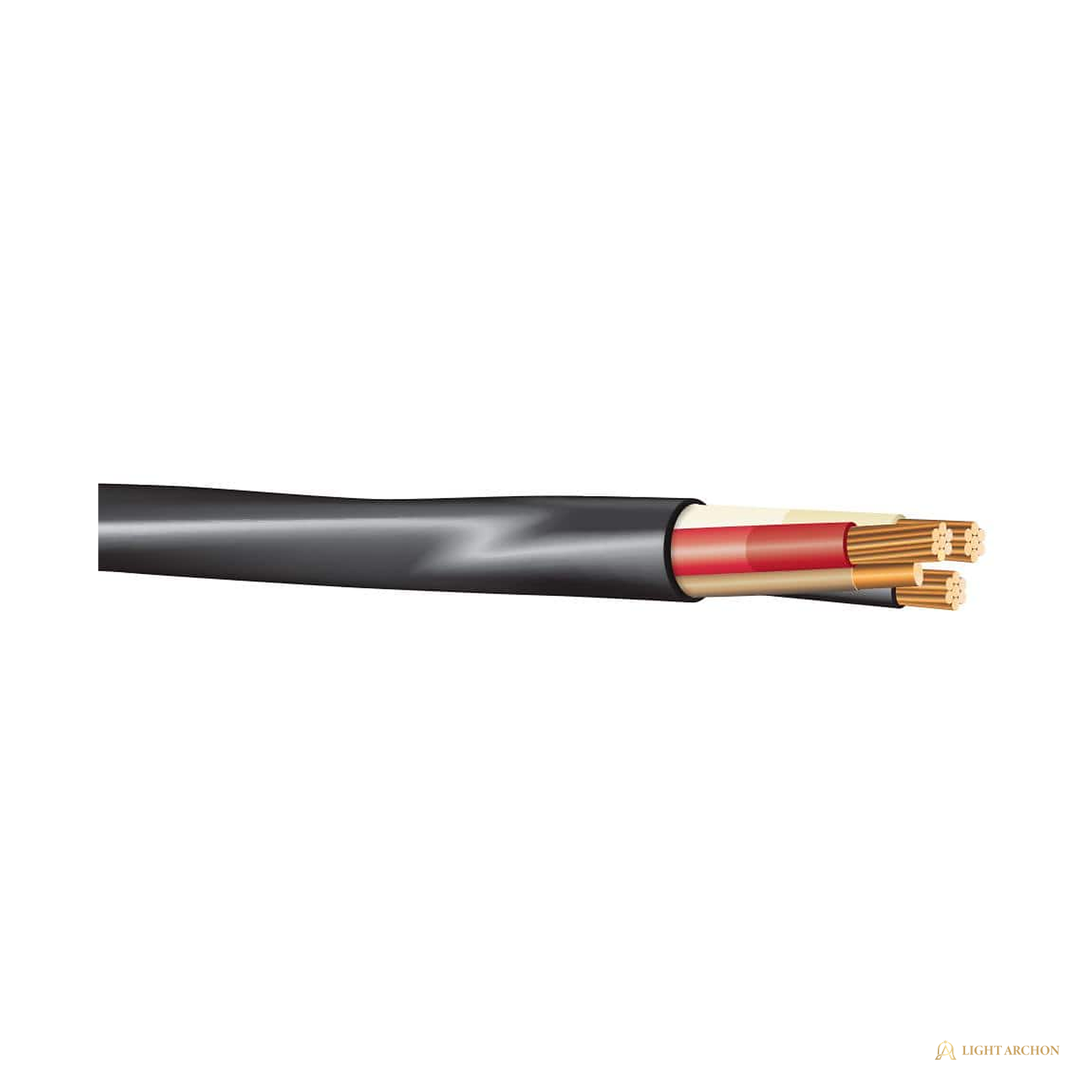

Light Archon RangeLine 6/3 stranded copper NM-B cable feeds the heavy interior loads: ranges, double ovens, dryer circuits on 55A-class runs, and subpanel feeders inside dry framing. Three stranded 6 AWG copper conductors and a ground ride under a black 600V jacket.
Stranded conductors keep this large construction workable through drilled framing and into panel enclosures, and the black jacket is the trade color cue for the 6 AWG class. The listed maximum is 55A, which covers range and double-oven circuits per their nameplates. Runs quote in six factory lengths from 15 to 500 ft; production jacket print carries standard size and type text only.
Highlights
- 6/3 with ground: three stranded copper conductors plus equipment ground
- 55A listed maximum for range, double-oven, and dryer-class circuits
- Rated 600V with a durable black PVC jacket
- Stranded construction stays workable at panel terminations
- UL listed; CSA certified per the published listing

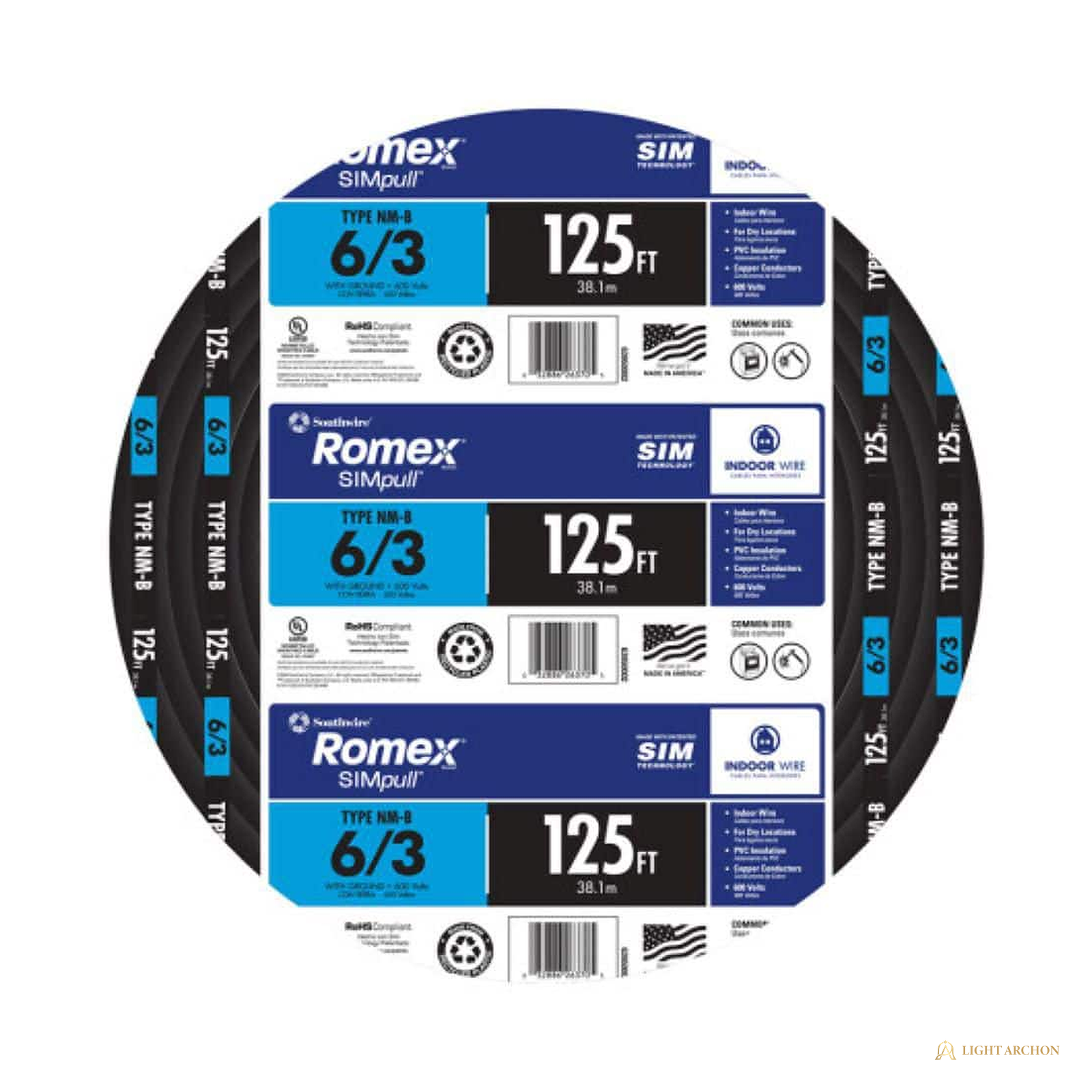

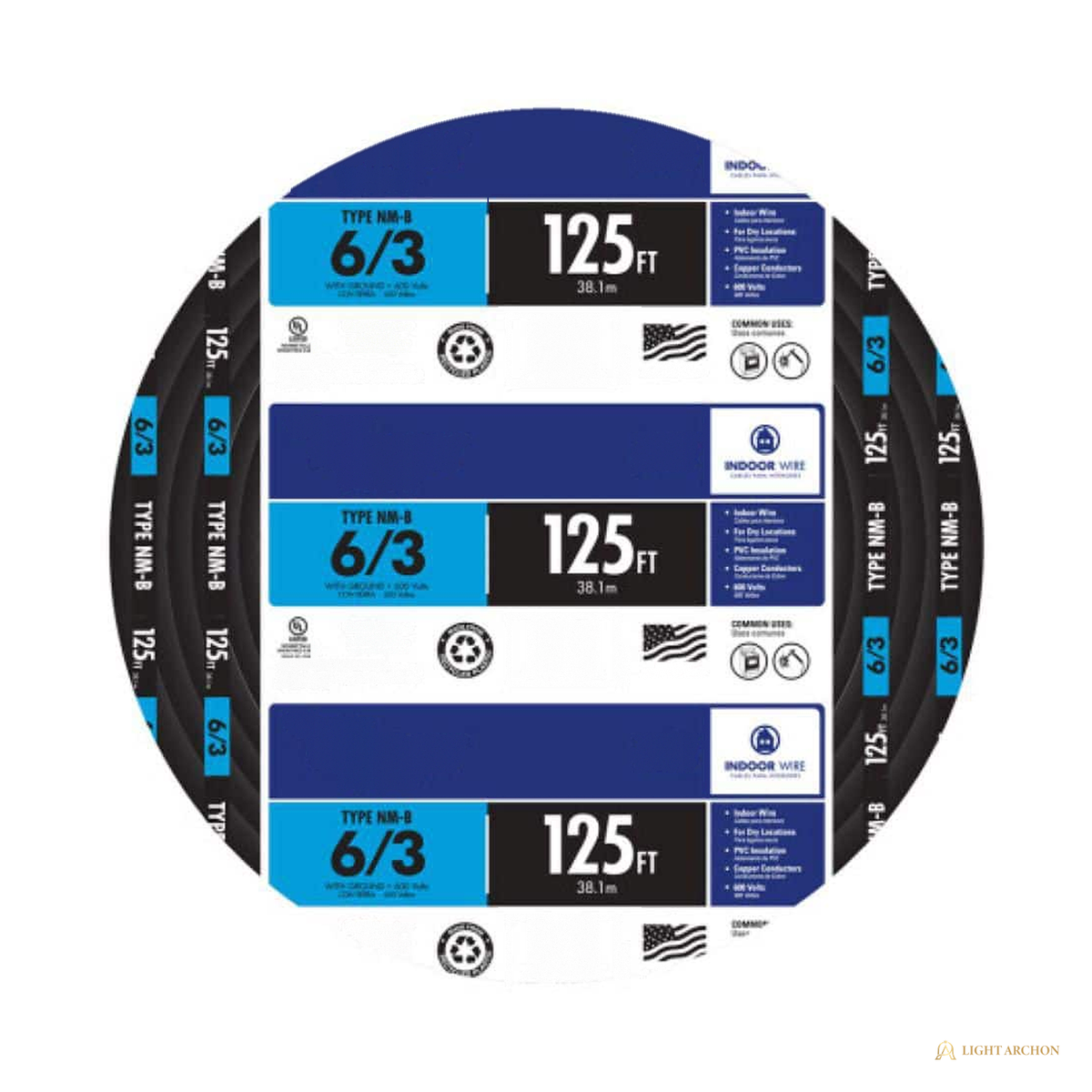

- Factory runs of 15, 25, 50, 75, 125, and 500 ft
- Dry interior use for exposed and concealed work per the published listing
- Quote-first trade supply: no public prices, one submittal covers the whole job
Specification Table
| Construction | 6/3 with ground, NM-B |
| Conductor | 6 AWG stranded annealed copper, three circuit conductors |
| Equipment ground | Copper |
| Jacket | PVC, black, standard size and type print |
| Insulation rating | 600V |
| Ampacity | 55A listed maximum |
| Location | Dry interior locations |
| Lengths | 15, 25, 50, 75, 125, and 500 ft |
| Listings | UL listed, CSA certified |
| Typical circuits | Ranges, double ovens, dryers, interior subpanel feeds |
| Supply model | Quote-first factory-sealed runs |
Included Components
- Continuous factory run in the selected length
- Factory-sealed coil wrap or spool per length
Installation Notes
- Match overcurrent protection to the appliance nameplate and NEC; the listed maximum for this construction is 55A.
- Route where space is available and free of excess moisture; exposed and concealed dry-location work is per the published listing.
- May run in air voids of masonry block or tile walls not subject to excessive moisture per the published listing.
- Large-radius bends protect the jacket; support and secure at NEC spacing intervals.
- Final circuit counts, run lengths, and breaker matchups are confirmed at quote review.
Warranty and Support
- Backed by the Light Archon trade supply program; warranty terms are confirmed at quote review.
- Submittal sheets and takeoff review support are available from our electrical supply desk.
Frequently Asked Questions
What circuits is this gauge rated for?
6 AWG copper NM-B carries a 55A listed maximum, which covers ranges and double ovens up to 55A per the published listing, dryer-class feeders, and interior subpanel feeds sized per NEC.
What lengths can I quote?
Factory runs of 15, 25, 50, 75, 125, and 500 ft. Mixed lengths on one quote list are fine, and the desk consolidates runs to cut waste.
Can this cable run outdoors or underground?
No. NM-B is listed for dry interior locations. For wet locations or burial, quote THHN conductors in conduit or a UF class cable at review.
Why stranded conductors on this size?
At 6 AWG, stranded copper bends and lands on lugs far more cleanly than solid wire, which matters inside crowded appliance and panel enclosures.
Documents
- Type NM-B Cable
- SKU LA-LGT-WR-G63-RNGL-15FT
- Catalog Reference Installation & Warranty Reference (PDF)
- Spec PDF Open product spec summary
- Submittal PDF Open submittal reference
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
