Light Archon Redoubt 40A 2-Pole Circuit Breaker

Light Archon Redoubt breakers put the 40 A double-pole slot on one platform in the industry-standard 1 in. plug-on format. Pick the standard thermal magnetic unit for 240V appliance circuits or the GFCI unit where the plan calls for Class A ground fault protection on the full circuit, such as spa and hot tub feeds. Quote-first: add it to your quote list and the trade desk confirms panel fit before release.

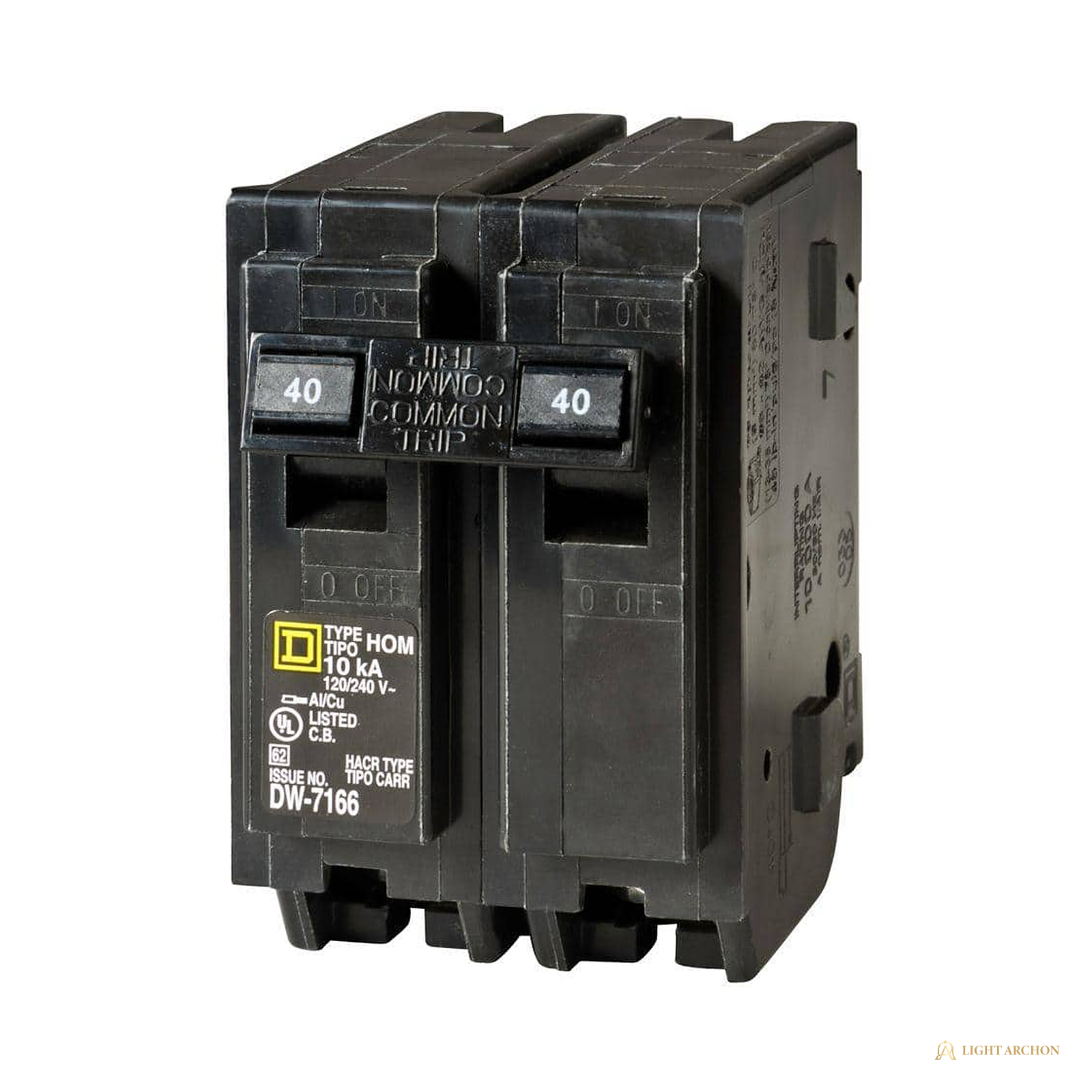

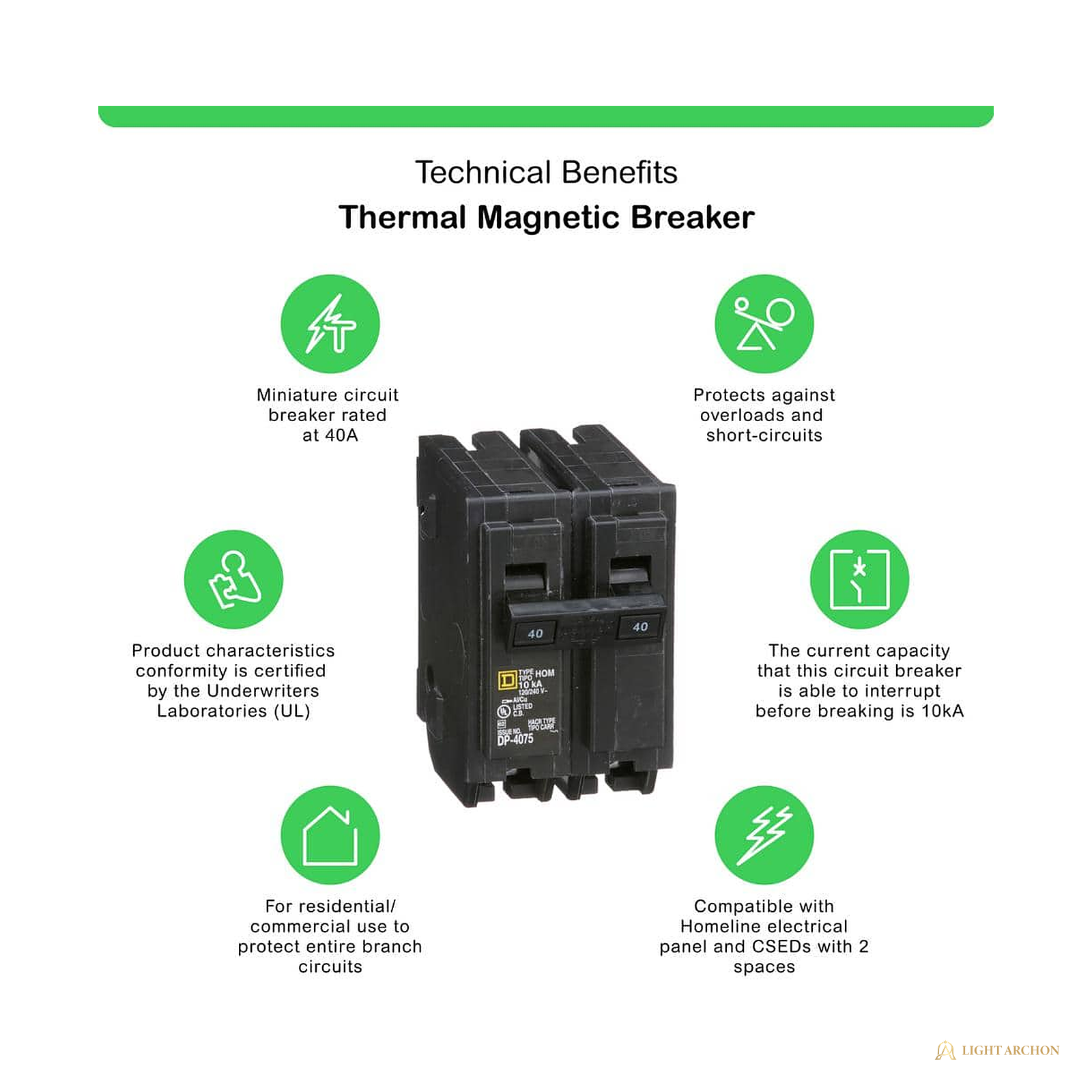

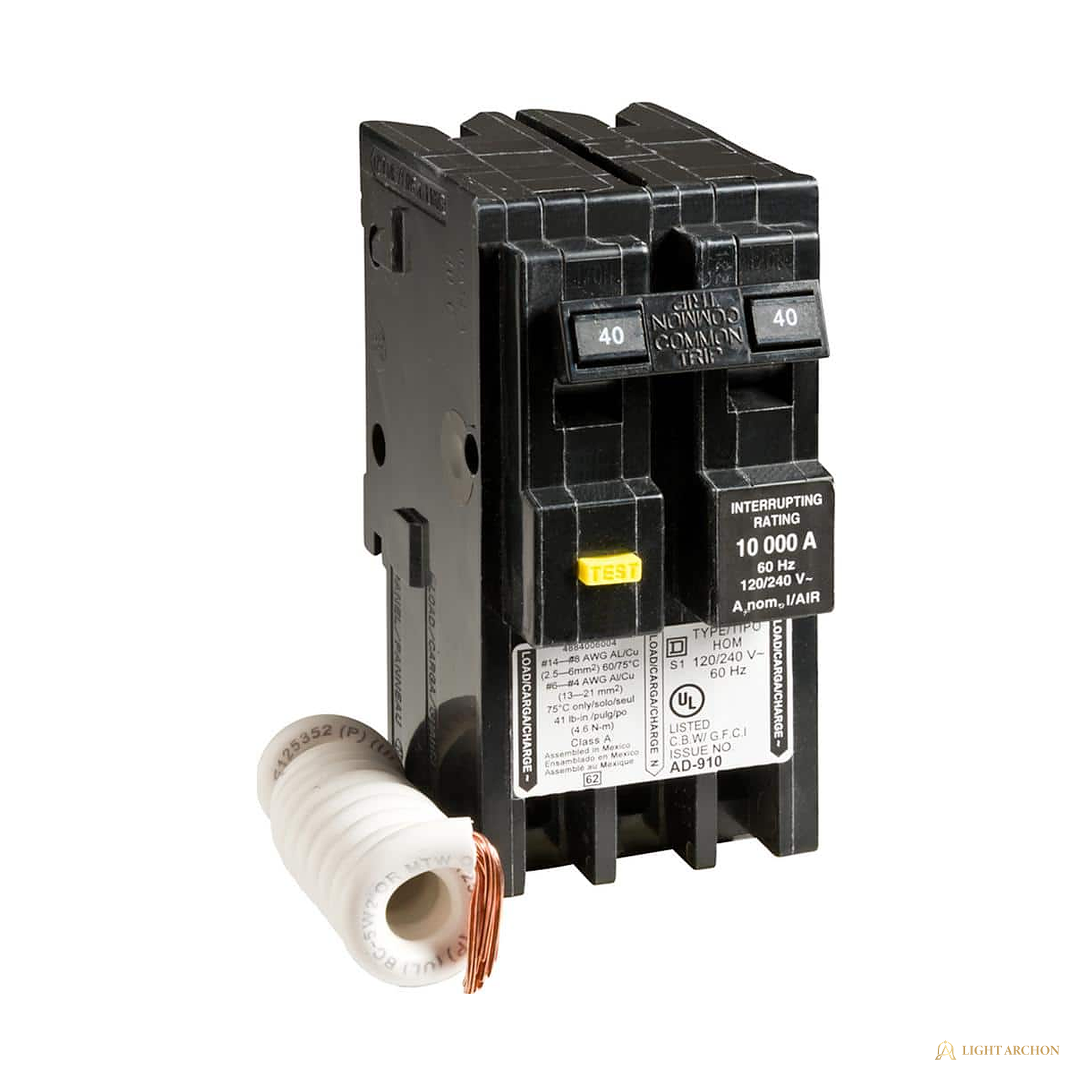

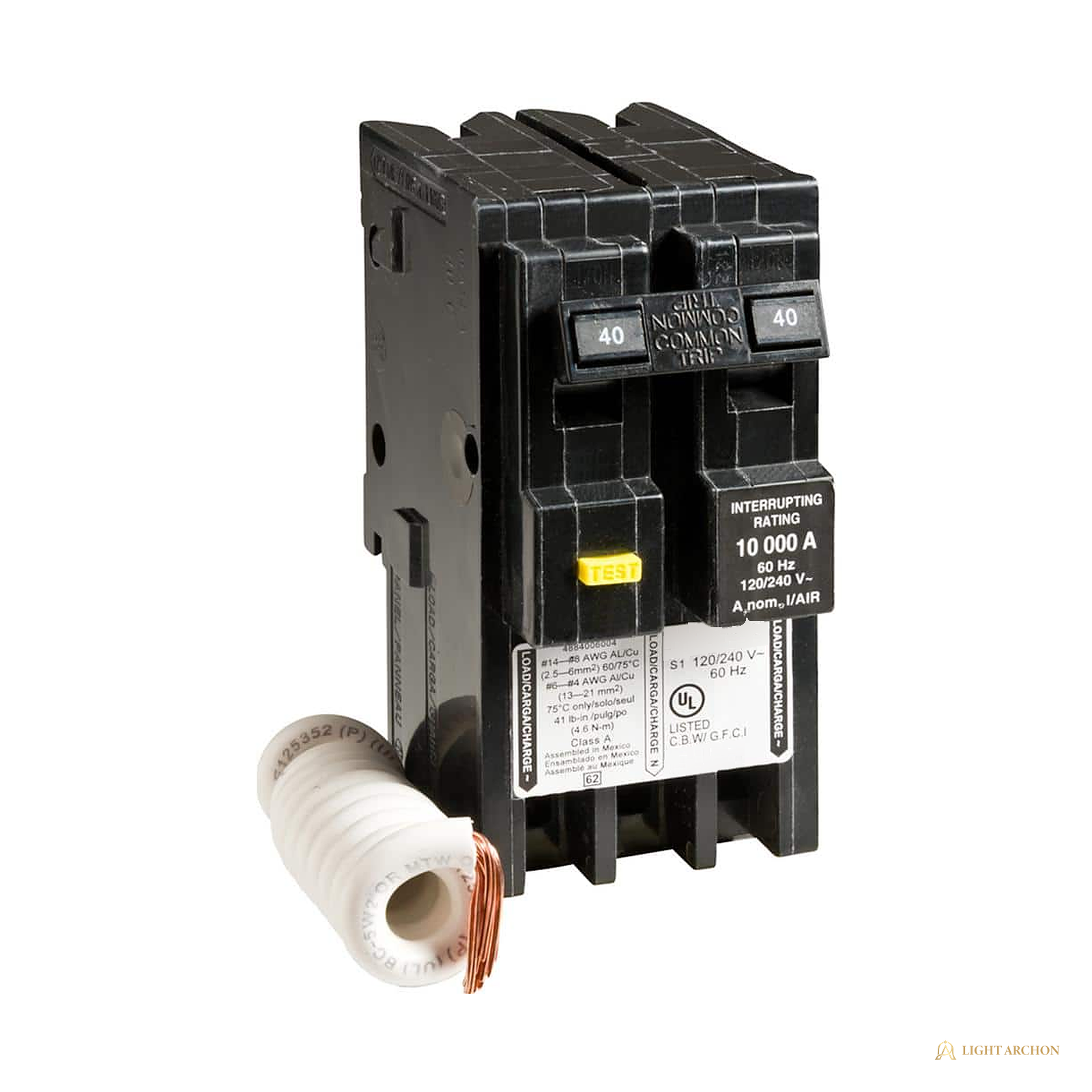

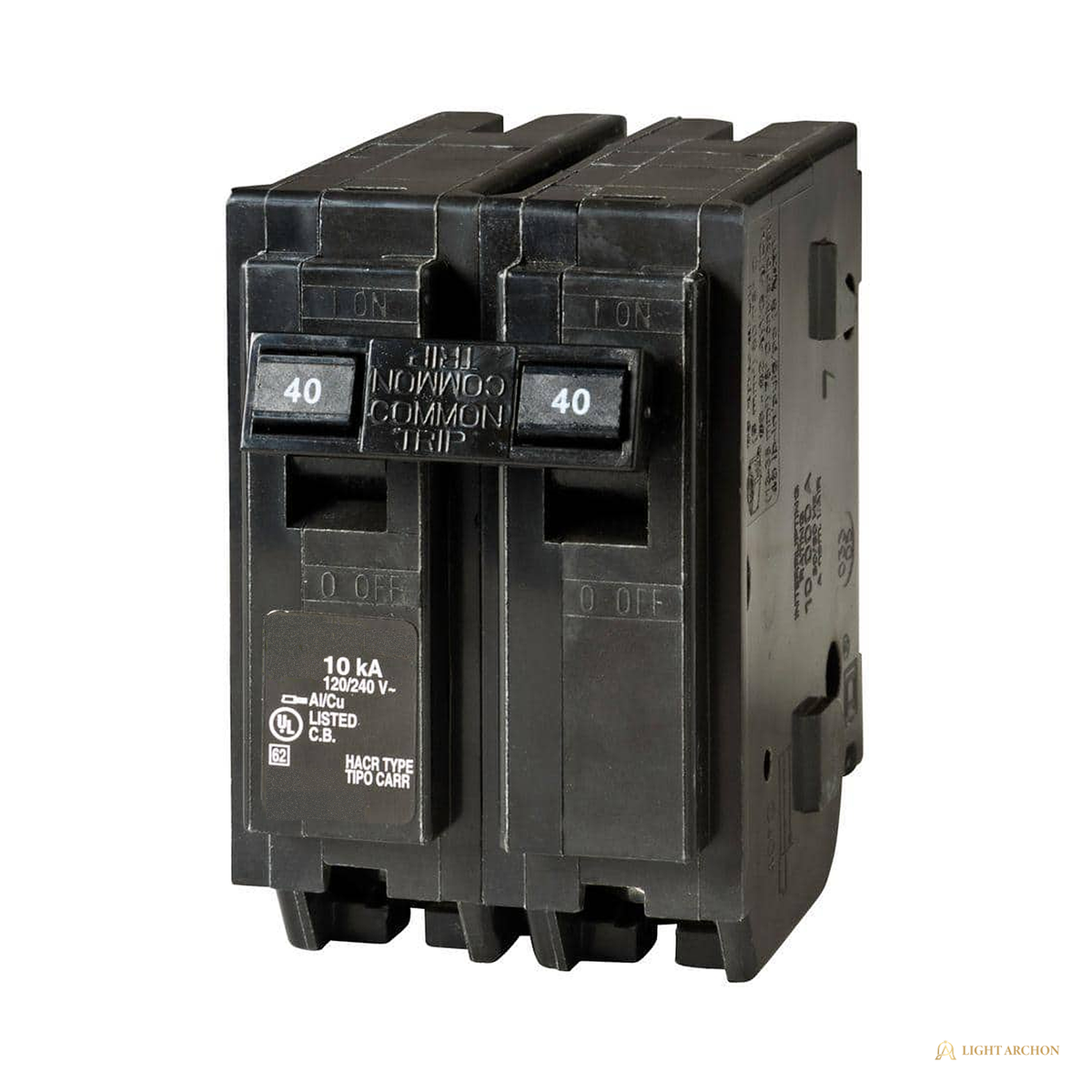

The standard unit is a thermal magnetic 2-pole breaker with a common trip across both poles. The GFCI unit adds electronic ground fault sensing with a test button on the face and lands its factory pigtail on the panel neutral bar; it protects the entire downstream circuit, which is what the NEC asks of equipment like pools, spas, and hot tubs. Both units connect plug-on to the bus, occupy two pole spaces, and carry a 10 kA interrupt rating at 120/240V.

Highlights

• 40 A 2-pole platform in the 1 in. plug-on format
• Standard and GFCI protection levels
• 10 kA interrupt rating at 120/240V
• GFCI unit provides Class A ground fault protection for the full circuit
• Common trip across both poles
• Plug-on bus connection with no mounting hardware
• Two pole spaces in compatible load centers
• Quote-first trade supply with panel fit verified before release

Specification Table

Included Components

• One 40 A 2-pole breaker per unit, protection level per selected variant
• GFCI unit includes its factory neutral pigtail

Installation Notes

• Installed by a licensed electrician; breaker ampacity must match conductor rating
• De-energize the panel and verify with a meter before any work
• Torque terminations to the values on the breaker label
• GFCI protection locations follow the NEC edition adopted in your jurisdiction; spa and hot tub circuits commonly require it
• Land the GFCI unit pigtail on the panel neutral bar
• Panel fit is verified at quote review against your load center schedule

Warranty and Support

• Covered by the Light Archon limited trade warranty; term confirmed at quote review
• Submittal sheets and dimensional PDFs available for every configuration
• Support through the Light Archon trade desk

Frequently Asked Questions

What panels does this fit?
It fits Light Archon LC series and industry-standard 1 in. bolt/plug-on load centers - verify panel compatibility at quote review.

When do I need the GFCI unit?
Where the NEC requires ground fault protection on a 240V circuit, most commonly spa, hot tub, and pool equipment feeds. The standard unit covers ordinary appliance circuits. Your electrician confirms the requirement for your jurisdiction at quote review.

Does the GFCI unit protect the whole circuit?
Yes. Breaker-level GFCI protection covers the entire downstream circuit including the wiring run, not just a single outlet location.

How is this sold?
Quote-first. Every product shows a zero price on the site; your quote list is priced by the trade desk with panel fit checked line by line.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
