Light Archon RiseWorks Steel Covers for 4 in. Square Boxes
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

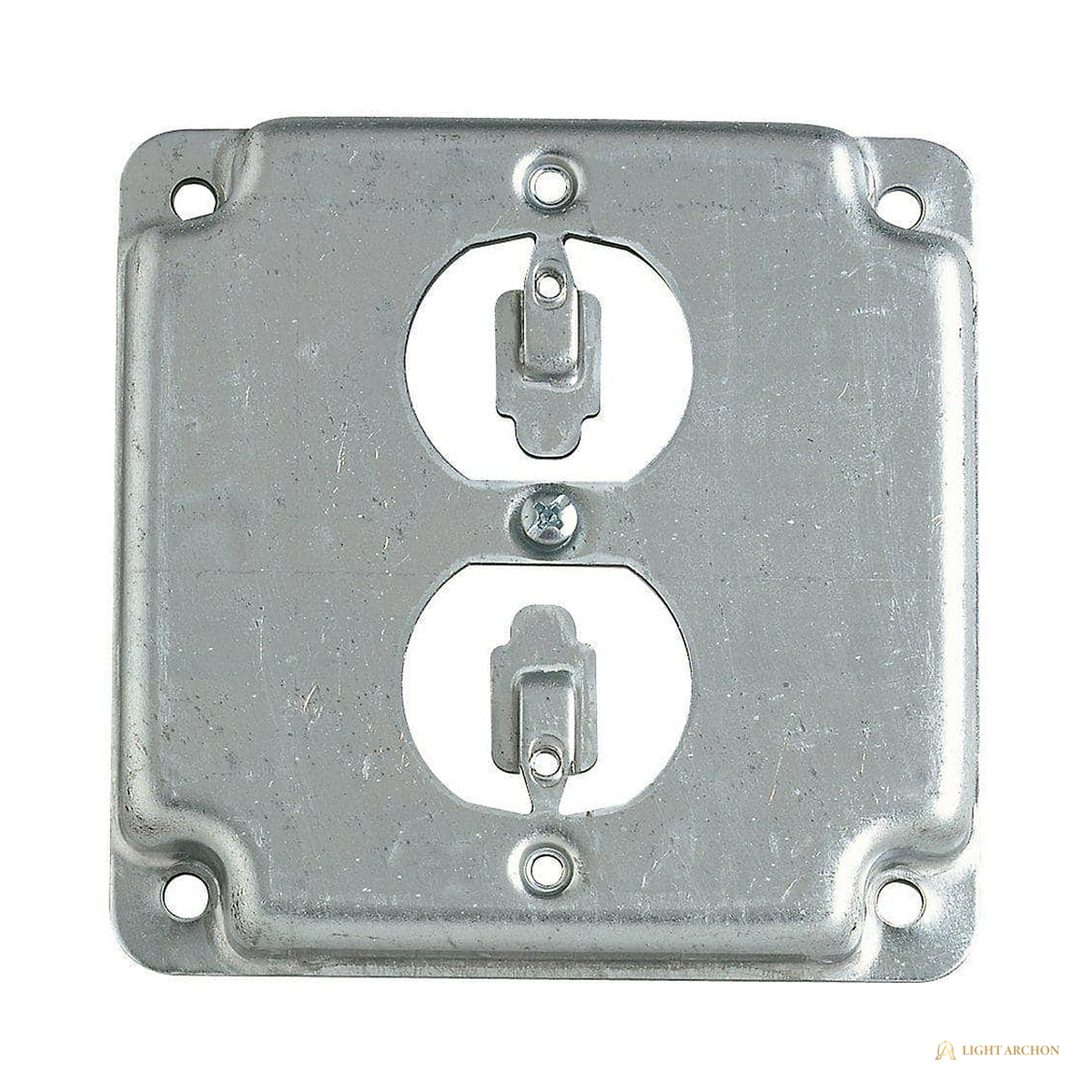

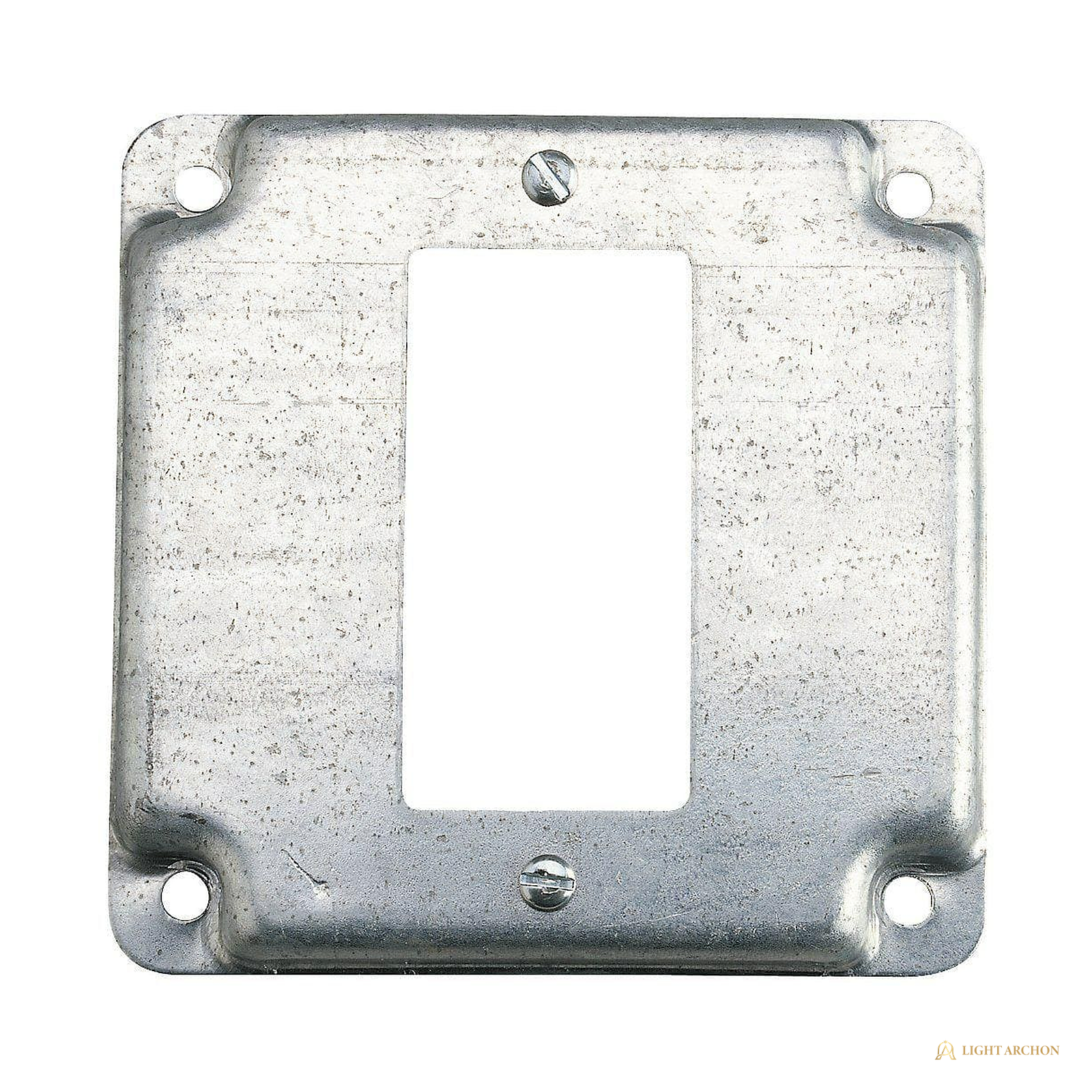

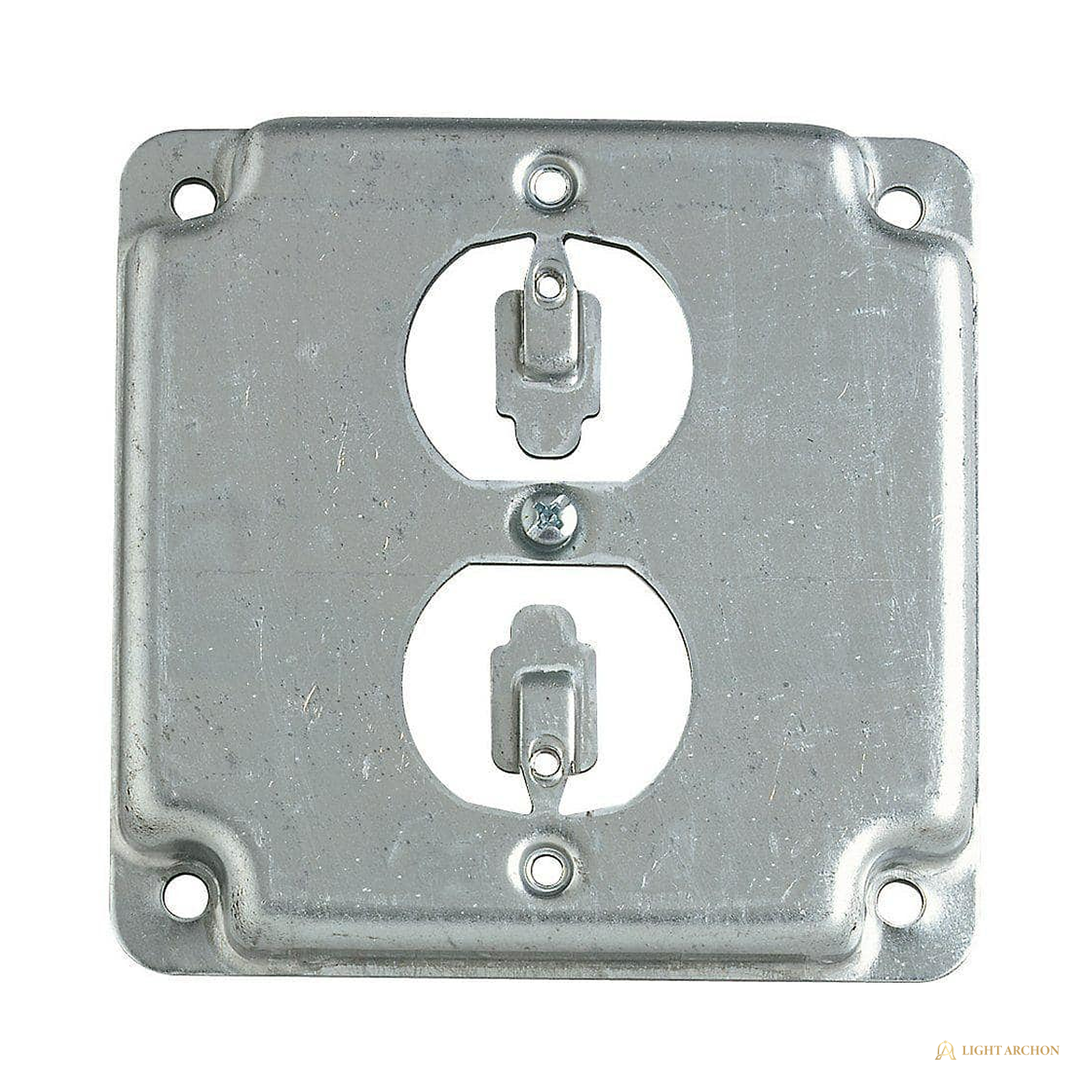

Light Archon RiseWorks covers finish 4 in. square boxes for device work: raised covers set switches and receptacles flush with drywall, GFCI formats frame protected devices, and flat and surface formats close junction and exposed-work boxes.
Stamped from galvanized steel, the raised formats lift the device plane 1/2 in. or 5/8 in. so devices land flush on finished walls, the standard method for commercial rough-in on square boxes. Duplex, single-device, and GFCI openings cover the common device mix, the surface double-duplex format serves exposed work, and the flat cover with knockout closes a box while passing a raceway. UL and CSA listed per the published listing.
Highlights
- Raised covers in 1/2 in. and 5/8 in. depths set devices flush with drywall
- Duplex, single-device, and GFCI openings cover the standard device mix
- Surface double-duplex format for exposed-work receptacle points
- Flat cover with 1/2 in. knockout closes boxes and passes raceway
- Galvanized steel stock resists corrosion in dry interiors
- UL and CSA listed per the published listing
- Fits 4 in. square boxes on standard screw spacing
- Quote-first trade supply; case quantities quoted on request
Specification Table
| Material | Galvanized steel |
| Formats | Raised device, duplex, GFCI, flat with knockout, surface double duplex |
| Raised depths | 1/2 in. and 5/8 in. |
| Fits | 4 in. square boxes, standard screw spacing |
| Openings | Single device, two device, duplex, GFCI |
| Knockout | 1/2 in. on the flat closure format |
| Listings | UL and CSA listed |
| Environment | Dry interior locations |
| Base size | 4 in. square face |
| Supply model | Quote-first; case quantities quoted on request |
Included Components
- Cover in the selected format with mounting screw holes on standard spacing
Installation Notes
- Match the raised depth to the finished wall thickness so devices land flush.
- Raised covers count toward box fill credits per NEC; the desk checks fill on device-heavy landings.
- Use the GFCI formats for devices with test and reset faces; standard duplex openings do not fit them.
- Surface formats suit exposed work where the box face stays accessible.
- Format counts and case quantities are confirmed at quote review.
Warranty and Support
- Backed by the Light Archon trade supply program; warranty terms are confirmed at quote review.
- Submittal sheets and takeoff review support are available from our electrical supply desk.
Frequently Asked Questions
Which raised depth do I quote?
Match the drywall: 1/2 in. covers standard single-layer walls, 5/8 in. covers thicker board. The device face lands flush when the rise equals the wall finish.
Do these fit the SteelForm square boxes?
Yes. RiseWorks covers land on 4 in. square boxes on standard screw spacing, including the Light Archon SteelForm line quoted alongside them.
What closes an unused junction box?
The flat cover, with a 1/2 in. knockout available when a raceway needs to pass through the closure.
Are GFCI covers different from duplex covers?
Yes. GFCI formats frame the rectangular device face with test and reset buttons; duplex formats frame two round outlet faces. Quote by the device schedule.
Documents
- Type Box Cover
- SKU LA-LGT-BX-C4MR-RISE-1DUP12
- Catalog Reference Installation & Warranty Reference (PDF)
- Spec PDF Open product spec summary
- Submittal PDF Open submittal reference
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
