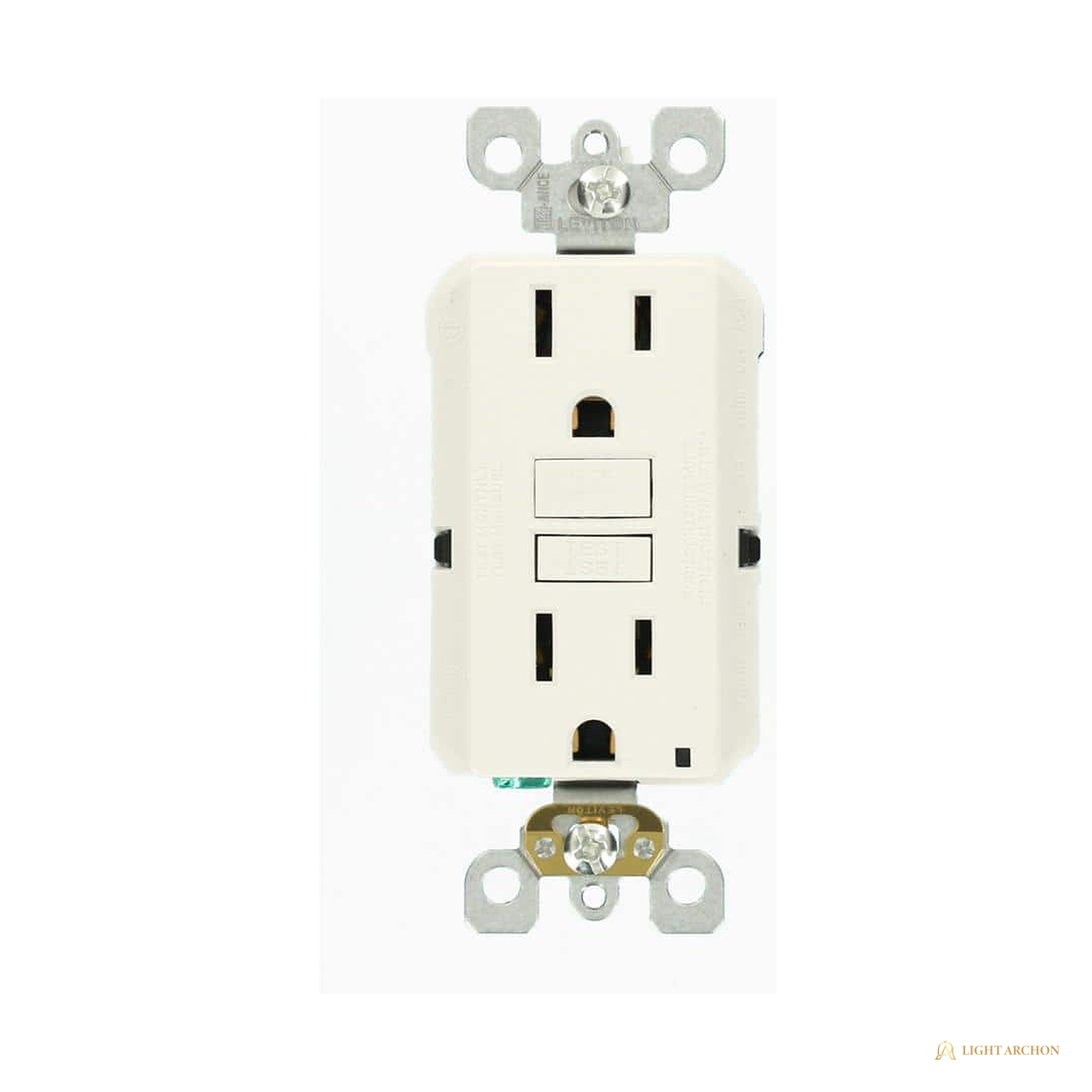

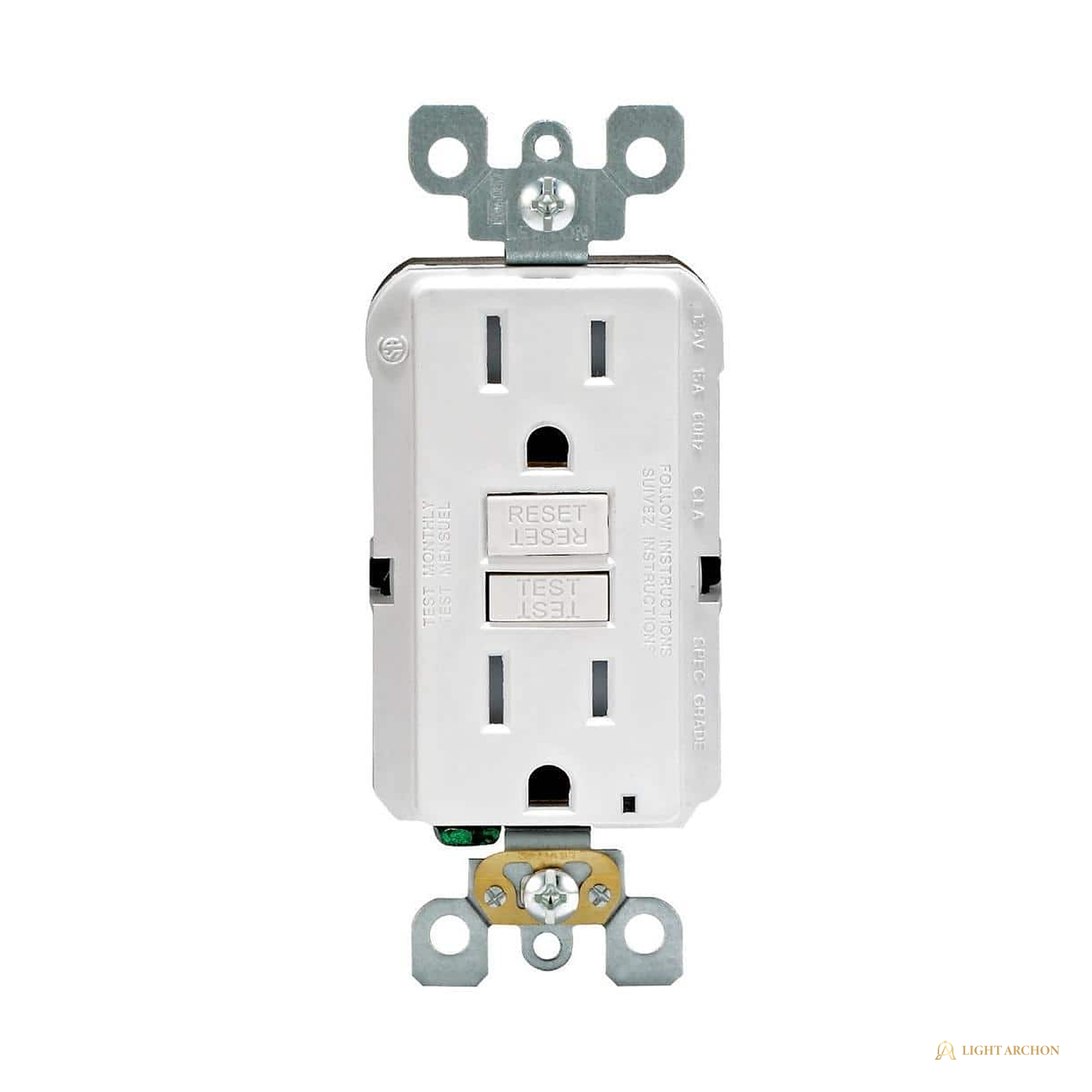

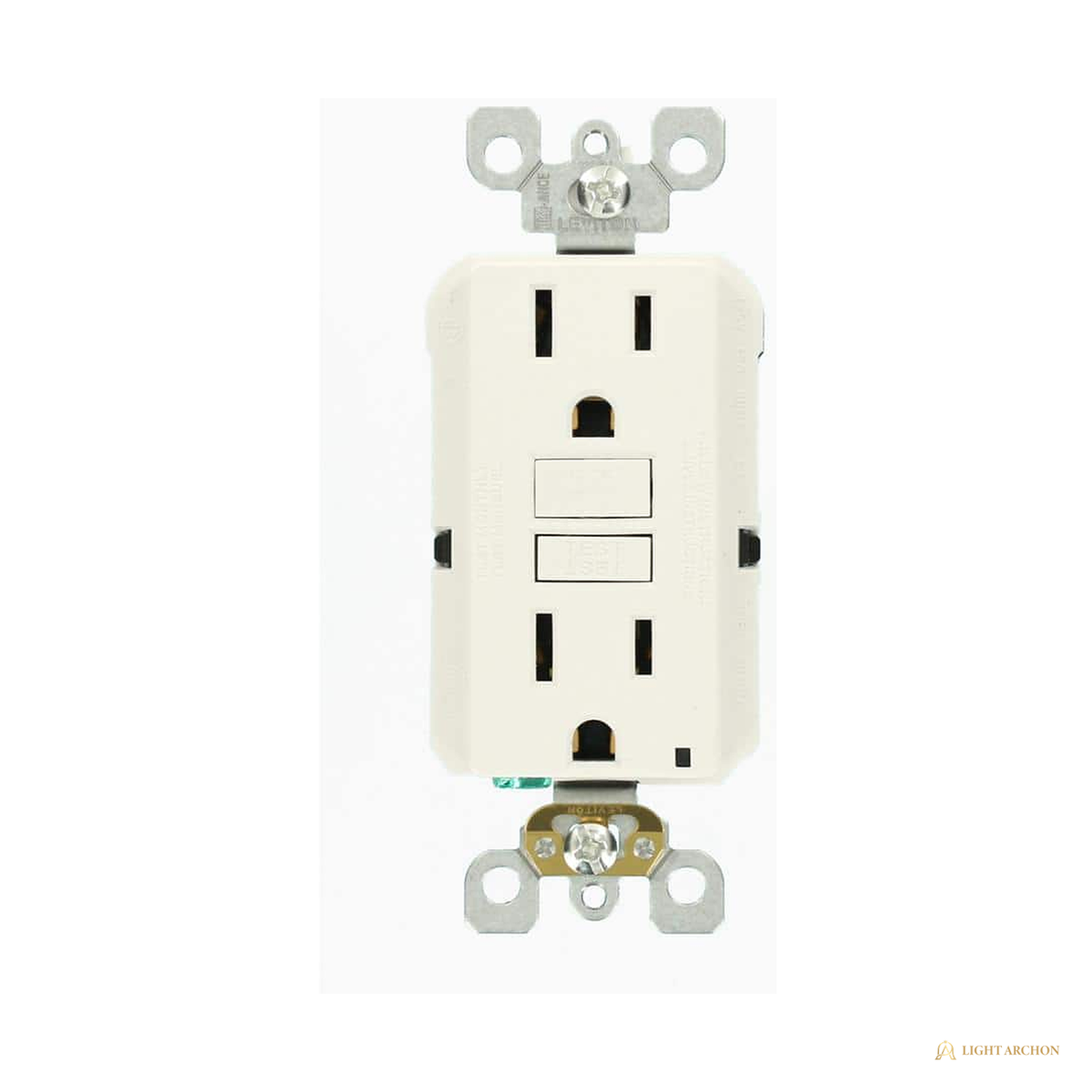

Light Archon Sentinel 15A Self-Test GFCI Duplex Outlet

Light Archon Sentinel GFCI outlets put self-test ground fault protection in a slim body that fits shallow and crowded boxes. The platform runs four colors with standard or tamper resistant versions, all 15 A, 125V, NEMA 5-15R, so one line covers kitchens, baths, laundry areas, and every other location the code calls out.

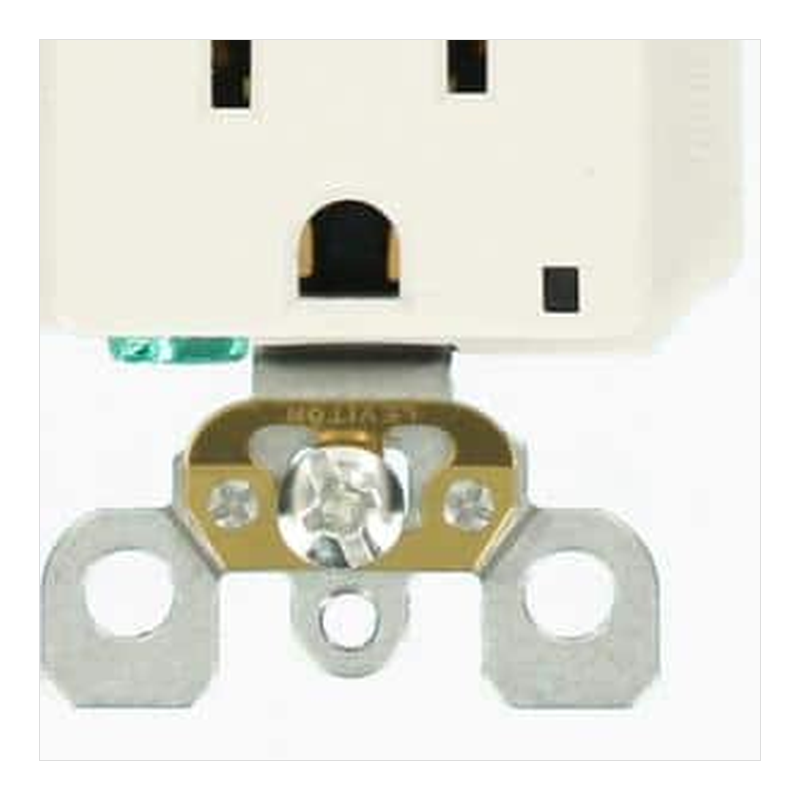

The device tests itself within seconds of power-up and keeps checking automatically, beyond the base UL requirement, while staying able to trip on a real ground fault even mid-test. A status indicator light shows power and protection state and flags line/load reversal. A lockout action blocks reset when the device cannot respond to a ground fault. Electronics are tuned to resist nuisance trips from high-frequency noise, and the reduced-depth body leaves room for conductors in any standard single-gang box. Back and side wire terminations with external clamps show proper wire seating at a glance.

Highlights

• 15 A, 125V self-test GFCI duplex, NEMA 5-15R
• Automatic self-test runs from power-up and repeats continuously

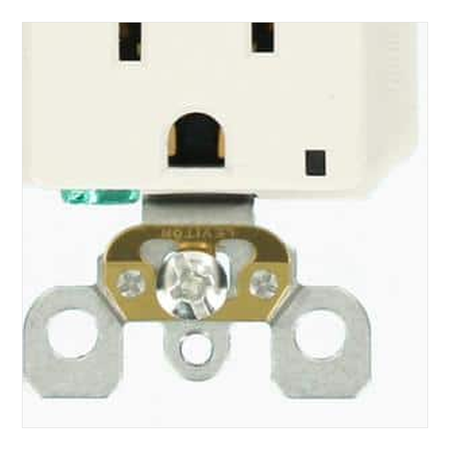

• Status indicator light with line/load reversal indication
• Lockout action blocks reset if protection is compromised
• Slim reduced-depth body for shallow boxes

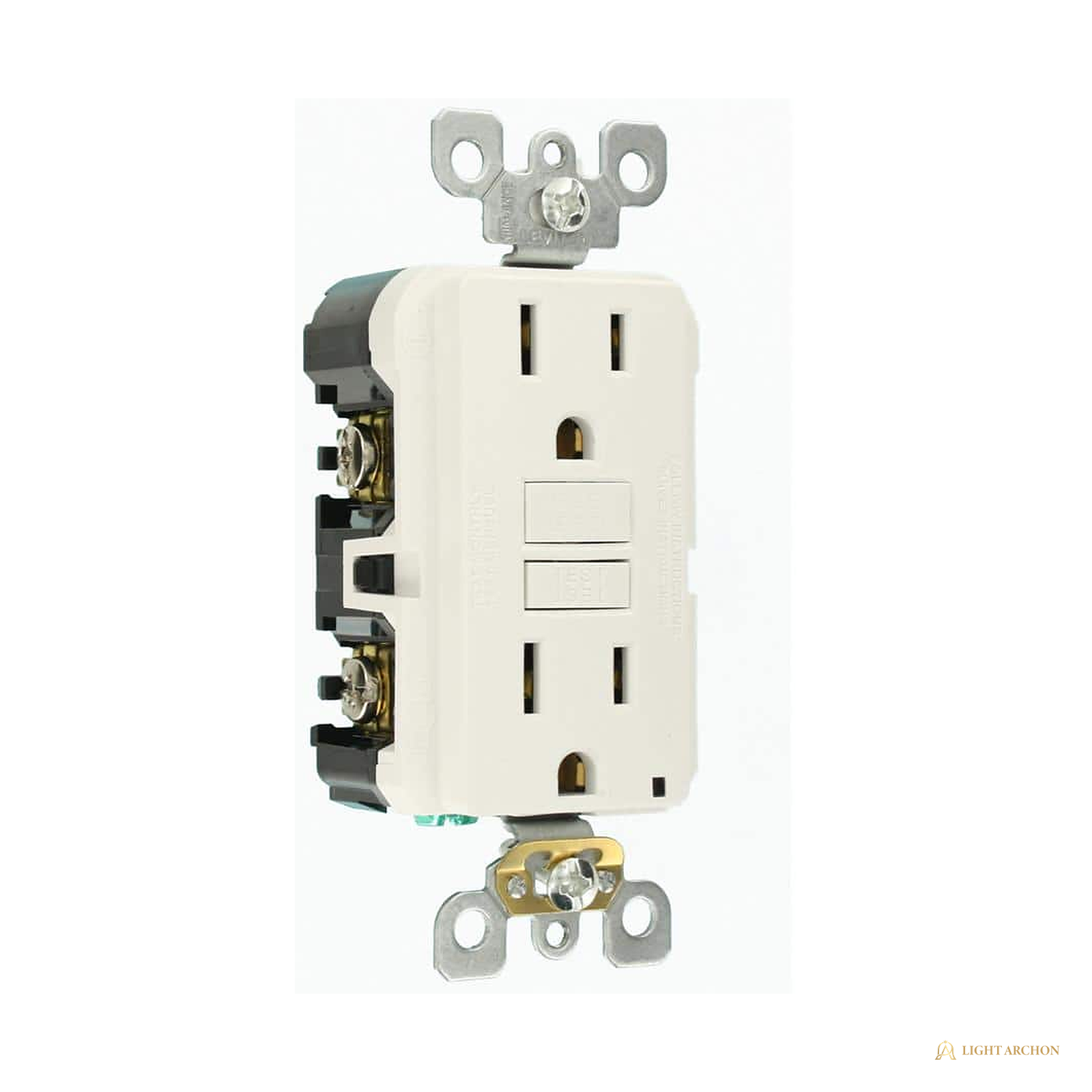

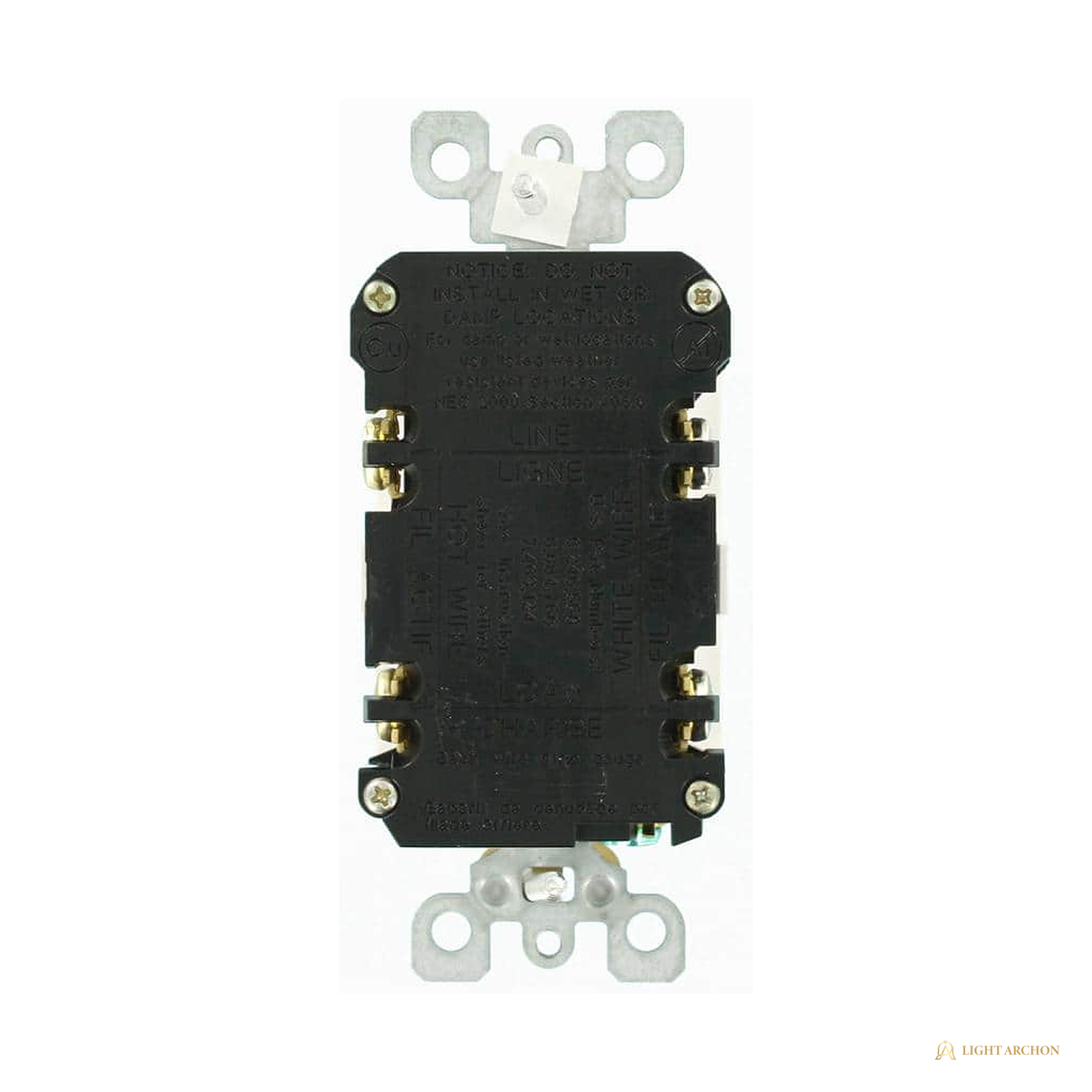

• Back and side wire capable with external clamp seating indication

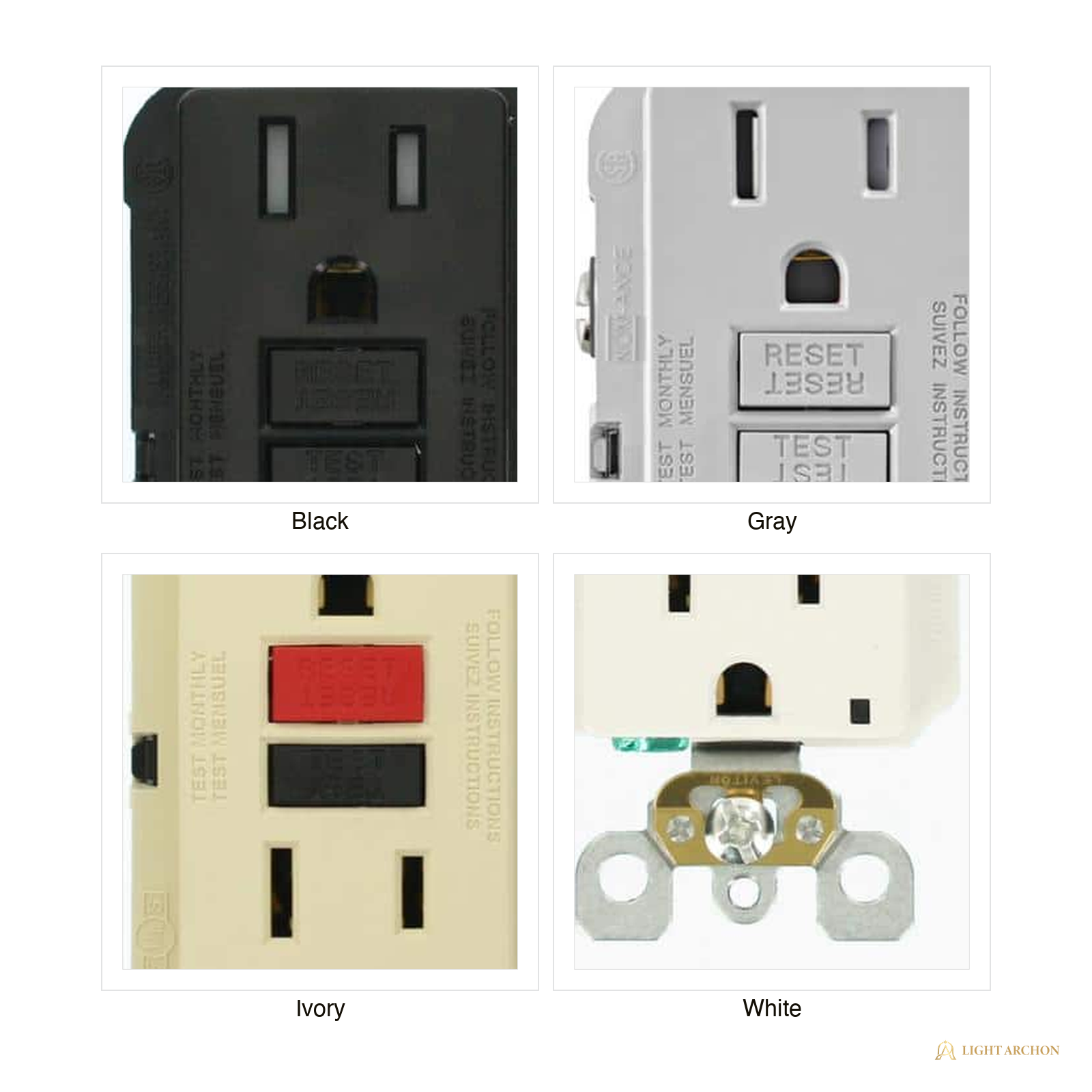

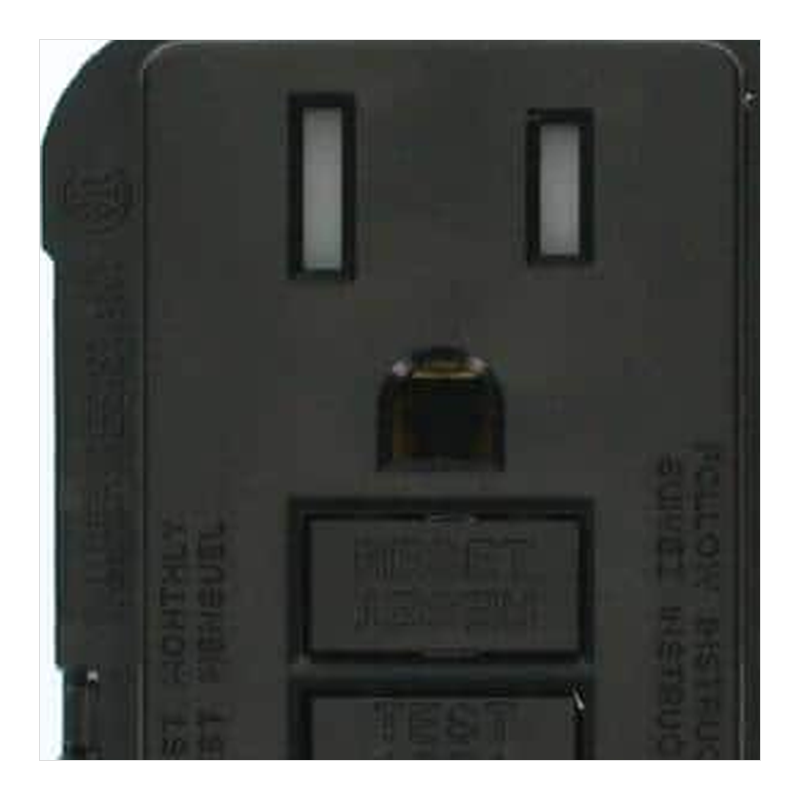

• Four colors with standard and tamper resistant versions
• Feed-through protection for downstream outlets
• UL Listed and CSA Listed

Specification Table

Included Components

• Sentinel GFCI device in the selected color and version
• Mounting screws
• Wall plate not included; standard 1-gang plates quoted separately

Installation Notes

• Installed by a licensed electrician in a standard single-gang box; verify box fill

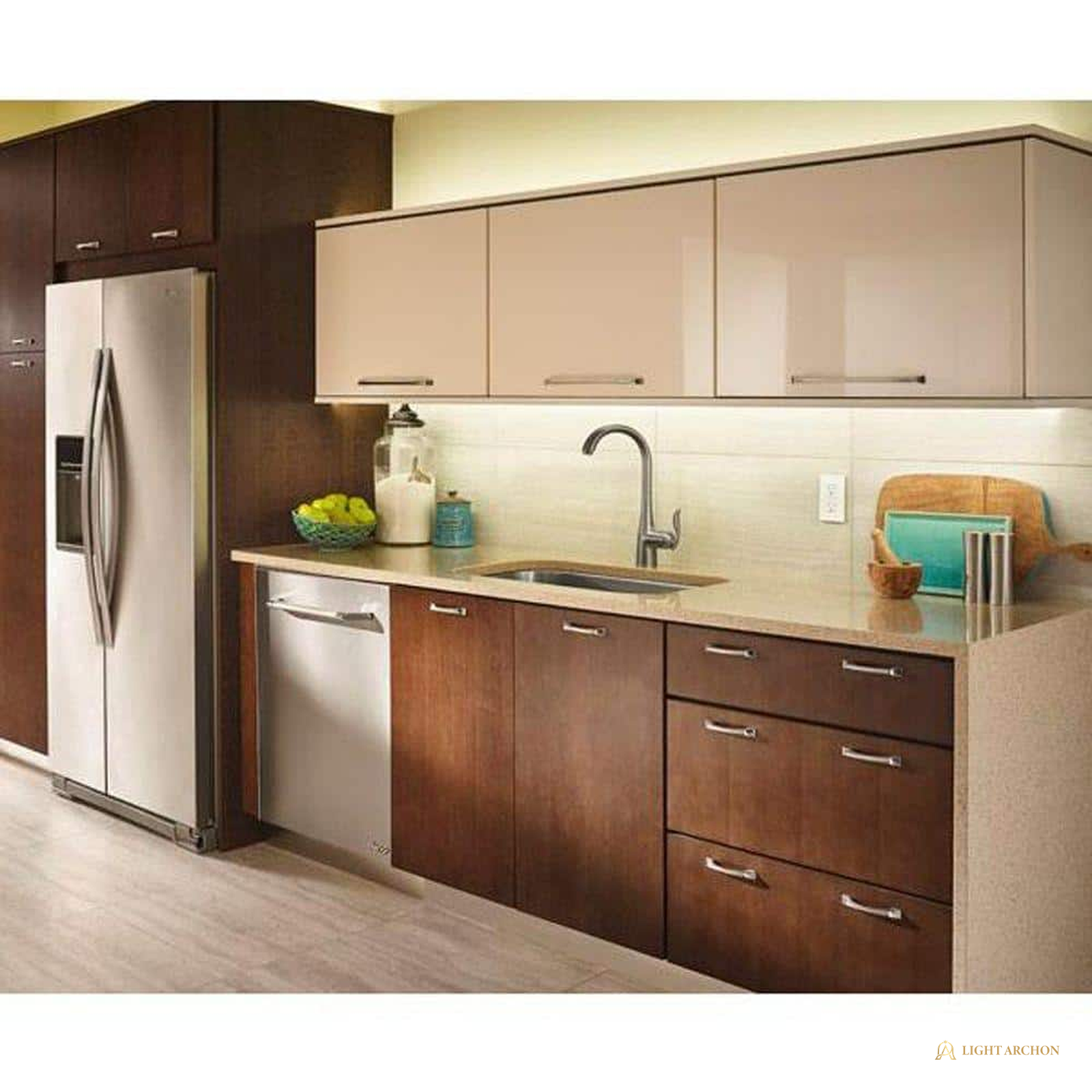

• GFCI protection locations per the NEC: kitchens, baths, laundry areas, outdoor and other wet or damp locations per the adopted edition
• Land line and load correctly; the indicator flags reversal
• Feed-through protection covers downstream outlets when landed on the load terminals

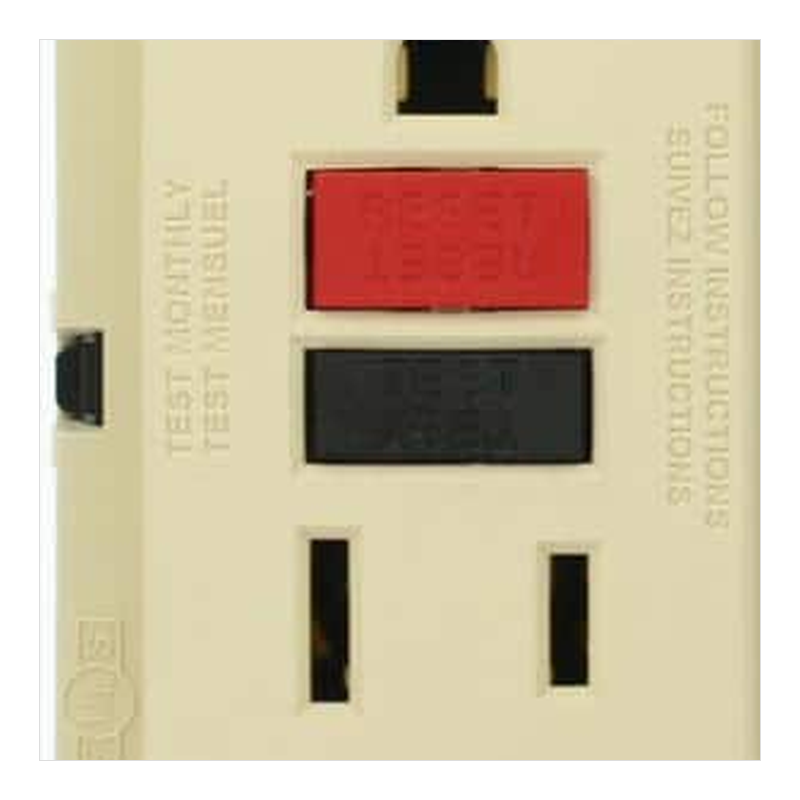

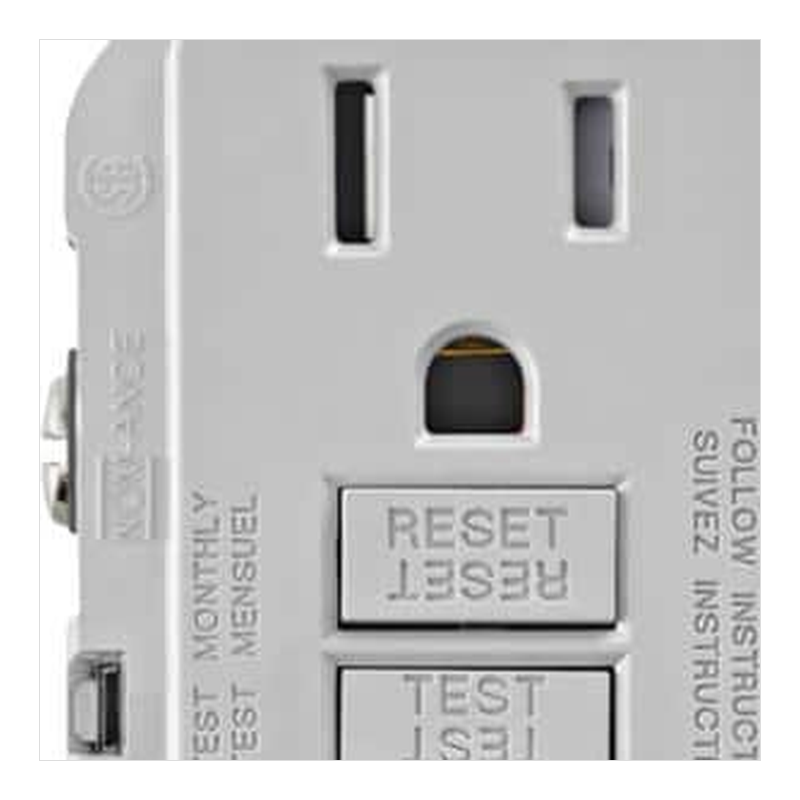

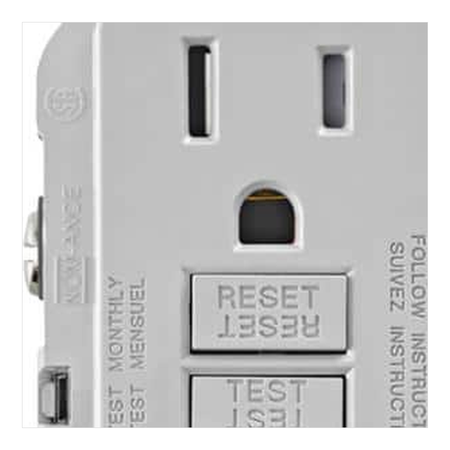

• Press TEST monthly in addition to the automatic self-test

Warranty and Support

• Covered by the Light Archon limited trade warranty; term confirmed at quote review
• Submittal sheets and dimensional PDFs available for every configuration
• Support through the Light Archon trade desk

Frequently Asked Questions

What box does it need?
A standard single-gang wall box. The slim body helps in shallow boxes, but your installer should still verify box fill for the conductors present.

Do I need the tamper resistant version?
The NEC requires tamper resistant receptacles in most dwelling locations. Pick the TR variant unless your inspector confirms the location is exempt.

What does the status light show?
Power and protection state, plus indication of line/load reversal at install. A device that loses the ability to protect locks out and will not reset.

Does it protect downstream outlets?
Yes. Feed-through terminals extend GFCI protection to downstream outlets when your electrician lands them on the load side.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
