Light Archon SocketWorks E26 Socket Adapters and Outlet-Box Lampholder, White

Light Archon SocketWorks covers the small socket hardware every service van runs out of: a screw-in adapter that turns one lampholder into a socket plus two outlets with a pull chain, a plain outlet-box lampholder for utility spaces, and a 3-way turn-knob socket for lamp repair. All three quote on one list.

The two-outlet adapter threads into any E26 lampholder and keeps the lamp on a pull chain while its two outlets stay live at 15A, 125V, the classic fix for basements and garages with a bare holder and no receptacle nearby. The outlet-box lampholder mounts to a standard box and carries a 600 W, 250V rating per the published listing. The 3-way socket replaces worn turn-knob interiors in table and floor lamps. Light output, color, and dimming all follow the E26 lamp you install.

Highlights

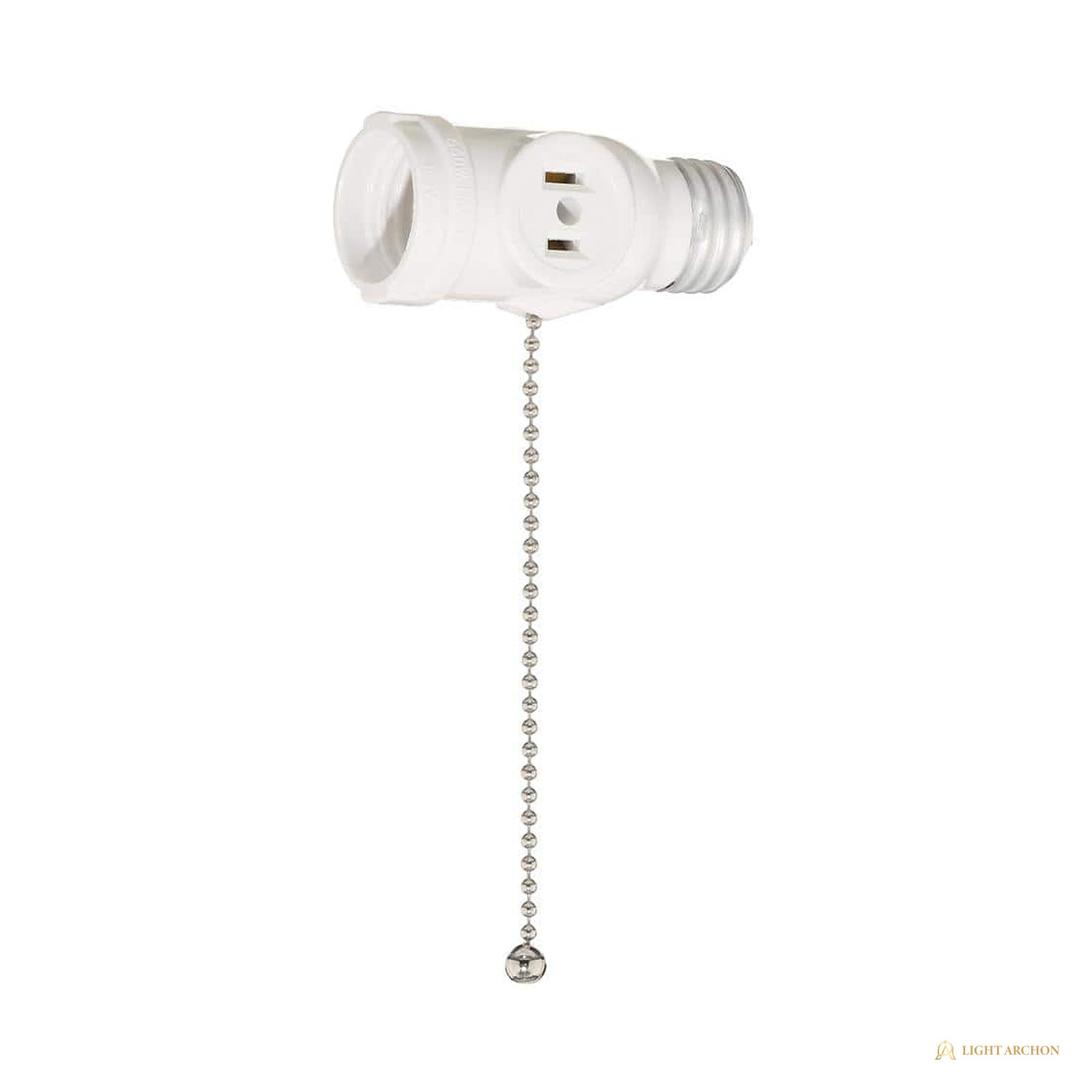

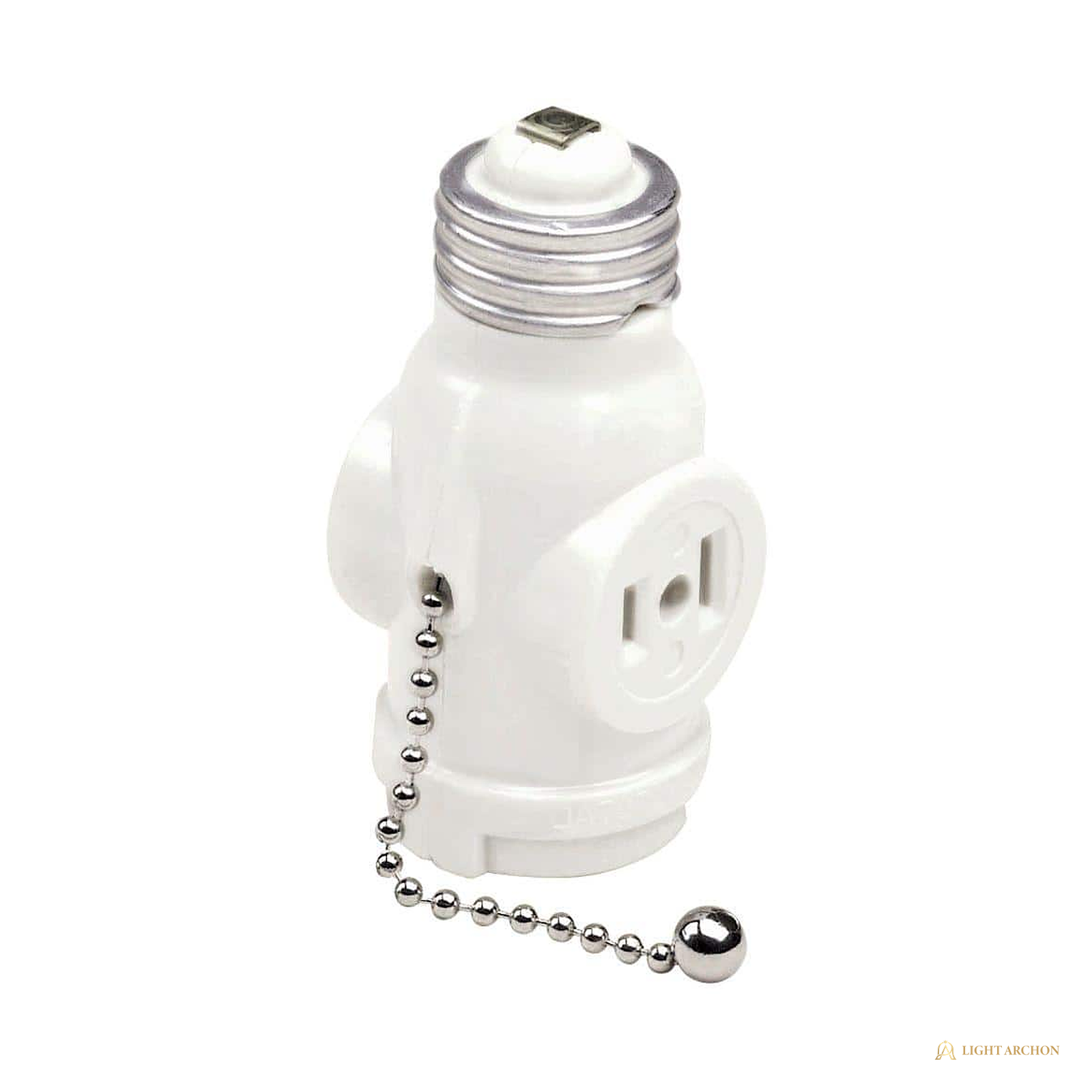

• Two-outlet adapter converts one socket into a lamp plus two 15A outlets
• Pull chain controls the adapter socket only; outlets stay live
• 660 W max adapter socket rating, 125V, per the published listing

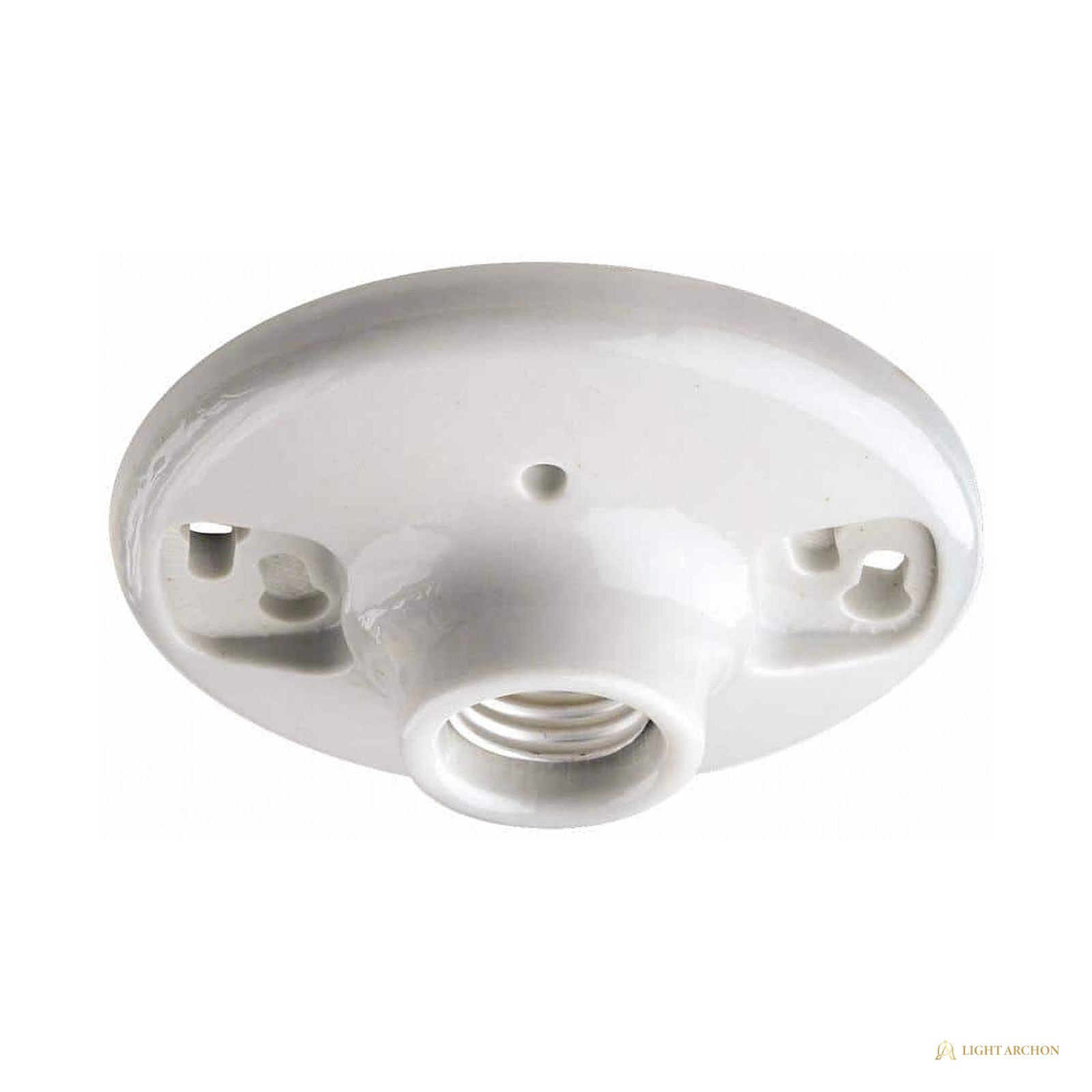

• Outlet-box lampholder rated 600 W, 250V per the published listing
• 3-way turn-knob socket restores stepped lamp control
• All formats take standard E26 medium-base lamps
• UL and CSA listings on the adapter per the published listing
• Quote-first trade supply; service counts confirmed at quote review

Specification Table

Included Components

• Selected socket device; lamps sold separately
• Terminal hardware on the outlet-box lampholder

Installation Notes

• The adapter threads into an existing energized lampholder; no wiring, but respect the fixture and circuit ratings.
• Keep adapter outlet loads modest: 15A, 125V rating with the lamp and both outlets sharing the fixture circuit.
• The outlet-box lampholder mounts to a standard ceiling or wall box; de-energize before wiring, installation by a qualified electrician.
• The 3-way socket interior is a like-for-like lamp repair part; match the lamp's listed rating and unplug before service.
• Counts for service stock and case quantities are confirmed at quote review.

Warranty and Support

• Listed device warranty terms confirmed at quote review
• Volume and contractor-pack counts confirmed at quote review

Frequently Asked Questions

What box does the lampholder mount to?
Standard ceiling and wall junction boxes with standard screw spacing. The adapter and 3-way socket need no box at all: one threads into an existing lampholder, the other installs inside a lamp.

Does the pull chain kill the outlets too?
No. The chain switches the lamp socket only; the two outlets stay live whenever the fixture circuit is energized.

What lamps do these take?
Any E26 medium-base lamp within each format's rating: LED, CFL, or incandescent. Output and color follow the lamp you choose.

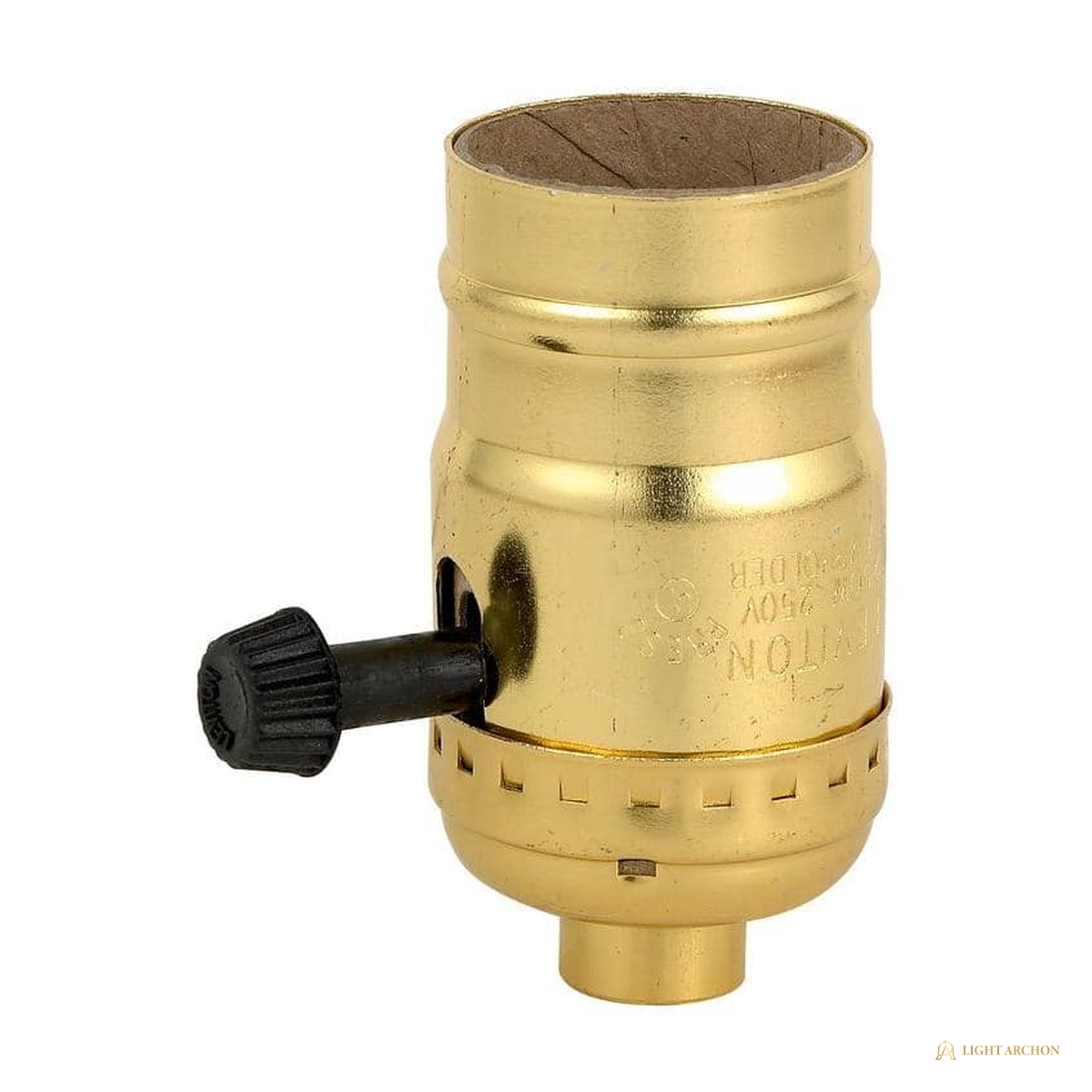

What does the 3-way socket control?
Stepped low-medium-high switching with a 3-way lamp installed, restoring the original behavior of table and floor lamps with worn interiors.
