Light Archon Spectra 24 in. Selectable CCT LED Vanity Light

The Light Archon Spectra is a 24 in. integrated LED vanity bar that lets the installer pick the color temperature at the wall: five selectable steps from 2700K warm white through 5000K daylight, set once and forgotten. It delivers 1670 lumens from 25 watts through a frosted acrylic lens, holds 90 CRI for honest color at the mirror, and ships with two looks in one carton, a brushed nickel body plus a swappable matte black trim accent.

Selectable CCT ends the wrong-white-point call-back: bid one fixture, match any bath palette on site. The low 3.86 in. profile suits mirrors in the 26 in. class and up, and the bar mounts horizontal or vertical over a standard wall J-box on its 4.7 in. square plate. It is damp rated, holds output from -4F to 113F, and carries a 50,000 hour rated life with no lamps to stock or replace. Dimming works on common LED wall dimmers; the validated dimmer list ships with the quote sheet. The carton includes the mounting plate, drywall anchors, ground screw, and the matte black accent trim, so a finish swap takes two minutes on site. Submit it on a quote list and a Light Archon specifier confirms trim, dimmer pair, and lead time.

Highlights

• Five selectable CCT steps: 2700K, 3000K, 3500K, 4000K, 5000K
• 1670 lumens from 25 watts through a frosted acrylic lens
• 90 CRI output for honest color at the mirror
• Two looks in the carton: brushed nickel body, swappable matte black trim
• Low 3.86 in. profile on a 24 in. bar
• Mounts horizontal or vertical on a 4.7 in. square J-box plate
• Damp rated with a 50,000 hour rated life, no lamps to replace
• Dims on common LED wall dimmers, validated list at quote

Specification Table

Included Components

• LED vanity bar with frosted acrylic lens
• Mounting plate with plate screws and electrical box screws
• Four mounting screws and four drywall anchors
• Ground screw
• Swappable matte black trim accent

Installation Notes

• Hardwired to a 120V circuit; de-power at the panel before work
• Mounts horizontal or vertical to a standard wall J-box on the 4.7 in. plate
• Set the CCT selector before closing up the trim
• Damp rated for bath moisture zones, not for direct water contact
• Confirm the wall dimmer against the validated list on the quote sheet

Warranty and Support

• Five-year limited warranty on the LED platform, confirmed on the quote sheet
• Quote-first program: no public prices; the desk returns terms in one reply

Frequently Asked Questions

What does the Spectra mount to?
A standard wall J-box. The 4.7 in. square backplate covers the box and the bar can run horizontal above a mirror or vertical beside it.

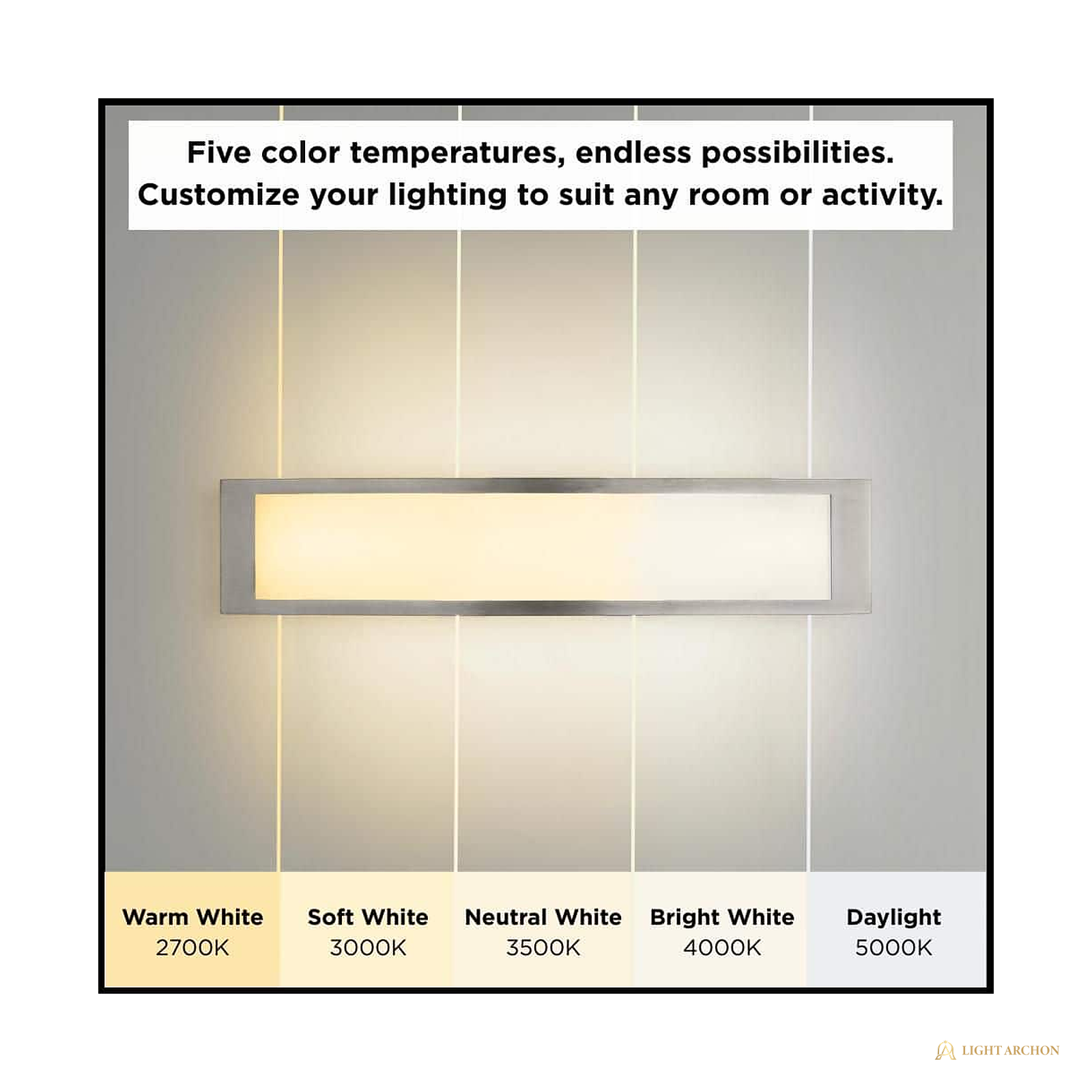

How does the selectable CCT work?
A selector on the fixture sets one of five color temperatures, 2700K to 5000K, at install time. Set it once; it holds the chosen white point every time the wall switch flips.

Is it dimmable?
Yes, on common LED wall dimmers. The validated dimmer list ships with the quote sheet so the pair is confirmed before rough-in.

Can I match a black bath suite?

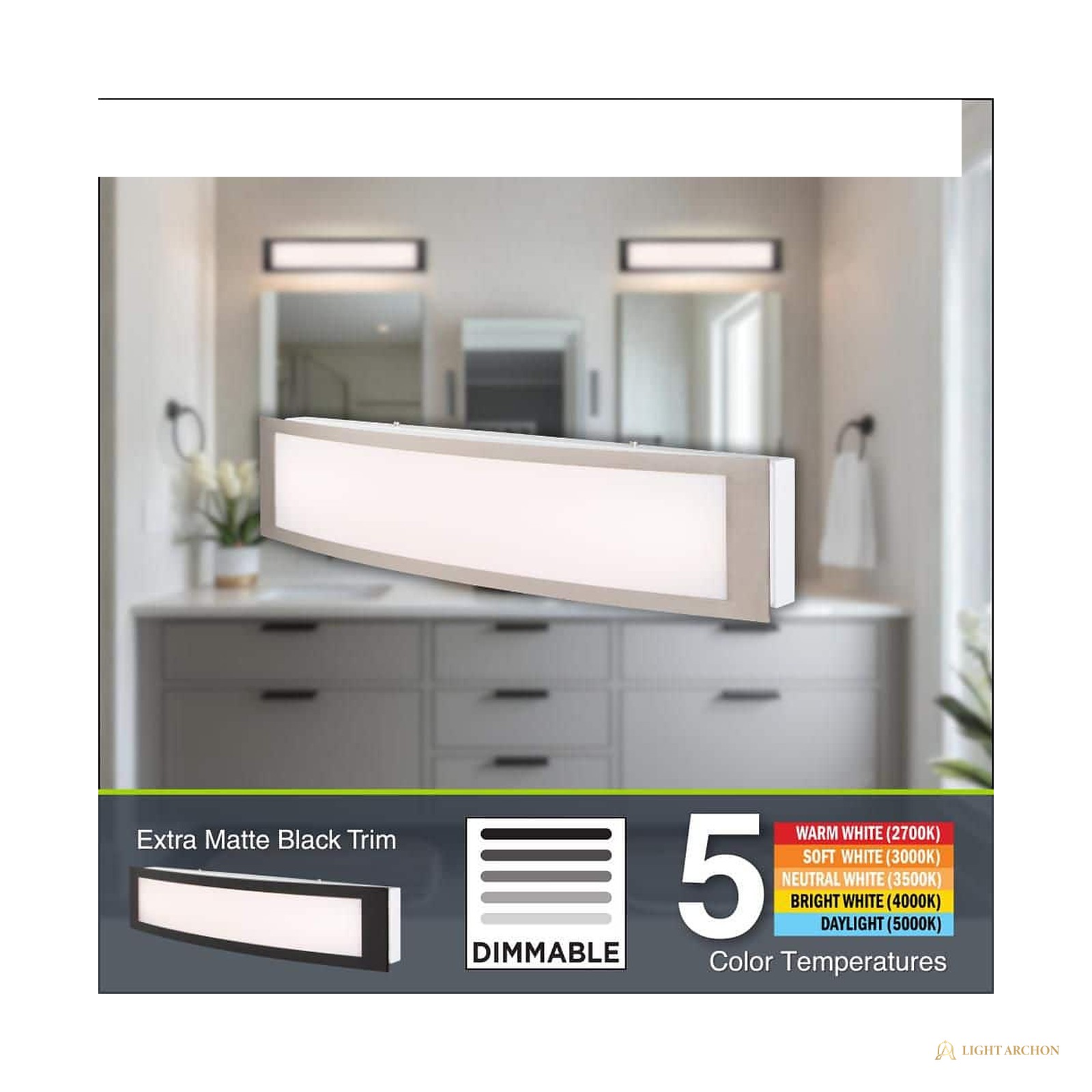

Yes. The carton includes a swappable matte black trim accent alongside the brushed nickel body, so the fixture matches either hardware family on site.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
