Light Archon SteelForm 4 in. Square Steel Boxes

Light Archon SteelForm boxes are the steel workhorses of commercial rough-in: a 30.3 cu. in. square body for device and junction work, a bracket version that nails square to the stud face, a 1-gang wall box with a grounding bump, and a deep utility box for surface work.

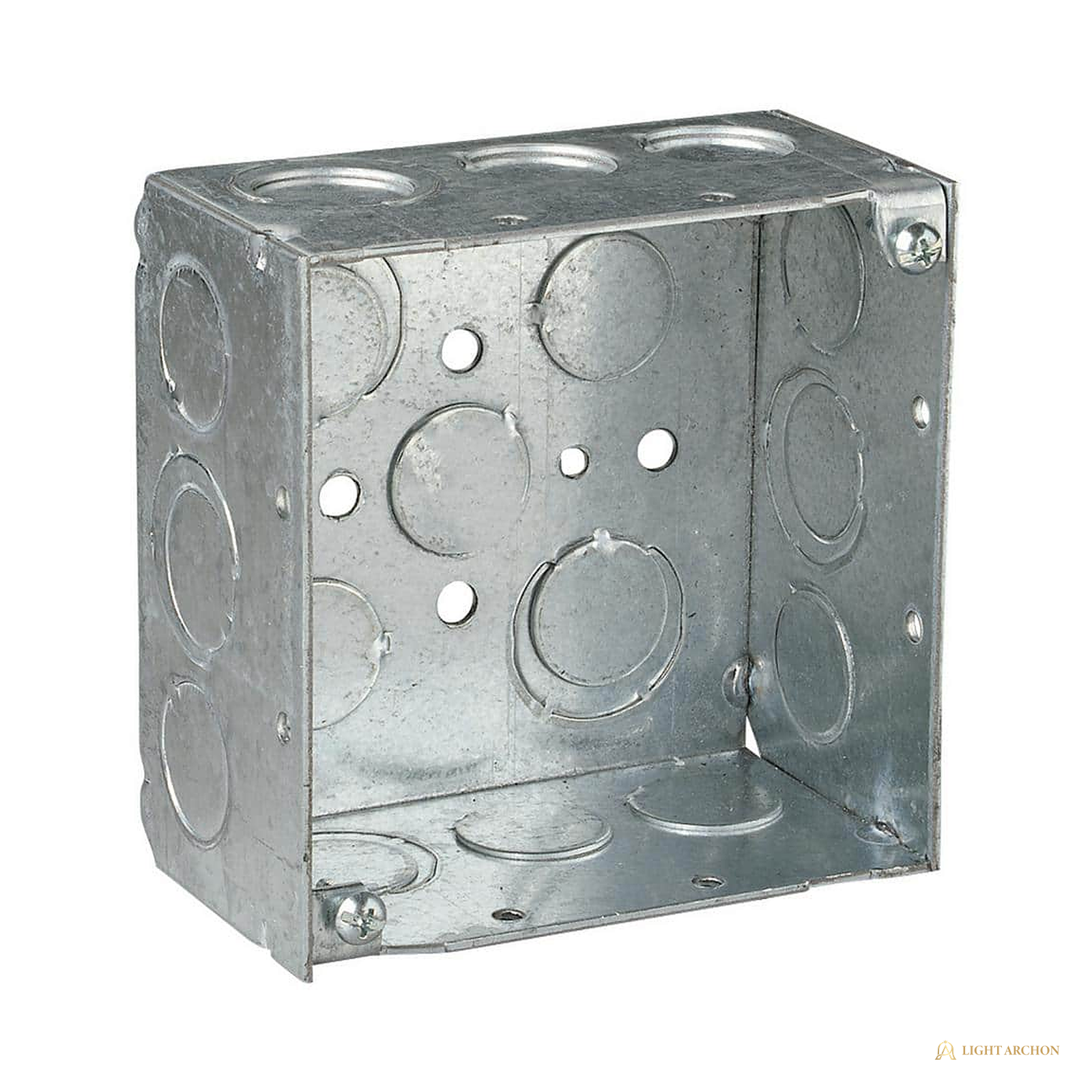

The square format runs 4 in. across with a 2-1/8 in. depth and sixteen 1/2 in. and 3/4 in. knockouts, so raceway can enter from any face. Pair it with RiseWorks raised covers to set one or two devices flush with drywall, or close it flat as a junction point. Galvanized steel bodies bond into the equipment grounding path with listed fittings, and the wall format's grounding bump speeds the bond screw landing. UL listed per the published listing.

Highlights

• 30.3 cu. in. square format swallows device counts that crowd smaller boxes
• Sixteen 1/2 in. and 3/4 in. knockouts on the square format

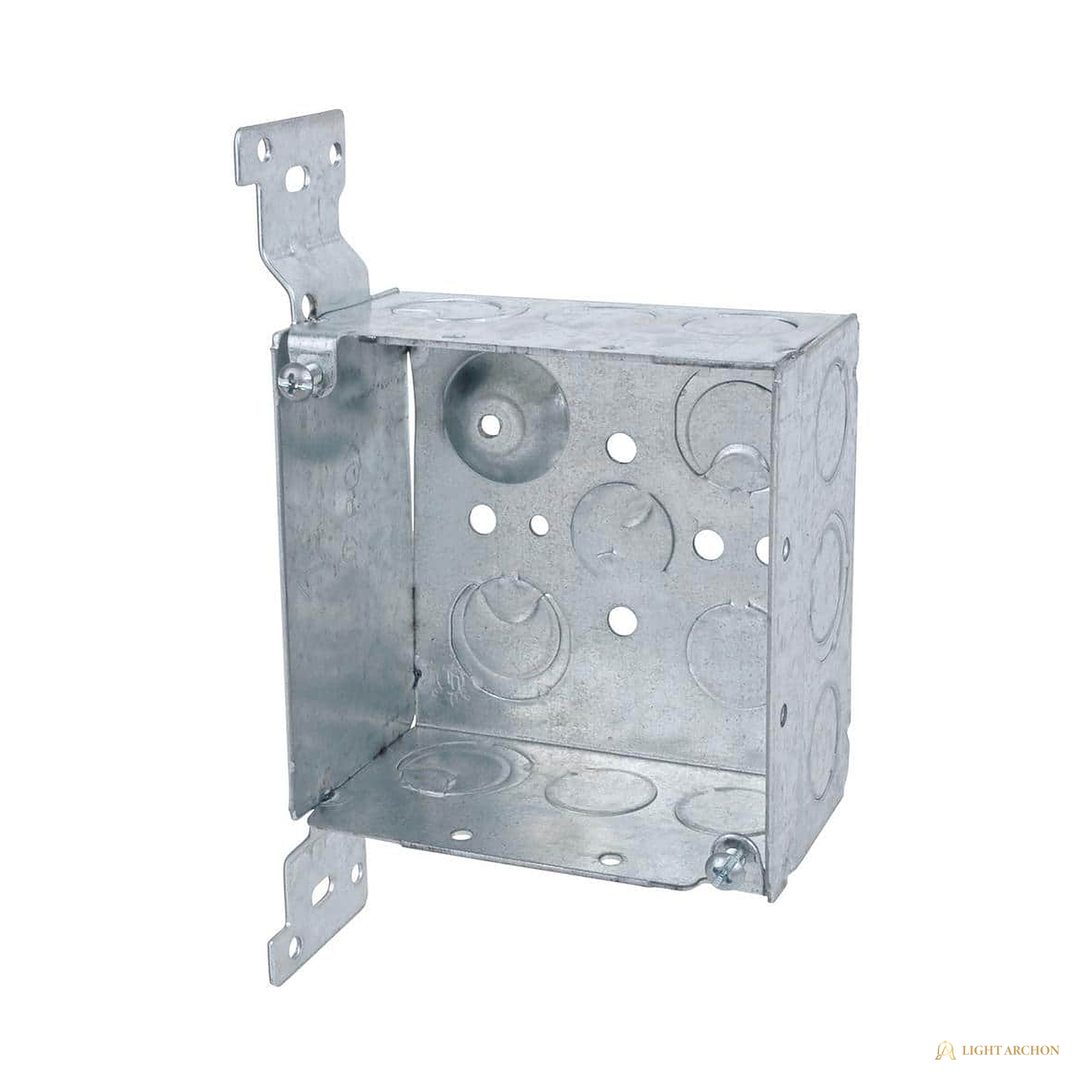

• Bracket format squares to the stud face for production framing
• 1-gang wall format with grounding bump for fast bond screw landings
• Deep utility format for surface-mounted devices
• Galvanized steel bonds into the grounding path with listed fittings
• UL listed per the published listing
• Pairs with RiseWorks raised covers, quoted together

Specification Table

Included Components

• Box in the selected format; covers and fittings quoted separately

Installation Notes

• Count conductors, clamps, and devices toward box fill per NEC; the 30.3 cu. in. square format carries multi-circuit landings.
• Bond the box into the equipment grounding path per NEC; the wall format grounding bump takes the bond screw directly.
• Set bracket formats flush to the stud face so the finished cover lands flush with drywall.
• Close square boxes with a raised device cover or flat cover per the landing; quote covers on the same list.
• Format counts and case quantities are confirmed at quote review.

Warranty and Support

• Backed by the Light Archon trade supply program; warranty terms are confirmed at quote review.
• Submittal sheets and takeoff review support are available from our electrical supply desk.

Frequently Asked Questions

How many devices fit the square format?
One or two, set by the raised cover you pair with it. The 30.3 cu. in. body leaves fill room for the splices behind them per NEC.

Which covers fit these boxes?
The RiseWorks line: raised device covers for flush device work, GFCI formats, and flat covers for junction closures. Both lines share standard 4 in. square screw spacing.

What is the grounding bump for?
A raised boss on the 1-gang wall format that takes the bond screw without a separate clip, keeping the equipment ground bond fast and consistent.

Can these mount in wet locations?
No. These are dry interior boxes. For outdoor surface work, quote the StormSet weatherproof line instead.
