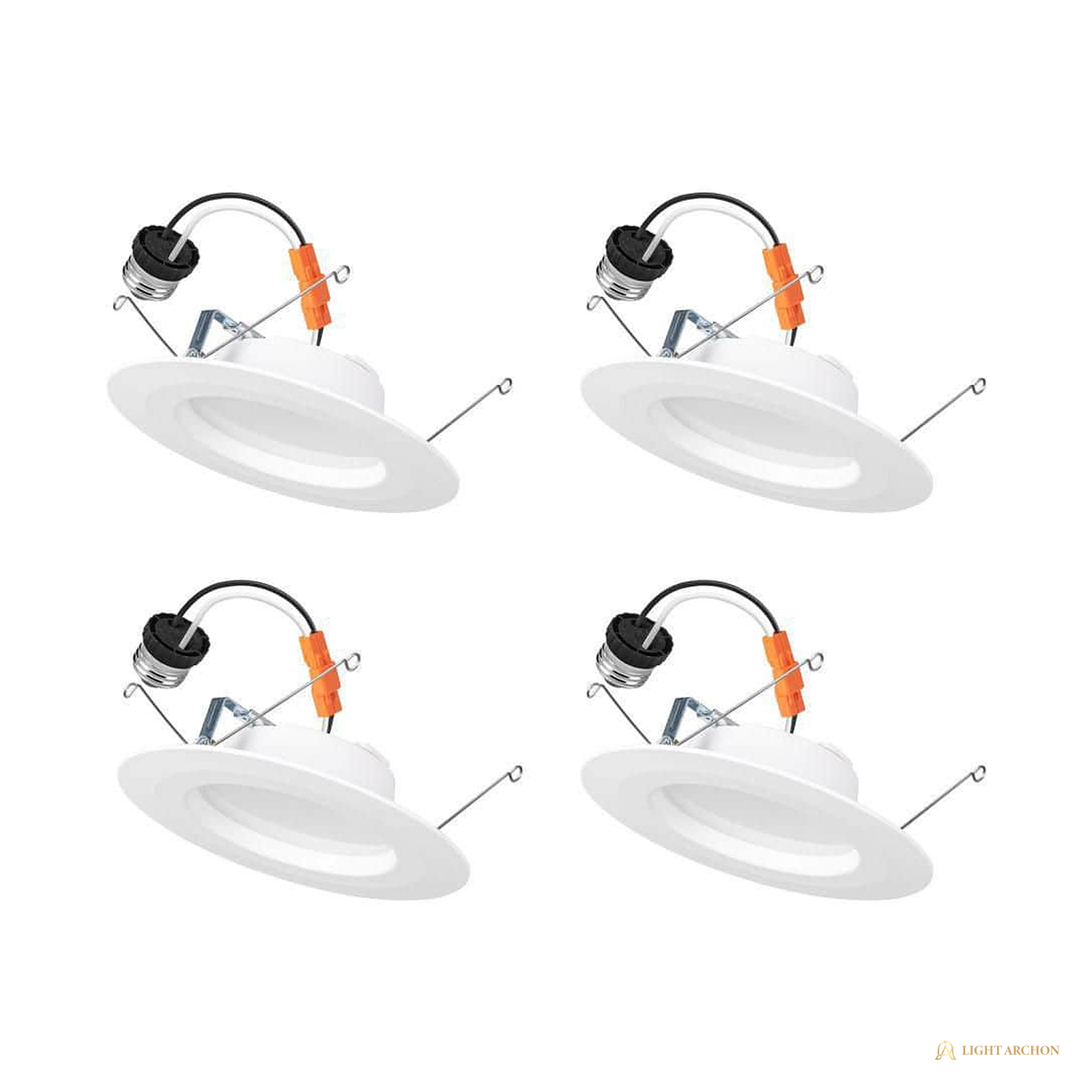

Light Archon Strata 5/6 in. Selectable CCT LED Recessed Retrofit Trim - front view

Light Archon Strata 5/6 in. Selectable CCT LED Recessed Retrofit Trim - angle view

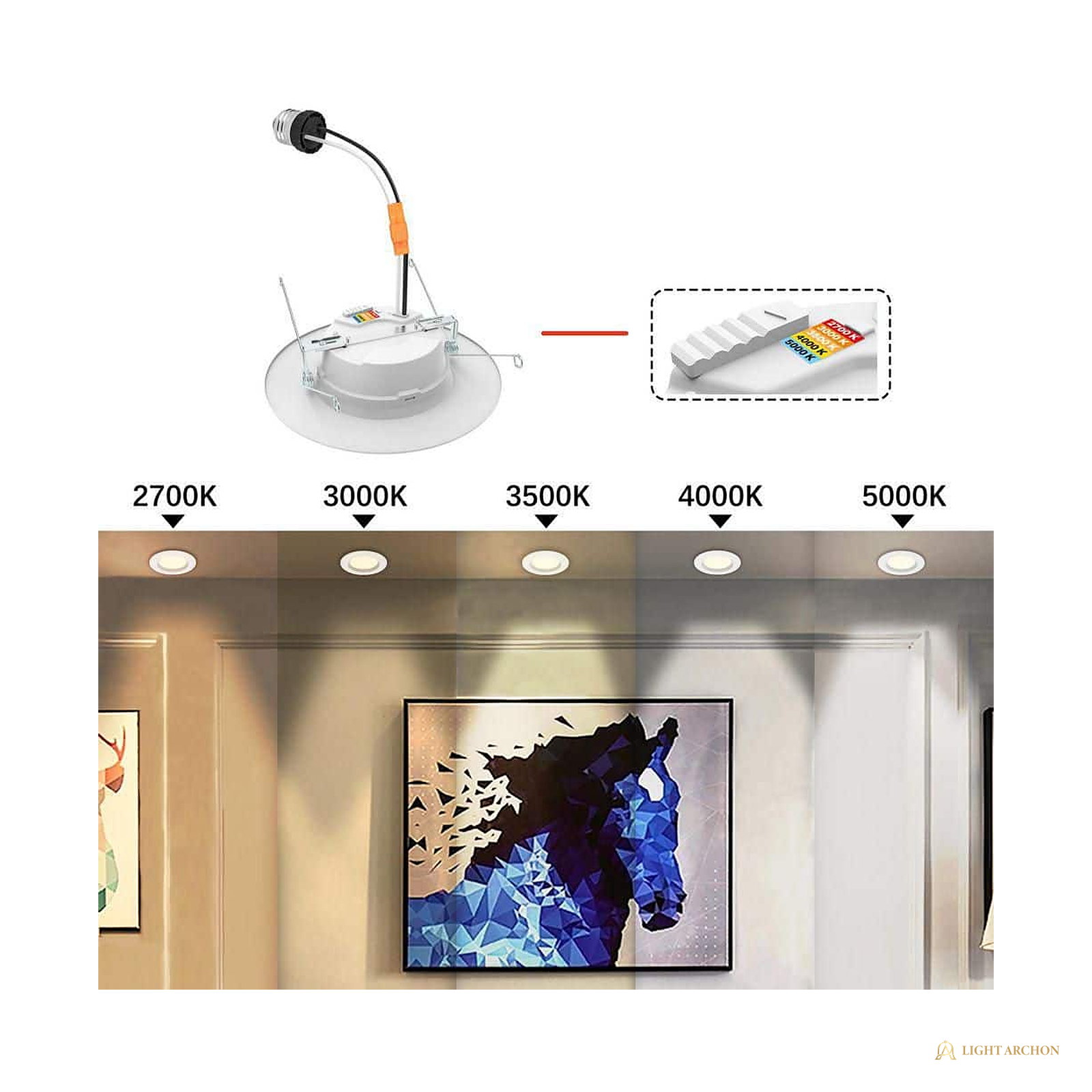

Light Archon Strata 5/6 in. Selectable CCT LED Recessed Retrofit Trim - construction detail

Product image note: Photos show the exact White retrofit trim platform sold; carton quantity follows the Pieces option confirmed at quote.

Light Archon

Light Archon Strata 5/6 in. Selectable CCT LED Recessed Retrofit Trim

Name: Light Archon Strata 5/6 in. Selectable CCT LED Recessed Retrofit Trim
Brand: Light Archon
SKU: LA-LGT-RC-R6-STRAT-4-1PK

SKU: LA-LGT-RC-R6-STRAT-4-1PK

Size

4 in. 5/6 in.

Pieces

1 4

Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

Light Archon Strata is a selectable CCT LED retrofit trim that drops into existing 5 in. and 6 in. recessed housings and closes out dated can lights in minutes. The 5/6 in. size delivers 780 lumens at 9.5 watts with a 90 CRI array, five color temperatures selectable from 2700K to 5000K, and a wet location listing that clears showers and covered exterior soffits. Quote-first record: final trim count and sizes are confirmed at quote review.

Strata installs with torsion clips into standard housings across new construction and remodel work, and the open low glare trim face sits nearly flush at 1.7 in. tall with a 7.5 in. overall diameter. A selector switch locks color temperature at install so one carton serves kitchen, bath, hallway, and exterior soffit zones. The platform is IC rated, dimmable on standard LED wall dimmers, and listed for wet locations. The 4 in. size shares the same selectable CCT design; its output figures are confirmed at quote review.

Highlights

Retrofit trim for existing 5 in. and 6 in. recessed housings; separate 4 in. size available
780 lumens at 9.5 watts in the 5/6 in. size
High color accuracy 90 CRI LED array
Five selectable color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K
Wet location listed; suitable above showers and in covered soffits
IC rated for insulated ceilings, new construction and remodel
Dimmable on standard LED wall dimmers
UL classified and FCC listed

Specification Table

Fits housings	5 in. and 6 in. (5/6 size); 4 in. size for 4 in. housings
Overall diameter	7.5 in. (5/6 size)
Trim height	1.7 in.
Lumens	780 (5/6 size); 4 in. size confirmed at quote review
Color temperature	2700K to 5000K in five steps
Color accuracy	90 CRI
Watts	9.5 (5/6 size)
Input	120V
Location	Wet rated
IC contact	IC rated
Construction	New construction and remodel
Compatible housings	Standard 5 in. and 6 in. recessed housings, IC and non-IC; pairs with the Light Archon Bastion housing series
Listings	UL classified, FCC; Energy Star listed per source documentation
Dimming	Standard LED wall dimmers

Included Components

Retrofit LED trim per carton quantity
Torsion clip mount hardware
Quick connect harness
Install instructions

Installation Notes

Shut power at the breaker before removal of the old trim and lamp.
Connect the quick connect harness to the housing socket adapter, then seat the clips into the housing.
Set the color temperature selector before final seat of the trim.
Wet location listing applies when installed in a listed housing with the trim gasket seated.
Confirm housing sizes on site; the 5/6 size covers both 5 in. and 6 in. cans.

Warranty and Support

Limited warranty serviced at quote review
90 CRI array with selectable CCT held for the platform life
Support and replacement paths are confirmed at quote review

Frequently Asked Questions

What ceiling opening is required?
None new. Strata retrofits into existing 5 in. and 6 in. recessed housings; the 4 in. size fits 4 in. housings. The trim face covers the existing opening up to its 7.5 in. overall diameter.

Does it work in insulated ceilings?
Yes. The platform is IC rated and clips into IC and non-IC housings across new construction and remodel work.

Can I use it above a shower?
Yes. It is wet location listed when installed in a listed housing with the gasket seated.

Do you sell a housing to pair with it?
Yes. The Light Archon Bastion 6 in. IC rated airtight housing is the matched rough-in for new construction; add both lines to one quote and our team aligns counts at quote review.
