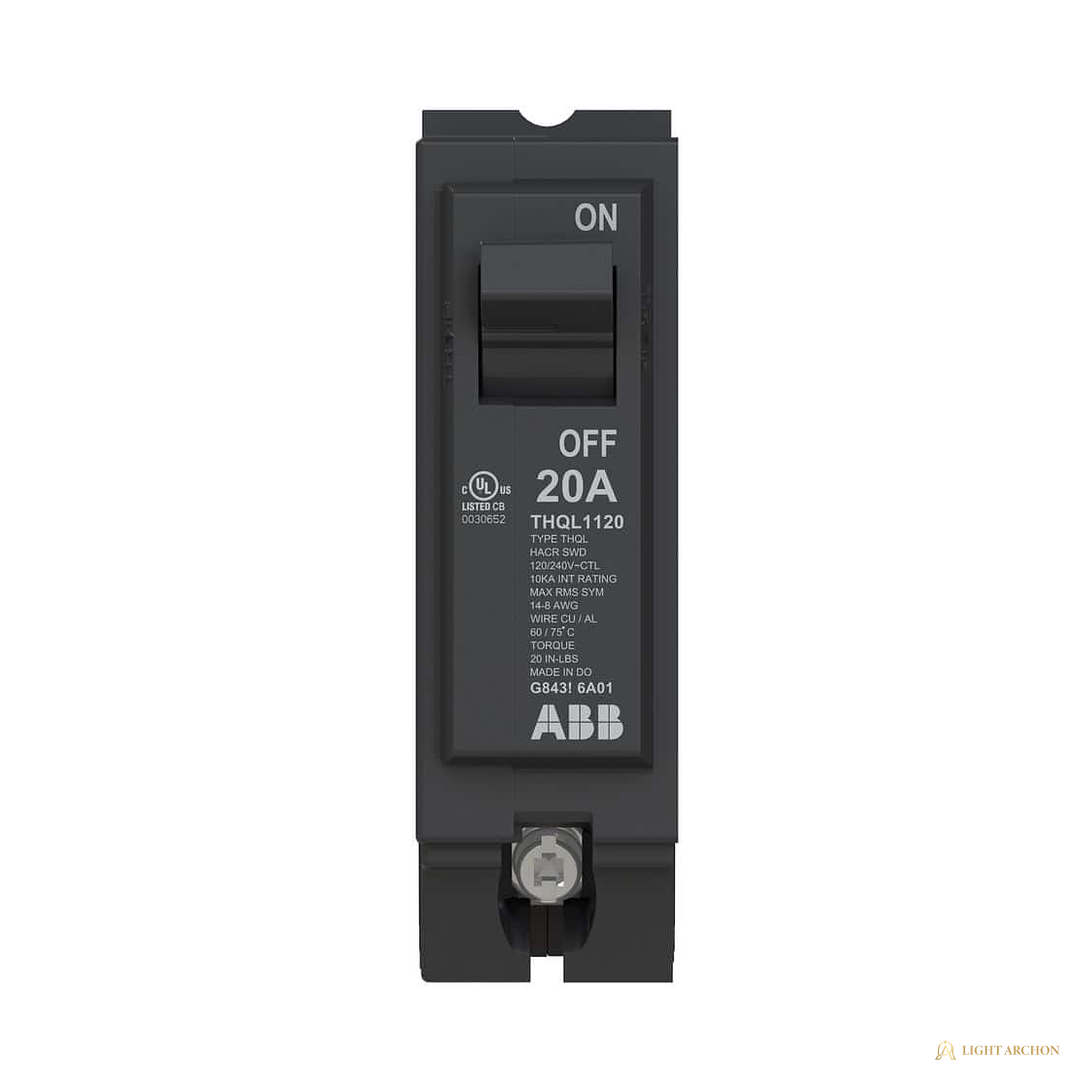

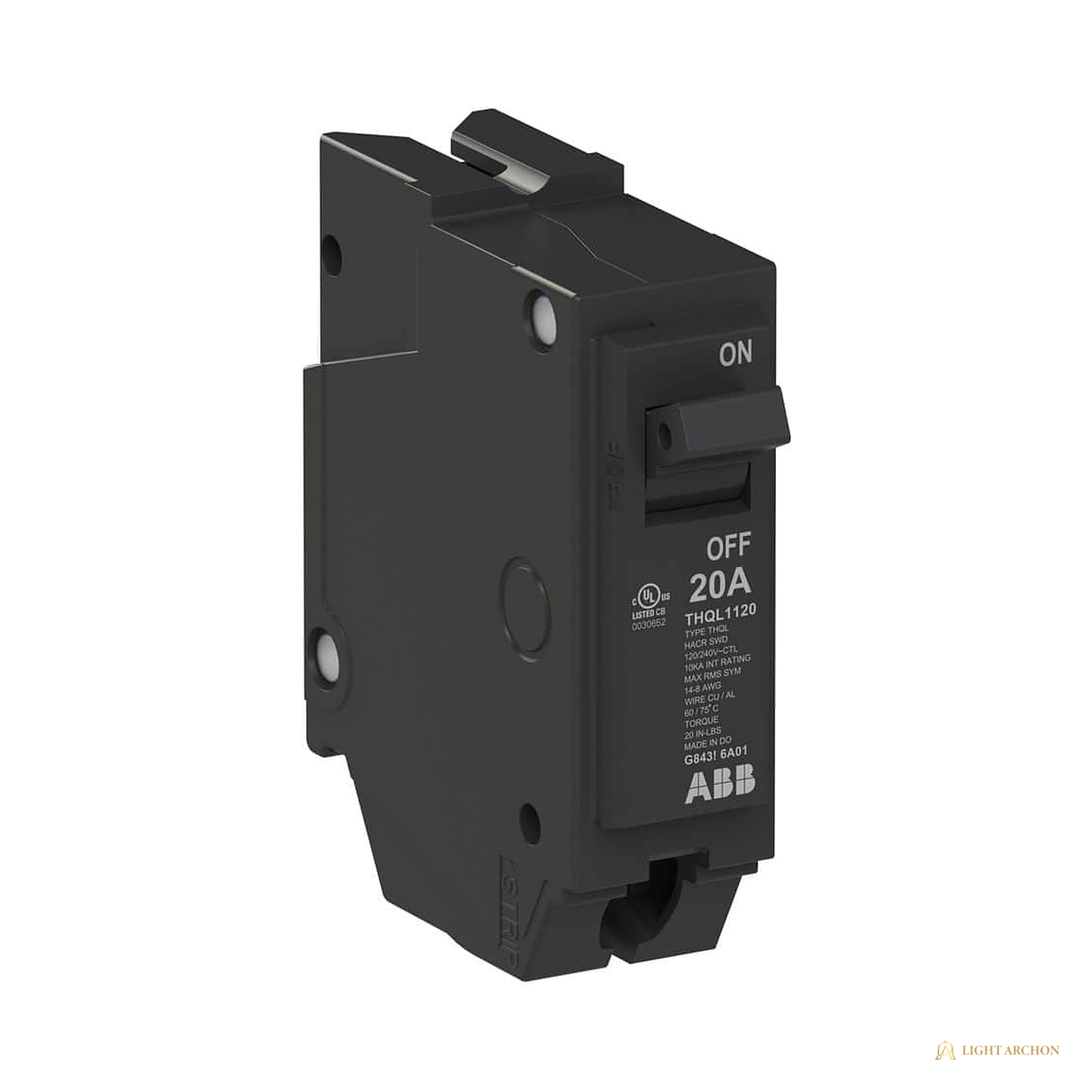

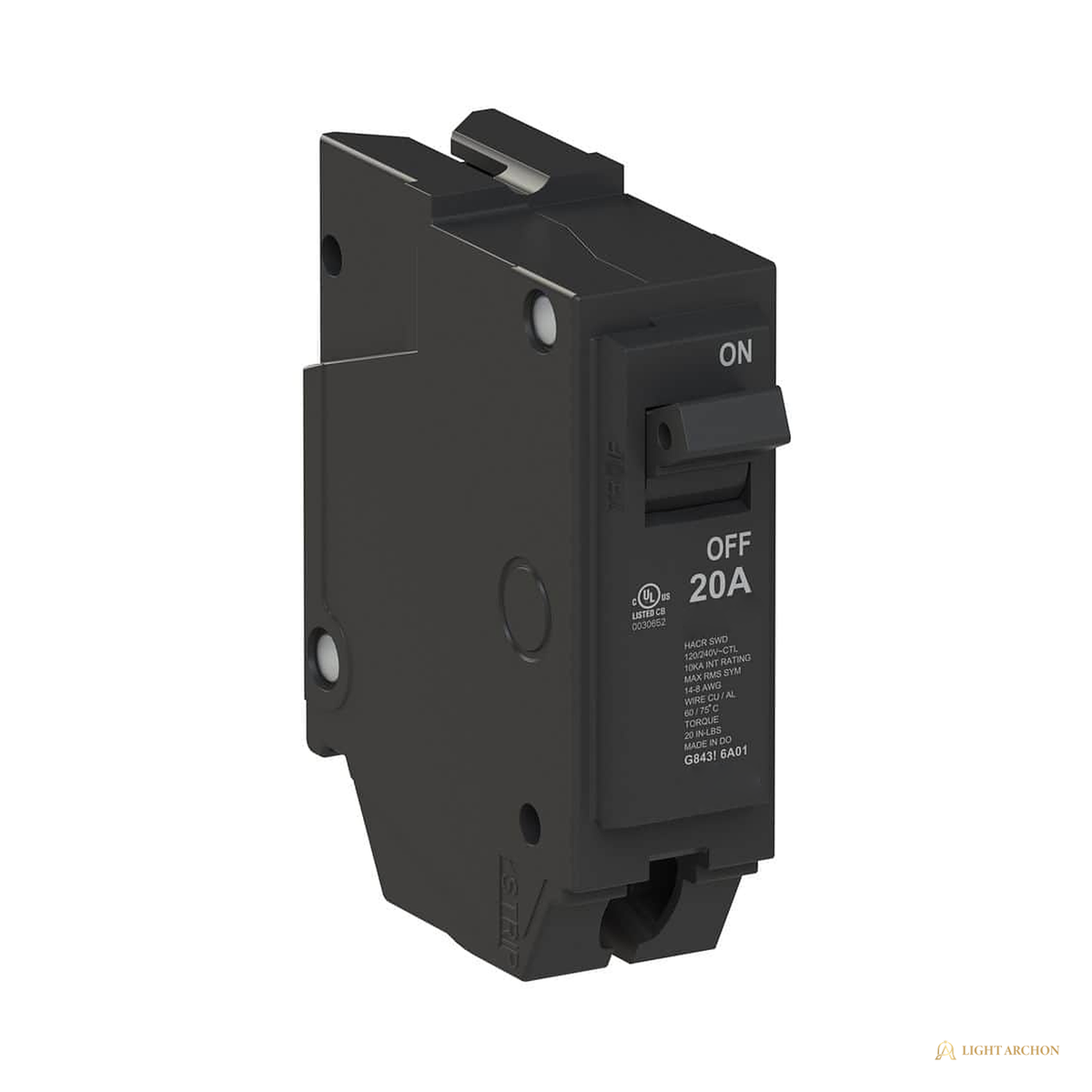

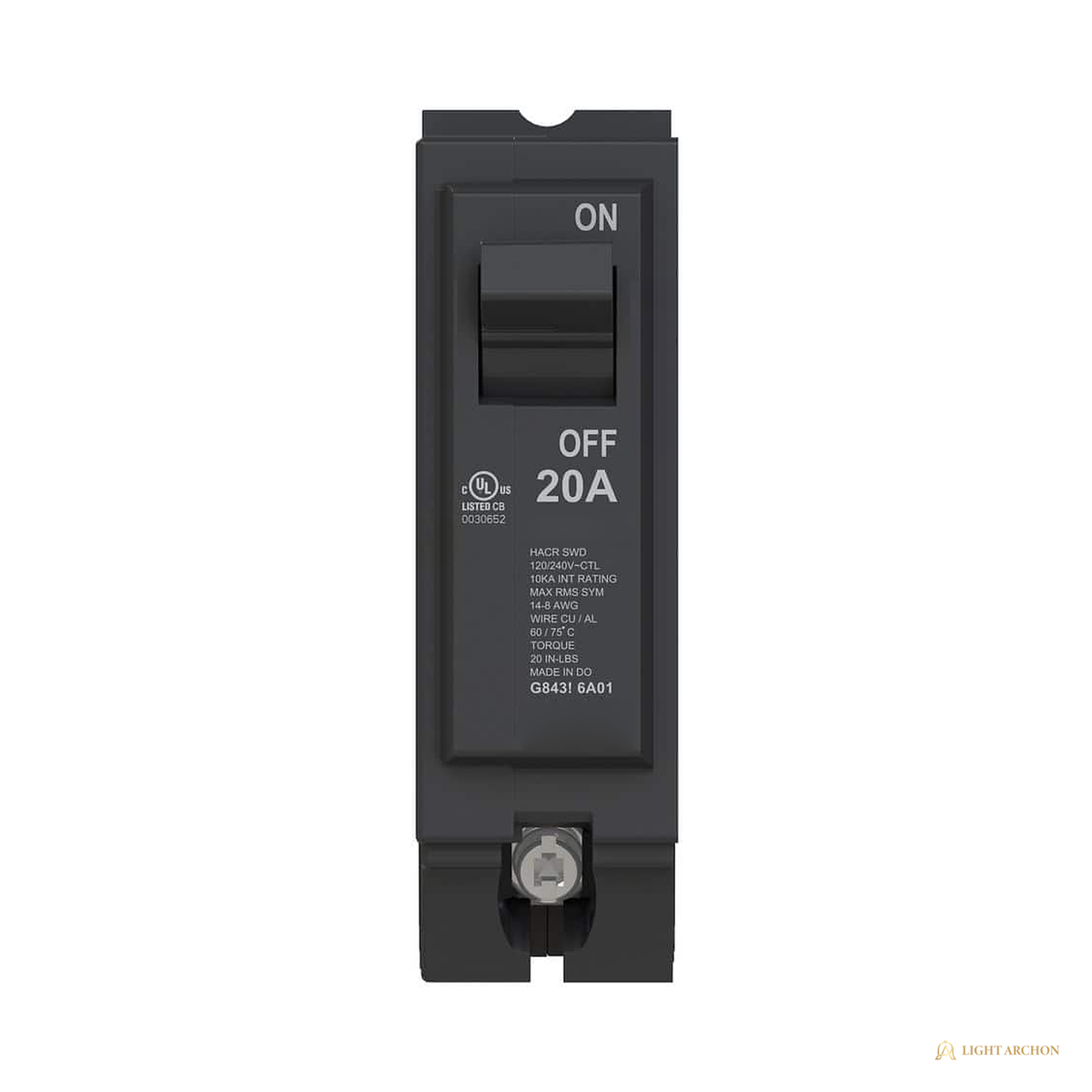

Light Archon Talos 20A Single-Pole Circuit Breaker

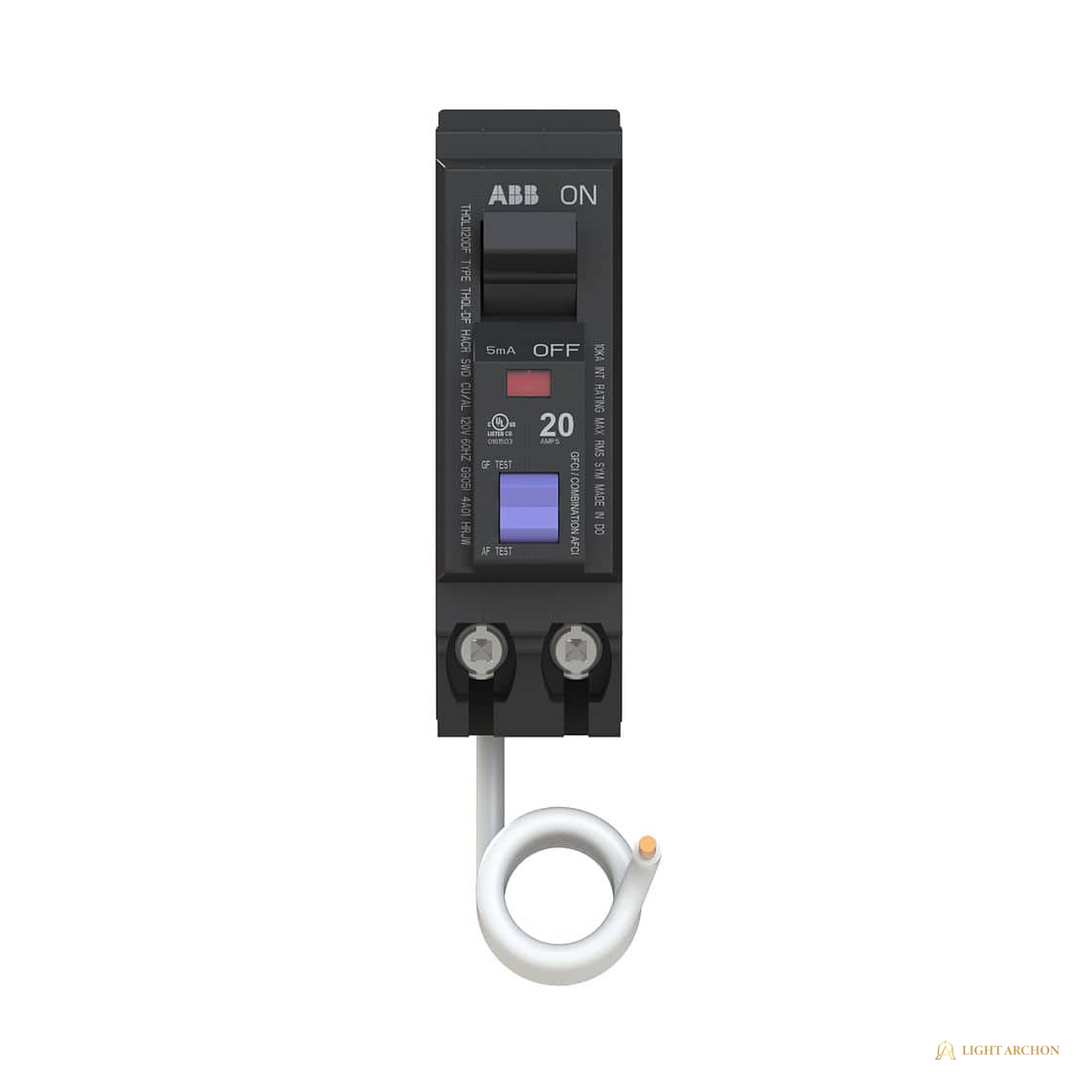

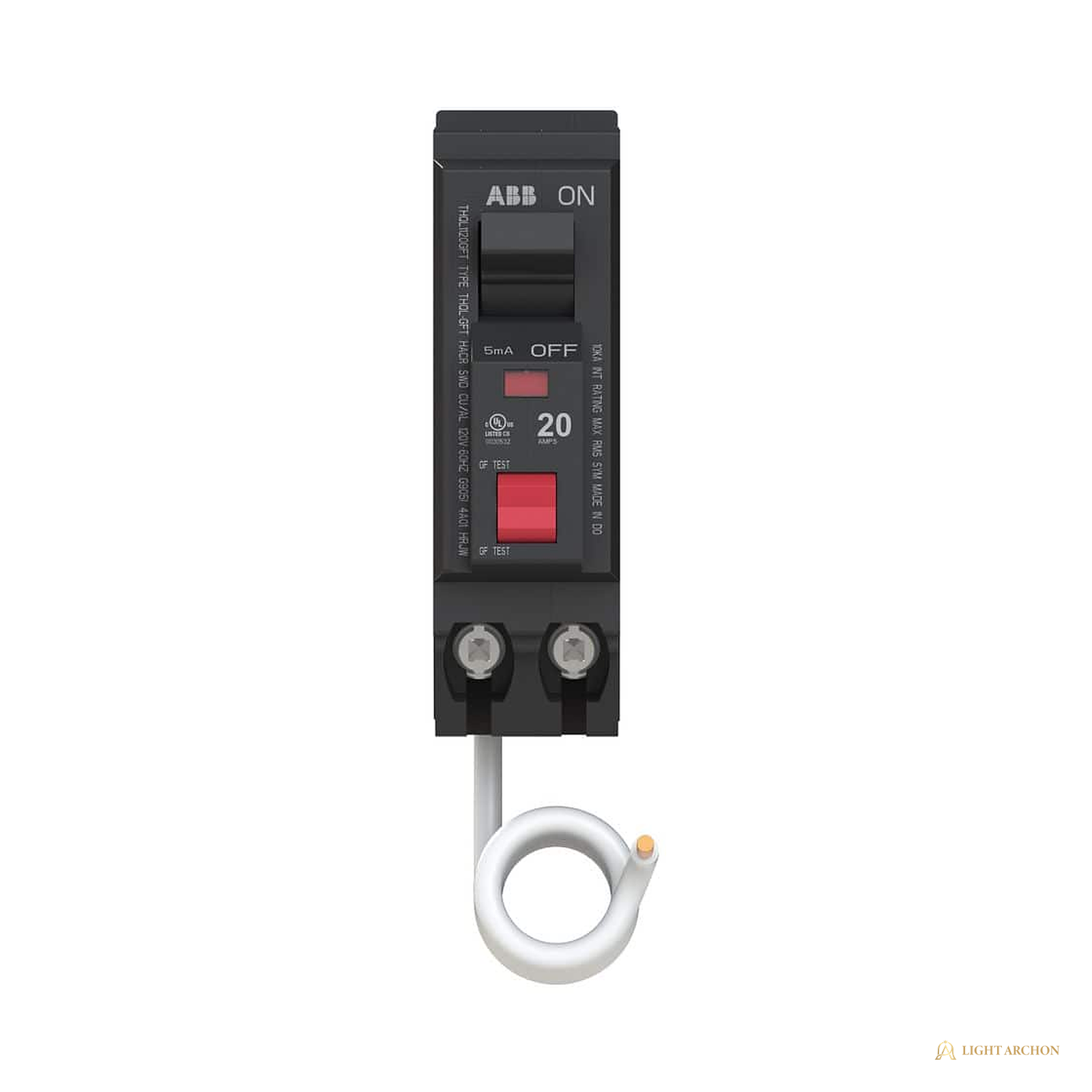

Light Archon Talos breakers carry the 20 A single-pole branch slot in a 1 in. plug-on format with four protection levels: standard thermal magnetic, ground fault with built-in self-test, arc fault, and a dual function unit that combines both. The platform is quote-first, and the trade desk verifies panel fit on every line before release.

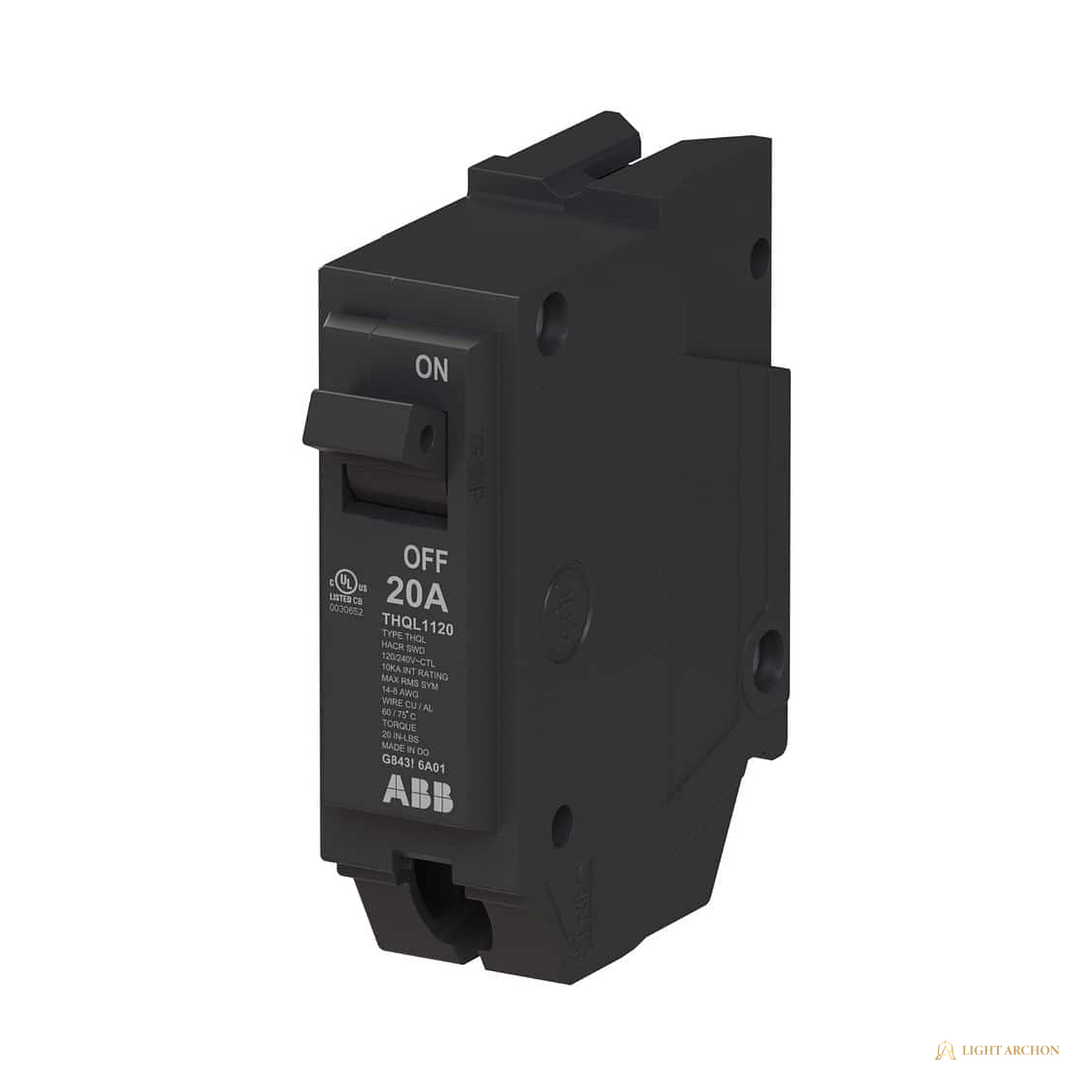

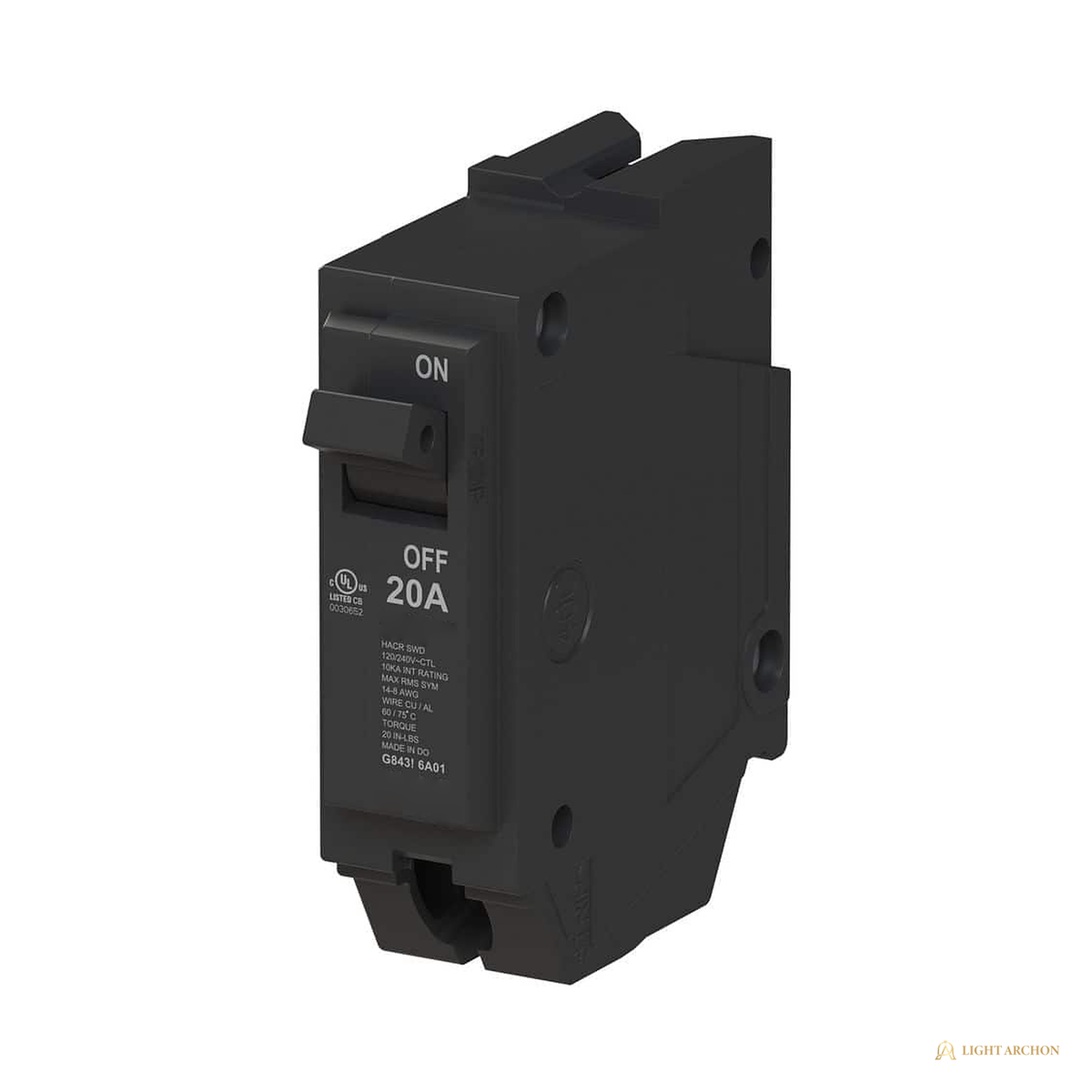

Tin-plated copper stabs make a corrosion-resistant bus connection, and the heat-resistant thermoset case holds calibration over the service life; the calibration screw is cemented to prevent shift. Handles trip to the center position so a fault reads at a glance. The ground fault unit runs an automatic self-test and trips if it loses the ability to protect the circuit, per the self-test requirement in current UL practice.

Highlights

• 20 A single-pole platform, 1 in. plug-on format
• Standard, GFCI self-test, AFCI, and dual function AF/GF levels
• 10 kA interrupt rating
• Tin-plated copper stabs for a corrosion-resistant connection
• Heat-resistant thermoset case with cemented calibration screw
• Trips to center position for clear fault indication
• UL Listed, ANSI certified, CSA listed
• Quote-first trade supply with panel fit verified before release

Specification Table

Included Components

• One breaker per unit, protection level per selected variant
• Self-test electronics built into the GFCI and dual function units

Installation Notes

• Installed by a licensed electrician; breaker ampacity must match conductor rating
• De-energize the panel and verify with a meter before any work
• Box type terminals; torque to the values on the breaker label
• GFCI and AFCI protection locations follow the NEC edition adopted in your jurisdiction
• Panel fit is verified at quote review against your load center schedule

Warranty and Support

• Covered by the Light Archon limited trade warranty; term confirmed at quote review
• Submittal sheets and dimensional PDFs available for every configuration
• Support through the Light Archon trade desk

Frequently Asked Questions

What panels does this fit?
It fits Light Archon LC series and industry-standard 1 in. bolt/plug-on load centers - verify panel compatibility at quote review.

Does the ground fault unit self-test?
Yes. The GFCI unit runs a built-in self-test and trips if it loses the ability to protect, so a failed device does not sit silent in the panel.

Which protection level do I need?
Standard covers most branch circuits; the NEC calls for AFCI in most dwelling living areas and GFCI in wet and damp locations. The dual function unit satisfies both on one circuit. Your electrician confirms the schedule at quote review.

How is this sold?
Quote-first. The site shows a zero price; the trade desk prices your quote list and checks panel fit line by line.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
