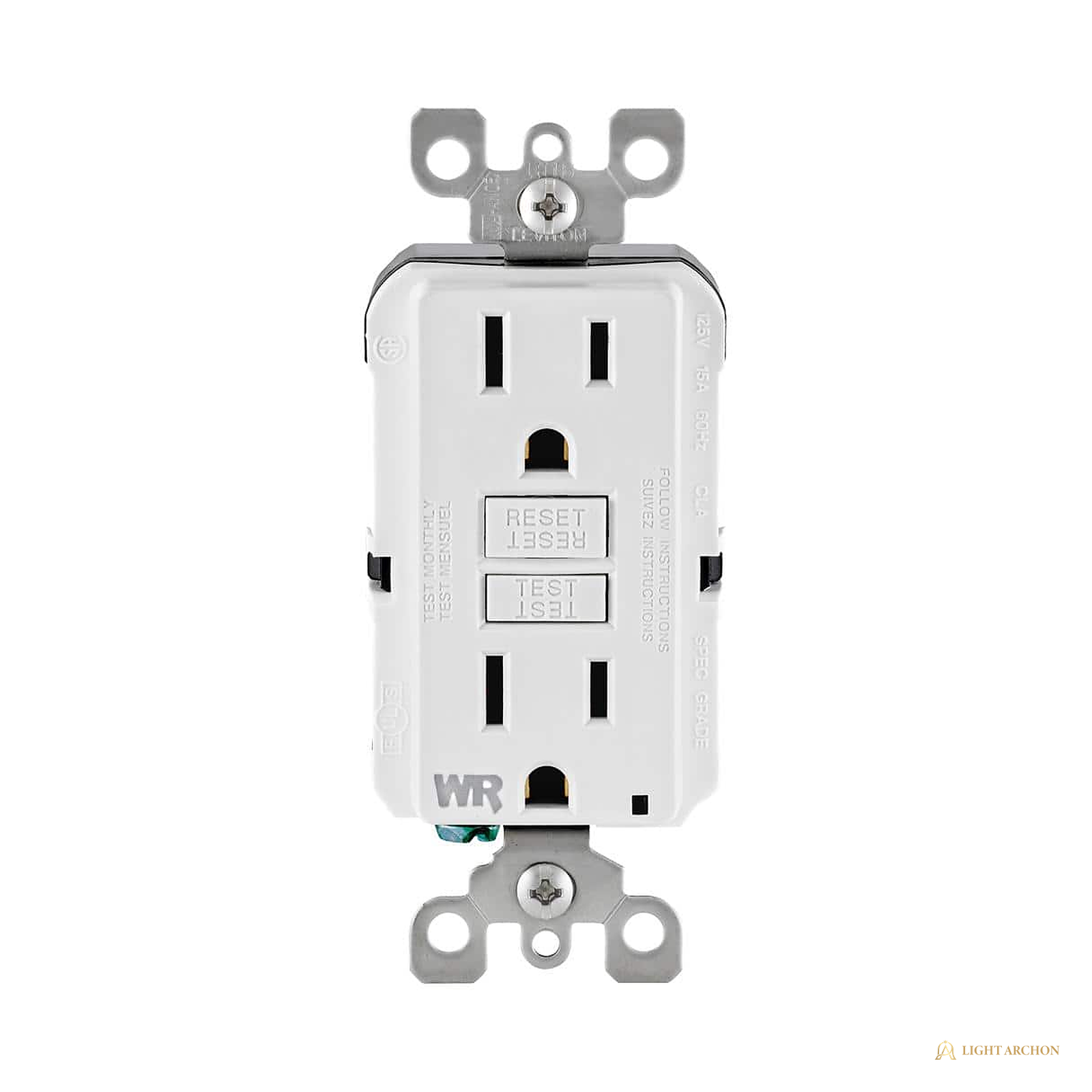

Light Archon Tempest 15A Self-Test Weather Resistant GFCI Outlet
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Light Archon Tempest GFCI is the outdoor-duty version of the self-test ground fault receptacle: tamper resistant and weather resistant in one 15 A, 125V duplex, built for porches, patios, garages, and every damp or wet location the code sends you to. Quote-first: add it to your quote list and the trade desk confirms counts and covers before release.
The device tests itself within seconds of power-up and keeps checking automatically beyond the base UL requirement, while staying able to trip on a real ground fault even mid-test. A status indicator light reads out power and protection state and flags line/load reversal at install. The weather resistant construction resists corrosion and UV in outdoor boxes behind a listed in-use cover, and the tamper resistant shutters satisfy the dwelling receptacle rule. Electronics are tuned against high-frequency nuisance trips, and the reduced-depth body with back and side wiring keeps shallow outdoor boxes workable.
Highlights
- 15 A, 125V self-test GFCI duplex, NEMA 5-15R
- Tamper resistant and weather resistant in one device
- Automatic self-test runs from power-up and repeats continuously
- Status indicator light with line/load reversal indication
- High-frequency noise immunity reduces nuisance trips
- Reduced-depth body for shallow boxes
- Back and side wire capable with external clamp seating indication
- Feed-through protection for downstream outlets
- UL Listed and CSA Listed
Specification Table
| Current Rating | 15 A |
| Input Rating | 125V |
| NEMA Configuration | NEMA 5-15R |
| Protection | Class A GFCI with automatic self-test |
| Versions | Tamper resistant and weather resistant, one device |
| Location | Damp and wet locations behind a listed in-use cover |
| Indicator | Status light for power, protection state, line/load reversal |

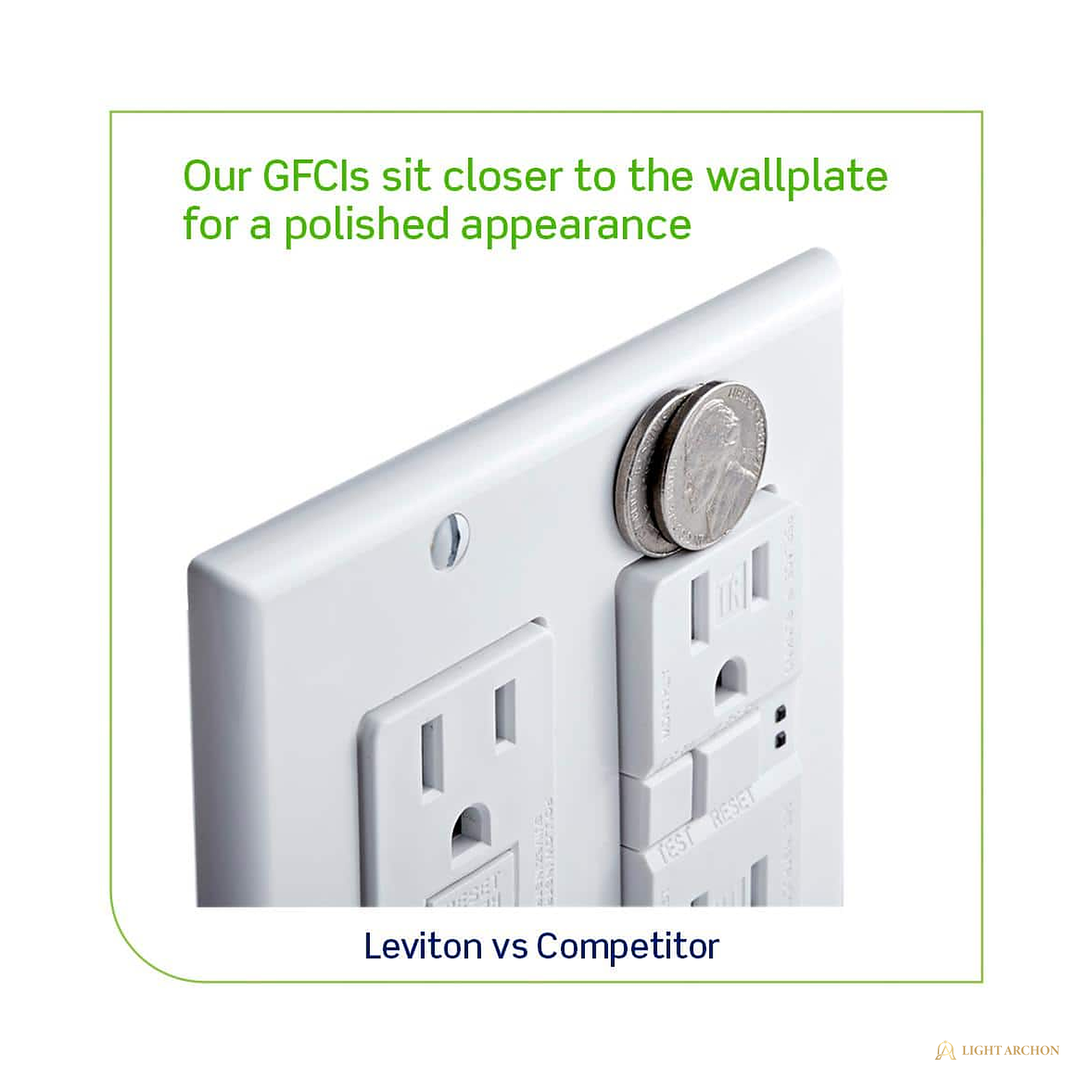

| Body | Reduced depth for shallow boxes |
| Material | Polycarbonate |
| Terminals | Back and side wire, screw terminals with external clamps |
| Color | White |
| Wall Plate | Not included; outdoor locations need a listed weatherproof in-use cover, quoted separately |
| Certifications | UL Listed, CSA Listed |
| Warranty | Light Archon limited trade warranty, confirmed at quote review |
Included Components
- Tempest tamper resistant weather resistant GFCI device, White
- Mounting screws
- Wall plate and weatherproof cover not included; quoted separately
Installation Notes
- Installed by a licensed electrician in a standard single-gang box; verify box fill
- Outdoor locations require a listed weatherproof in-use cover per the NEC
- GFCI protection locations per the NEC: outdoor, bath, garage, and other damp or wet locations per the adopted edition
- Land line and load correctly; the indicator flags reversal
- Feed-through protection covers downstream outlets when landed on the load terminals
- Press TEST monthly in addition to the automatic self-test
Warranty and Support
- Covered by the Light Archon limited trade warranty; term confirmed at quote review
- Submittal sheets and dimensional PDFs available for every configuration
- Support through the Light Archon trade desk
Frequently Asked Questions
What box does it need?
A standard single-gang wall box. Your installer verifies box fill for the conductors present per NEC 314.16.
Can it go outdoors?
Yes. The weather resistant construction is made for damp and wet locations, installed behind a listed weatherproof in-use cover per the NEC. The cover is quoted separately.
What does the status light show?
Power and protection state, plus indication of line/load reversal at install. A device that loses the ability to protect locks out and will not reset.
Does it protect downstream outlets?
Yes. Feed-through terminals extend GFCI protection to downstream outlets when your electrician lands them on the load side.
Documents
- Type GFCI Outlet
- SKU LA-LGT-DV-G15-TMPST
- Catalog Reference Installation & Warranty Reference (PDF)
- Spec PDF Open product spec summary
- Submittal PDF Open submittal reference
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.
Support and request quote workflows stay available throughout specification and order planning.
