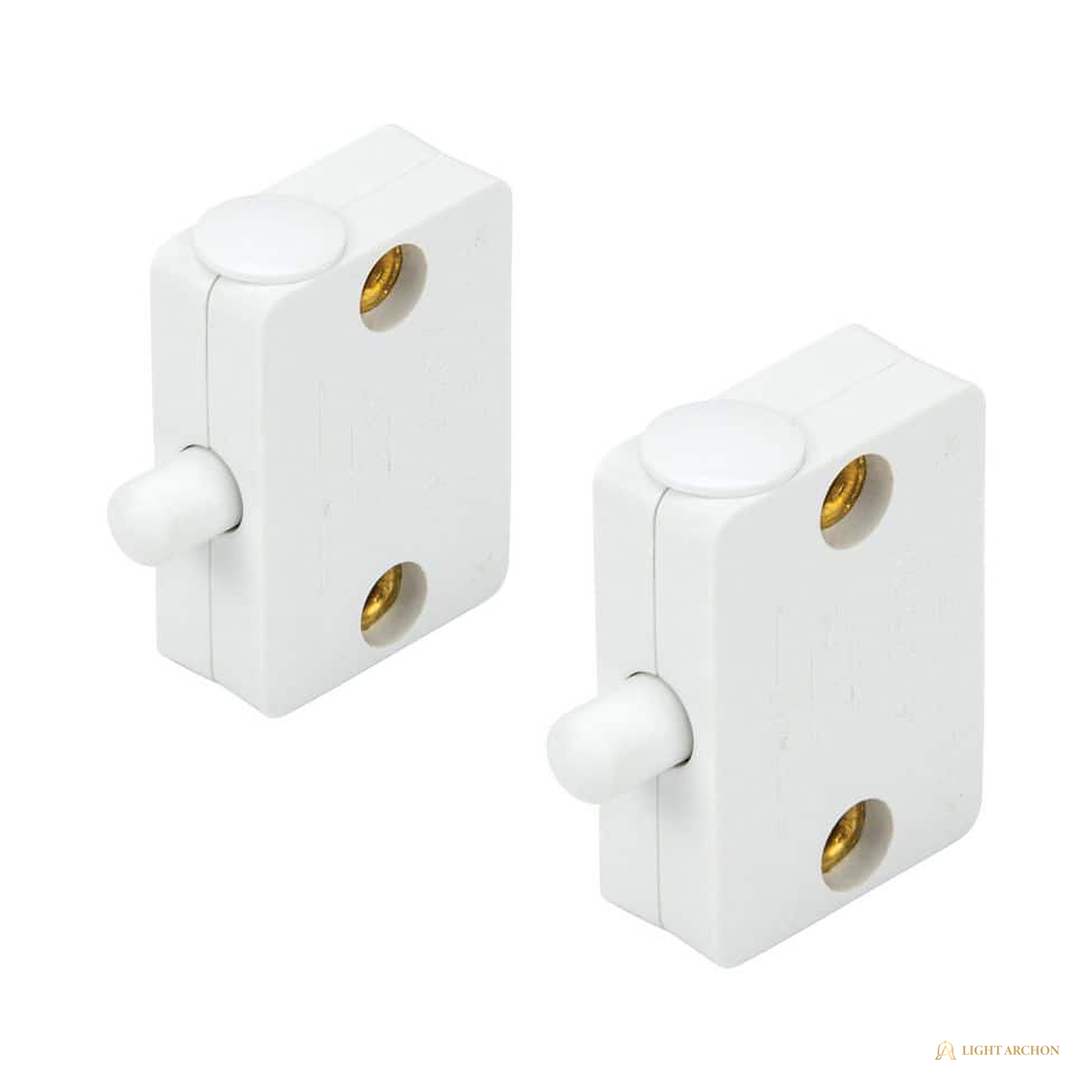

Light Archon Threshold Cabinet Door Push-Button LED Switch 2-Pack
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

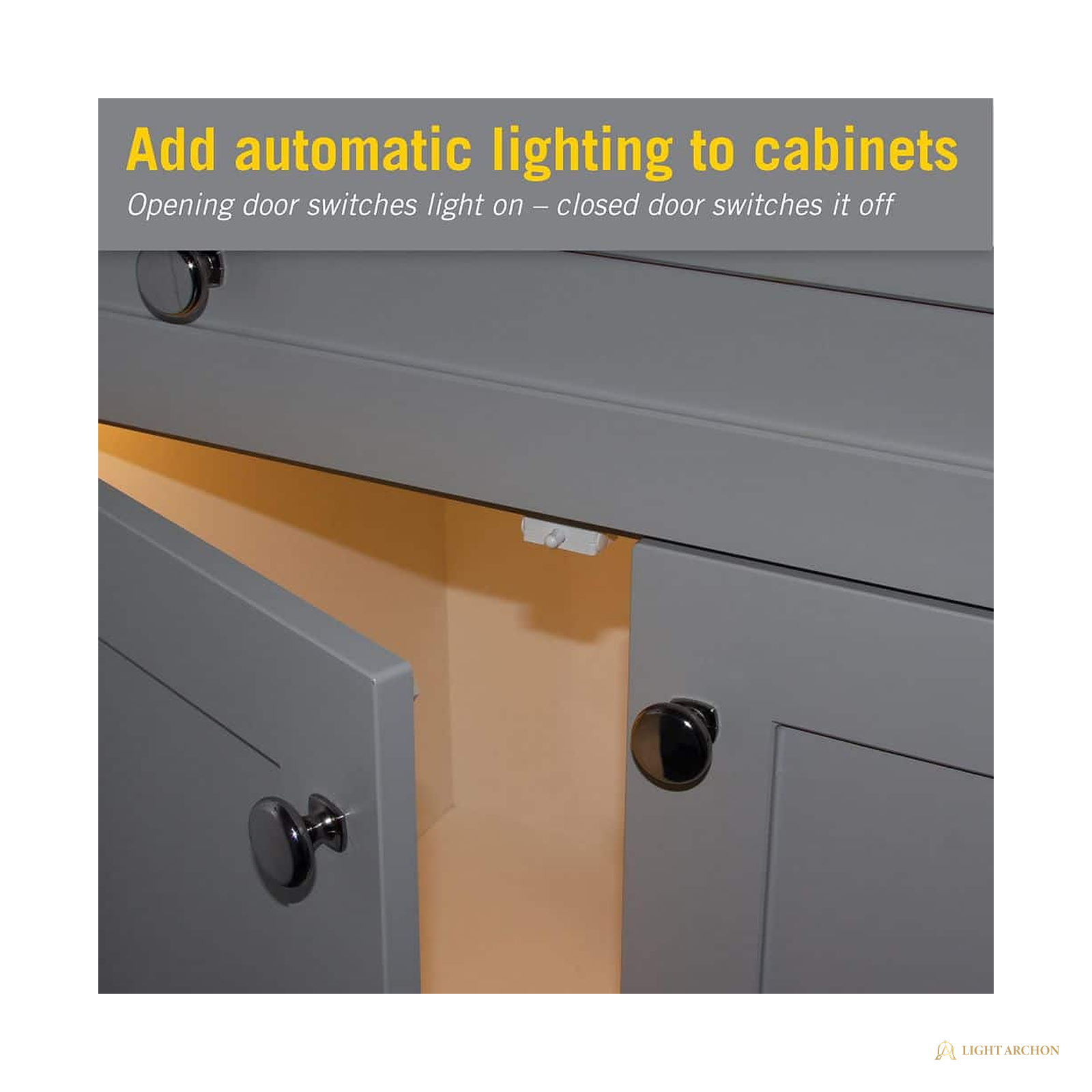

The Light Archon Threshold switch turns any cabinet door into the light control: open the door and the LED lighting inside comes on, close it and the light goes off. The 2-pack covers two doors on 12VDC or 24VDC LED circuits at up to 1 A each, hardwired inline with the low-voltage run. Quote-first: add it to your quote list and the trade desk confirms counts and system fit before release.
The button sits proud of the housing by 7 mm and needs only light pressure, so a standard cabinet or pantry door presses it flat as it closes and cuts the circuit. Open the door and the contact closes, lighting the interior. Wiring is a simple inline splice on the low-voltage DC side between the driver and the lights, with no wall box involved. The compact ABS housing surface-mounts to the cabinet frame with the included hardware and disappears behind the door edge. Door-activated switching also stretches LED service life by keeping lights off whenever the door is shut, in pantries, closets, boats, and RV cabinets alike.
Highlights
- Door-activated switching for cabinet and closet LED lighting
- 2-pack covers two doors in one line item
- 12VDC and 24VDC compatible, up to 1 A per switch
- 7 mm button travel with light actuation pressure
- Inline hardwire on the low-voltage DC run
- Surface mounts with included hardware; no wall box
- Compact satin white ABS housing
- Suits pantries, cabinets, sliding doors, boat and RV storage
Specification Table
| Current Rating | 1 A per switch |
| Input Rating | 12VDC and 24VDC |
| Style | Push button, door-activated |
| Action | Door closed presses the button and opens the circuit; door open lights the circuit |
| Trigger | 7 mm button travel, light pressure |
| Load Types | Low-voltage LED lighting and LED drivers |
| Mounting | Surface mount inside the cabinet, hardware included |
| Material | ABS, satin white |
| Color | White |
| Pack | 2 switches with mounting hardware |
| Warranty | Light Archon limited trade warranty, confirmed at quote review |

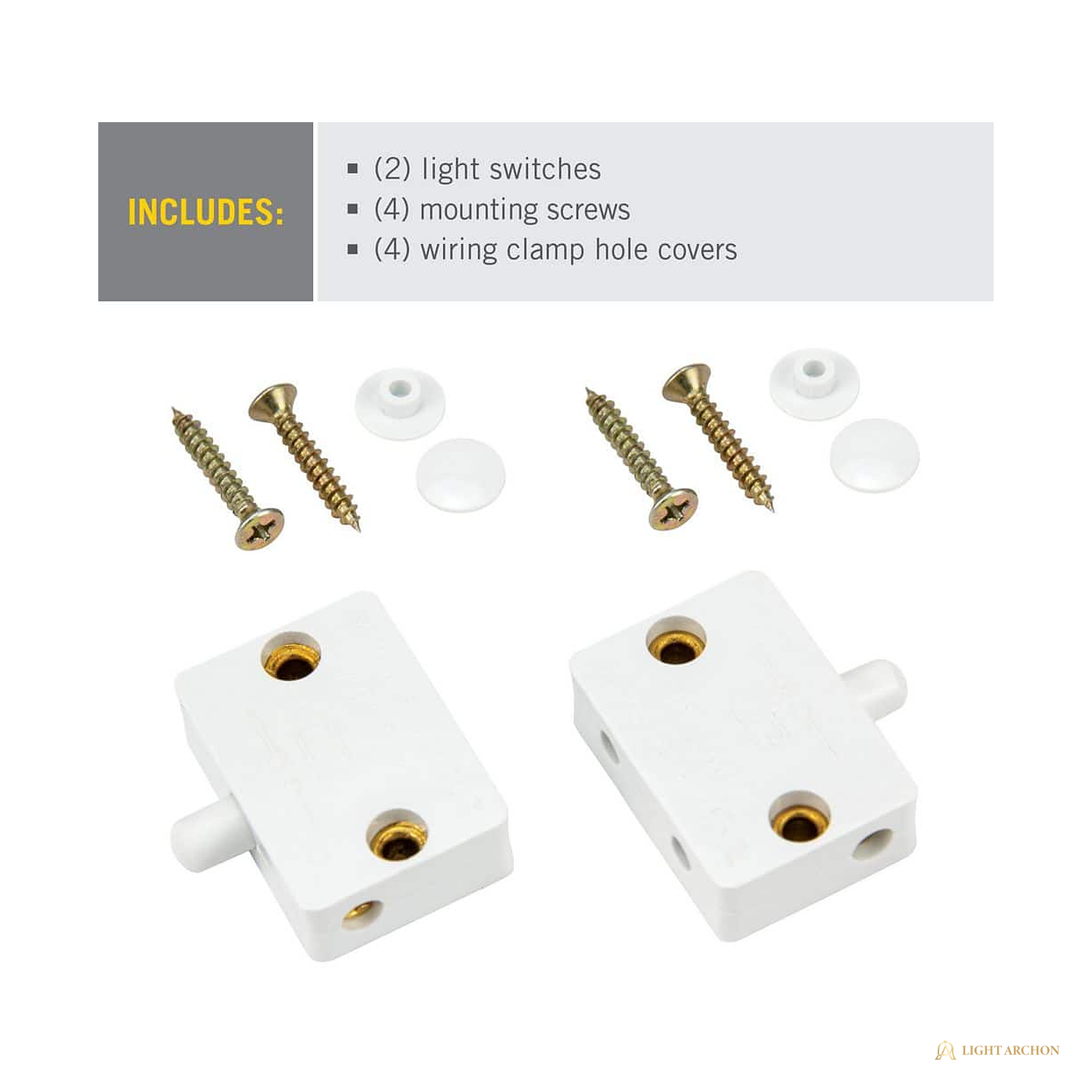

Included Components
- 2 x Threshold door-activated push-button switches, White
- Mounting hardware for both switches
Installation Notes
- Wire inline on the low-voltage DC side between the LED driver and the lights
- For 12VDC or 24VDC circuits only; keep each switch at or below 1 A
- Position the switch so the closed door depresses the button fully (7 mm travel)
- Surface mount to the cabinet frame with the included hardware
- Line-voltage wiring, where present, is handled by a licensed electrician
Warranty and Support
- Covered by the Light Archon limited trade warranty; term confirmed at quote review
- Submittal sheets and dimensional PDFs available for every configuration
- Support through the Light Archon trade desk
Frequently Asked Questions
Does it need a wall box?
No. It surface mounts inside the cabinet with the included hardware and splices inline on the low-voltage DC run; no wall box or gang plate is involved.
Will it work with my LED system?
It switches 12VDC or 24VDC circuits at up to 1 A per switch, which covers typical cabinet and closet LED runs. System pairing is verified at quote review.
How does the door action work?
The closed door presses the 7 mm button and holds the circuit open, keeping the light off. Opening the door releases the button and the light comes on.
Can I use it on line voltage?
No. It is a low-voltage DC device for 12VDC and 24VDC LED circuits only.
Documents
- Type Light Switch
- SKU LA-LGT-SW-P1-THRSH
- Catalog Reference Installation & Warranty Reference (PDF)
- Spec PDF Open product spec summary
- Submittal PDF Open submittal reference
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
