Light Archon TradeForm PVC Switch and Outlet Boxes
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

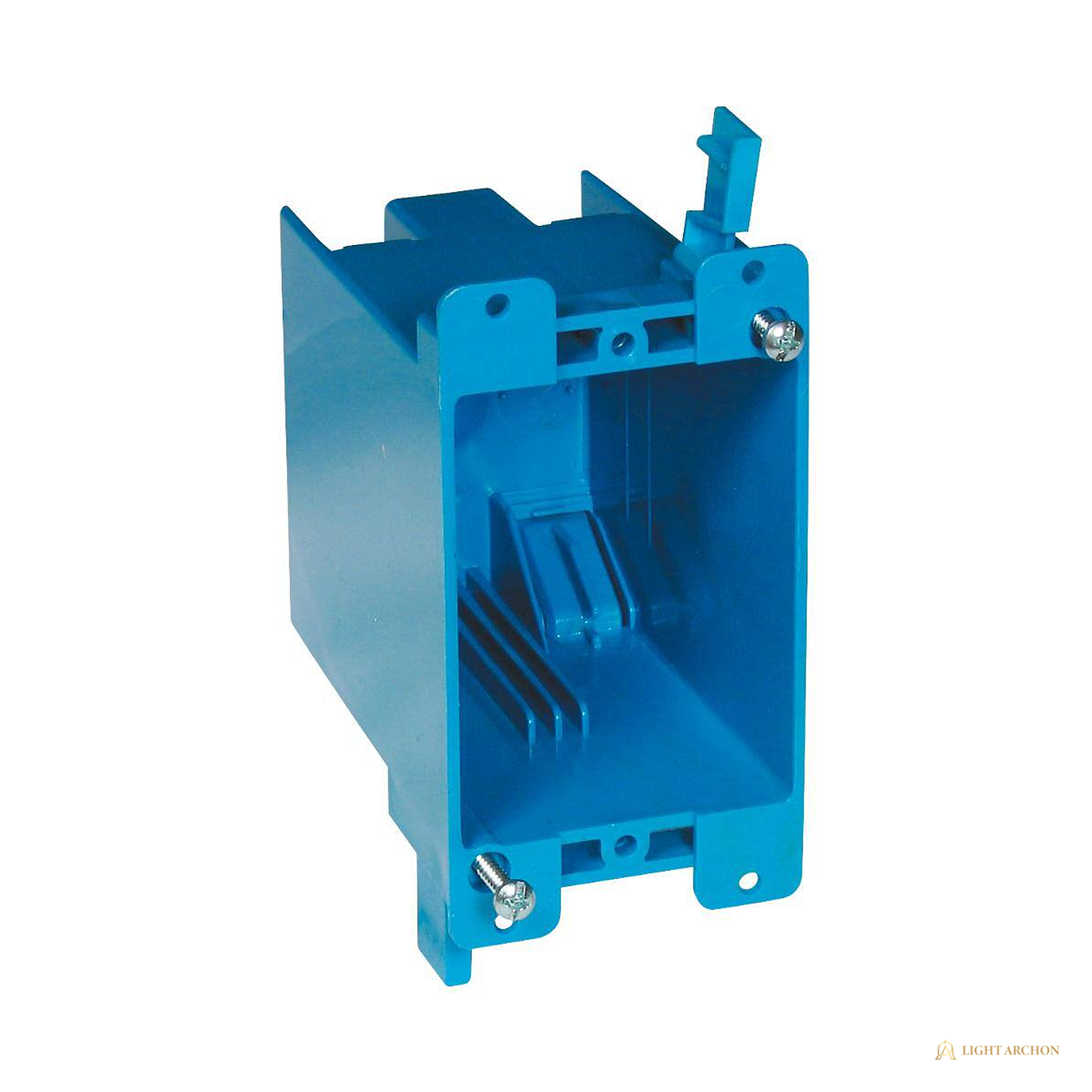

Light Archon TradeForm PVC switch and outlet boxes carry the deepest format spread in our rough-in line: 1- to 4-gang device boxes, an adjustable format, and ceiling formats including a fan-rated version. Thermoplastic bodies resist rust and never conduct.
Old work formats clamp finished walls with a swing bracket and mounting ears; new work formats nail to studs with captive nails. The adjustable format trues box depth to the finished wall after drywall goes up. Ceiling formats include a captive-nail version for fixtures and a fan-rated version listed for paddle fan support per the published listing. The line meets NEMA OS-2 with UL514C class listings.
Highlights
- 1-, 2-, 3-, and 4-gang device formats from 14 to 60 cu. in.
- Old work swing bracket formats for remodel cut-ins
- New work captive-nail formats for stud framing
- Adjustable format trues depth to the finished wall
- Ceiling formats include a fan-rated version for paddle fans
- Nonconductive thermoplastic construction resists rust
- Meets NEMA OS-2; UL514C class listings per the published listing
- Case quantities for production jobs quoted on request
Specification Table
| Material | PVC thermoplastic, nonmetallic |
| Device formats | 1-gang 14 to 22 cu. in.; 2-gang 25 and 32 cu. in.; 3-gang 44 cu. in.; 4-gang 60 cu. in. |

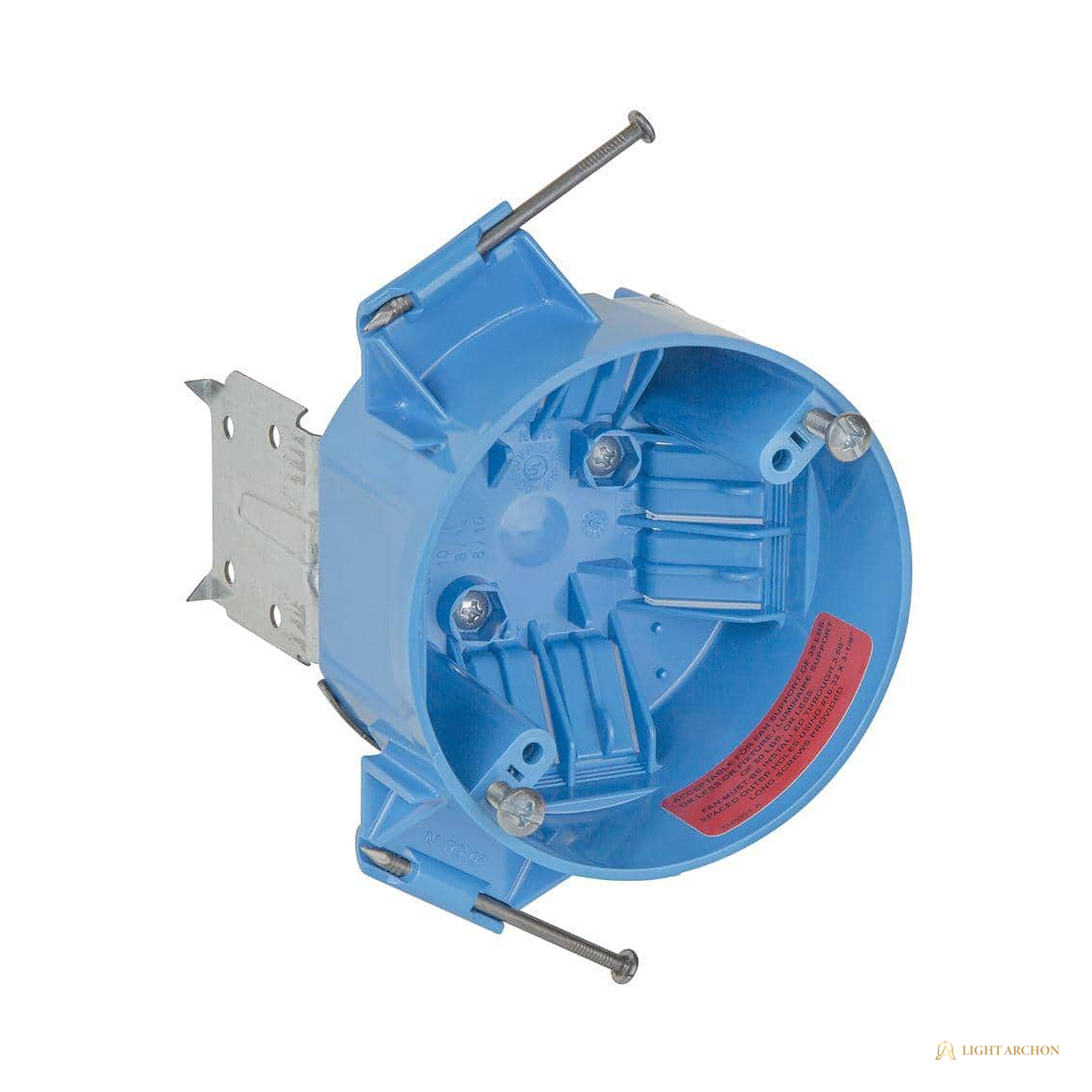

| Ceiling formats | 20 cu. in. captive-nail and fan-rated versions |
| Adjustable format | 1-gang 21 cu. in. with depth-true bracket |
| Mount types | Old work swing bracket; new work captive nails |

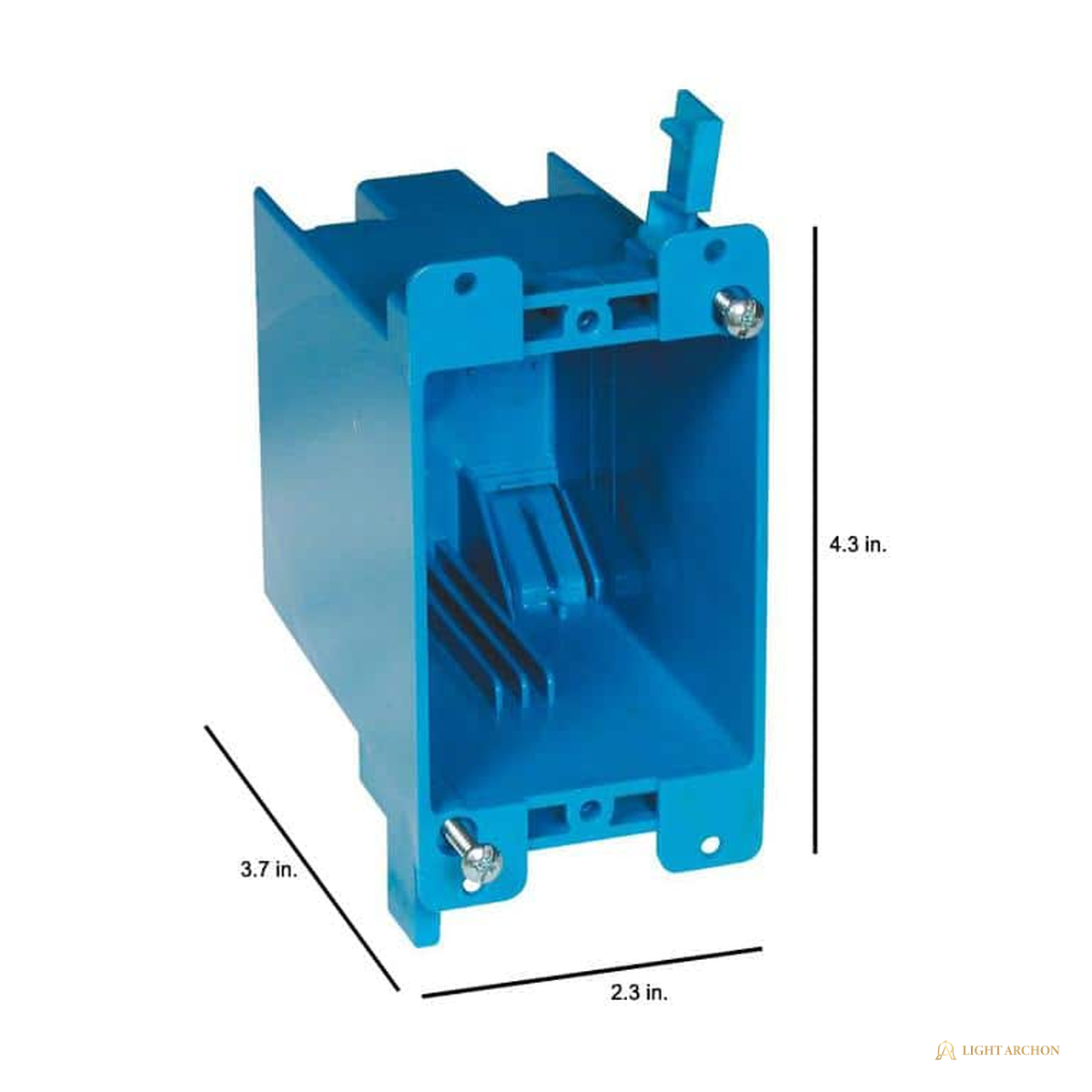

| Base body size | 2.3 W x 4.3 H x 3.65 D in. on the 1-gang 20 cu. in. old work format |
| Cable entry | Built-in clamps on old work formats |
| Listings | UL514C class, NEMA OS-2 |
| Environment | Dry interior locations |
| Fan support | Fan-rated ceiling format listed for paddle fans |
| Supply model | Singles stocked; case packs quoted |
Included Components
- Captive nails preinstalled on new work formats
- Swing bracket and cable clamps on old work formats
Installation Notes
- Count conductors, clamps, and devices toward box fill per NEC before final device selection.
- Use the fan-rated ceiling format for paddle fans; standard ceiling formats carry fixtures only.
- Set the adjustable format after drywall to true the box face flush with the finished wall.
- Old work formats need sound drywall or plaster around the opening for the swing bracket to bite.
- Format counts and case quantities are confirmed at quote review.
Warranty and Support
- Backed by the Light Archon trade supply program; warranty terms are confirmed at quote review.
- Submittal sheets and takeoff review support are available from our electrical supply desk.
Frequently Asked Questions
What devices fit these boxes?
Standard switches and receptacles across 1- to 4-gang formats. Box fill spans 14 to 60 cu. in., so multi-device and smart device loads have room.
Which format supports a paddle fan?
The fan-rated 20 cu. in. ceiling format is listed for paddle fan support. Standard ceiling formats are for fixtures only.
Do you stock case packs?
Yes. Production case quantities of the common 1-gang formats are quoted on request.
Which covers pair with the ceiling formats?
The CeilGuard paintable cover caps unused or fixture-fed ceiling boxes. Device formats take standard wall plates sized per gang count.
Documents
- Type Electrical Box
- SKU LA-LGT-BX-B1G20-TFRM-1G14
- Catalog Reference Installation & Warranty Reference (PDF)
- Spec PDF Open product spec summary
- Submittal PDF Open submittal reference
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
