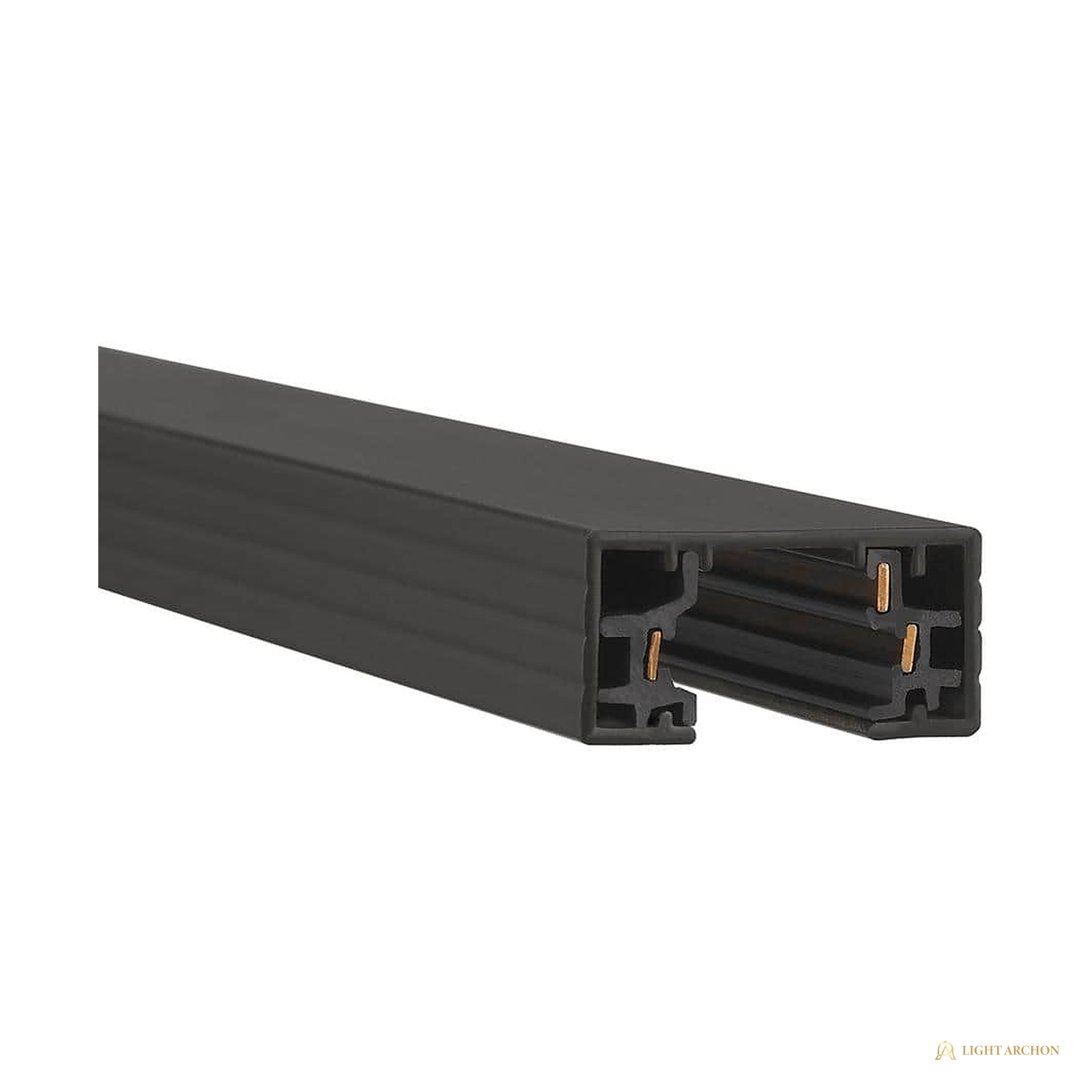

Light Archon Traverse 8 ft. Single Circuit H-Type Track Section with Endcaps, Black

Light Archon Traverse is an 8 ft. single circuit track section in the H-type line voltage standard, the run stock for gallery walls, retail rails, and kitchen ceilings that want heads repositioned at will. The die-cast aluminum channel carries up to 1920 watts per circuit at 120V with a 20 amp maximum, ships with two endcaps and mounting hardware, and field cuts to length. Quote-first record: feeds, connectors, and head counts are confirmed at quote review.

Traverse mounts to ceilings and, where the plan calls for it, walls, and the H-type profile accepts compatible H-standard line voltage heads across the run. Power lands through live end or floating canopy feed connectors, sold separately and confirmed at quote review, so the feed point follows the junction box instead of dictating the layout. The section field cuts for exact runs, joins to additional sections with connectors at quote review, and holds a UL and cUL dry location listing. Photometrics belong to the heads: output, color temperature, and color accuracy follow the heads selected on the same quote.

Highlights

• 8 ft. single circuit track section in the H-type line voltage standard
• Die-cast aluminum channel with two endcaps and mounting hardware included
• 1920 W maximum per circuit at 120V; 20 A maximum operating current
• Field cuttable for exact run lengths
• Live end and floating canopy feeds sold separately, confirmed at quote review
• Accepts compatible H-type line voltage track heads
• UL and cUL listed for dry locations
• 5 year functional and 2 year finish warranty

Specification Table

Included Components

• 8 ft. single circuit H-type track section
• Two endcaps
• Mounting hardware
• Installation instructions

Installation Notes

• Shut power at the breaker and verify with a tester before any work at the feed point.
• Lay out the run so the feed connector lands at the junction box; live end and floating canopy feeds are quoted separately.
• Fasten the channel to the ceiling or wall structure with the included hardware, then cap the open end.
• Field cut the section square for exact lengths; deburr before fitting connectors or endcaps.
• Seat heads after power-up checks; total connected load stays under 1920 W per circuit.

Warranty and Support

• 5 year functional warranty
• 2 year finish warranty
• Support and replacement paths are confirmed at quote review

Frequently Asked Questions

Where does the power come in?
Through a live end feed at the end of the run or a floating canopy feed anywhere along it, each covering a standard ceiling junction box. Feeds are sold separately and land on the same quote as the track.

Which heads fit this track?
Heads built to the H-type single circuit line voltage standard seat anywhere along the channel. List your head picks on the quote and our team verifies compatibility at quote review.

Can the run be extended or shortened?
Both. Sections join with straight, L, T, or X connectors quoted separately, and the channel field cuts for exact lengths.

How does it mount?
The channel fastens direct to ceiling or wall structure with the included mounting hardware; the feed choice sets where the junction box lands.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)
