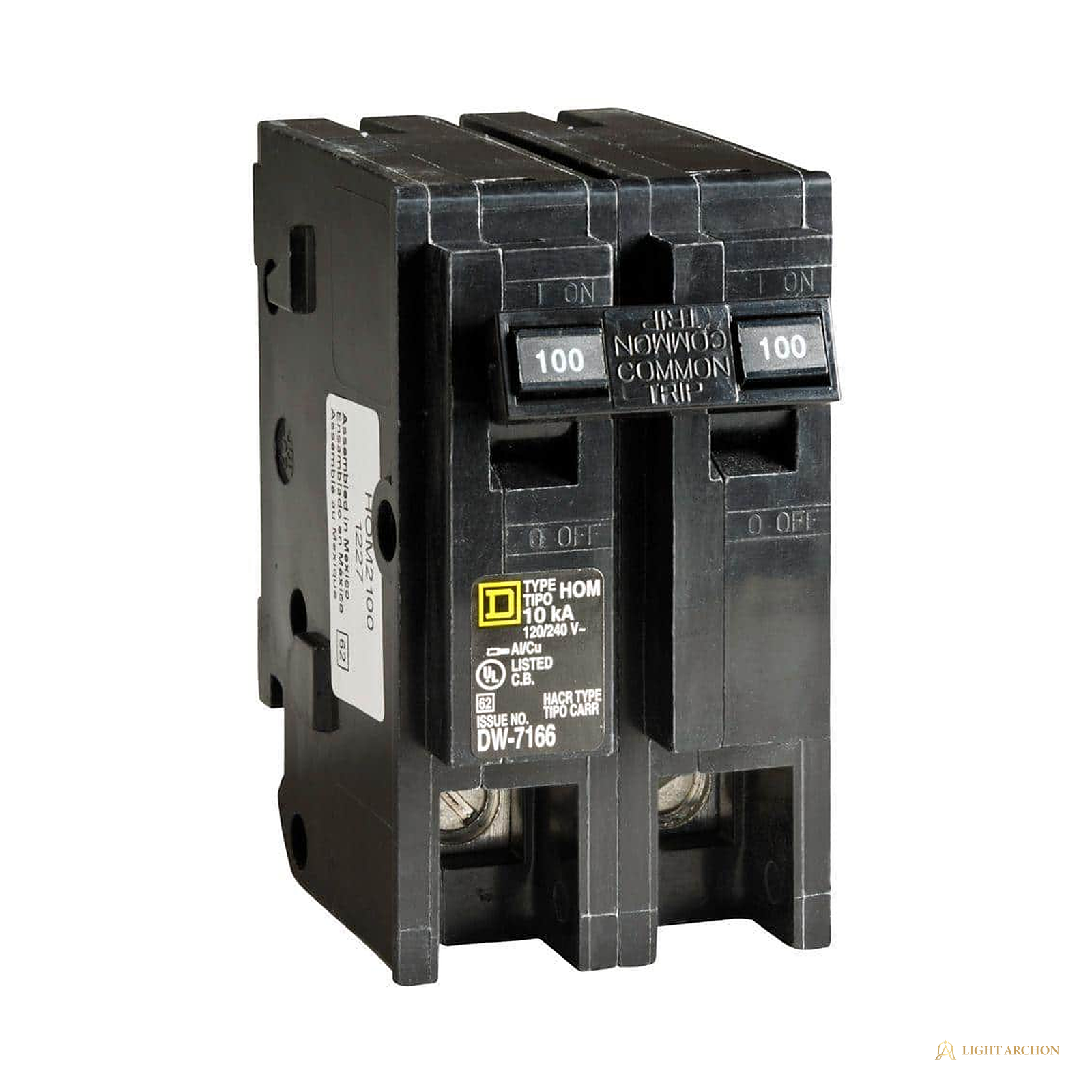

Light Archon Vanguard 100A 2-Pole Circuit Breaker
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
The Light Archon Vanguard 100A 2-pole breaker anchors heavy feeder and main-class duty in the industry-standard 1 in. plug-on format. It backfeeds or protects 100 A of 120/240V service in two pole spaces, serving subpanel feeders and main positions in load centers listed for it. Quote-first: add it to your quote list and the trade desk confirms panel fit before release.

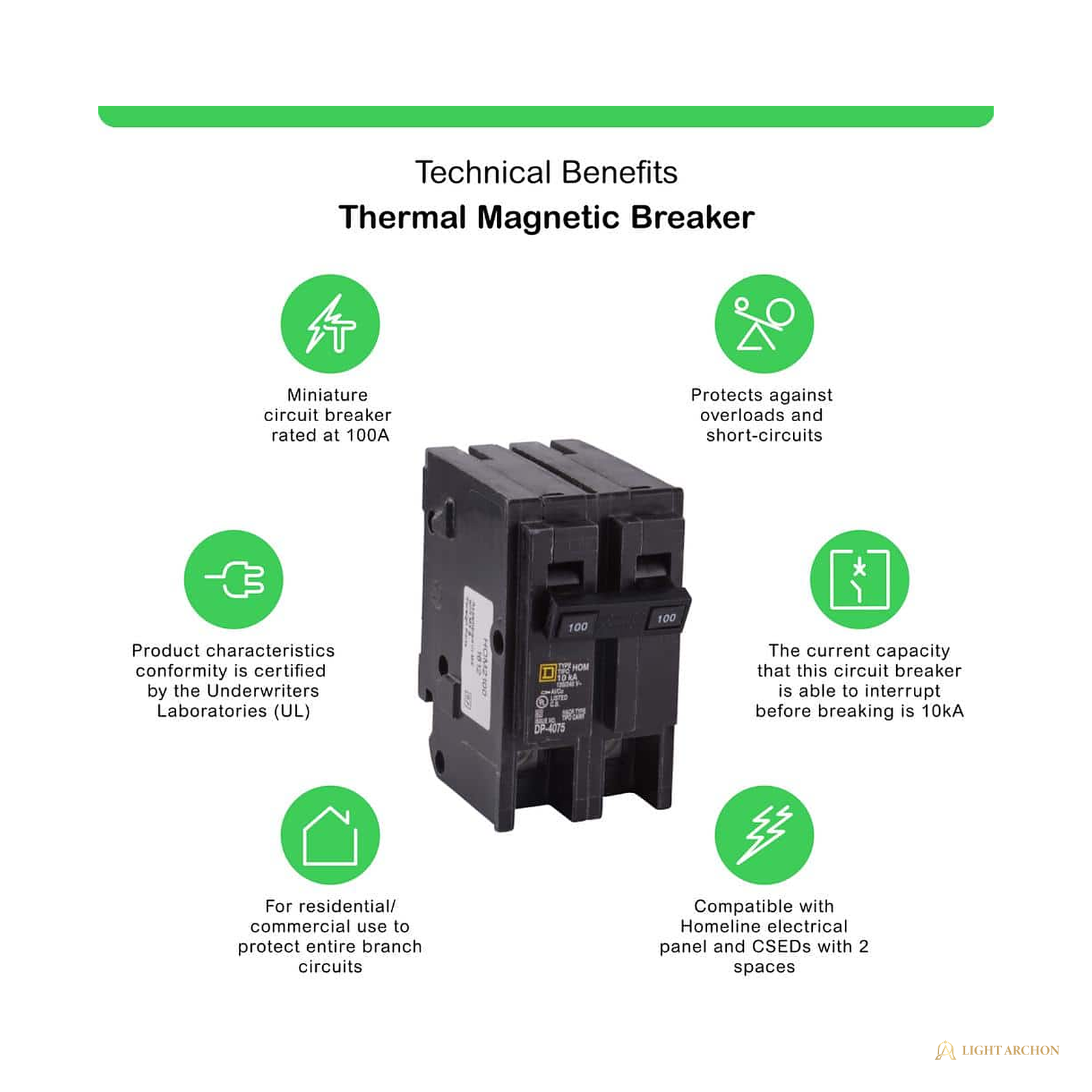

The thermal magnetic trip unit carries a common trip across both poles and a 10 kA interrupt rating. The plug-on connection lands the breaker on the bus without mounting hardware, and the two-space footprint keeps subpanel feeder layouts compact. Typical work: feeding a detached garage or shop subpanel, protecting a 100 A service section, or replacing a feeder position during a panel refresh, always with the load center listing and conductor sizing checked by your electrician.
Highlights
- 100 A 2-pole unit in the 1 in. plug-on format
- 120/240V rating for feeder and main-class positions
- 10 kA interrupt rating
- Thermal magnetic trip with common trip across both poles
- Plug-on bus connection with no mounting hardware
- Two pole spaces in compatible load centers
- UL Listed and ANSI certified
- Quote-first trade supply with panel fit verified before release
Specification Table
| Current Rating | 100 A |
| Poles | 2-pole, 1 in. format, two pole spaces |
| Input Rating | 120/240V |
| Interrupt Rating | 10 kA |
| Trip Unit | Thermal magnetic, common trip |
| Service | Feeder or main position where the load center is listed for it |
| Mounting | Plug-on bus connection |
| Panel Compatibility | fits Light Archon LC series and industry-standard 1 in. bolt/plug-on load centers - verify panel compatibility at quote review |
| Location | Dry indoor panel interiors |
| Certifications | UL Listed, ANSI certified |
| Warranty | Light Archon limited trade warranty, confirmed at quote review |
Included Components
- One 100 A 2-pole breaker per unit
Installation Notes
- Installed by a licensed electrician; breaker ampacity must match conductor rating
- De-energize the panel and verify with a meter before any work
- Torque terminations to the values on the breaker label
- Main or backfeed positions require the load center listing and any required hold-down kit
- Takes two adjacent pole spaces on the panel bus
- Panel fit is verified at quote review against your load center schedule
Warranty and Support
- Covered by the Light Archon limited trade warranty; term confirmed at quote review
- Submittal sheets and dimensional PDFs available for every configuration
- Support through the Light Archon trade desk
Frequently Asked Questions
What panels does this fit?
It fits Light Archon LC series and industry-standard 1 in. bolt/plug-on load centers - verify panel compatibility at quote review.
Can it serve as a main breaker?
Yes, where the load center is listed for a 100 A plug-on main or backfeed position and the required hold-down hardware is used. Your electrician and the trade desk confirm the listing at quote review.
What conductor does a 100 A feeder need?
Conductor sizing follows the NEC for the load and termination temperature rating; your electrician sizes it from the panel schedule. The trade desk can include the feeder run on the same quote.
How is this sold?
Quote-first. Every product shows a zero price on the site; your quote list is priced by the trade desk with panel fit checked line by line.
Documents
- Type Circuit Breaker
- SKU LA-LGT-BRK-A100-VNGRD
- Catalog Reference Installation & Warranty Reference (PDF)
- Spec PDF Open product spec summary
- Submittal PDF Open submittal reference
