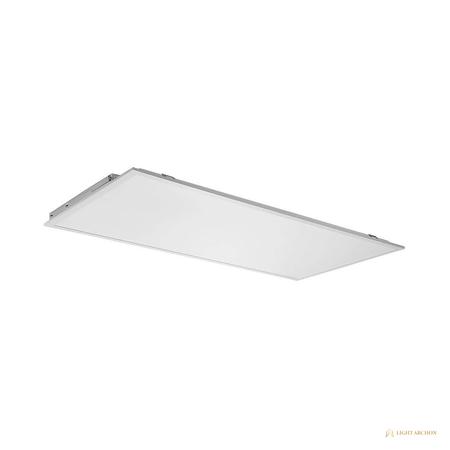

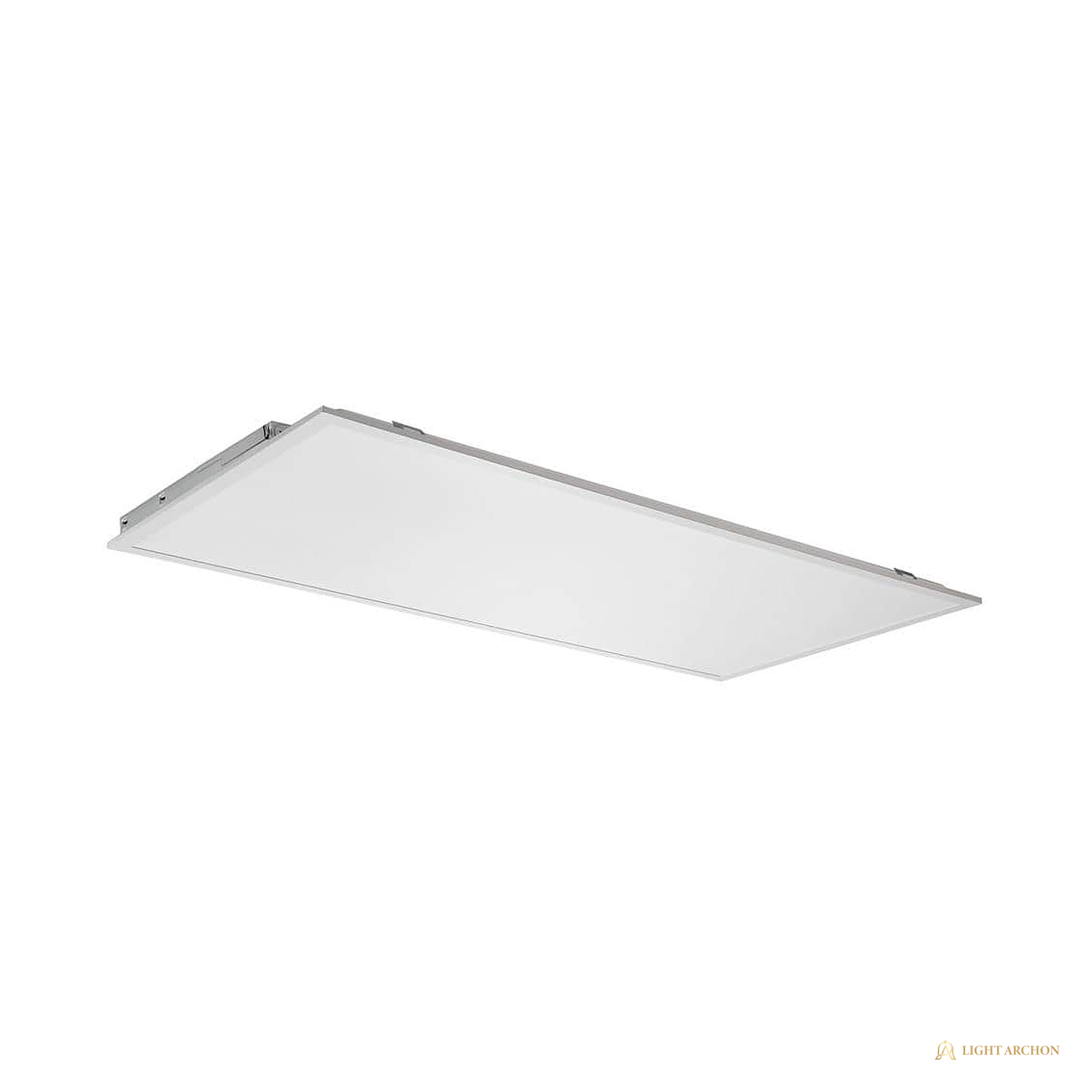

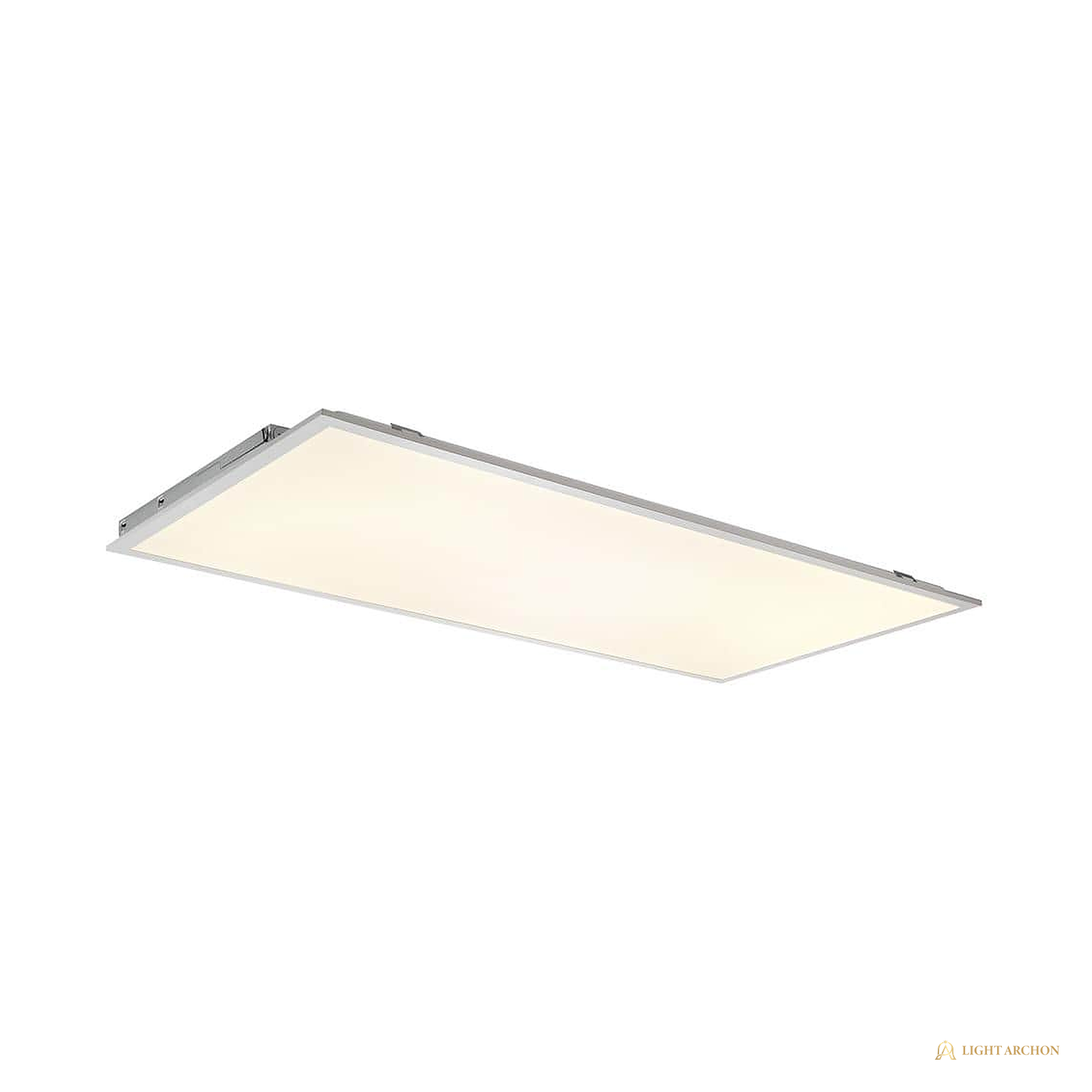

Light Archon Vault 2 ft. x 4 ft. LED Troffer, Selectable Lumens and CCT

Light Archon Vault is a 2 ft. x 4 ft. LED troffer for offices, schools, and retail ceilings, with output selectable at 3300, 4400, or 5500 lumens drawing 30, 40, or 50 watts to match. Color temperature locks at 3500K, 4000K, or 5000K, the driver runs 120-277V multivolt, and dimming follows 0-10V control. Quote-first record: counts, settings, and controls are confirmed at quote review.

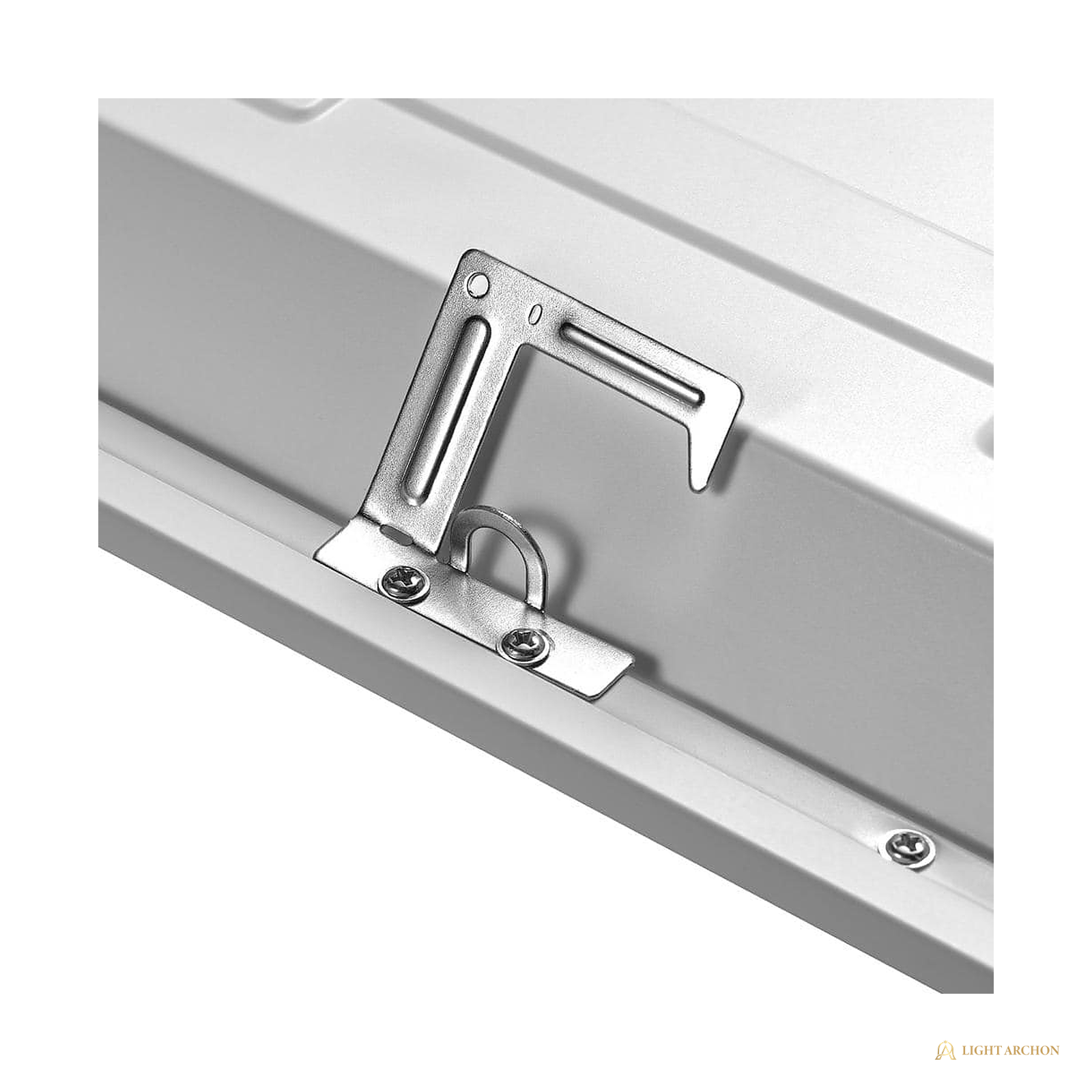

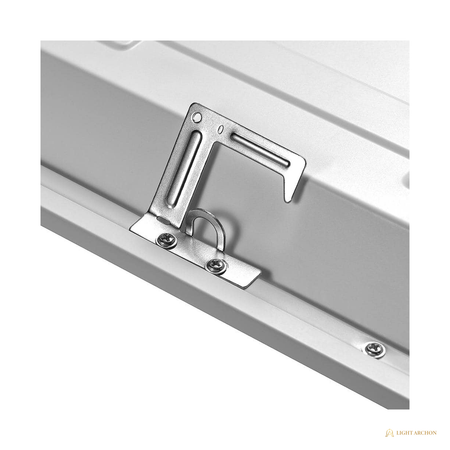

Vault lays into standard 2 ft. x 4 ft. drop ceiling grid with integrated grid clips holding the housing to the tees, and the wiring accessories for a grid install ship in the carton per source documentation. Selector switches on the housing set lumen output and color temperature at install, so one pallet covers open office, corridor, and back-of-house zones without separate SKUs. The fixture is IC rated for direct insulation contact per source documentation, damp rated for covered service areas, and runs a slim 1.39 in. housing that clears shallow plenums. ETL and FCC listings carry a 5 year limited warranty. Color accuracy runs 80 CRI typical and is confirmed at quote review.

Highlights

• Selectable output: 3300, 4400, or 5500 lumens at 30, 40, or 50 watts
• Selectable color temperature: 3500K, 4000K, or 5000K
• 120-277V multivolt driver with 0-10V dimming
• Lays into standard 2 ft. x 4 ft. drop ceiling T-grid
• Integrated grid clips and included wiring accessories per source documentation
• Slim 1.39 in. housing clears shallow plenums
• IC rated per source documentation; damp rated
• ETL and FCC listed with a 5 year limited warranty

Specification Table

Included Components

• 2 ft. x 4 ft. LED troffer
• Integrated grid clips
• Wiring accessories for grid installation per source documentation
• Installation instructions

Installation Notes

• Shut power at the breaker and verify with a tester before any work above the grid.
• Lay the housing into the 2 ft. x 4 ft. T-grid opening and engage the integrated grid clips.

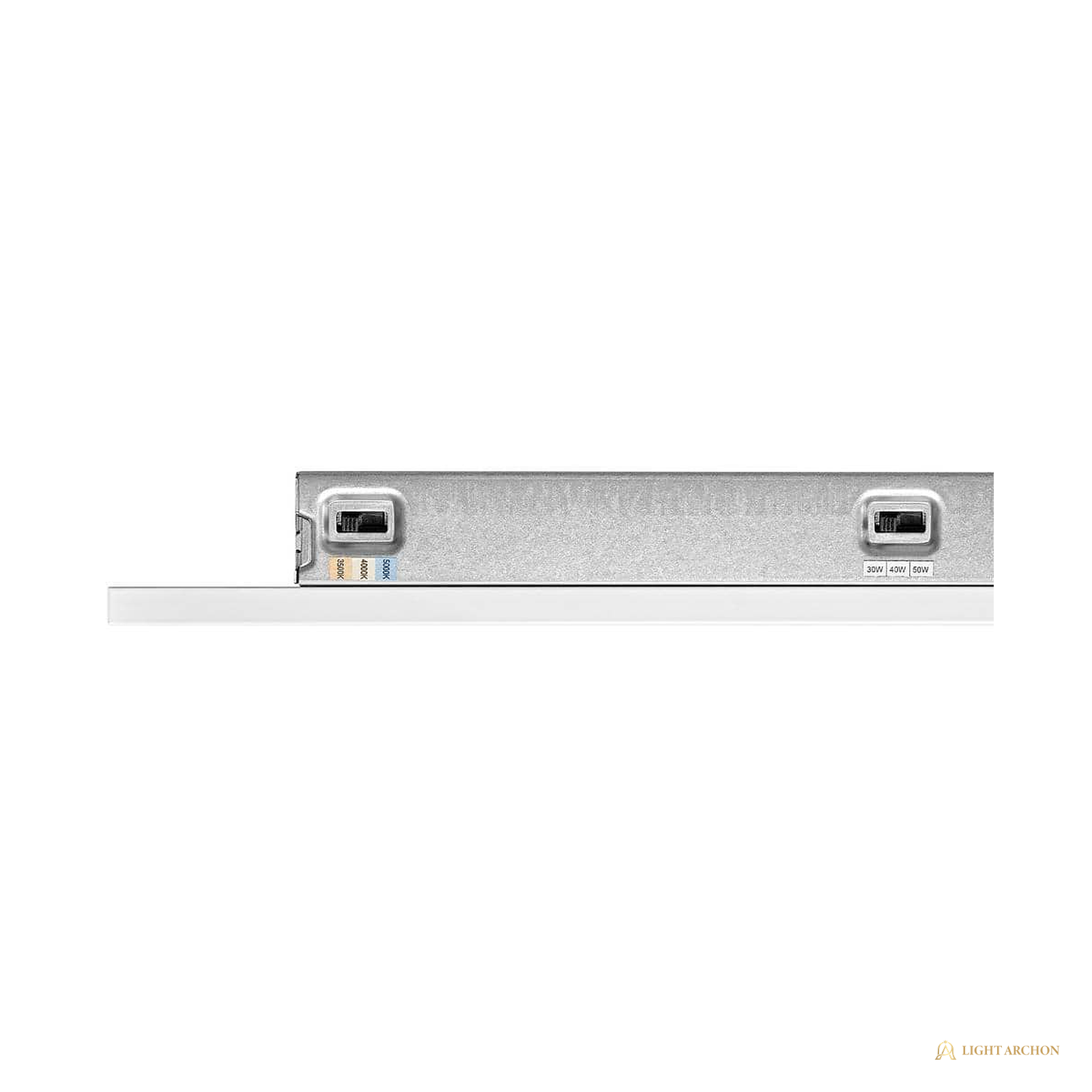

• Set the lumen and color temperature selectors before closing the ceiling.
• For dimmed circuits, land the 0-10V control pair on a compatible dimmer; verify the control system at quote review.
• Support the fixture per local code where seismic or independent support wires are required.

Warranty and Support

• 5 year limited warranty
• Support and replacement paths are confirmed at quote review

Frequently Asked Questions

What ceiling does it mount in?
Standard 2 ft. x 4 ft. drop ceiling T-grid: the housing lays in from above and the integrated grid clips lock it to the tees. Surface or suspended arrangements are quoted separately, confirmed at quote review.

How do the output settings work?
A selector on the housing locks 3300, 4400, or 5500 lumens, and the driver draws 30, 40, or 50 watts to match, so energy models and light levels tune per zone from one SKU.

Does it dim?
Yes, on 0-10V control; a 0-10V dimmer is required for dimmed circuits. State your control system on the quote and we verify the match.

What does it replace?
It stands in for fluorescent 2x4 troffers in the 500 W equivalent class, cutting draw to 30-50 watts while holding office light levels.
