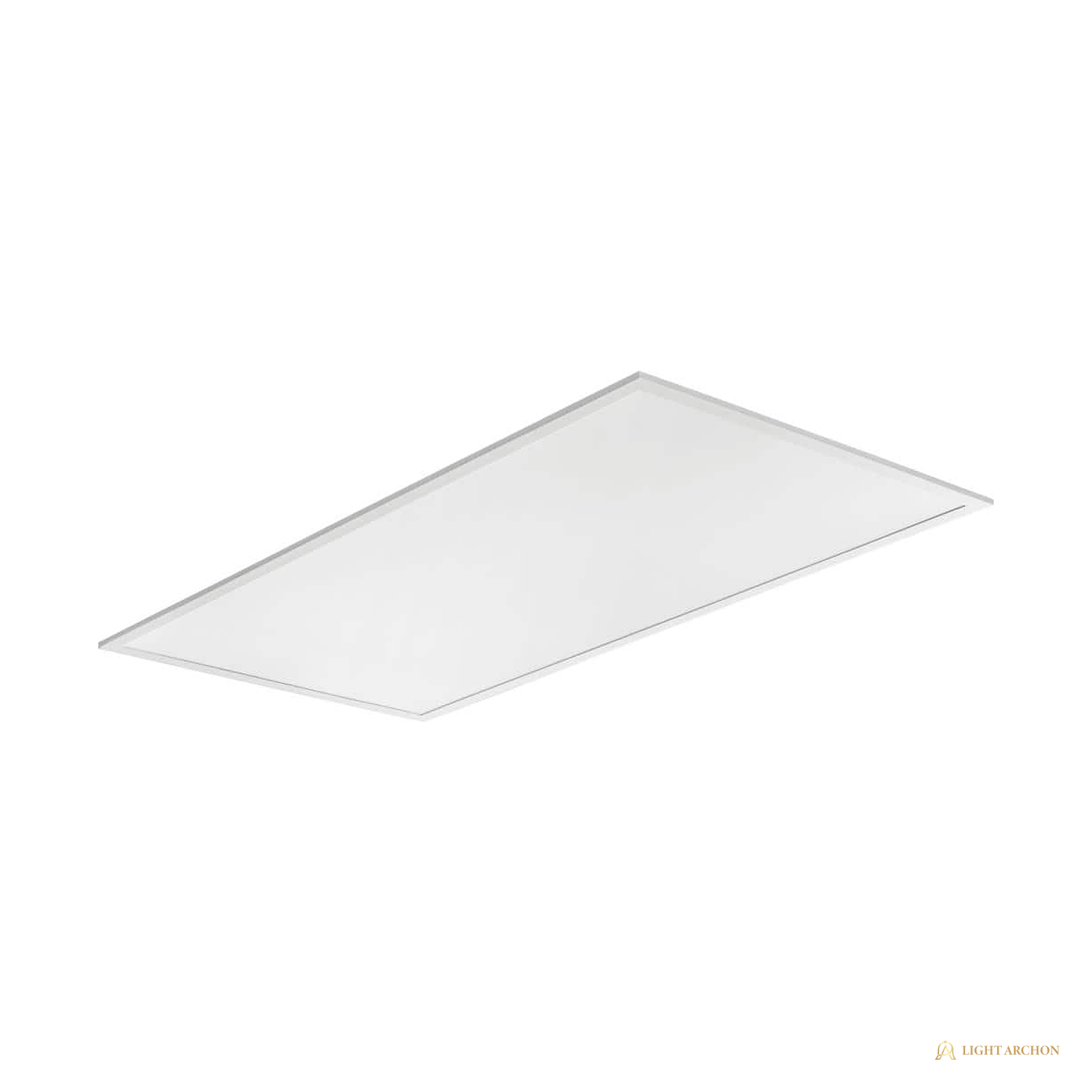

Light Archon Vector 2 ft. x 4 ft. Adjustable Output LED Flat Panel, Switchable CCT

Light Archon Vector is a 2 ft. x 4 ft. adjustable output LED flat panel that lets one SKU close out an entire lighting schedule. Two onboard switches set three output levels up to 6241 lumens and three color temperatures of 3500K, 4000K, and 5000K, nine configurations in one chassis drawing at most 50.56 watts. Quote-first record: counts, output settings, and mounting kits are confirmed at quote review.

Vector suits offices, classrooms, corridors, and clinical spaces where specs shift room to room: set the switches at install and every panel in the carton covers its zone without a second SKU. The driver accepts 120-277V service and dims to 10 percent on a 0-10V control pair. The aluminum panel body runs 1.7 in. deep for tight plenums, lays into standard T-grid ceilings, and can be recessed, suspended, or surface box mounted with accessory kits confirmed at quote review. Damp listed, IC rated, and CSA certified, with over 70 percent lumen maintenance at 60,000 hours.

Highlights

• Adjustable output up to 6241 lumens with three onboard levels
• Switchable color temperature: 3500K, 4000K, or 5000K
• Nine configurations from two onboard switches, one SKU per schedule
• 50.56 watts maximum at full output
• 120-277V driver with 0-10V dimming to 10 percent
• Slim 1.7 in. body for tight plenums and standard T-grid ceilings
• Recessed, suspended, or surface box mounting with accessory kits
• Damp listed, IC rated, CSA certified; 60,000 hour lumen maintenance basis

Specification Table

Included Components

• Adjustable output LED flat panel
• Onboard output and CCT switches, factory set to full output
• 0-10V dimming leads
• Install instructions

Installation Notes

• Lay the panel into a standard 2 ft. x 4 ft. T-grid opening, or use the matched kits for suspended and surface box installs, confirmed at quote review.
• Set the output level and color temperature switches before the panel goes up; both sit on the driver face.
• Land 120-277V service per the panel diagram; run the 0-10V pair to the dimmer for control to 10 percent.
• Damp listed for covered zones; recommended mounting height 10 ft.

Warranty and Support

• 5 year limited warranty
• Over 70 percent lumen maintenance at 60,000 hours
• Support and replacement paths are confirmed at quote review

Frequently Asked Questions

What ceiling does it mount in?
It lays into standard 2 ft. x 4 ft. T-grid drop ceilings. Recessed, suspended, and surface box installs use matched accessory kits confirmed at quote review.

How do the nine configurations work?
Two switches on the driver face set one of three output levels and one of three color temperatures, nine combinations total, locked at install.

Does it dim?
Yes, to 10 percent on a 0-10V control pair run to a compatible dimmer.

What service does it accept?
120-277V. One panel covers residential-class and commercial-class circuits without a separate model.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
