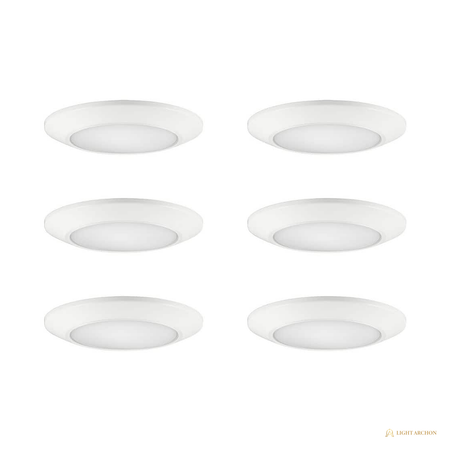

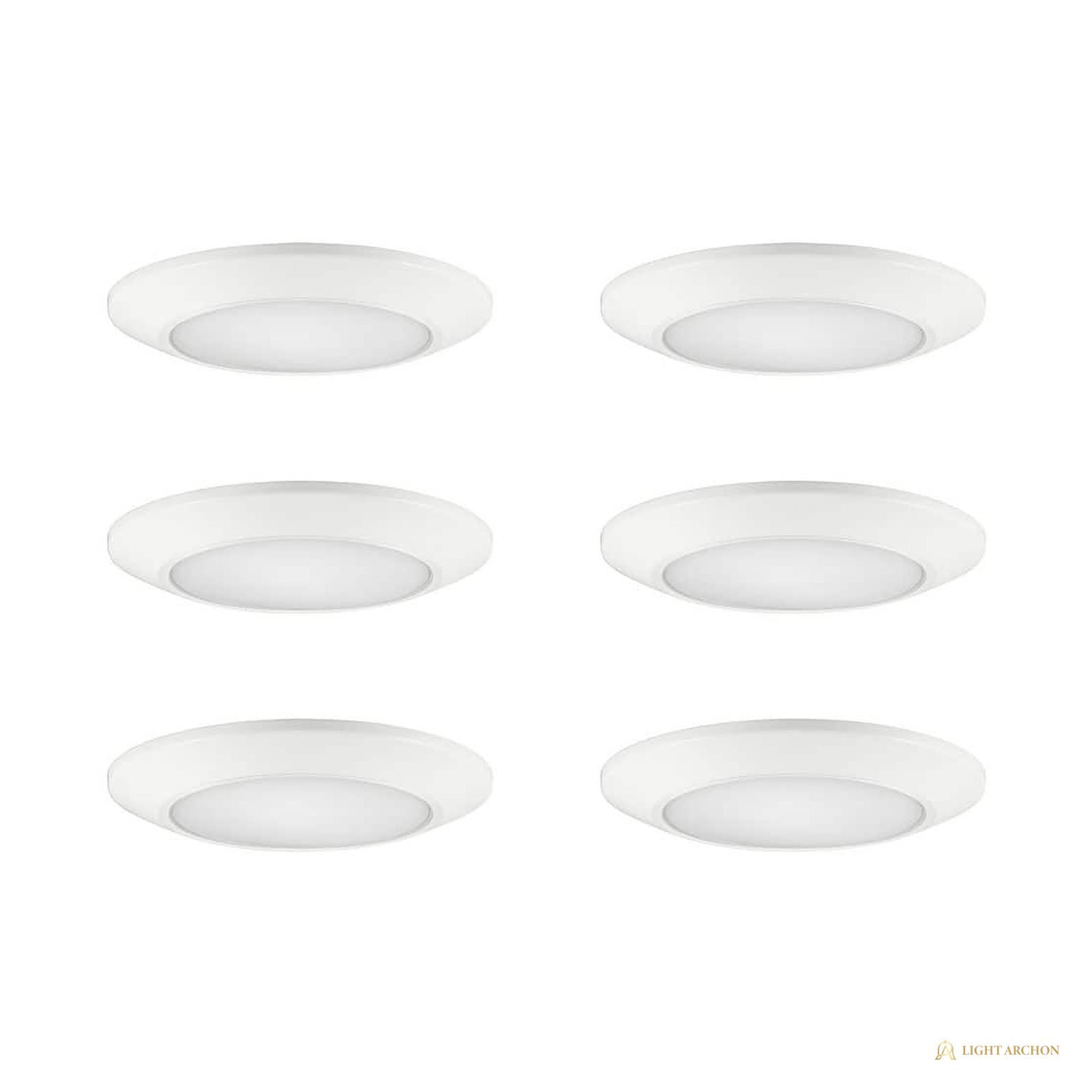

Light Archon Vela 6 in. Selectable CCT LED Surface Mount Disk Light

Light Archon Vela is a 6 in. class LED surface mount disk light built for fast installs across residential and light commercial work. Each unit delivers selectable output of 600, 900, or 1100 lumens at 7.5 to 13.4 watts, with five selectable color temperatures from 2700K warm white to 5000K daylight, and it carries a damp location listing for bathrooms, kitchens, and covered zones. This is a quote-first record: add it to your quote list and our team confirms the final configuration at quote review.

The Vela platform mounts direct to standard ceiling junction boxes with a keyhole bracket, so crews skip recessed cans and mounting plates entirely. Selectors on the fixture body lock lumen output and color temperature, letting one carton cover bedroom, hallway, closet, and kitchen zones with a single SKU. The integrated LED array dims to 10 percent on compatible LED wall dimmers, holds a 50,000 hour rated life, and needs no lamp replacement over its service window. Color accuracy runs 80 CRI typical and is confirmed at quote review.

Highlights

• Selectable output of 600, 900, or 1100 lumens set at install (7.5, 11, or 13.4 watts)

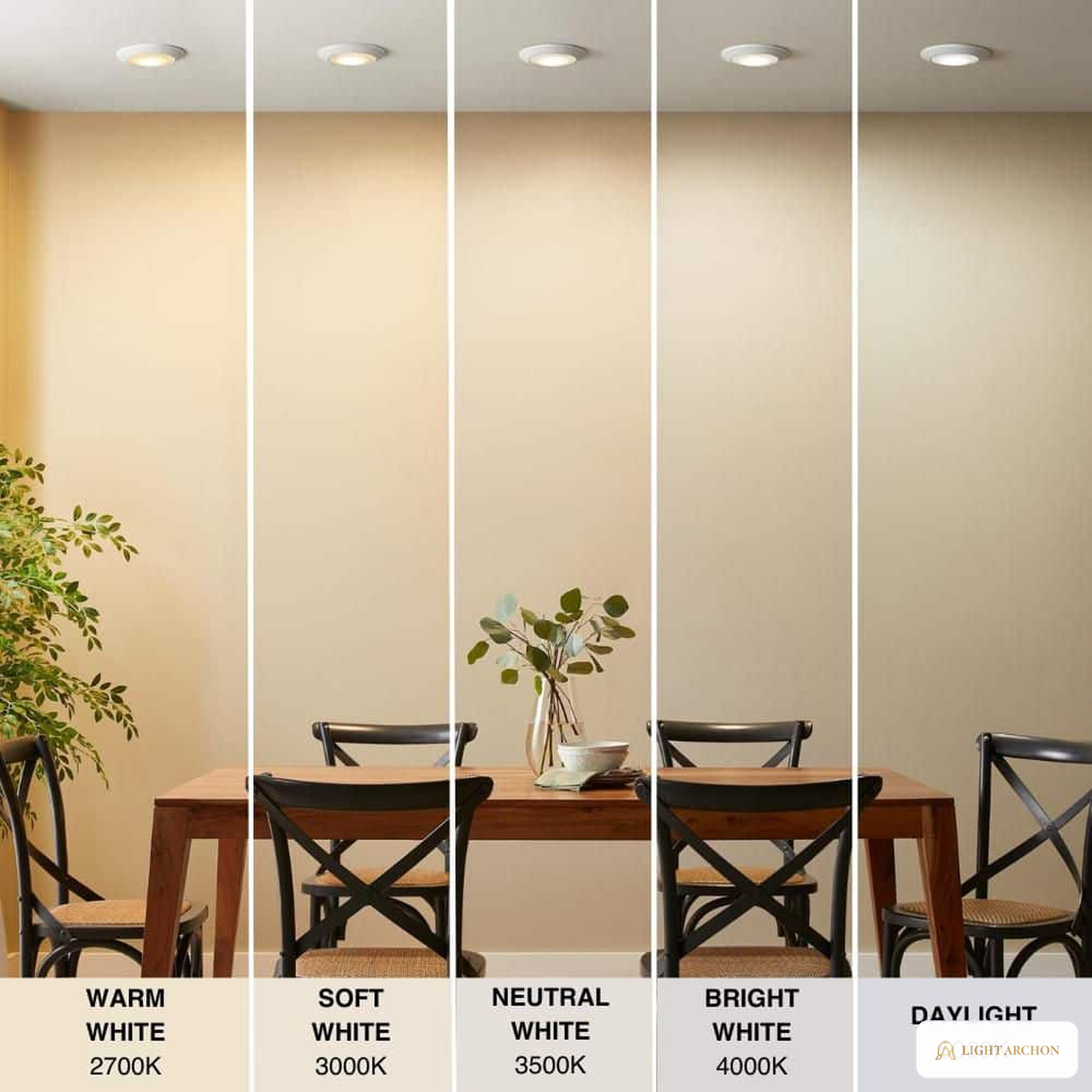

• Five selectable color temperatures: 2700K, 3000K, 3500K, 4000K, and 5000K
• Mounts direct to 3.5 in. and 4 in. round, octagon, and pancake junction boxes with no can needed
• Slim 1.1 in. profile with a 7.4 in. overall trim diameter
• Dims to 10 percent on compatible LED wall dimmers
• Damp rated and suitable for closet use per NEC 410.16 rules
• ETL and FCC listed with a 5 year limited warranty
• 50,000 hour rated life integrated LED with no lamps to replace

Specification Table

Included Components

• LED disk fixture per carton quantity
• Wire connectors, 3 per fixture
• Mounting screws, 2 per fixture
• Quick connect socket harness, 1 per fixture
• Install instructions

Installation Notes

• Shut power at the breaker and verify with a tester before any work at the junction box.
• The keyhole bracket mounts direct to 3.5 in. and 4 in. round, octagon, and pancake boxes; no recessed can or mounting plate is needed.
• Set the lumen and color temperature selectors before final trim closure to the ceiling.
• For closet installs, follow NEC 410.16 spacing rules.
• Confirm dimmer compatibility at quote review; low end is 10 percent on listed LED dimmers.

Warranty and Support

• 5 year limited warranty on the integrated LED assembly
• 50,000 hour rated life at a 3 hour per day duty basis
• Support and replacement paths are confirmed at quote review

Frequently Asked Questions

What box does it mount to?
It mounts direct to 3.5 in. and 4 in. round, octagon, and pancake ceiling junction boxes with the included keyhole bracket, and it can retrofit into existing recessed housings with listed adapter kits where noted.

How do I pick the brightness and color temperature?
Two selectors on the fixture body set output at 600, 900, or 1100 lumens and lock one of five color temperatures from 2700K to 5000K before you close the trim.

Is it dimmable?
Yes. It dims to 10 percent on compatible LED wall dimmers; send your dimmer model with the quote and our team verifies the match at quote review.

Can it go in a bathroom?
Yes. The fixture is damp rated, which covers bathrooms and kitchens; it is not rated for direct water spray zones.

Documents

• Product Submittal Summary (PDF)
• Dimensional & Fit Reference (PDF)
• Installation & Warranty Reference (PDF)

Project pricing, lead time, freight routing, and final configuration are confirmed during quote review before order release.

Support and request quote workflows stay available throughout specification and order planning.
