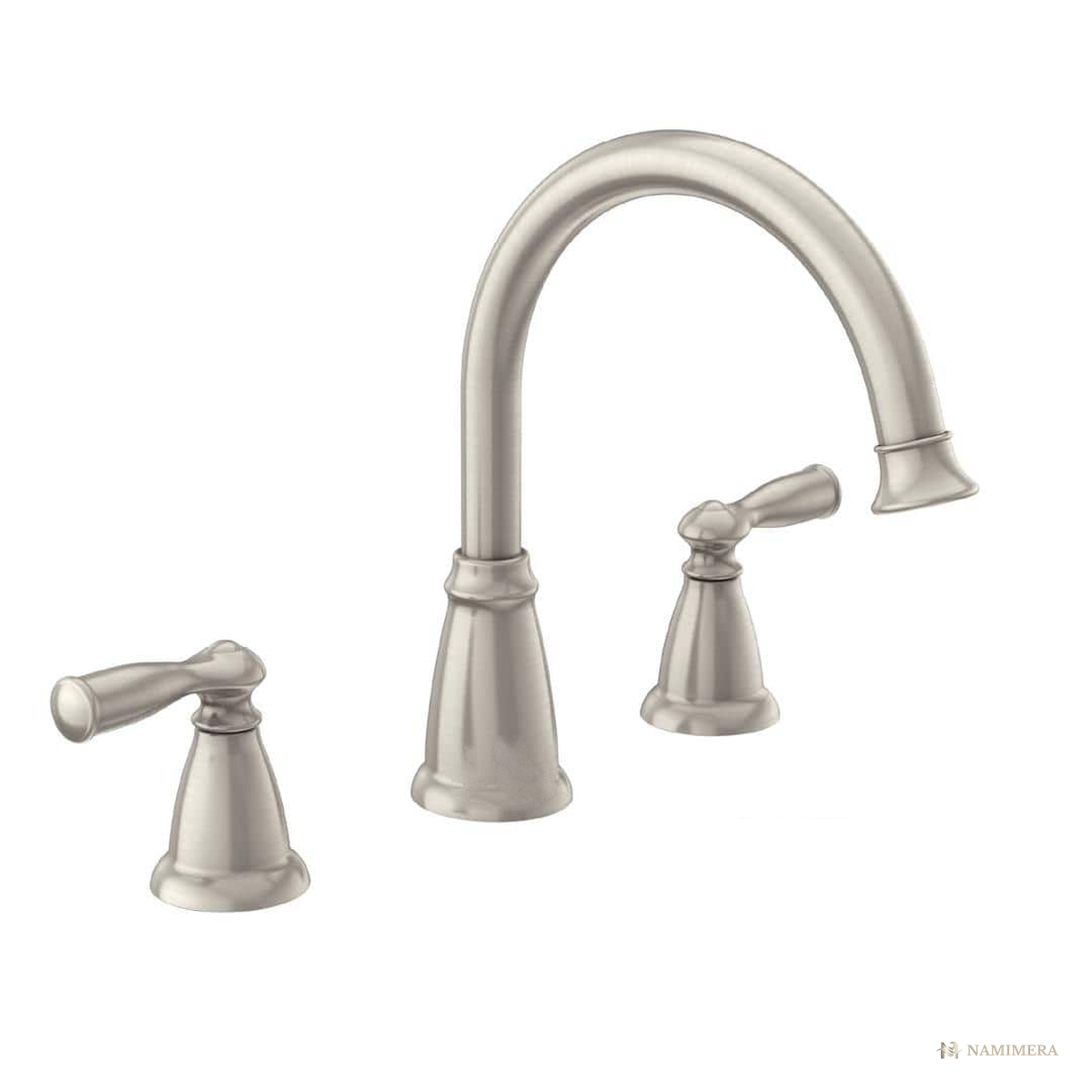

Namimera 2-Handle Deck-Mount High-Arc Roman Tub Faucet with Valve, Brushed Nickel - front view

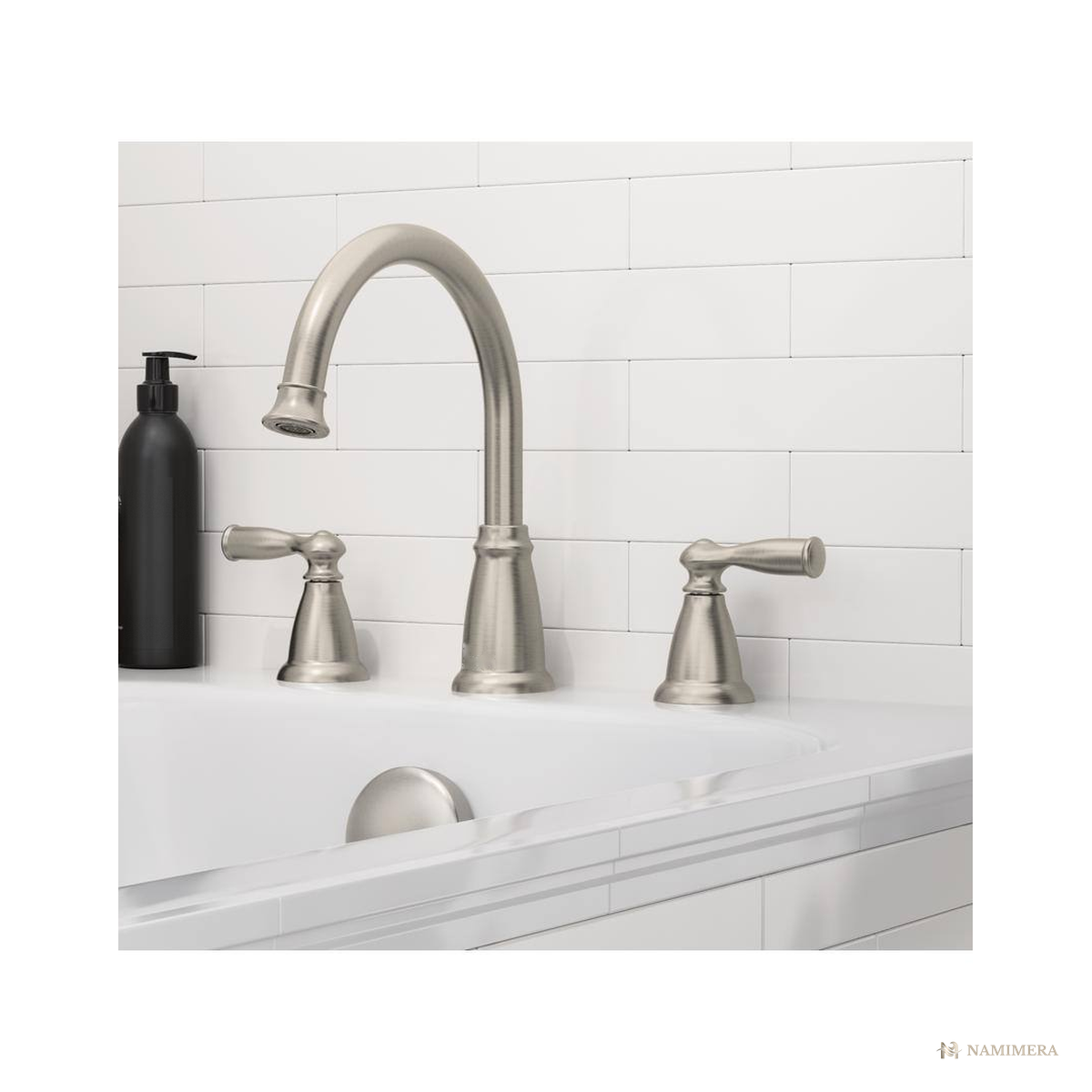

Namimera 2-Handle Deck-Mount High-Arc Roman Tub Faucet with Valve, Brushed Nickel - detail view

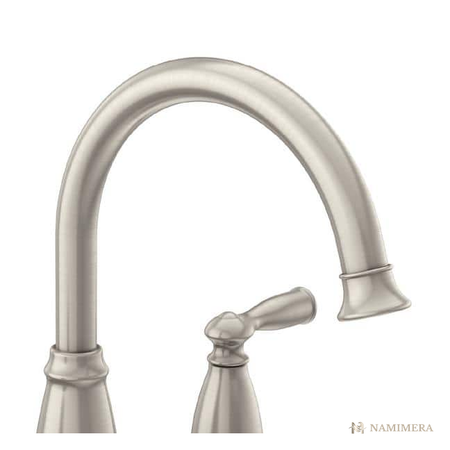

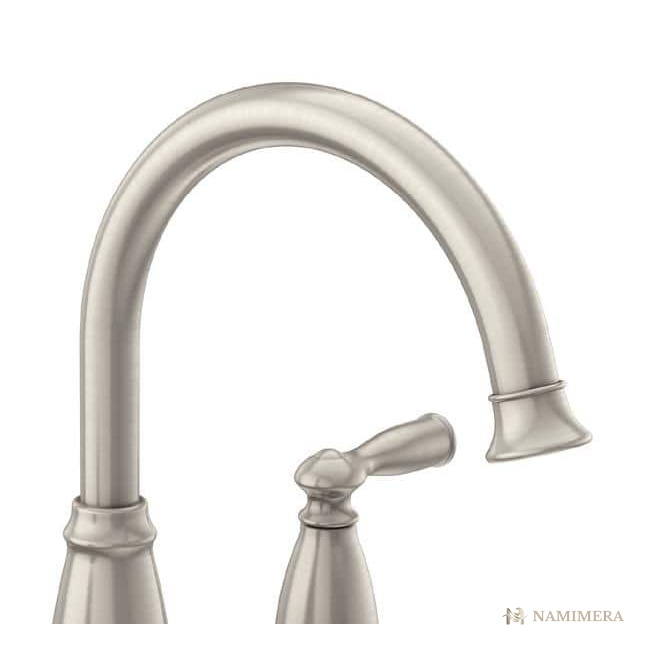

Namimera 2-Handle Deck-Mount High-Arc Roman Tub Faucet with Valve, Brushed Nickel - alternate view
Namimera 2-Handle Deck-Mount High-Arc Roman Tub Faucet with Valve, Brushed Nickel - front view
Namimera 2-Handle Deck-Mount High-Arc Roman Tub Faucet with Valve, Brushed Nickel - detail view
Namimera 2-Handle Deck-Mount High-Arc Roman Tub Faucet with Valve, Brushed Nickel - alternate view

Product image note: Images are representative of product class and finish options. Final model, finish, and included components are confirmed during quote review.

Namimera

Namimera 2-Handle Deck-Mount High-Arc Roman Tub Faucet with Valve, Brushed Nickel

SKU: NM-PLB-TF-DM10-BN-BN
Finish

Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

This contractor-ready product summary covers a deck-mount 2-handle Roman tub faucet with an included valve, 16 GPM flow at 45 psi, 10 in. centers on 3 holes, a 7-1/2 in. spout reach, and decks up to 1-7/8 in. thick, helping plumbing crews and property teams move from review to release with fewer scope gaps.

Highlights

  • Deck-mount valve included; no separate rough-in line to source
  • 16 GPM flow at 45 psi fills large soaking tubs quickly
  • High-arc spout with 7-1/2 in. reach and 5-3/4 in. height
  • 3-hole installation on 10 in. centers
  • Fits mounting decks up to 1-7/8 in. thick
  • 2-handle lever operation, ADA compliant
  • Brushed nickel finish resists fingerprints and water spots
  • ASME A112.18.1/CSA B125.1 compliant

Specification Table

Flow rate 16 GPM at 45 psi
Valve included Yes, deck-mount valve in box
Centers 10 in., 3 holes
Spout reach 7-1/2 in.
Spout height 5-3/4 in.
Overall height 10 in.
Max deck thickness 1-7/8 in.
Handles 2 levers, ADA compliant
Body material Metal, stainless and nonmetallic cartridge
Certifications ASME A112.18.1/CSA B125.1, ADA
Warranty Lifetime limited, original homeowner

Included Equipment

  • Roman tub spout
  • Two lever handles
  • Deck-mount valve assembly
  • Installation instructions

Installation Notes

  • Drill three deck holes on 10 in. centers and confirm deck thickness at or under 1-7/8 in.
  • Plan under-deck access for the valve body and supply connections before setting the tub apron.
  • Flush supplies before final connection to protect the cartridge.
  • Rough-in and final connection should be completed by a qualified, licensed plumber.
  • Review the final finish selection and accessory bundle during quote review before order release.

Warranty and Support

  • Published warranty coverage: lifetime limited warranty for the original homeowner, 10 years multifamily, 5 years other commercial
  • Replacement cartridges and handle parts are supported through quote review
  • Final warranty registration and coverage documents are confirmed during quote review.

Frequently Asked Questions

Is the valve included?
Yes. The deck-mount valve assembly ships with the spout and handles in one box.

How fast does it fill a tub?
The published specification summary lists 16 GPM at 45 psi, sized for large Roman and soaking tubs.

What hole layout does it need?
Three deck holes on 10 in. centers, with deck thickness up to 1-7/8 in.

What should be confirmed before ordering?
Deck hole layout, under-deck access, supply sizing for the 16 GPM fill rate, and the finish selection are confirmed during quote review.

Documents
  • Type Roman Tub Faucet
  • SKU NM-PLB-TF-DM10-BN-BN

Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
