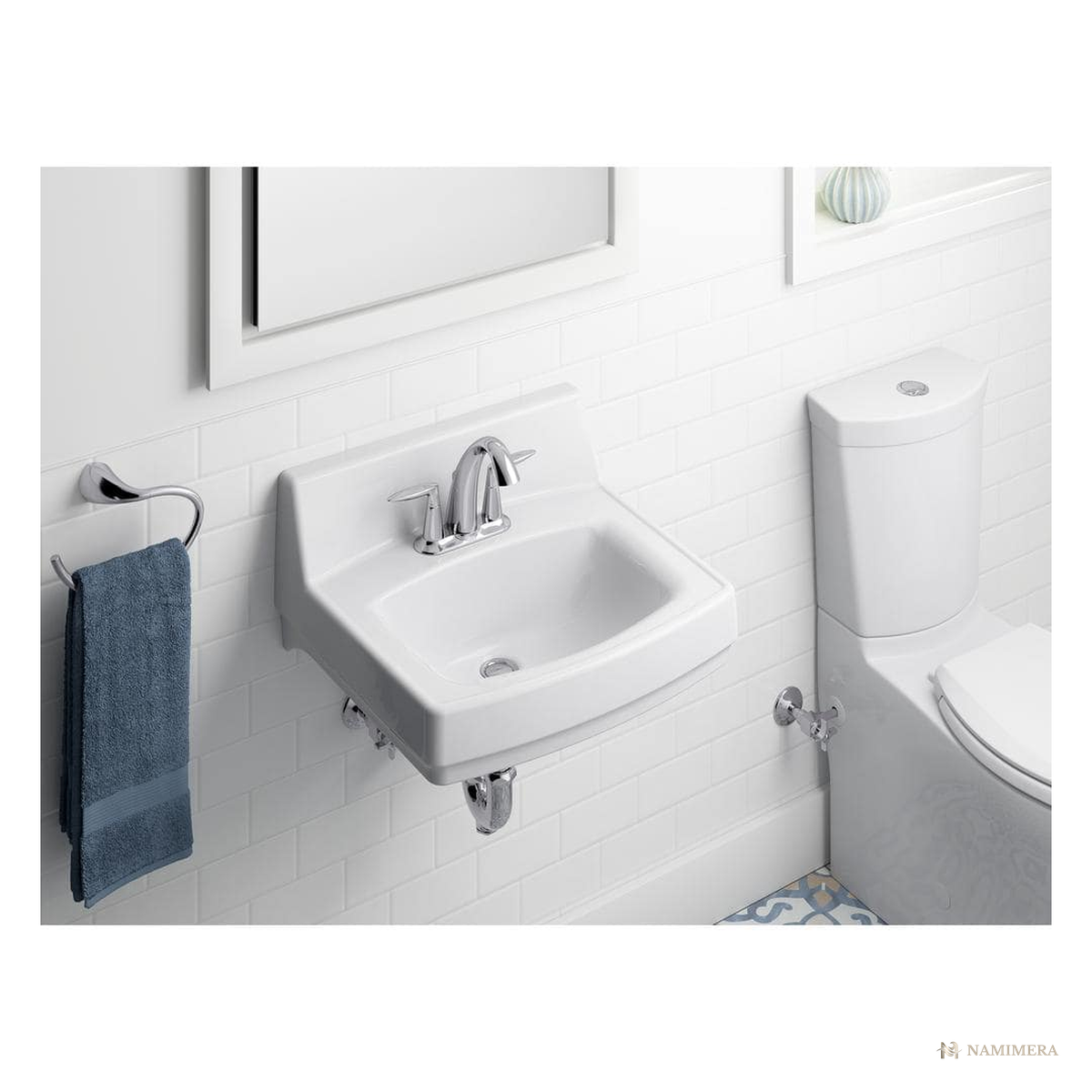

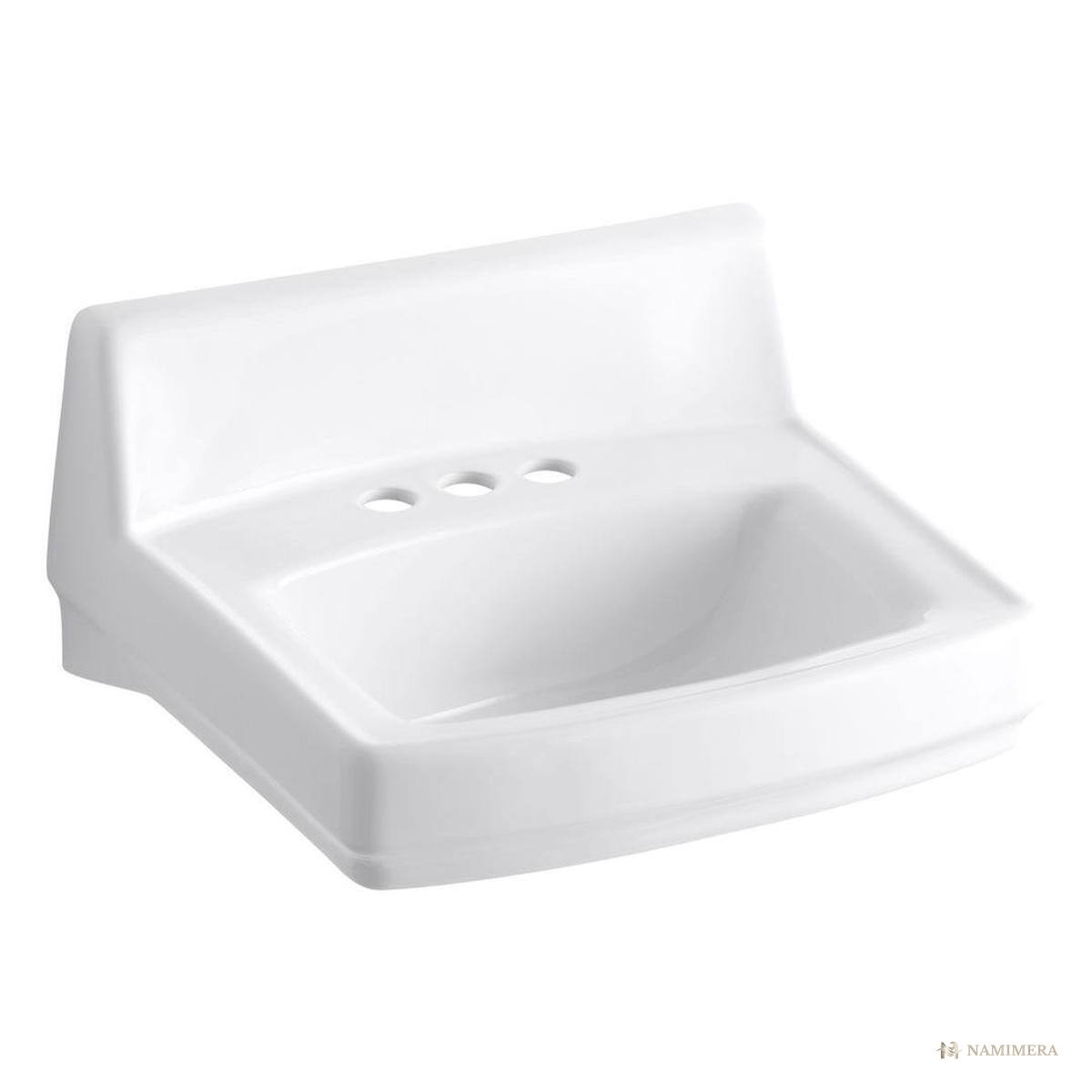

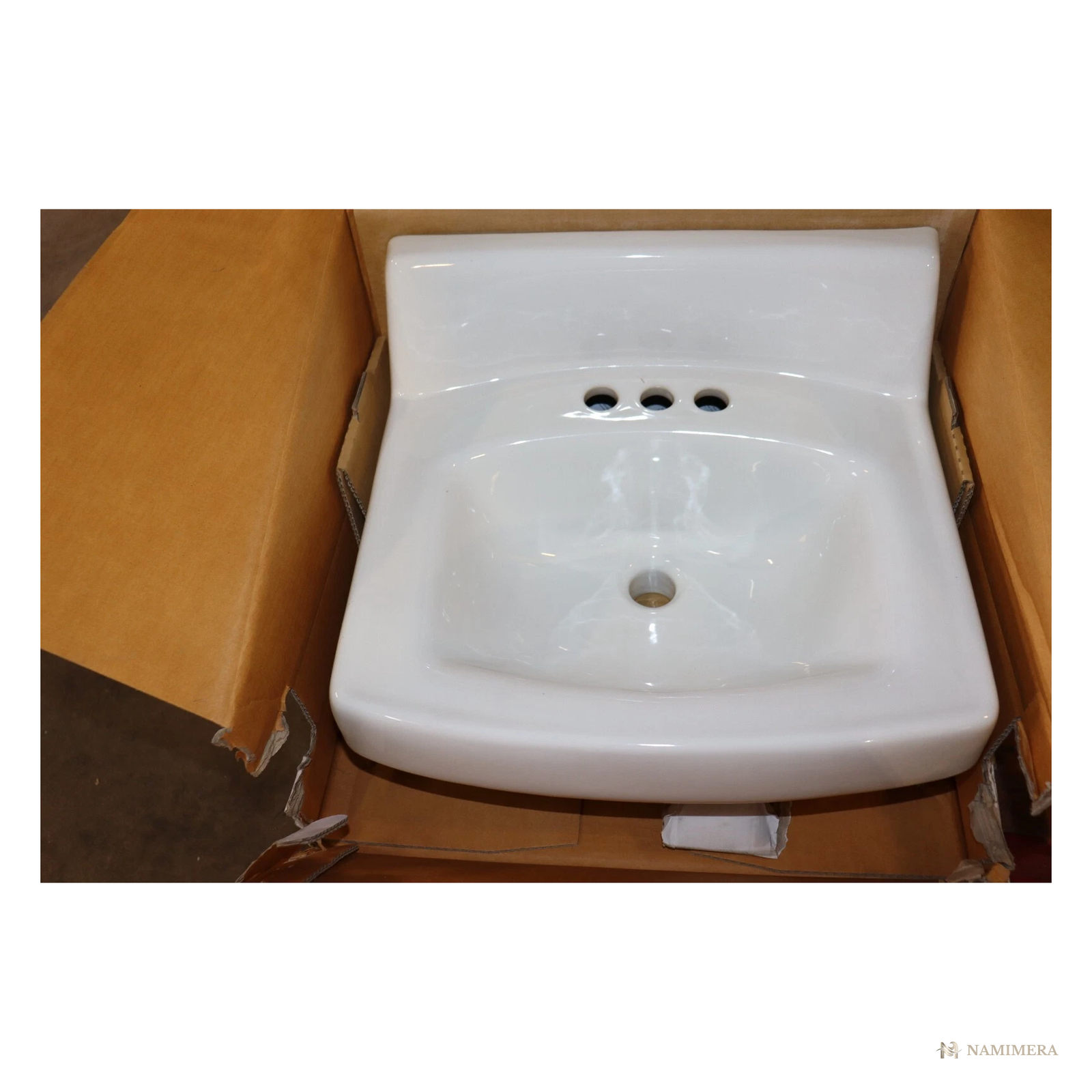

Namimera 20-3/4 in. Wall-Mount Vitreous China Bathroom Sink, 4 in. Centerset, White
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
This contractor-ready product summary covers a 20-3/4 x 18-1/4 in. wall-mount vitreous china bathroom sink with a 10 x 15 in. basin, 3 holes on 4 in. centers, an overflow, a 1-3/4 in. drain hole, and concealed in-wall support drilling, helping kitchen and bath programs move from review to release with fewer scope gaps.
Highlights
- Wall-mount body keeps the floor clear for cleaning and accessibility
- Commercial-grade vitreous china stands up to high-volume use
- 10 x 15 in. basin with 3-1/4 in. water depth and overflow
- 3 faucet holes on 4 in. centers plus a soap or lotion dispenser hole
- Drilled for optional concealed in-wall support arm installation
- Includes wall hanger; 34 in. rim height per the installation drawing
- ADA compliant when installed per the applicable requirements; IAPMO certified
Specification Table
| Overall dimensions | 20-3/4 x 18-1/4 in. |
| Overall height | 12-7/8 in. |
| Bowl dimensions | 10 x 15 in. |
| Water depth | 3-1/4 in. |
| Material | Vitreous china |
| Faucet holes | 3 on 4 in. centers, 1-1/4 in. dia.; soap hole 1-1/4 in. |
| Overflow | Yes |
| Drain hole | 1-3/4 in.; drain not included |
| Mounting | Wall hanger included; concealed in-wall support drilling |
| Rim height | 34 in. per installation drawing |
| Certifications | ASME A112.19.2/CSA B45.1; ADA; ICC/ANSI A117.1; OBC; IAPMO |
| Warranty | Lifetime limited warranty, vitreous china |
Included Equipment
- Vitreous china sink body
- Wall hanger
Installation Notes
- Anchor into solid blocking or a concealed in-wall support frame; the sink hangs on the included wall hanger at a 34 in. rim height per the roughing drawing.
- For accessible installs, verify knee clearance and mounting height against the applicable ADA requirements before setting blocking.
- Faucet and drain are sold separately; the deck takes a 4 in. centerset faucet and the drain hole is 1-3/4 in.
- Final drain and supply connections should be completed by a qualified, licensed plumber.
- Review the final mounting method and accessory bundle during quote review before order release.
Warranty and Support
- Published warranty coverage: lifetime limited warranty on vitreous china fixtures per distributor spec listings; one-year limited terms are also cited for commercial applications
- Final warranty registration and coverage documents are confirmed during quote review
Frequently Asked Questions
Does it need in-wall support?
The included wall hanger handles standard blocking installs; the body is also drilled for an optional concealed in-wall support arms in commercial walls. The mounting method is confirmed during quote review.
Is it ADA compliant?
The published specification summary lists ADA, ICC/ANSI A117.1, and OBC compliance when installed to those requirements, plus ASME A112.19.2/CSA B45.1 and IAPMO listing.
What faucet and drain fit?
A 4 in. centerset faucet across the 3 deck holes and a 1-3/4 in. drain, both ordered separately.
How high should it mount?
The installation drawing shows a 34 in. rim height; accessible installs should confirm height and clearances during quote review.
Documents
- Type Wall-Mount Bathroom Sink
- SKU NM-PLB-SK-WM21-WH-WH
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
