Namimera 23 in. Rectangular Vitreous China Vessel Bathroom Sink, White
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

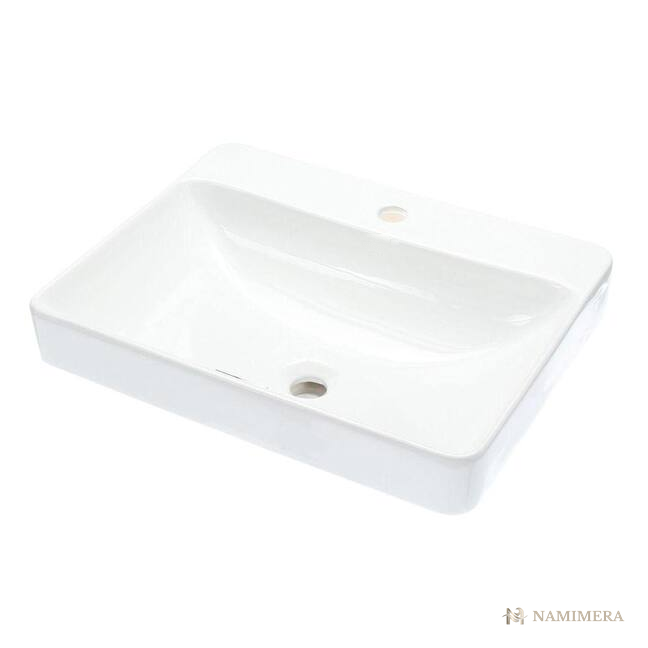

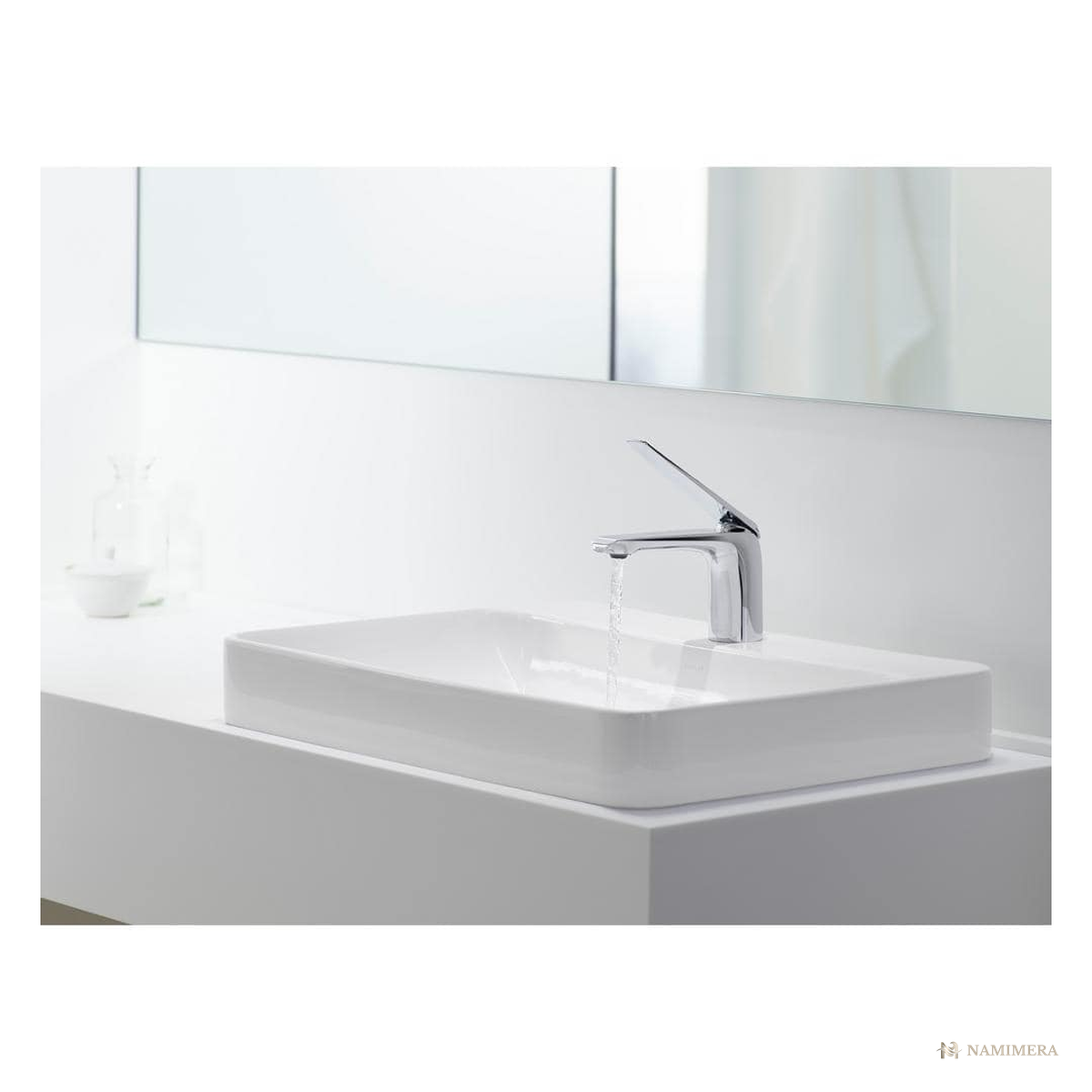

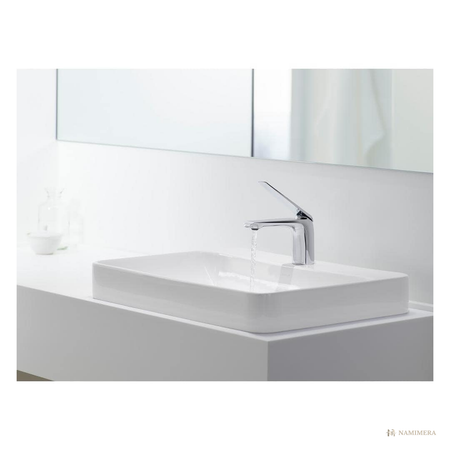

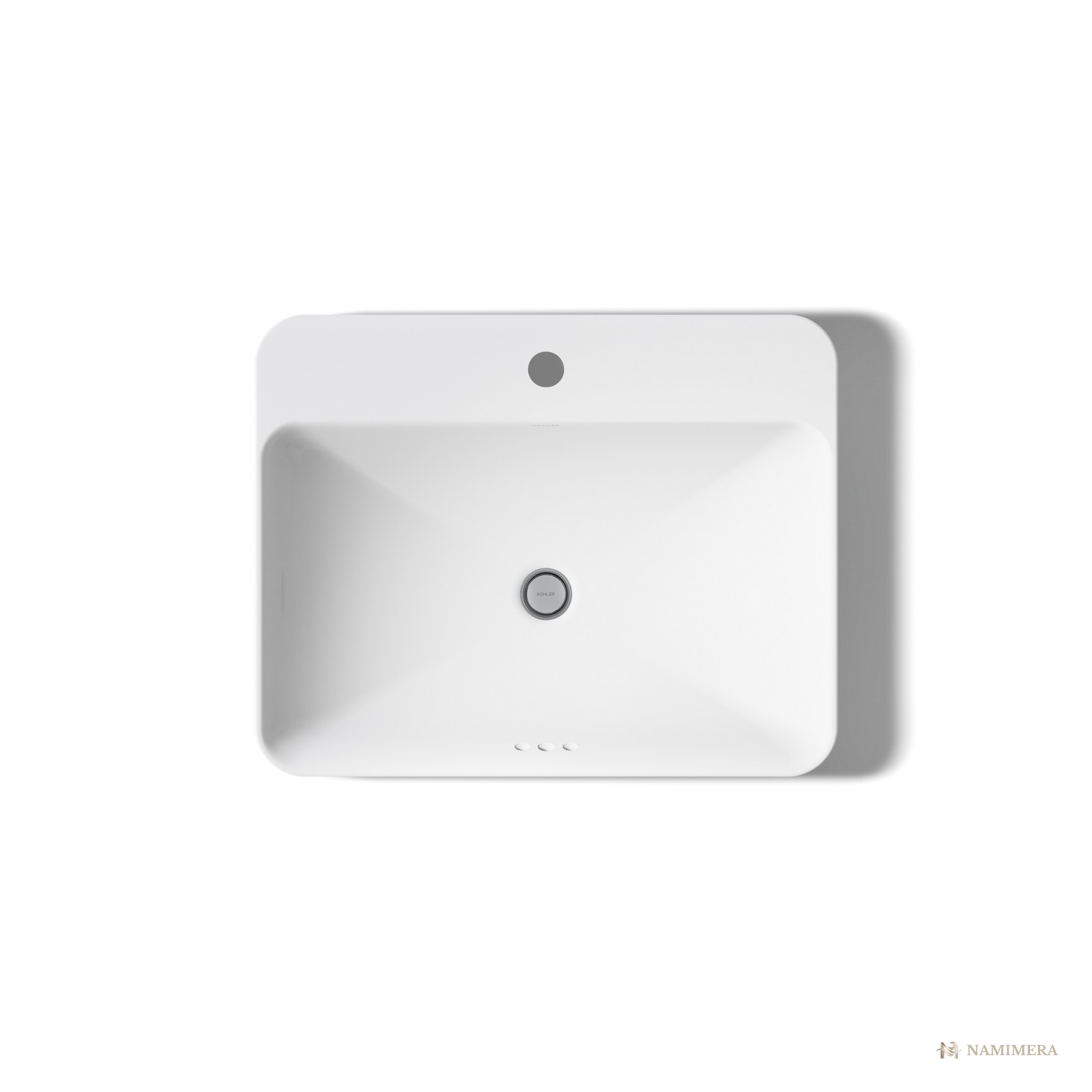

This designer-ready product summary covers a 23 x 18-1/8 x 6-7/8 in. above-counter rectangular vitreous china vessel sink with a 22 x 13-1/4 in. basin, single 1-3/8 in. faucet hole, overflow drain, and included cutout template, helping kitchen and bath programs move from review to release with fewer scope gaps.
Highlights
- Wide 22 x 13-1/4 in. basin with a low-profile 6-7/8 in. rise
- Above-counter vessel installation makes the basin a design focal point
- Integrated rear deck carries a single 1-3/8 in. faucet hole
- Overflow drain protects against accidental overfill, uncommon on vessel bowls
- Durable glazed vitreous china in white
- ADA and CSA B651 compliant when installed to the specific requirements of these regulations
Specification Table
| Overall dimensions | 23 x 18-1/8 x 6-7/8 in. |
| Bowl dimensions | 22 x 13-1/4 in. |
| Water depth | 3-3/4 in. |
| Material | Vitreous china |
| Mounting | Above-counter vessel over a template cutout |
| Faucet holes | 1 hole, 1-3/8 in., on the integrated deck |
| Overflow | Yes |
| Drain hole | 1-3/4 in. |
| Cutout template | Required, included |
| Accessibility | ADA and CSA B651 compliant when installed per regulation requirements |
| Warranty | 1-year limited warranty |
Included Equipment
- Vitreous china vessel basin
- Cutout template
- Installation guide
Installation Notes
- Use the included cutout template for the counter opening; the basin rests on the countertop rather than hanging from it.
- Account for the 6-7/8 in. basin rise when setting counter height so the finished rim lands at a comfortable level.
- Choose a faucet with enough reach and clearance to direct water at the basin center; the deck accepts one 1-3/8 in. faucet.
- Final drain and supply connections should be completed by a qualified, licensed plumber.
- Review the final configuration and accessory bundle during quote review before order release.
Warranty and Support
- Published warranty coverage: 1-year limited warranty on the china basin
- Final warranty registration and coverage documents are confirmed during quote review
Frequently Asked Questions
Does the faucet mount in the sink or the counter?
In the sink. The vessel carries an integrated rear deck with a single 1-3/8 in. faucet hole, so no separate counter drilling is needed for the faucet.
Does it have an overflow?
Yes. Unlike many vessel bowls, this basin includes an overflow drain; pair it with an overflow-compatible drain assembly.
How tall does the finished installation sit?
The basin rises 6-7/8 in. above the counter. Plan the vanity height so the finished rim lands at a comfortable level, and to ADA requirements where applicable.
Documents
- Type Vessel Bathroom Sink
- SKU NM-PLB-SK-VS23-WH-WH
Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
