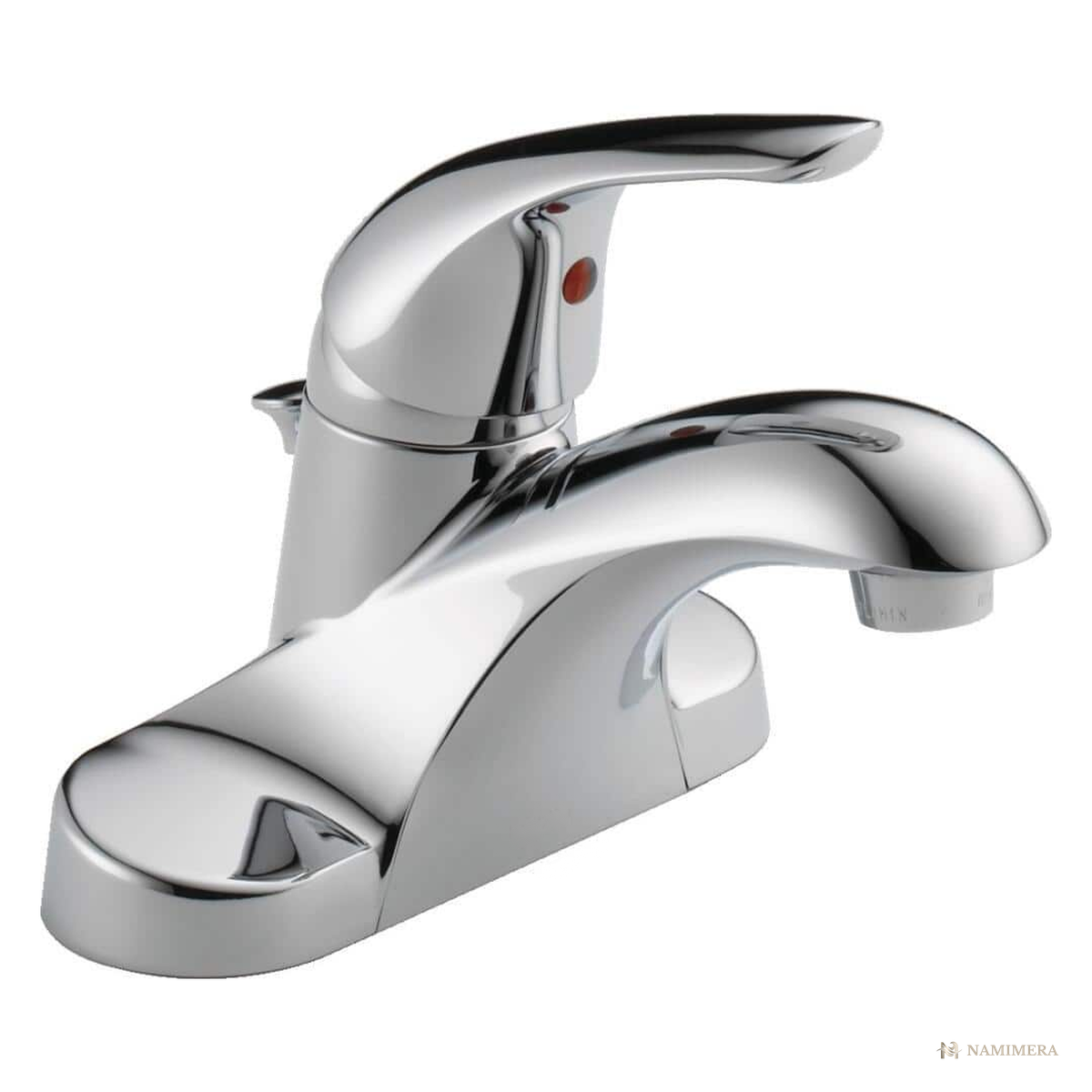

Namimera 4 in. Centerset Single-Handle Bathroom Faucet with Drain, 1.2 GPM, Polished Chrome - front view

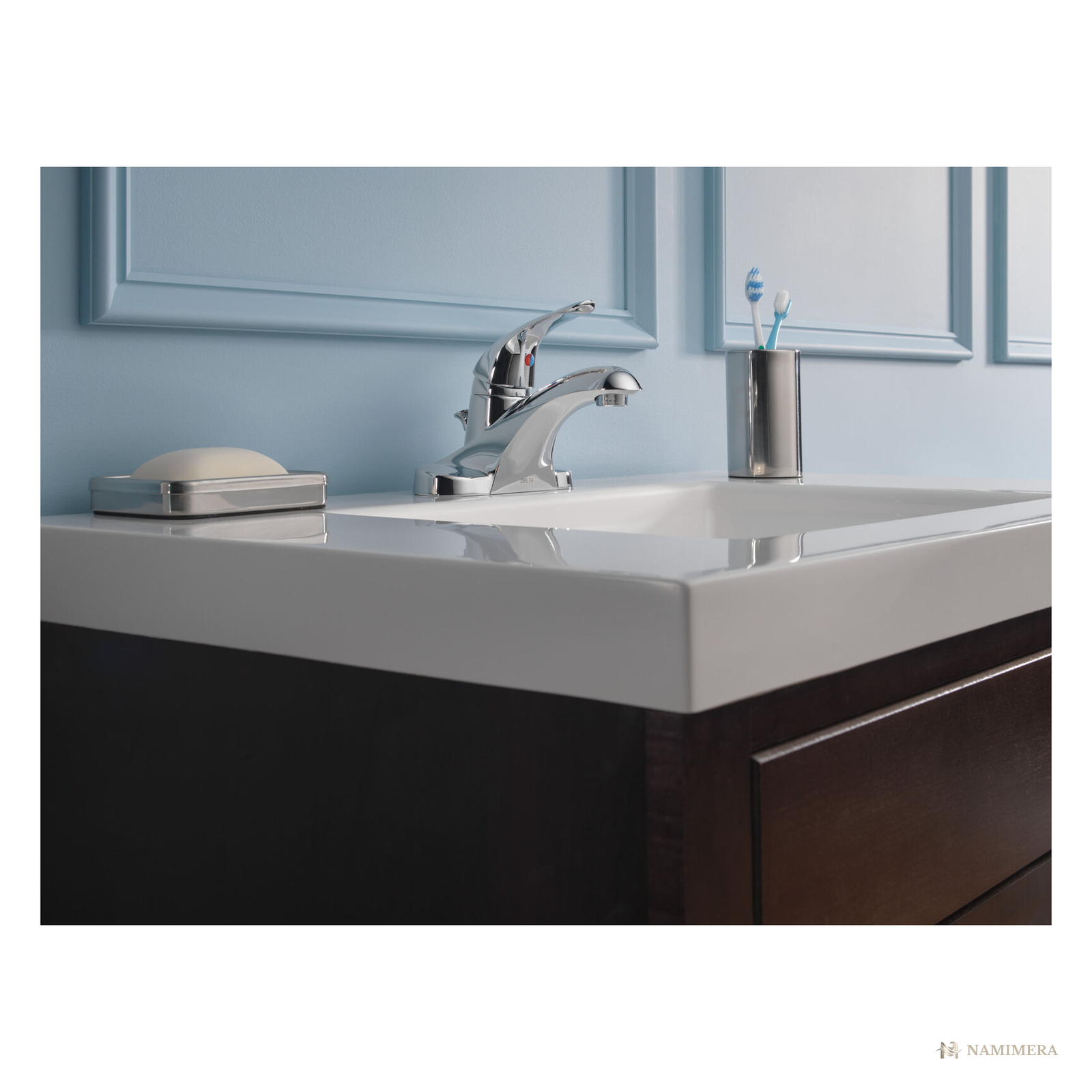

Namimera 4 in. Centerset Single-Handle Bathroom Faucet with Drain, 1.2 GPM, Polished Chrome - alternate view

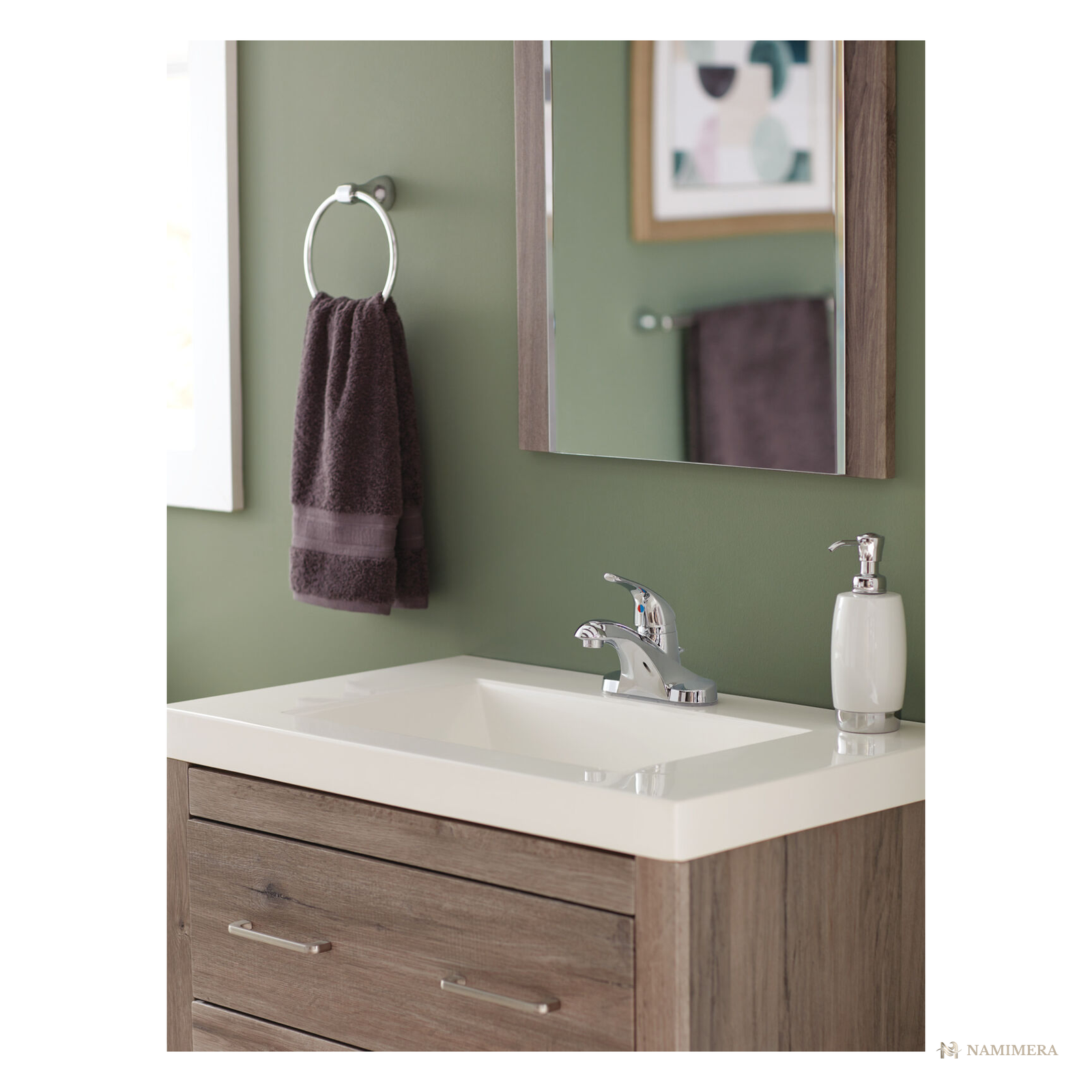

Namimera 4 in. Centerset Single-Handle Bathroom Faucet with Drain, 1.2 GPM, Polished Chrome - installed view
Namimera 4 in. Centerset Single-Handle Bathroom Faucet with Drain, 1.2 GPM, Polished Chrome - front view
Namimera 4 in. Centerset Single-Handle Bathroom Faucet with Drain, 1.2 GPM, Polished Chrome - alternate view
Namimera 4 in. Centerset Single-Handle Bathroom Faucet with Drain, 1.2 GPM, Polished Chrome - installed view

Product image note: Images are representative of product class and finish options. Final model, finish, and included components are confirmed during quote review.

Namimera

Namimera 4 in. Centerset Single-Handle Bathroom Faucet with Drain, 1.2 GPM, Polished Chrome

SKU: NM-PLB-BF-CS4S-PC-PC
Finish

Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

This property-team-ready product summary covers a 4 in. centerset single-handle lavatory faucet with WaterSense-certified 1.2 GPM flow at 60 psi, a solid brass body with stainless steel ball valve, a matching pop-up drain, and 1/2 in. IPS connections, helping kitchen and bath programs move from review to release with fewer scope gaps.

Highlights

  • WaterSense certified at 1.2 GPM, 60 psi
  • Single lever handle controls flow and temperature with one motion
  • Stainless steel ball valve tested to 500,000 cycles
  • Solid brass fabricated body with corrosion-resistant polished chrome
  • Matching pop-up drain assembly included in the carton
  • Fits standard 3-hole sinks with 4 in. centers
  • ADA compliant; NSF/ANSI 61 and 372 lead-free compliant

Specification Table

Flow rate 1.2 GPM at 60 psi
Valve Stainless steel ball valve
Mounting 3-hole, 4 in. centerset
Overall height 7.13 in.
Spout height 2.63 in. to spout outlet
Spout reach 4.25 in. from base center
Body material Solid brass
Drain Matching pop-up drain included
Supply connections 1/2 in. IPS
Max deck thickness 1.25 in.
Certifications WaterSense, ADA, NSF/ANSI 61 and 372
Warranty Lifetime limited warranty

Included Equipment

  • Centerset faucet body with single lever handle
  • Matching-finish pop-up drain assembly with lift rod
  • Mounting nuts and gaskets
  • Installation guide

Installation Notes

  • Confirm a 3-hole sink with 4 in. centers and holes 1.13 to 1.5 in. in diameter before ordering trim.
  • Deck thickness up to 1.25 in. is supported; thicker vanity tops need a thick-deck kit reviewed at quote.
  • Shut off supplies and verify 1/2 in. IPS connections at the stops before removal of the old faucet.
  • Install the pop-up drain with the seal seated before connecting the lift rod.
  • Review the final finish selection and accessory bundle during quote review before order release.

Warranty and Support

  • Published warranty coverage: lifetime limited warranty on parts and finish to the original purchaser
  • Replacement aerators, valves, and drain components are supported through quote review
  • Final warranty registration and coverage documents are confirmed during quote review

Frequently Asked Questions

Does it fit my sink?
It fits standard 3-hole lavatory sinks with 4 in. centers. Single-hole sinks are not compatible with this centerset body.

Is a drain included?
Yes. A matching polished chrome pop-up drain assembly ships in the carton.

Is the flow rate code-compliant?
The published specification summary lists WaterSense-certified 1.2 GPM at 60 psi, which meets common state efficiency requirements. Local code should be confirmed during quote review.

What should be confirmed before ordering?
Hole spacing, deck thickness, and supply connection type, together with the finish selection during quote review.

Documents
  • Type Centerset Bathroom Faucet
  • SKU NM-PLB-BF-CS4S-PC-PC

Download the available product documents below. If a document is not linked yet, use the SKU during quote review.
