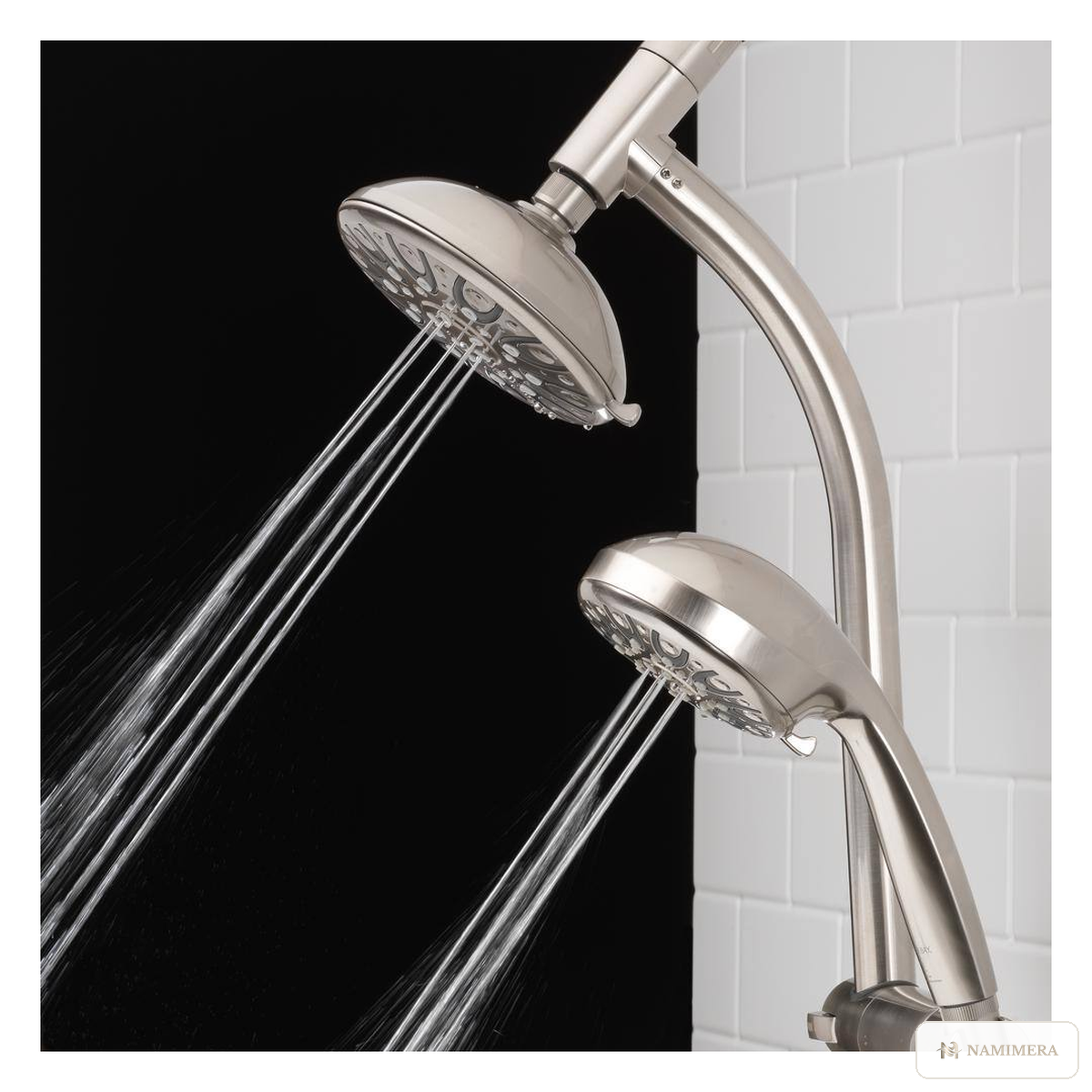

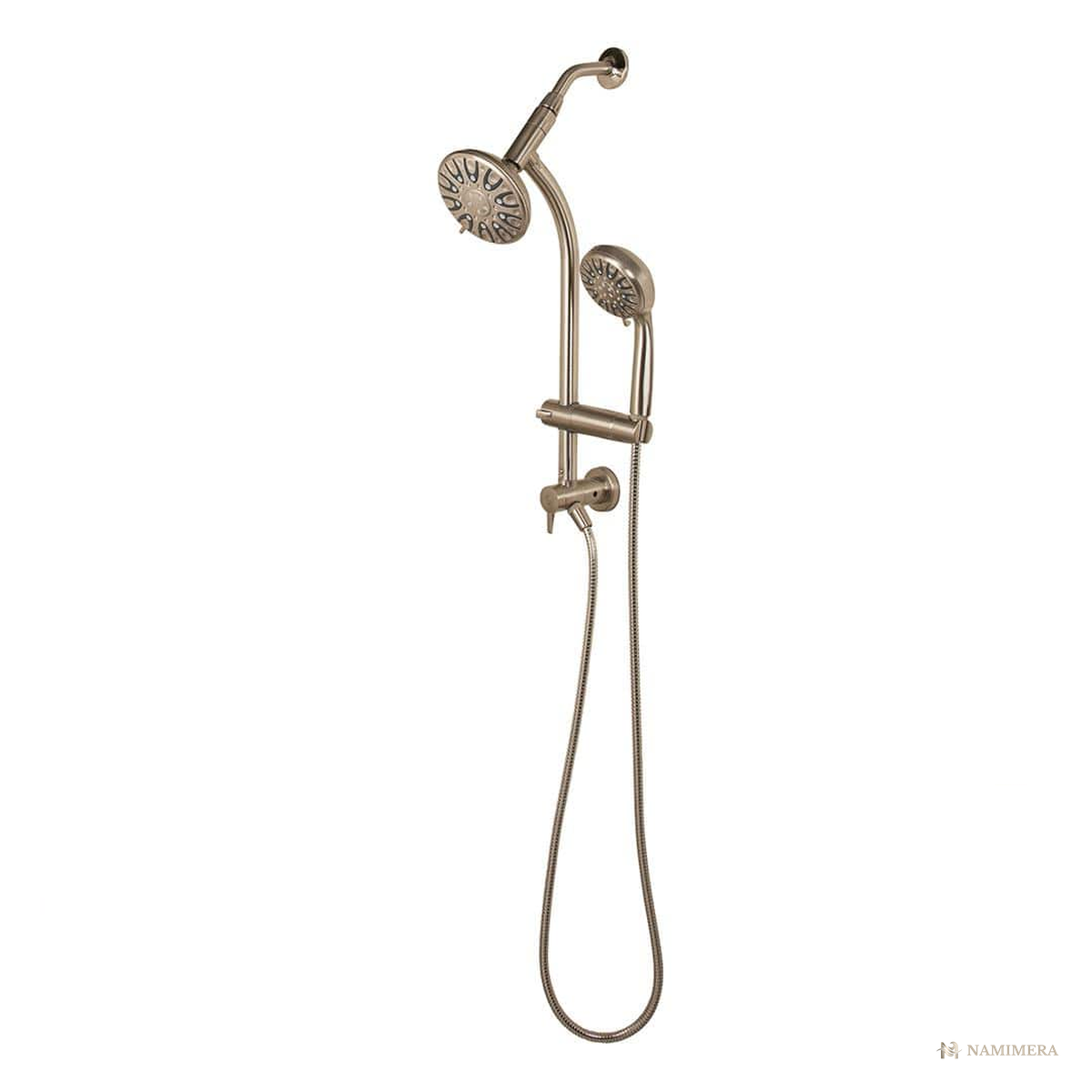

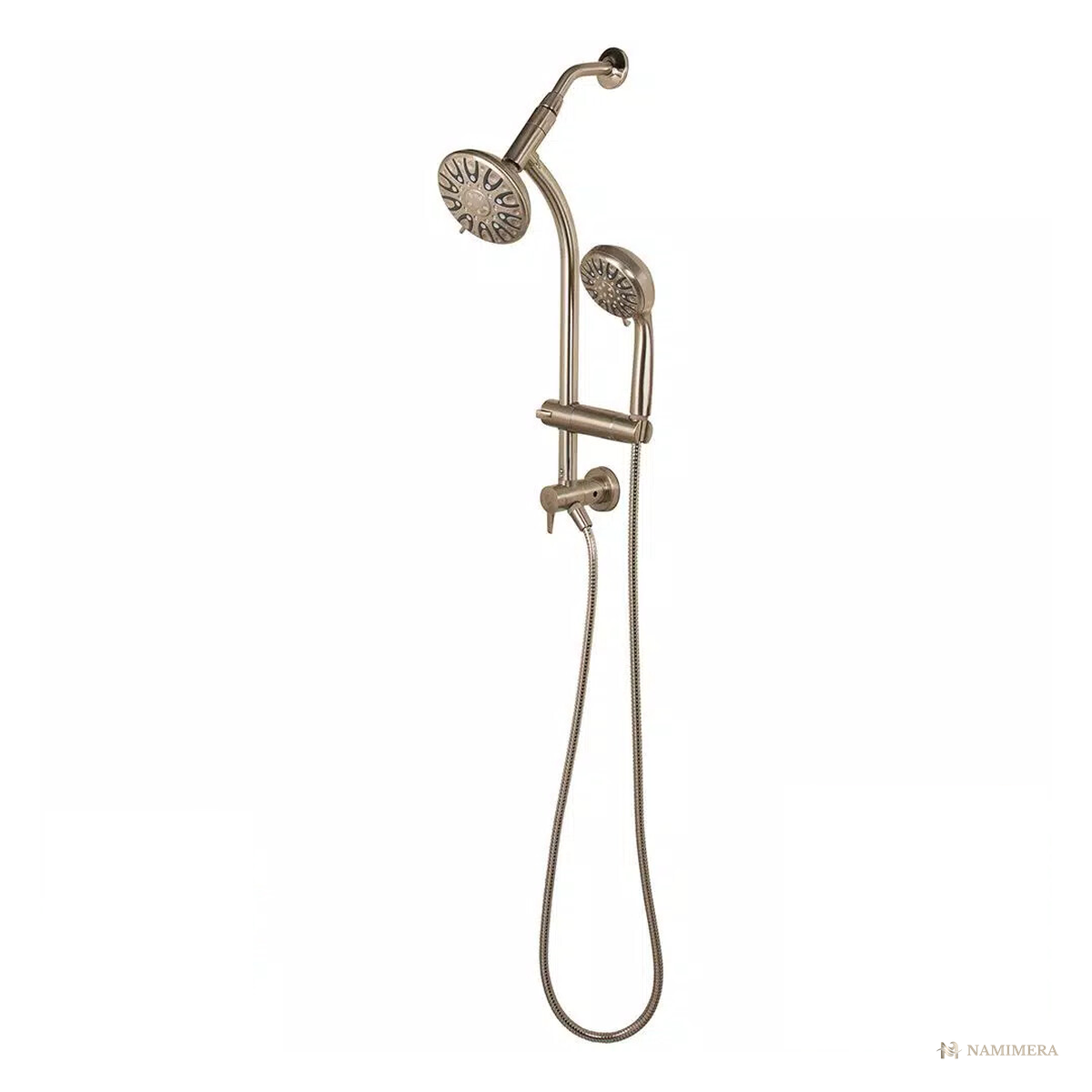

Namimera 6-Spray Wall Bar Shower Kit with Rain Head and Handheld, 1.8 GPM, Brushed Nickel
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.
This contractor-ready product summary covers a 24 in. wall bar shower kit with a 6 in. rain-style fixed head, a six-setting handheld on a 60 in. stainless steel hose, a 3-way diverter, and 1.8 GPM WaterSense flow at 80 psi, helping plumbing crews and property teams move from review to release with fewer scope gaps.
Highlights
- Rain-style 6 in. fixed head plus handheld shower from one arm connection
- 3-way diverter runs the fixed head, the handheld, or both together
- 6 spray settings on each head, including pause
- 24 in. sliding bar sets handheld height for seated or child use
- 60 in. no-kink stainless steel hose reaches the full tub
- Installs on the existing shower arm; no in-wall work
- 1.8 GPM maximum flow at 80 psi, WaterSense and cUPC listed
- Brushed nickel finish
Specification Table
| Configuration | Wall bar kit: rain-style fixed head plus handheld |
| Flow rate | 1.8 GPM max at 80 psi |
| Fixed head | 6 in. face diameter |
| Spray settings | 6 per head, including pause |
| Diverter | 3-way at bar base: fixed, handheld, or both |
| Bar | 24 in. sliding, push-button holder adjustment |
| Hose | 60 in. no-kink stainless steel |
| Connection | 1/2 in., existing shower arm |
| Valve | Not included; existing shower valve reused |
| Certifications | WaterSense, cUPC |
| Warranty | Limited lifetime |
Included Equipment
- Rain-style fixed shower head
- Handheld shower head
- 24 in. shower bar with 3-way diverter
- Adjustable handheld holder
- 60 in. stainless steel hose
- Shower arm connector, lock nut, and pre-installed adhesive pad
Installation Notes
- Requires an existing, serviceable shower valve and arm; this kit does not include a rough-in valve.
- Shut off water at the supply, remove the old head, and clean the arm threads before installing the arm connector.
- The bar mounts to the shower arm with the pre-installed adhesive pad; use the included anchors for permanent placement.
- Hand-tighten hose nuts with the rubber washers seated; do not overtighten.
- Review the final finish selection and accessory bundle during quote review before order release.
Warranty and Support
- Published warranty coverage: limited lifetime warranty
- Replacement hoses, holders, and washers are supported through quote review
- Final warranty registration and coverage documents are confirmed during quote review.
Frequently Asked Questions
Does this include the shower valve?
No. The kit installs on the existing shower arm and uses the existing shower valve.
Can both heads run at the same time?
Yes. The 3-way diverter at the bar base runs the fixed head, the handheld, or both together.
Does the bar require drilling?
The bar attaches to the shower arm with a pre-installed adhesive pad for tool-free installation; included screws and anchors are an option for permanent mounting.
What should be confirmed before ordering?
Existing valve condition, arm thread fit, handheld height range for the users, and the finish selection are confirmed during quote review.
Documents
- Type Wall Bar Shower Kit
- SKU NM-PLB-SH-WB24-BN-BN
