Namimera Air-Assist One-Piece Elongated Toilet, 1.0 GPF, 12 in. Rough-In, White
Reviewed pricing, lead time, freight, and final configuration are confirmed during quote review before order release.

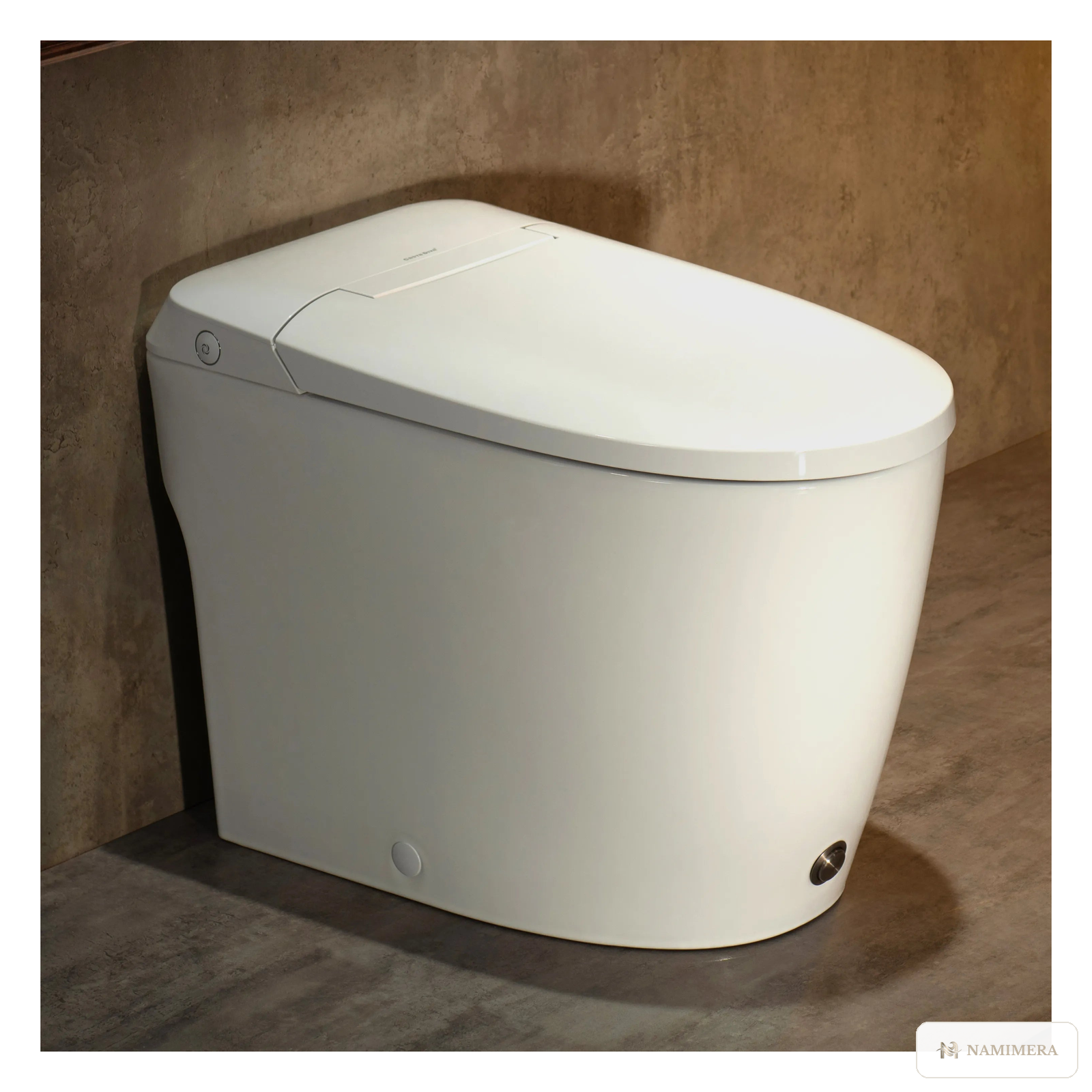

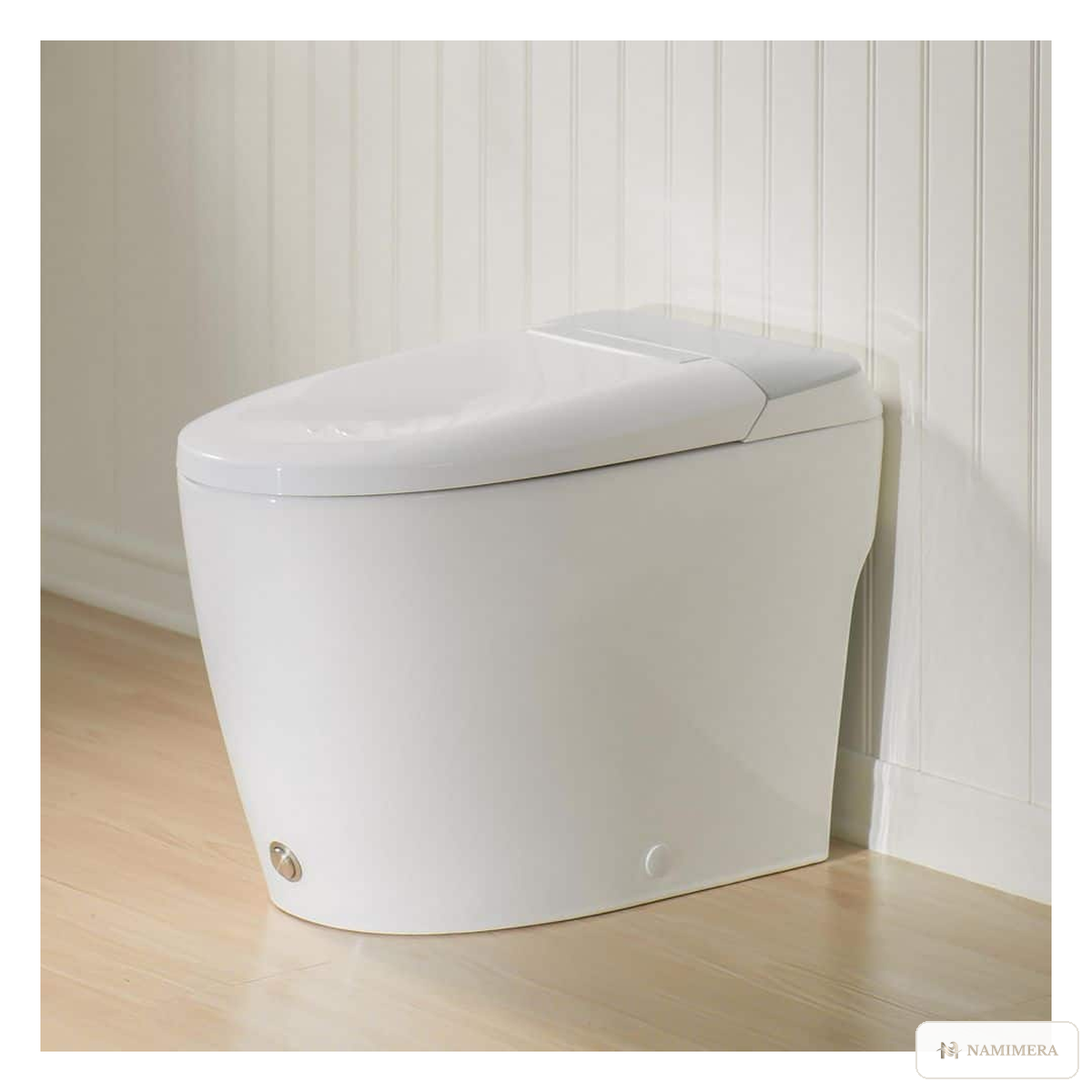

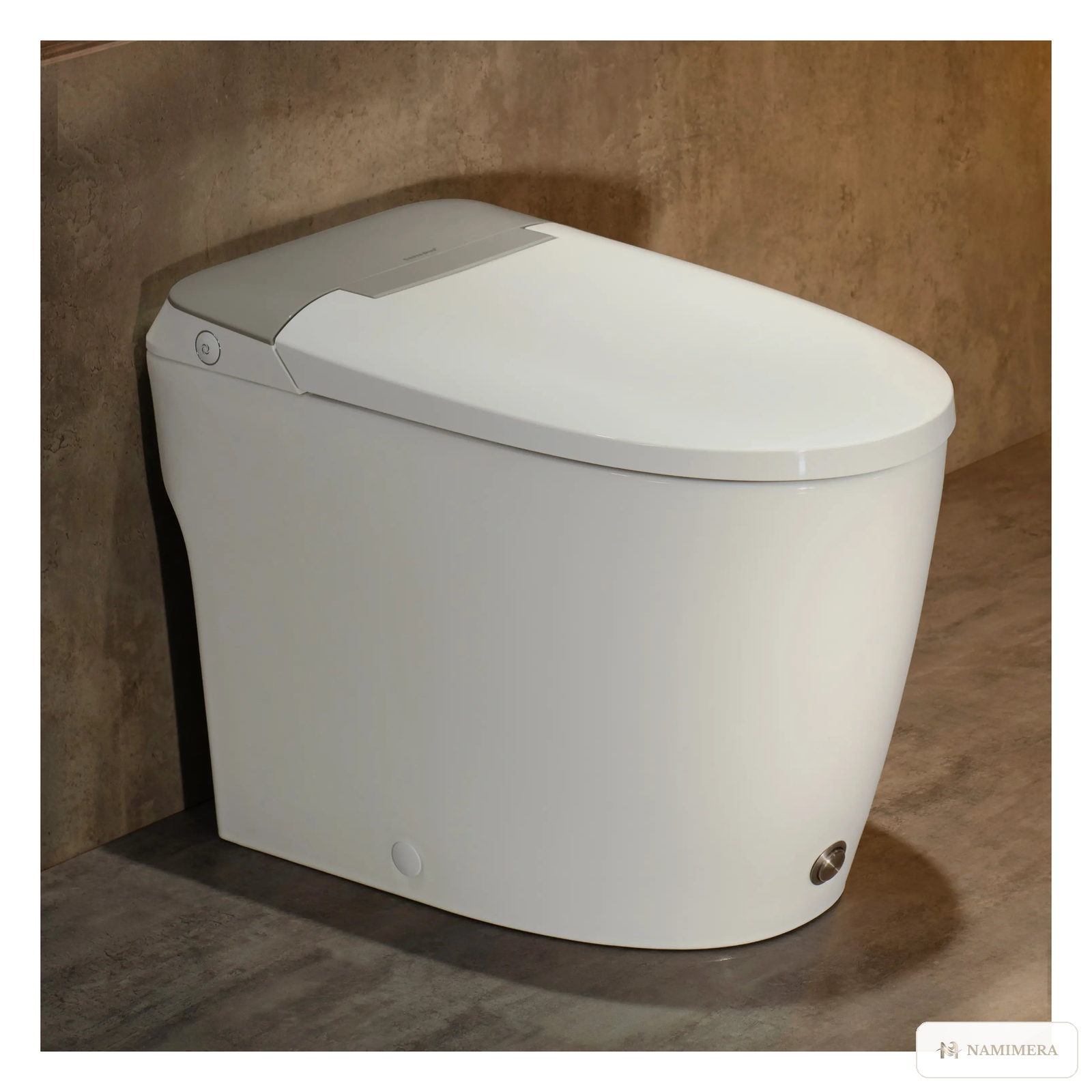

This designer-ready product summary covers a one-piece skirted ceramic toilet with air-pressure-assisted 1.0 GPF flush, 1,000 gram MaP rating, 17 in. chair-height elongated bowl, 12 in. rough-in, foot-kick flush, and a soft-close seat, helping bath programs move from review to release with fewer scope gaps.
Highlights
- Air-pressure-assisted flush stays strong even on low-pressure supplies
- Water-saving 1.0 GPF with a 1,000 gram MaP performance rating
- Hands-free foot-kick flush sensor plus a side push button
- Low-profile 19.3 in. tankless-look silhouette with fully skirted sides
- Chair-height 17 in. elongated seat eases sitting and standing
- No electrical outlet required; the flush system is fully water powered
- Soft-close seat, wax ring, and mounting hardware included
- WaterSense certified
Specification Table
| Flush rate | 1.0 GPF single flush |
| Flush type | Air-pressure-assisted |
| Flush activation | Foot-kick sensor and side push button |
| Bowl shape | Elongated |
| Seat height | Chair height, 17 in. |
| Rough-in | 12 in. |
| MaP rating | 1,000 grams |
| Configuration | One-piece, fully skirted, concealed trapway |
| Overall dimensions | 19.3 H x 15 W x 26.9 D in. |
| Material | Ceramic |
| Seat included | Yes, soft-close seat and lid |
| Certifications | WaterSense |
| Warranty | 1-year limited warranty |
Included Equipment
- One-piece skirted toilet with internal air-assist flush system
- Soft-close seat and lid
- Wax ring and mounting hardware
- Installation guide
Installation Notes
- Verify the 12 in. rough-in from the finished wall to the closet flange centerline before ordering.
- Supply pressure between 15 and 125 psi is supported; the air-assist system needs no electrical outlet.
- The fully skirted base mounts to standard floor anchoring; confirm flange condition on site.
- Final setting, sealing, and supply connection should be completed by a qualified, licensed plumber.
- Review the final color selection and accessory bundle during quote review before order release.
Warranty and Support
- Published warranty coverage: 1-year limited warranty
- Replacement flush components and seats are supported through quote review
- Final warranty registration and coverage documents are confirmed during quote review
Frequently Asked Questions
Does the foot-kick flush need electricity?
No. The flush system, including the foot-kick sensor, is fully water powered and needs no outlet or batteries.
Will it flush well on low water pressure?
Yes. The published specification summary rates the air-pressure-assisted flush at 1,000 grams MaP across a 15 to 125 psi supply range.
Why is it so short?
The tank is built into the low 19.3 in. skirted chassis, giving a tankless smart-toilet look without wiring.
What should be confirmed before ordering?
Rough-in distance, supply pressure, and the accessory bundle are confirmed during quote review.
